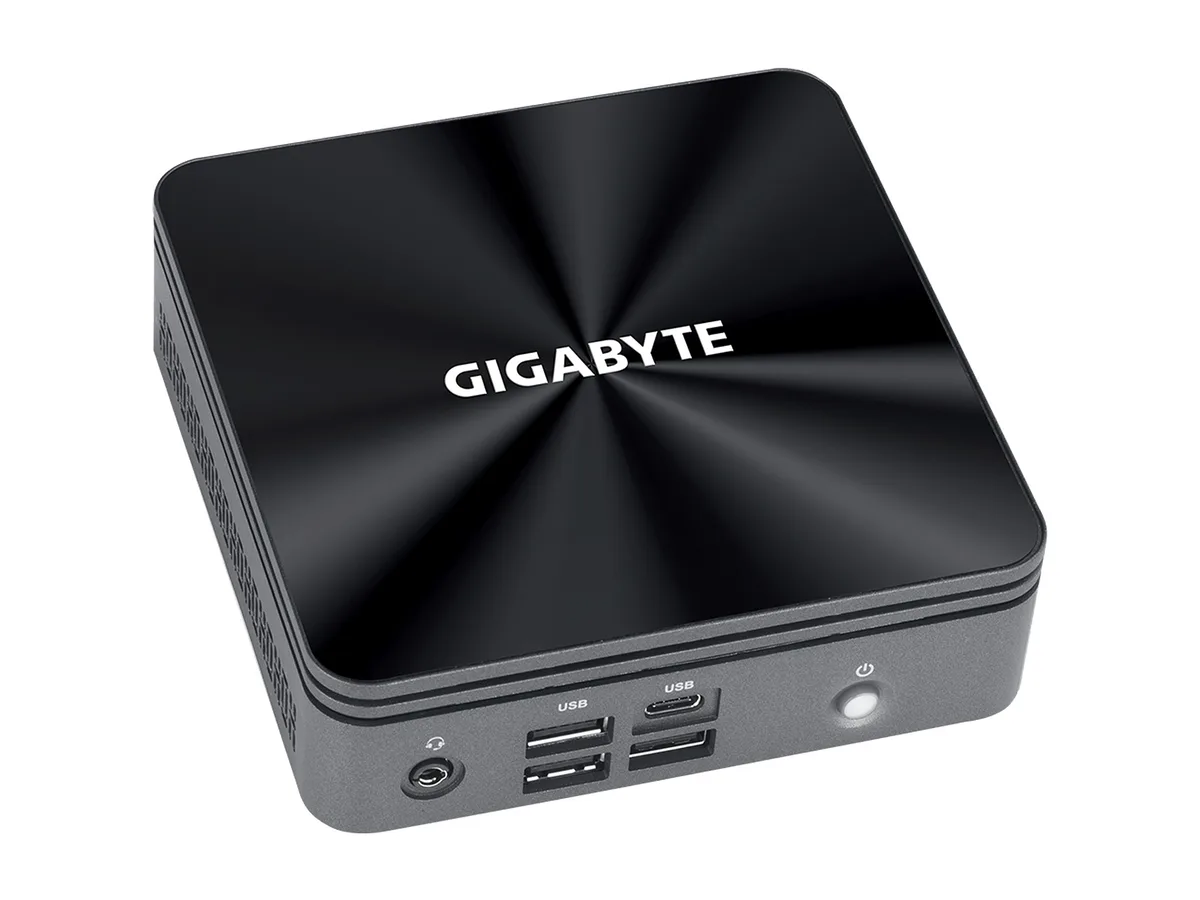

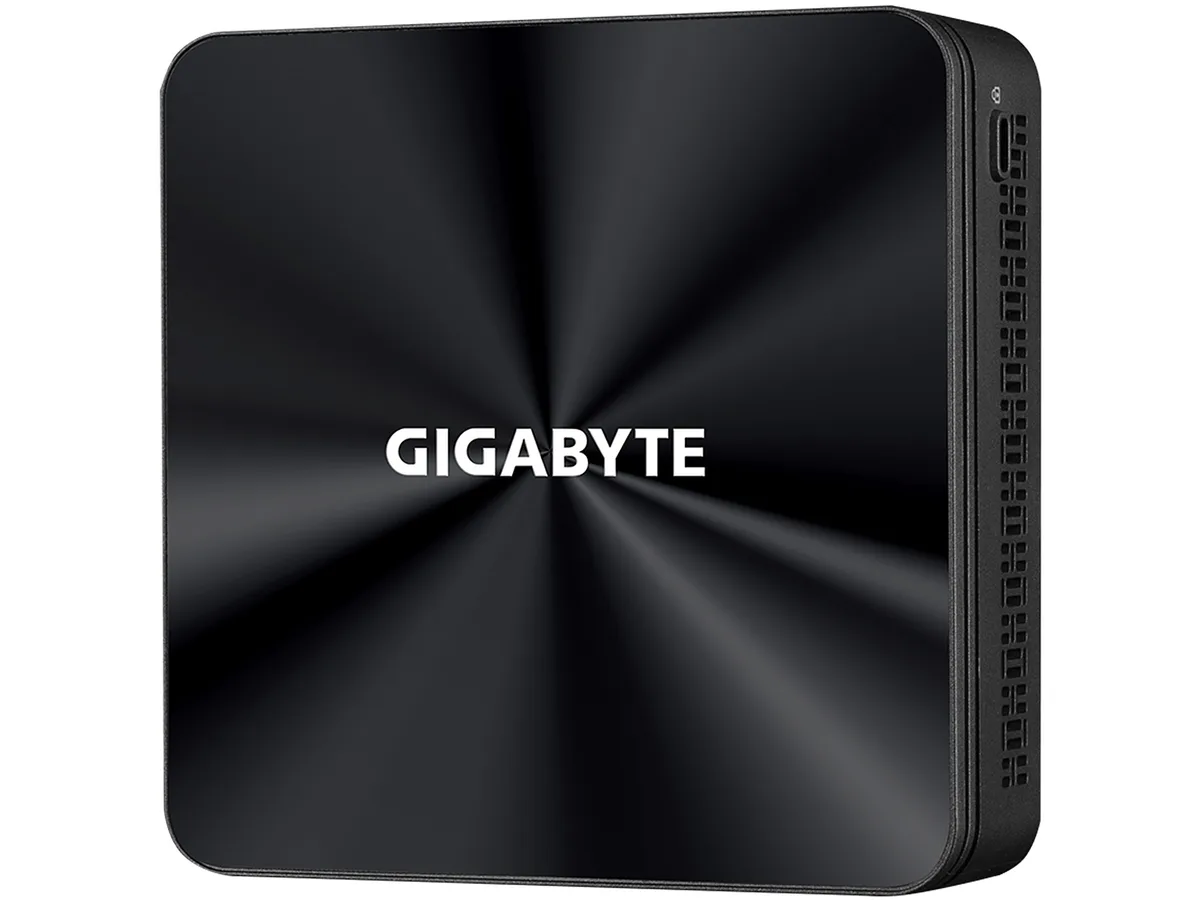

Small square black barebone mini PC, compact booksize chassis

GIGABYTE

GIGABYTE BRI3-10110-BWUS barebone mini PC, Core i3-10110U, DDR4, 2×SO-DIMM, M.2 2280, Wi-Fi 3168, BT 4.2

SKU CH-DNHG-BQ2XM MPN BRI3-10110-BWUS

A compact barebone mini PC with a 10th-generation Intel Core i3-10110U processor, dual-channel DDR4 SO-DIMM slots supporting up to 64 GB, an M.2 2280 slot for PCIe or SATA storage.

  • CPU Type10th Generation Intel Core i3 Processor i3-10110U 4.1GHz, 2
  • Memory installedNo Memory
  • Memory slot2 x 260Pin SO-DIMM
  • Memory Type SupportedDDR4 2666
  • Max Memory Supported64GB
  • Other1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT
  • 10th Gen Intel Core i3 dual-core up to 4.1 GHz for responsive everyday computing
  • Two SO-DIMM slots accept DDR4 2666 memory up to 64 GB total
  • M.2 2280 slot supports PCIe x4 or SATA storage for flexible capacity
  • Dual HDMI 2.0 outputs drive two 4K displays simultaneously
  • Intel Wi-Fi 3168 and Bluetooth 4.2 provide dual-band wireless connectivity

Ready-to-build mini PC with 10th Gen Core i3

The GIGABYTE BRIX BRI3-10110-BWUS is a barebone mini PC built around a 10th Generation Intel Core i3-10110U processor running at 4.1 GHz with a 15 W TDP. It ships without memory or storage, targeting system integrators and enthusiasts who want to choose their own DDR4 SO-DIMMs and M.2 SSD. Integrated Intel UHD Graphics 620 drives up to two displays via HDMI 2.0.

Verify memory type, drive interface

Before ordering, confirm you have DDR4 2666 SO-DIMMs for the two 260-pin slots, which support up to 64 GB total. The single M.2 2280 slot accepts both PCIe x4 and SATA drives, so select a module that matches your preferred protocol. Note that the M.2 2230 A-E key slot is already occupied by the factory-installed Intel Wireless-AC 3168 card providing Wi-Fi and Bluetooth 4.2.

Included adapter and wireless card define

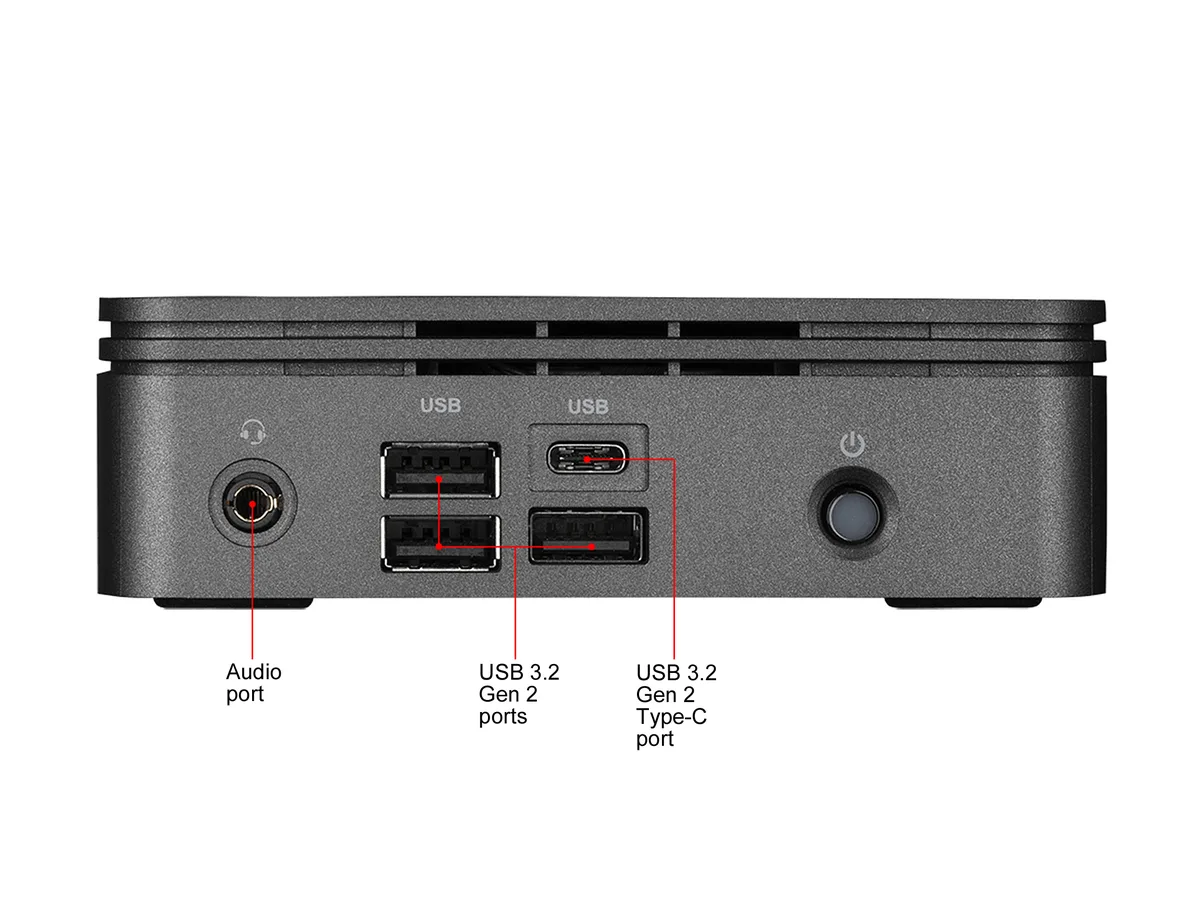

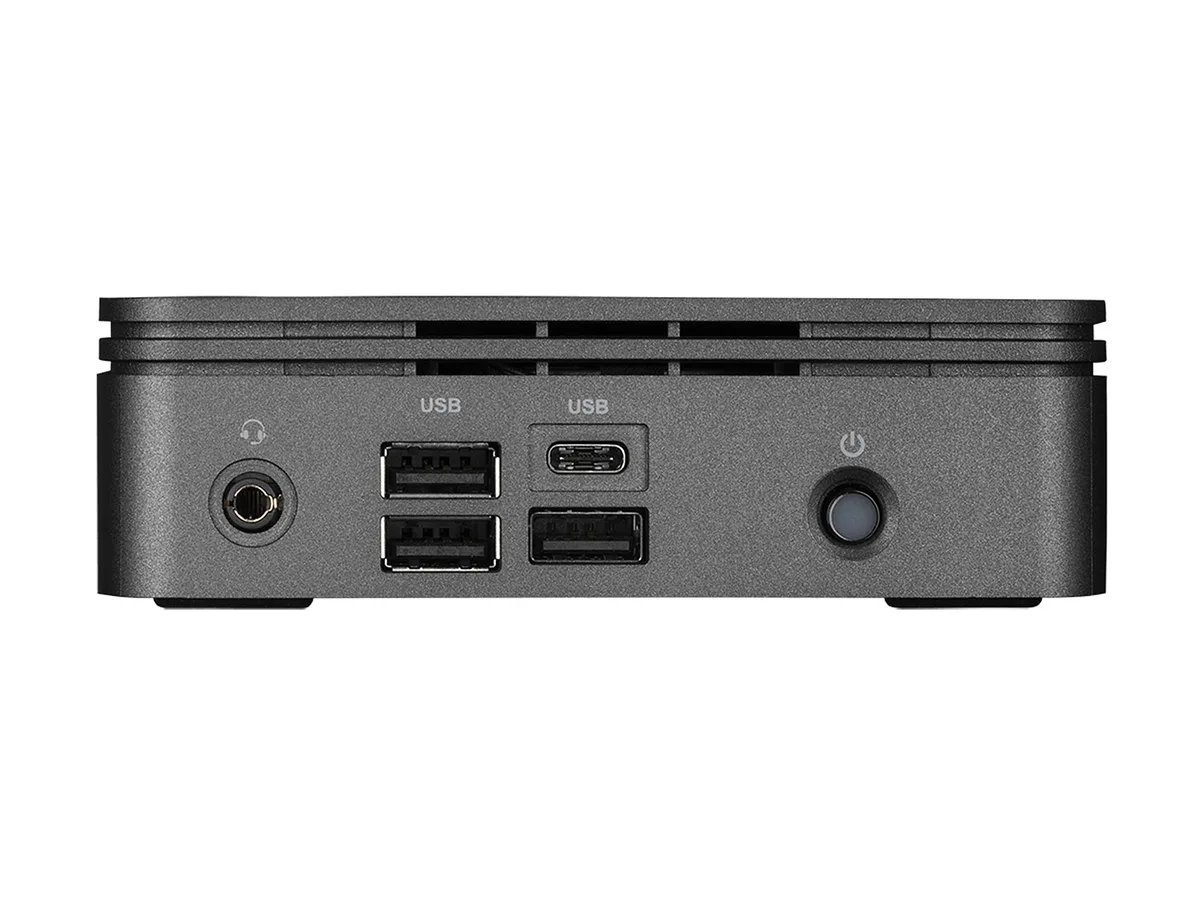

A 19 V 4.74 A DC power adapter is supplied, allowing the unit to run from 100-240 V AC mains without an extra purchase. The pre-installed Intel 3168 module delivers dual-band wireless and Bluetooth 4.2 out of the box, freeing the M.2 2280 slot purely for storage. Front-facing USB 3.2 Gen 2 Type-A and Type-C ports plus a headset jack are ready for peripherals immediately.

Highlights

  • 10th Gen Intel Core i3 dual-core up to 4.1 GHz for responsive everyday computing
  • Two SO-DIMM slots accept DDR4 2666 memory up to 64 GB total
  • M.2 2280 slot supports PCIe x4 or SATA storage for flexible capacity
  • Dual HDMI 2.0 outputs drive two 4K displays simultaneously
  • Intel Wi-Fi 3168 and Bluetooth 4.2 provide dual-band wireless connectivity

Specifications

BrandGIGABYTE
SeriesBRIX
ModelBRI3-10110-BWUS
CPU Type10th Generation Intel Core i3 Processor
i3-10110U 4.1GHz, 2 core (TDP 15W)
Memory installedNo Memory
Memory slot2 x 260Pin SO-DIMM
Memory Type SupportedDDR4 2666
Max Memory Supported64GB
Other1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card
Storage InstalledNo Hard Drive
M.2 Slot1 x M.2 SSD (2280) slot support PCI-e x4/SATA
Integrated GraphicsIntel UHD Graphics 620
Onboard AudioRealtek ALC255
LANIntel i219V
Max LAN Speed1Gbps
Wireless LANIntel Dual Band Wireless-AC 3168
BluetoothBluetooth 4.2
Front USB3 x USB 3.2 Gen 2
1 x USB 3.2 Gen 2 Type C
Front Audio Ports1 x Headphone / Mic Jack

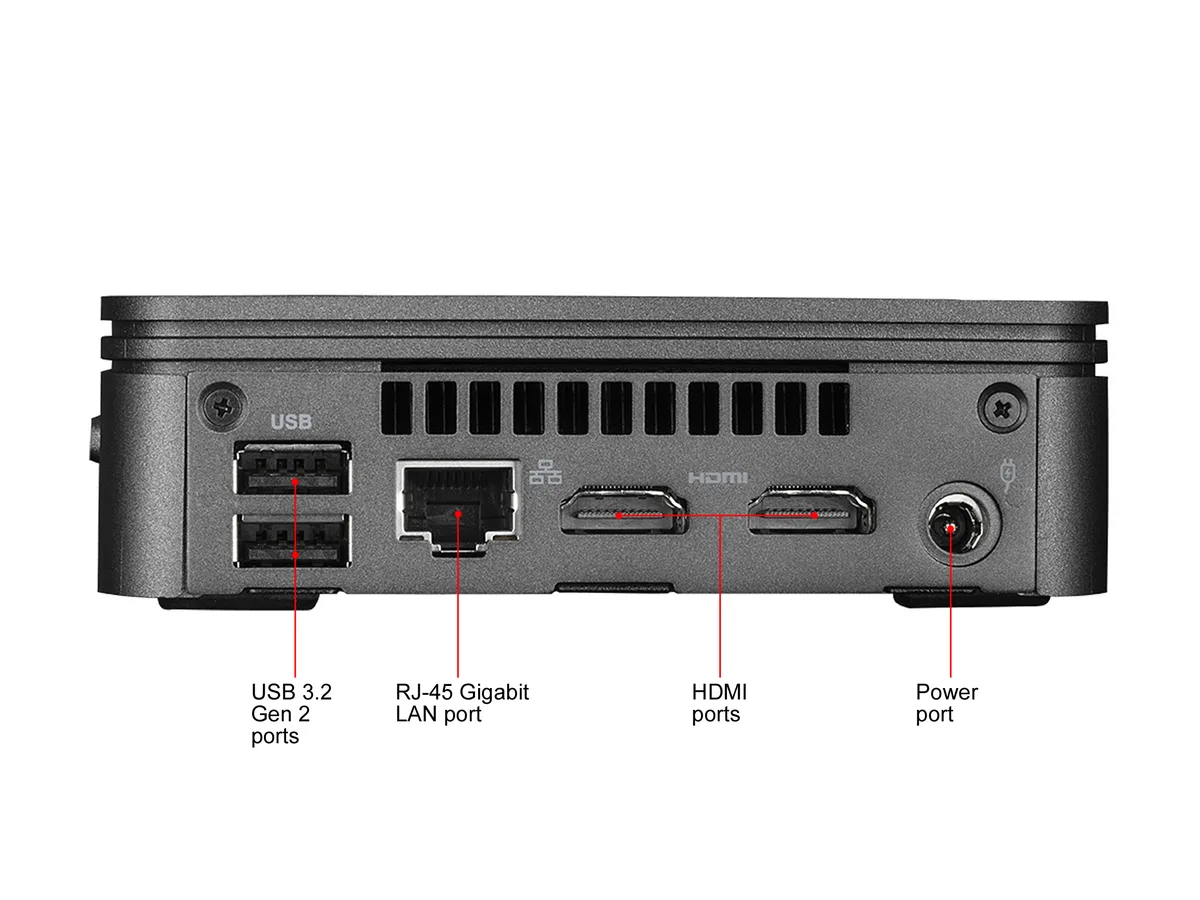

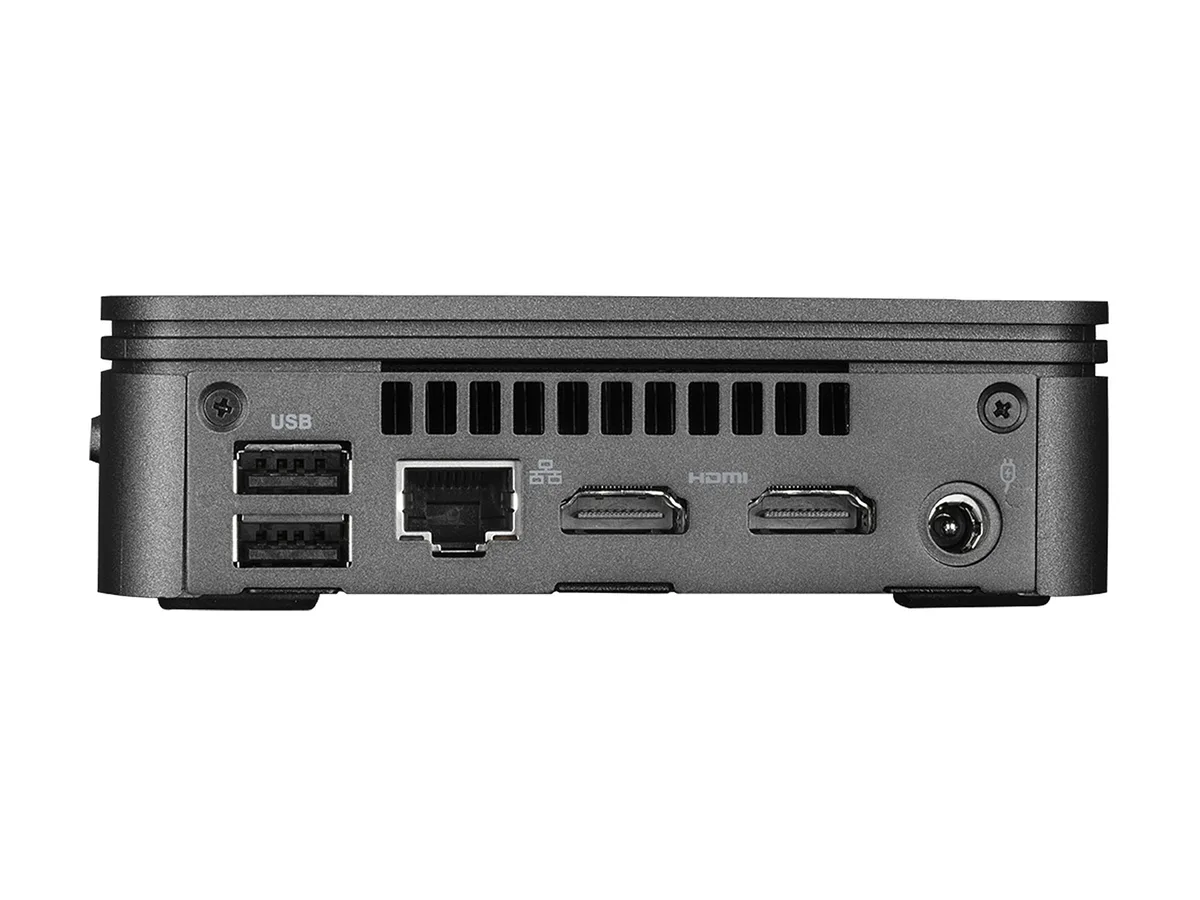

HDMI2 x HDMI 2.0
Rear USB2 x USB 3.2 Gen 2
RJ451
Other Rear Ports1 x DC-In
InputAC 100-240V
Power SupplyOutput: DC 19V
4.74A
Dimensions1.37" x 4.70" x 4.70"
FeaturesHigh Performance Ultra Compact PC (34.7 x 119.5 x 119.5 mm)
Features Intel Core i3-10110U Processors
Dual SO-DIMM DDR4 supports up to 2666MHz, 64GB
Support 1 x M.2 SSD (2280)
Dual HDMI supports resolutions up to 4K/60P
Intel Wireless-AC 3168, dual band WiFi & Bluetooth 4.2
Massive I/O ports, included 6 USB 3.2 Gen2, Gigabit LAN
VESA Mount bracket (75 x 75 mm, 100 x 100 mm)
Shipping weight1.43 kg
Package size286 × 178 × 83 mm

Questions about this item

Does the BRI3-10110-BWUS come with any RAM or an SSD, and what must I add?

The unit ships with no memory and no storage installed. You need to add DDR4 2666 SO-DIMM modules — up to 64 GB across the two slots — and an M.2 2280 drive that uses either PCIe x4 or SATA.

How do I choose between a SATA and a PCIe x4 M.2 2280 drive for this BRIX?

Both interfaces fit the single M.2 2280 slot; a PCIe x4 drive will deliver higher sequential speeds, while a SATA drive is often less expensive and still boots the i3-10110U system reliably.

What does the 4.1 GHz figure mean for everyday workloads on the Core i3-10110U?

4.1 GHz is the maximum single-core turbo frequency; the dual-core processor runs at lower base clocks under sustained loads, so bursty tasks feel snappy while long renders stay within the 15 W TDP envelope.
