GIGABYTE

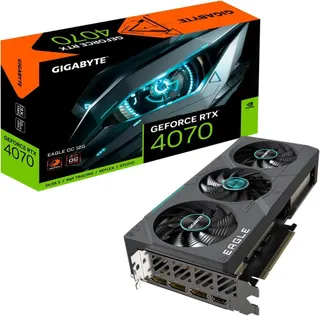

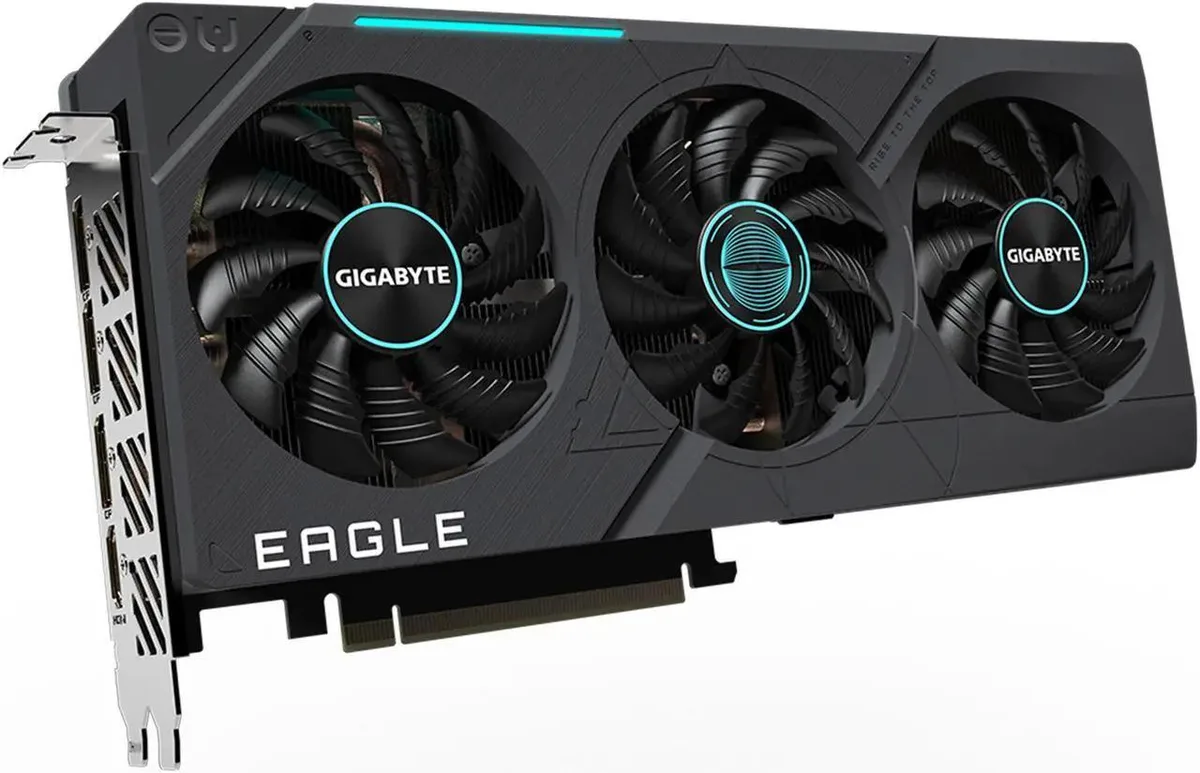

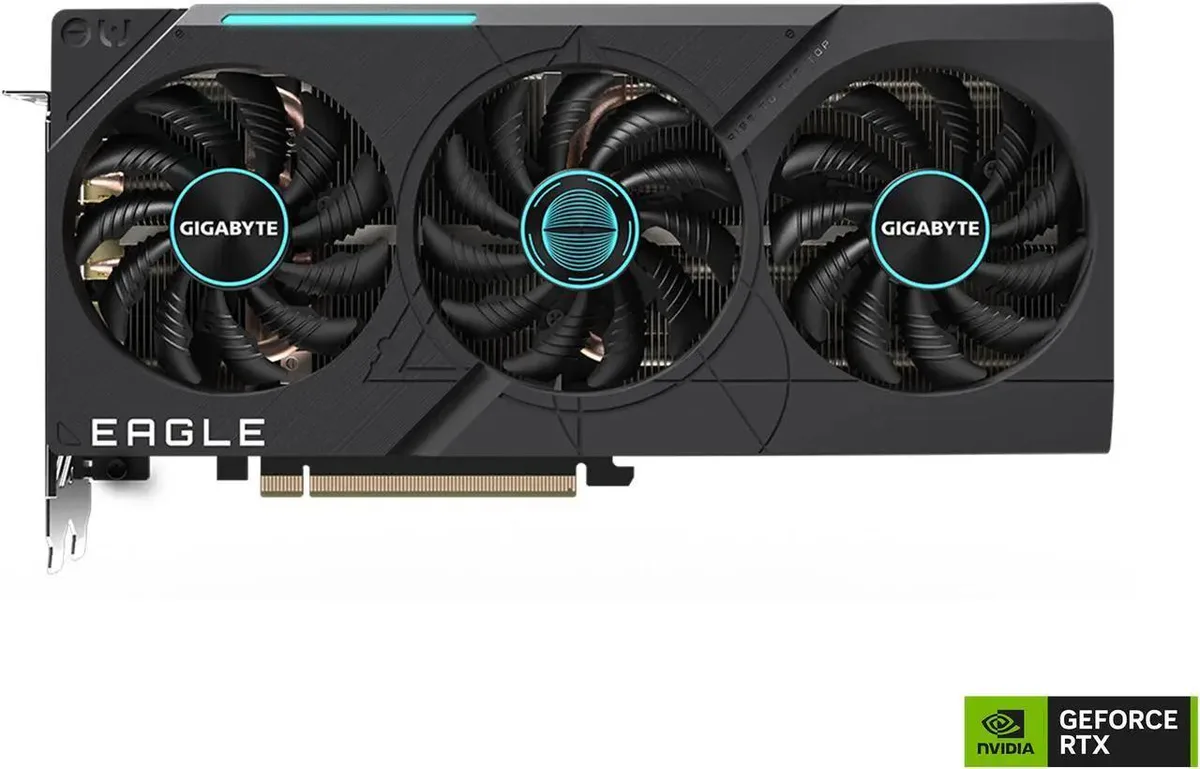

GIGABYTE Eagle GeForce RTX 4070 12GB GDDR6X graphics card
GeForce RTX 4070 graphics card with 12GB GDDR6X memory at 21 Gbps, triple-fan cooler, 200W TDP and four display outputs
- InterfacePCI Express 4.0 x16
- Chipset ManufacturerNVIDIA
- GPU SeriesNVIDIA GeForce RTX 40 Series
- GPUGeForce RTX 4070
- Effective Memory Clock21000 MHz (21 Gbps)
- Memory Size12GB
- 12 GB GDDR6X memory at 21 Gbps for high-speed texture handling
- 192-bit bus delivers broad bandwidth for 1440p and 4K gaming
- Triple-fan cooler keeps the 200 W GPU running quietly under load
- PCI Express 4.0 x16 interface provides full modern platform bandwidth
- HDMI plus three DisplayPort outputs drive up to four 7680 × 4320 displays
Eagle RTX 4070 12 GB
The GIGABYTE Eagle GeForce RTX 4070 is a graphics card built for 1440p gaming and creative workloads. It uses the NVIDIA Ada Lovelace architecture with 12 GB of GDDR6X memory on a 192-bit bus.
12 GB GDDR6X frame buffer
The 12 GB memory capacity handles modern 1440p titles and moderate 4K settings with headroom for texture packs. The 192-bit interface and 21000 MHz effective clock limit throughput at higher resolutions or heavy compute loads.
PCIe 4.0 x16 triple-fan card
The card fits a standard ATX slot and draws up to 200 W through a single 8-pin connector. A 650 W power supply is recommended. One HDMI and three DisplayPort outputs drive up to four monitors at 7680 x 4320.
Highlights
- 12 GB GDDR6X memory at 21 Gbps for high-speed texture handling
- 192-bit bus delivers broad bandwidth for 1440p and 4K gaming
- Triple-fan cooler keeps the 200 W GPU running quietly under load
- PCI Express 4.0 x16 interface provides full modern platform bandwidth
- HDMI plus three DisplayPort outputs drive up to four 7680 × 4320 displays
Specifications
| Brand | GIGABYTE |
|---|---|
| Series | Eagle |
| Interface | PCI Express 4.0 x16 |
| Chipset Manufacturer | NVIDIA |
| GPU Series | NVIDIA GeForce RTX 40 Series |
| GPU | GeForce RTX 4070 |
| Effective Memory Clock | 21000 MHz (21 Gbps) |
| Memory Size | 12GB |
| Memory Interface | 192-Bit |
| Memory Type | GDDR6X |
| DirectX | DirectX 12 |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
| HDMI | 1 x HDMI |
| DisplayPort | 3 x DisplayPort |
| Max Resolution | 7680 x 4320 |
| Cooler | Triple Fans |
| Thermal Design Power | 200W |
| Recommended PSU Wattage | 650W |
| Power Connector | 8-Pin |
| Form Factor | ATX |
| Max GPU Length | 261 mm |
| Slot Width | 2.5 Slots |
Questions about this item
Will the PCI Express 4.0 x16 interface run at full speed on my older motherboard that only has PCIe 3.0 slots?
The card is compatible with PCIe 3.0 slots and will operate at PCIe 3.0 x16 speeds, which provides ample bandwidth for the RTX 4070 GPU.
How can I verify the 21000 MHz memory clock and 200W power draw are active after installing the card?
Use GPU monitoring software such as GPU-Z or MSI Afterburner to confirm the memory runs at 21 Gbps and the board power draw reaches 200W under load.
Does the box include the 8-pin power cable and the HDMI or DisplayPort cables needed for my monitors?
The card ships with a quick-install guide and a metal support bracket; 8-pin power cables come from your power supply and display cables come with your monitors.
