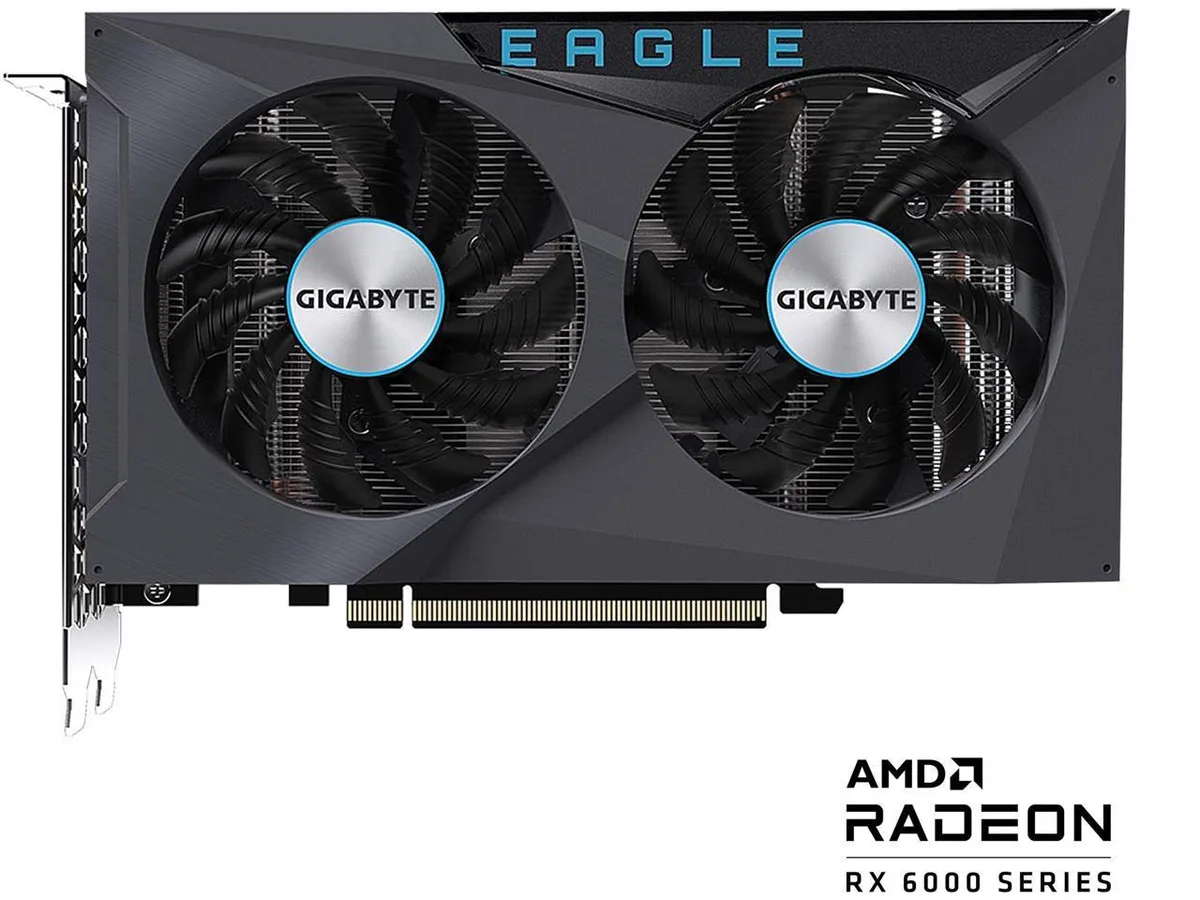

Gigabyte Eagle RX 6500 XT dual-fan graphics card with black shroud and silver backplate

GIGABYTE

GIGABYTE Eagle Radeon RX 6500 XT 4GB graphics card

SKU CH-ZJR1-K5A4A

Entry-level 4 GB GDDR6 GPU with 1024 stream processors, 2815 MHz boost clock, HDMI 2.1, DisplayPort 1.4a and dual-fan cooling

  • InterfacePCI Express 4.0
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 6000 Series
  • GPURadeon RX 6500 XT
  • ArchitectureRDNA 2
  • Game Clock2610 MHz
  • 4GB GDDR6 memory with 64-bit bus for 1080p gaming
  • Boost clock reaches 2815 MHz for higher frame rates
  • WINDFORCE 2X dual-fan cooler with alternate spinning dissipates heat efficiently
  • PCI Express 4.0 interface doubles bandwidth versus 3.0
  • HDMI 2.1 and DisplayPort 1.4a drive two high-refresh displays

Eagle RX 6500 XT 4GB — entry 1080p GPU

The GIGABYTE Eagle Radeon RX 6500 XT 4GB is a graphics card built on the AMD RDNA 2 architecture for 1080p gaming. It uses a Radeon RX 6500 XT chip with 1024 stream processors and a boost clock of 2815 MHz. The 4GB GDDR6 frame buffer runs on a 64-bit bus at 18000 MHz effective.

Check PCIe 4.0 slot and 650 W PSU

Verify that the motherboard provides a PCI Express 4.0 slot and that the power supply delivers at least 650 W with a 6-pin PCIe connector. The card supports DirectX 12 Ultimate and OpenGL 4.6 for modern titles. Two display outputs allow dual-monitor configurations.

Dual-fan WINDFORCE cooler with HDMI 2.1

The WINDFORCE 2X cooling system uses two alternate-spinning blade fans, composite copper heat pipes, a copper base plate and 3D active fan control for efficient heat dissipation. One HDMI 2.1 port and one DisplayPort 1.4a handle up to two monitors. ATX form factor fits standard chassis.

Highlights

  • 4GB GDDR6 memory with 64-bit bus for 1080p gaming
  • Boost clock reaches 2815 MHz for higher frame rates
  • WINDFORCE 2X dual-fan cooler with alternate spinning dissipates heat efficiently
  • PCI Express 4.0 interface doubles bandwidth versus 3.0
  • HDMI 2.1 and DisplayPort 1.4a drive two high-refresh displays

Specifications

BrandGIGABYTE
SeriesEagle
ModelGV-R65XTEAGLE-4GD
InterfacePCI Express 4.0
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 6000 Series
GPURadeon RX 6500 XT
ArchitectureRDNA 2
Game Clock2610 MHz
Boost Clock2815 MHz
Stream Processors1024
Effective Memory Clock18000 MHz
Memory Size4GB
Memory Interface64-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support2
HDMI1 x HDMI 2.1
DisplayPort1 x DisplayPort 1.4a
Max Resolution7680 x 4320
Thermal Design Power107W
Recommended PSU Wattage400W
Power Connector6-Pin
Form FactorATX
Max GPU Length192 mm

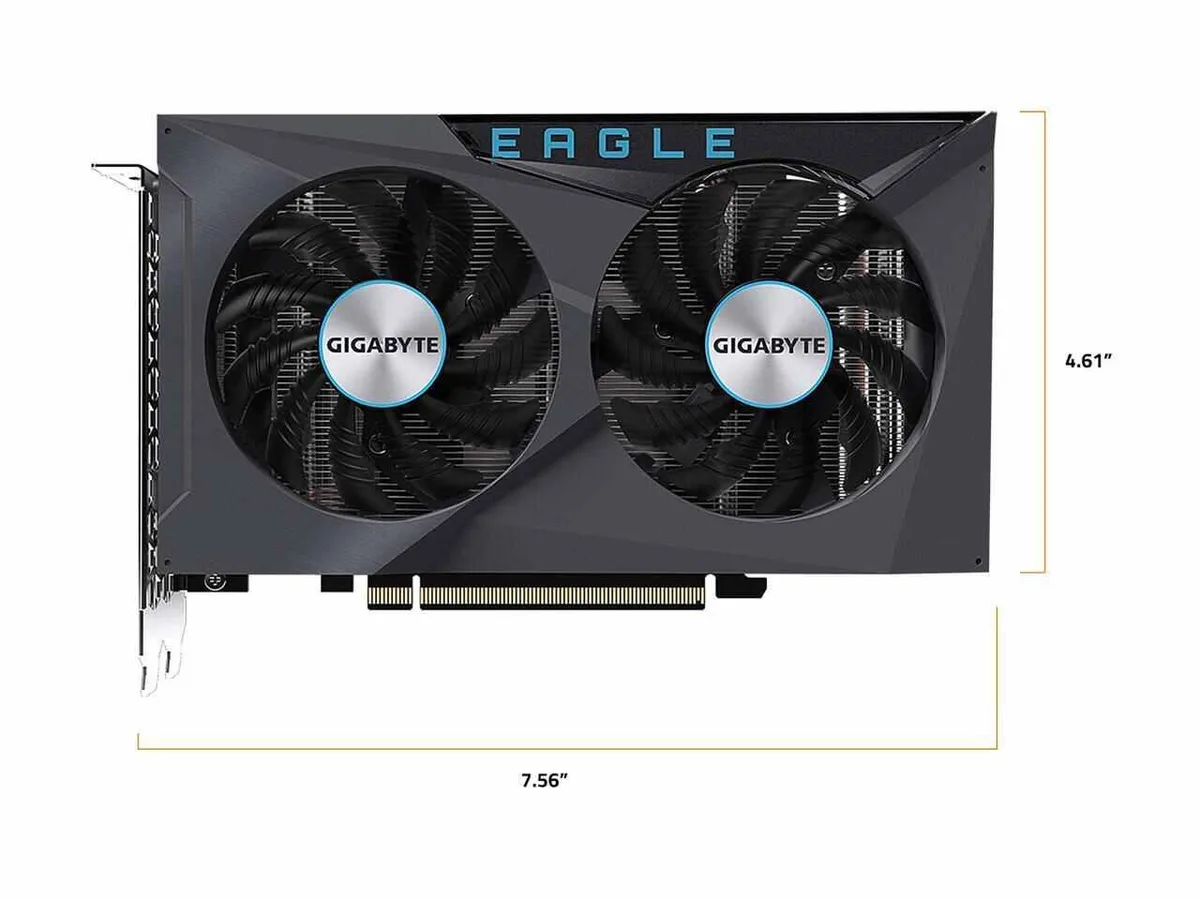

Card Dimensions (L x H)7.56" x 4.61"
Slot Width2 Slots
Package ContentsAccessories
Quick guide

Questions about this item

Does the GV-R65XTEAGLE-4GD include any cables or adapters in the box, or do I need to buy a separate DisplayPort or HDMI cable?

The card ships with the WINDFORCE 2X cooler and a quick-install guide; cables are not included, so you will need a DisplayPort 1.4a or HDMI 2.1 cable that matches your monitor.

Should I choose the 4 GB 64-bit GDDR6 version or look for a larger frame buffer for 1080p gaming?

The 4 GB 64-bit GDDR6 configuration suits entry-level 1080p titles and esports games; if you target newer AAA releases at high texture settings, a card with more memory would be more comfortable.

What does the 2815 MHz boost clock mean once the Radeon RX 6500 XT is installed in my PCIe 4.0 slot?

The 2815 MHz boost clock is the peak frequency the 1024 stream processors can reach under load, delivering the performance level AMD defines for the RX 6500 XT when the board runs on a PCIe 4.0 link.
