ATX motherboard, black PCB with gold accents, LGA 1150 socket, four DDR3 slots, PCIe x16 slot, rear I/O panel visible

GIGABYTE

GIGABYTE G1.Sniper B6 rev.1.0 Intel motherboard

SKU CH-FF5G-D2M5N

LGA 1150 ATX board with Intel B85 chipset, four DDR3 slots for 32 GB, one PCI Express x16 slot, four SATA III and two SATA II ports, Realtek ALC1150 audio with TI OPA2134 amplifier.

  • CPU Socket TypeLGA 1150
  • CPU Type1. Support LGA1150 slot processor: Intel Core ™ i7 processor
  • ChipsetIntel B85
  • Maximum Memory Supported32GB
  • PCI Slots1 PCI Express x16 slot, supporting x16 operating specificati
  • SATA RAID1XM.2 interface, 4xSATA III interface, 2xSATA II interface
  • Supports 4th-gen Intel CPUs with LGA 1150 socket
  • Up to 32GB DDR3 memory across four DIMM slots
  • Intel B85 chipset delivers stable platform performance
  • Premium audio via Realtek ALC1150 and TI Burr Brown OPA2134 amplifier
  • Gigabit LAN and USB 3.0 for fast wired connectivity

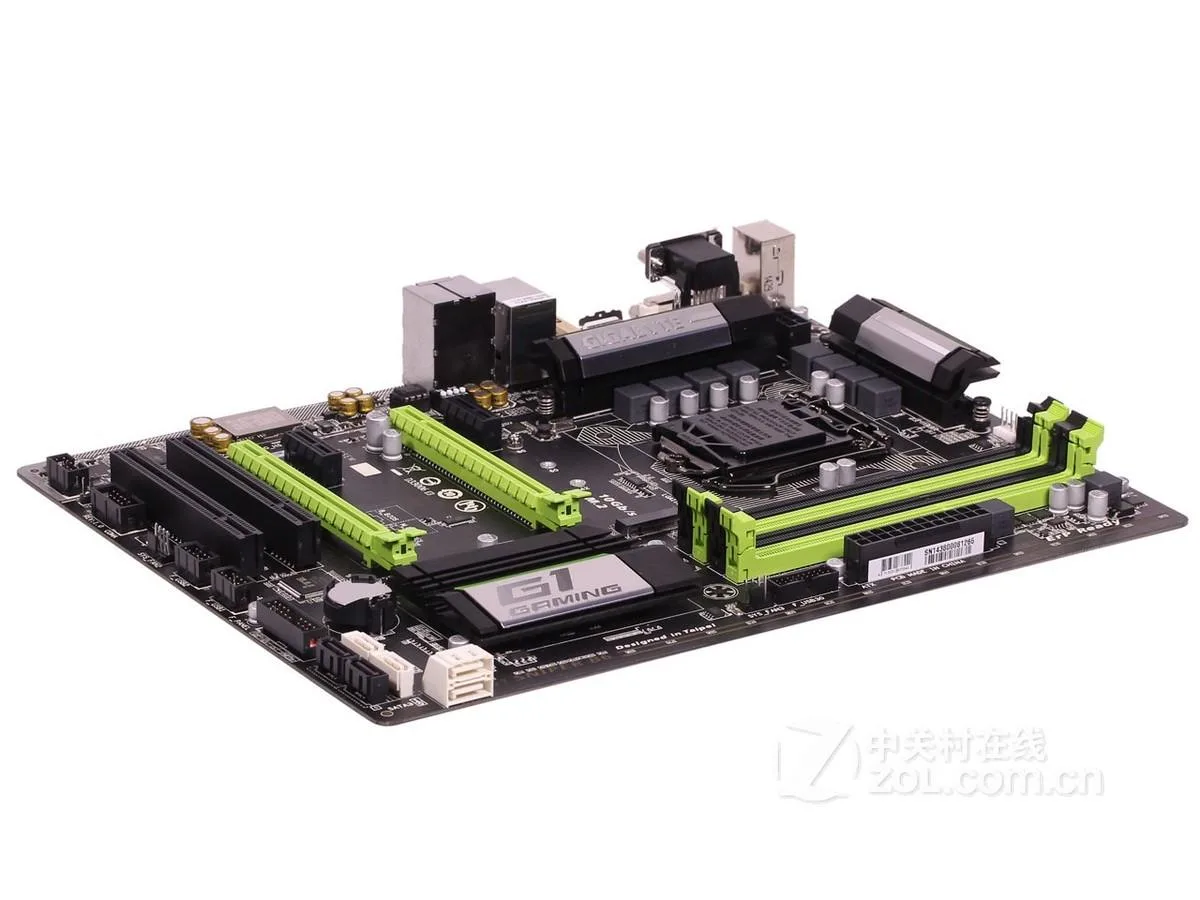

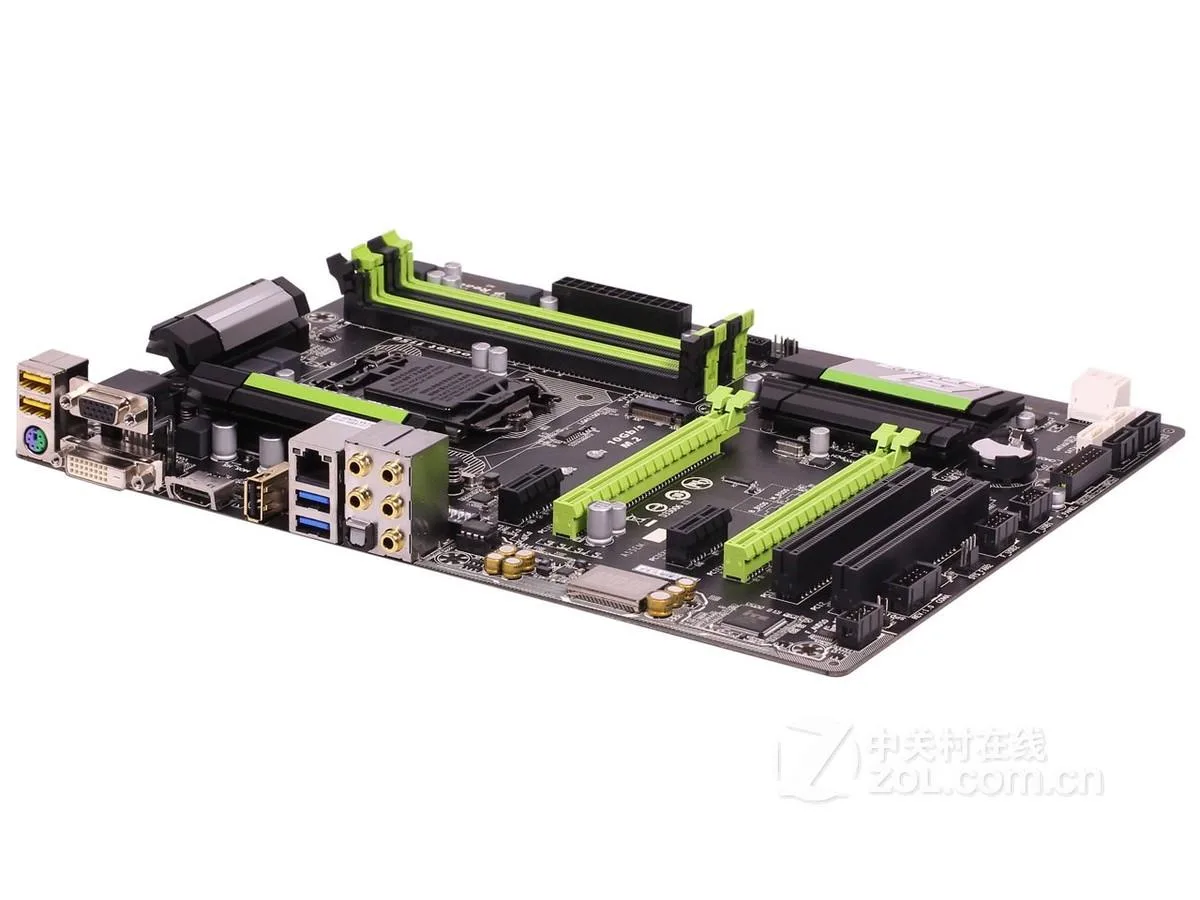

GIGABYTE G1.Sniper B6 LGA 1150 ATX Motherboard

This ATX motherboard uses the Intel B85 chipset and an LGA 1150 socket for 4th and 5th generation Intel Core i7, i5, i3, Pentium and Celeron processors. It provides four DDR3 DIMM slots supporting up to 32 GB of system memory and a single PCI Express x16 slot for a graphics card.

Suited for LGA 1150 DDR3 builds, not newer platforms

The board fits users replacing a failed LGA 1150 motherboard or assembling a budget system with existing DDR3 modules and a compatible Intel CPU. Builders who need a modern socket, newer memory standards or additional high-speed storage interfaces should select a different platform.

Four DDR3 slots with 32 GB maximum memory

Four DDR3 DIMM slots accept up to 32 GB total capacity, which is the decisive specification for memory planning. If the intended build requires more memory or a different memory type, this motherboard will not meet that requirement.

Highlights

  • Supports 4th-gen Intel CPUs with LGA 1150 socket
  • Up to 32GB DDR3 memory across four DIMM slots
  • Intel B85 chipset delivers stable platform performance
  • Premium audio via Realtek ALC1150 and TI Burr Brown OPA2134 amplifier
  • Gigabit LAN and USB 3.0 for fast wired connectivity

Specifications

BrandGIGABYTE
SeriesGIGABYTE G1.Sniper B6(rev.1.0)
ModelGIGABYTE G1.Sniper B6(rev.1.0)
CPU Socket TypeLGA 1150
CPU Type1. Support LGA1150 slot processor: Intel Core ™ i7 processor/Intel Core ™ i5 processor/Intel Core ™ i3 processor/Intel Pentium processor/Intel Celeron processor
2. L3 cache depends on CPU
ChipsetIntel B85
Maximum Memory Supported32GB
PCI Slots1 PCI Express x16 slot, supporting x16 operating specifications (PCIEX16)
To maximize the performance of the graphics card, it is necessary to install it in the PCIEX16 slot when installing a graphics card.
(PCIEX16 slot supports PCI Express 3.0)
1 PCI Express x16 slot, supporting x4 operating specifications (PCIEX4)
Due to the shared bandwidth between the M.2 socket and the PCIEX4 socket, when the M.2 socket has an SSD installed, the PCIEX4 socket operates at a maximum bandwidth of x2.
3. 2 PCI Express x1 slots
(All Express x1 slots and PCIEX4 support PCI Express 2.0)
4. 2 PCI slots
SATA RAID1XM.2 interface, 4xSATA III interface, 2xSATA II interface
Audio Chipset1. Built-in Realtek ALC1150 chip ®
Built-in TI Burr Brown OPA2134 sound amplifier chip ®
3. Support High Definition Audio
4. Support 2/4/5 1/7.1 channels
5. Support S/PDIF output
LAN ChipsetBuilt-in Intel GbE network chip (10/100/1000 Mbit)
Onboard USBBuilt-in chipset:
1.4 USB 3.0/2 ports (2 on the rear panel, 2 to be connected from the USB socket in the main board via cable)
2.7 USB 2.0/1 ports (3 on the rear panel, 4 to be connected from the USB socket in the main board via cable)

Questions about this item

Which processor socket must my CPU match for this LGA 1150 board?

The board uses an LGA 1150 socket that accepts Intel Core i7, i5, i3, Pentium and Celeron processors designed for that socket.

Will my existing DDR3 memory modules work with the four DIMM slots on this Intel B85 motherboard?

Yes, the four DDR3 DIMM slots support up to 32 GB total capacity using standard DDR3 modules.

How can I confirm the onboard Intel GbE LAN and Realtek ALC1150 audio are functioning after assembly?

Check Device Manager for the Intel Gigabit Ethernet adapter and Realtek High Definition Audio device without error codes, then test network link lights and audio playback.
