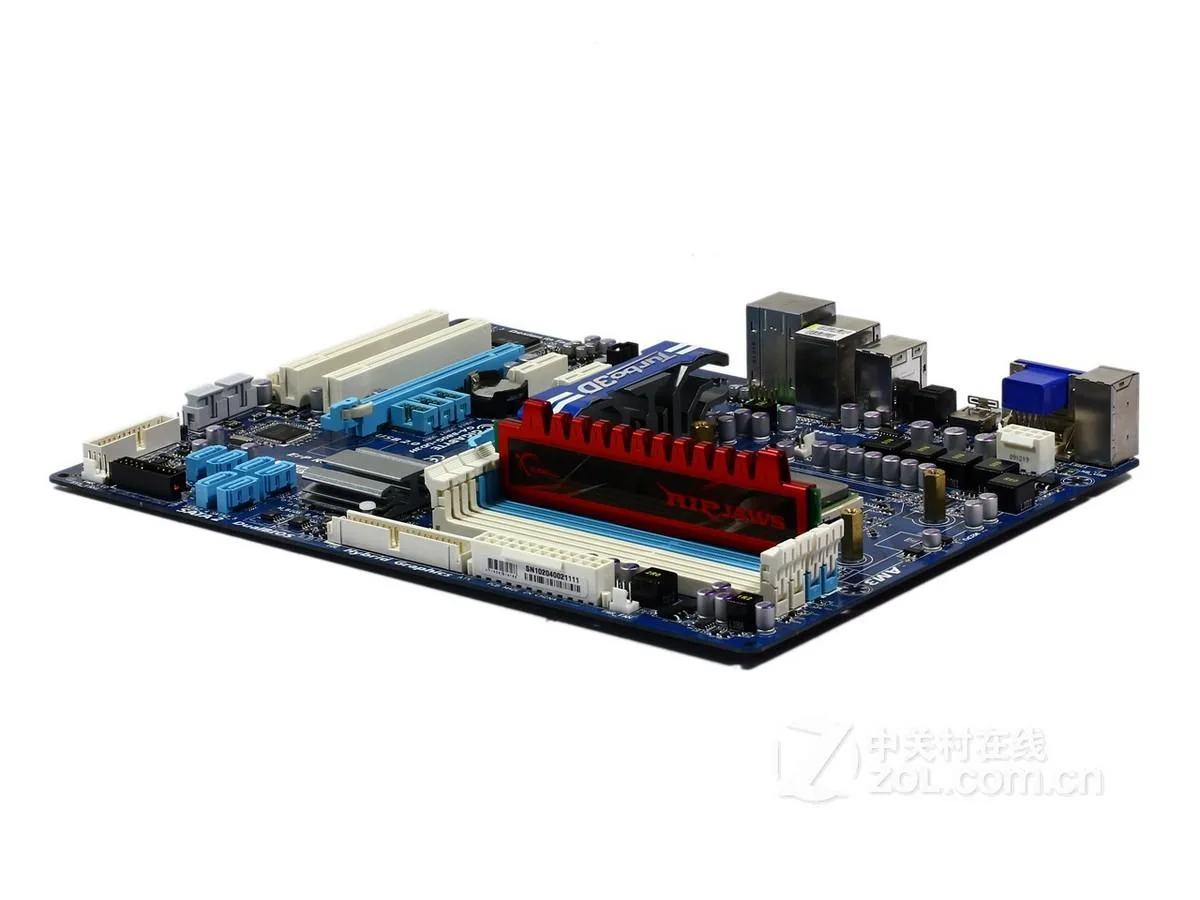

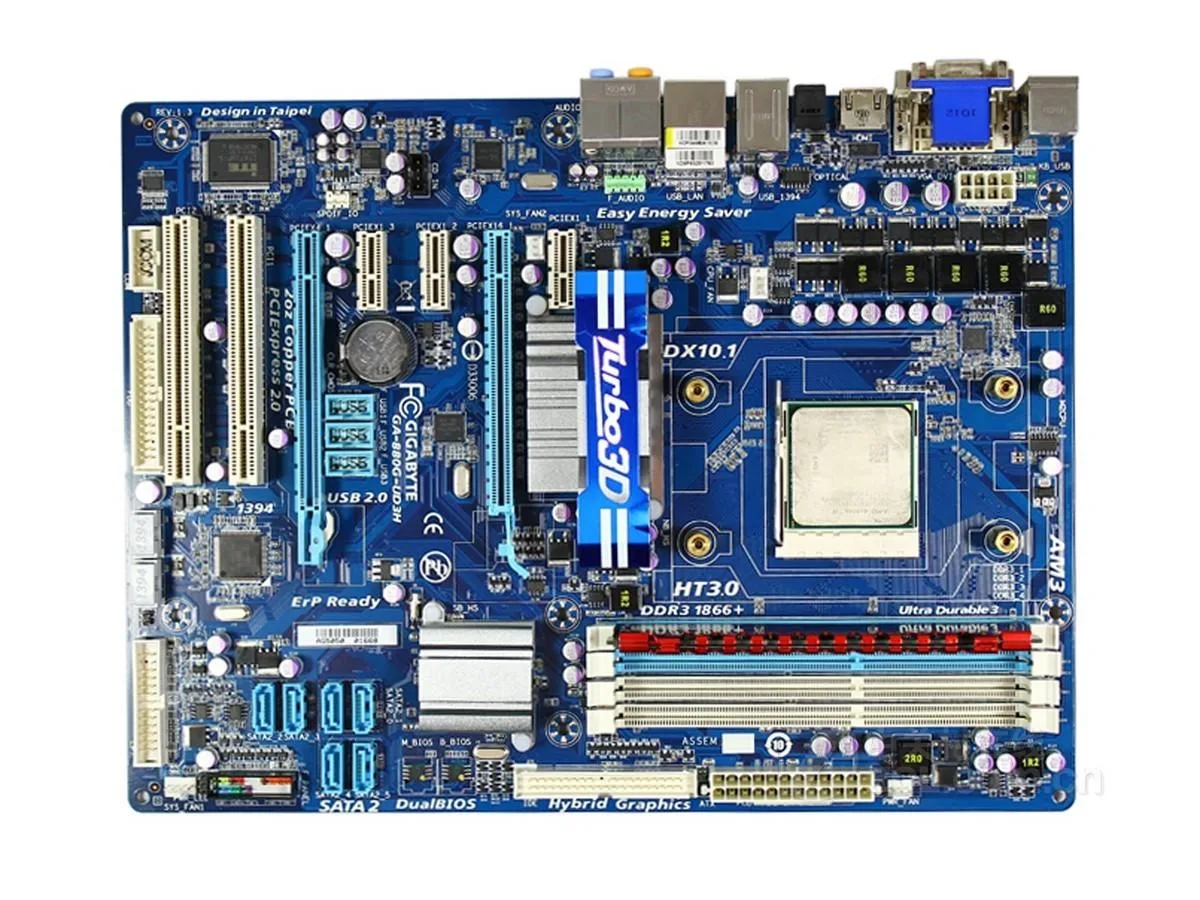

ATX motherboard with AM3 socket, four DDR3 slots, blue PCB and black heatsinks

GIGABYTE

GIGABYTE GA-880G-UD3H AMD 880G motherboard

SKU CH-6A12-124J5

Socket AM3 board with AMD 880G chipset, 16 GB DDR3, two PCIe x16 slots, six SATA ports, Realtek ALC892 audio and gigabit LAN

  • ChipsetAMD 880G
  • Maximum Memory Supported16GB
  • PCI Slots1 PCI Express x16 slot, supporting X16 operating specificati
  • SATA RAID6XSATA II interface
  • Audio Chipset1. Built-in Realtek ALC892 chip 2. Support High Definition A
  • LAN ChipsetBuilt-in Realtek 8111D/E chip (10/100/1000 Mbit)
  • Supports up to 16GB DDR3 memory capacity
  • AMD 880G chipset with integrated graphics
  • Realtek ALC892 audio delivers 7.1 channel surround sound
  • Gigabit LAN via Realtek 8111 controller
  • 12 USB 2.0 ports for extensive connectivity

Socket AM3 AMD 880G motherboard

This ATX board uses the AMD 880G chipset and accepts Socket AM3 processors. Four DDR3 DIMM slots support up to 16GB of system memory. It is aimed at builders upgrading or repairing an existing AM3 platform.

Straightforward ATX installation

The board follows the standard ATX 30.5x22.9cm layout and fits regular mounting points. One PCI Express x16 slot runs at X16, a second x16 slot runs at X4, and three x1 slots are available. Note that PCIEX1_2 and PCIEX1_3 share bandwidth with the X4 slot, so populating all may reduce throughput. Six SATA II ports and twelve USB 2.0 ports (six rear, six via headers) provide ample connectivity.

Verify AM3 CPU and DDR3 memory before ordering

Confirm your processor is a Socket AM3 model and that you have DDR3 modules, as other types are not supported. The Realtek ALC892 audio codec delivers 7.1 channel HD audio with Dolby Home Theater support, and the Realtek 8111D/E LAN controller provides 10/100/1000 Mbit networking. The package includes the motherboard, one SATA cable and the I/O shield only.

Highlights

  • Supports up to 16GB DDR3 memory capacity
  • AMD 880G chipset with integrated graphics
  • Realtek ALC892 audio delivers 7.1 channel surround sound
  • Gigabit LAN via Realtek 8111 controller
  • 12 USB 2.0 ports for extensive connectivity

Specifications

BrandGIGABYTE
SeriesGIGABYTE GA-880G-UD3H
ChipsetAMD 880G
Maximum Memory Supported16GB
PCI Slots1 PCI Express x16 slot, supporting X16 operating specification (PCIEX16)
2. 1 PCI Express x16 slot, supporting X4 operating specification (PCIEX4)
3 PCI Express x1 slots (PCIEX1_2, PCIEX1_3 share bandwidth with PCIEX4 slots)
(All PCI Express slots support PCI Express 2.0)
4. 2 PCI slots
SATA RAID6XSATA II interface
Audio Chipset1. Built-in Realtek ALC892 chip
2. Support High Definition Audio
3. Support 2/4 /5.1/7.1 channels
4. Support Dolby Home Theater Dolby surround sound technology ®
5. Support S/PDIF input/output
6. Support CD audio input
LAN ChipsetBuilt-in Realtek 8111D/E chip (10/100/1000 Mbit)
Onboard USBBuilt-in Nanqiao chip:
Up to 12 USB 2.0/1 ports (6 on the rear panel, 6 to be connected from the USB socket in the main board via cable)

Questions about this item

Which CPUs fit the Socket AM3 on this board?

The board accepts Socket AM3 processors; match the CPU power envelope to the board's VRM cooling capacity.

How much DDR3 memory can I install and in what layout?

Four DDR3 DIMM slots support up to 16 GB total; populate in matched pairs for dual-channel operation.

What expansion cards can I run in the PCI Express slots?

One x16 slot runs at x16, a second x16 slot runs at x4, and three x1 slots are available; the two x1 slots share bandwidth with the x4 slot.
