Green micro-ATX board with silver I/O shield, black slots and blue SATA ports

GIGABYTE

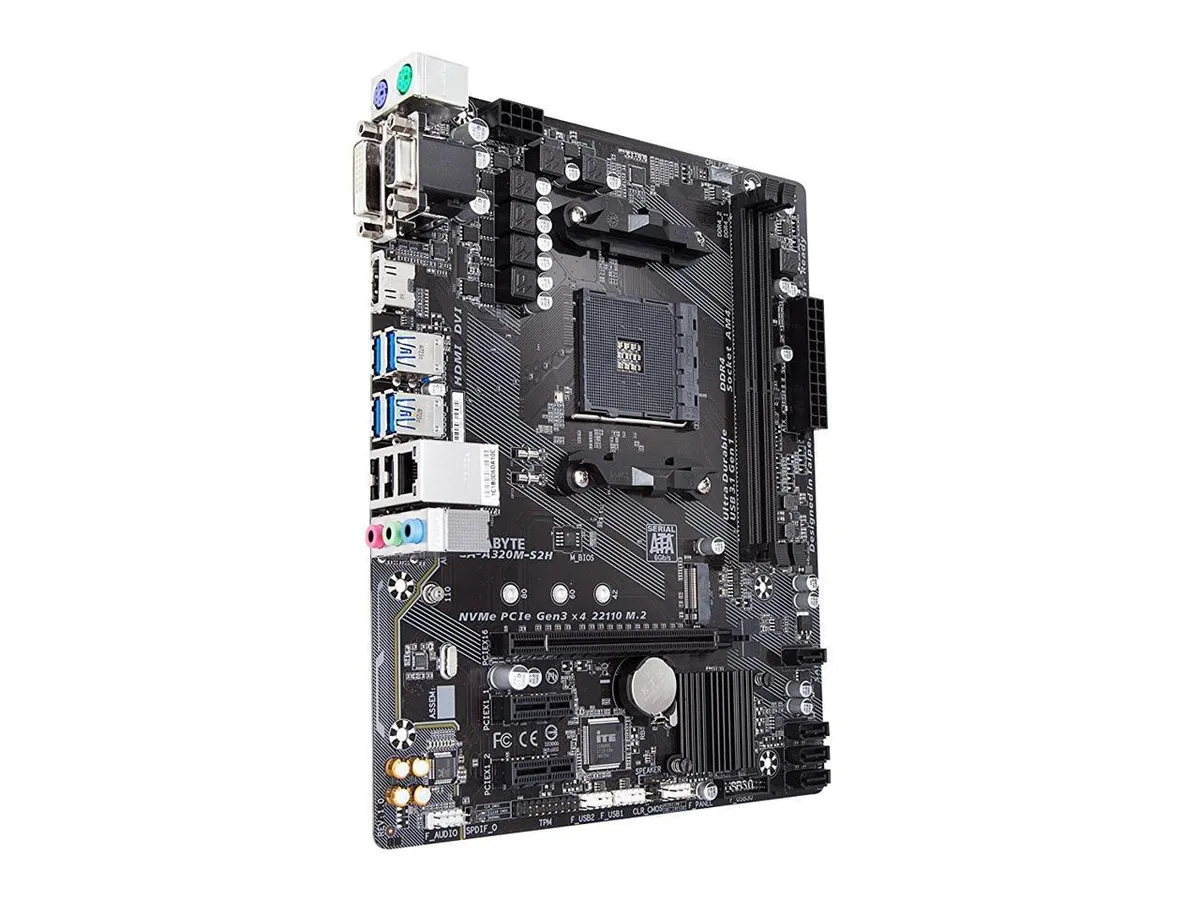

GIGABYTE GA-A320M-S2H_UA AMD motherboard

SKU CH-BP01-6NTDC MPN GA-A320M-S2H_UA

Micro-ATX AM4 board with HDMI, DVI-D, D-Sub, two DDR4 slots up to 64 GB, four SATA 6 Gb/s ports, RAID 0/1/10 and Realtek Gigabit LAN

  • Supports up to 64 GB DDR4 memory for multitasking headroom
  • AMD A320 chipset with AM4 socket fits Ryzen and Athlon CPUs

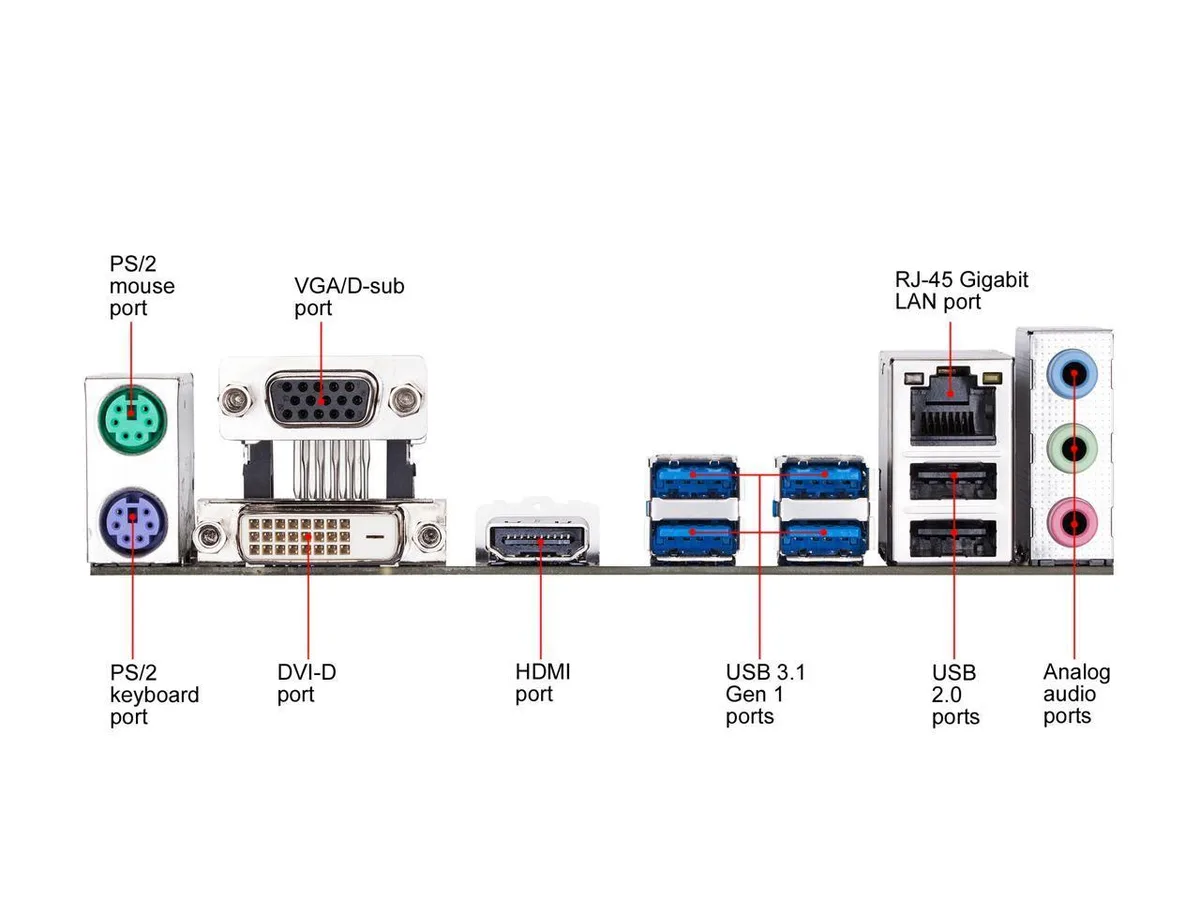

  • Three video outputs — HDMI, DVI-D and D-Sub — drive multiple displays
  • Realtek Gigabit LAN delivers 10/100/1000 Mbit wired connectivity
  • Four SATA 6Gb/s ports plus RAID 0, 1, 10 for flexible storage

Socket AM4 Foundation

This micro-ATX board uses the AMD A320 chipset and a Socket AM4 interface to support a wide range of Ryzen and Athlon processors. It provides a compact platform for everyday desktop builds, office workstations or entry-level gaming systems. Two DDR4 slots accept up to 64GB of system memory.

Steady-State Operation

The 8-pin ATX 12V connector and dedicated CPU fan header deliver stable power and active cooling during extended workloads. A single system fan header allows additional airflow for sustained thermal management. Realtek Gigabit LAN maintains consistent network throughput at 10, 100 or 1000 Mbit without thermal throttling.

Dual-Channel Memory Limit

Only two memory slots are available, capping total capacity at 64GB and restricting upgrades to a dual-channel configuration. Builders who need four populated slots or higher total memory must choose a different form factor.

Highlights

  • Supports up to 64 GB DDR4 memory for multitasking headroom
  • AMD A320 chipset with AM4 socket fits Ryzen and Athlon CPUs
  • Three video outputs — HDMI, DVI-D and D-Sub — drive multiple displays
  • Realtek Gigabit LAN delivers 10/100/1000 Mbit wired connectivity
  • Four SATA 6Gb/s ports plus RAID 0, 1, 10 for flexible storage

Specifications

No published specifications for this item yet.

Questions about this item

How much power does the 8-pin ATX 12V connector draw when the system runs continuously?

The board uses an 8-pin ATX 12V connector alongside a 24-pin main power connector; actual draw depends on the installed CPU and workload, not the motherboard alone.

Which memory kit do I need to reach the 64GB maximum on the two slots?

Two DDR4 SDRAM modules, each up to 32GB, are required to populate both slots and hit the 64GB limit.

Can I keep my SATA 6Gb/s drives and use the M.2 Socket 3 connector at the same time?

Yes, four SATA 6Gb/s connectors and one M.2 Socket 3 connector are all available simultaneously for mixed storage.
