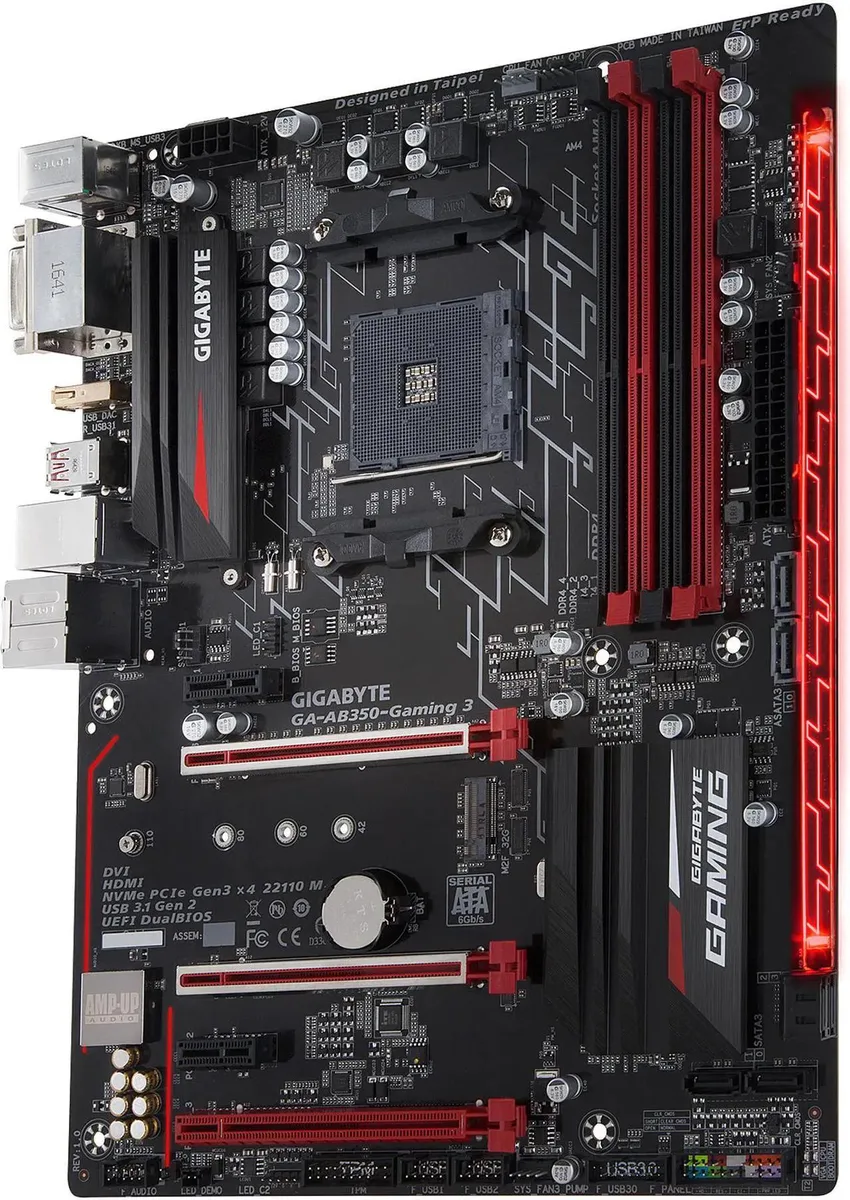

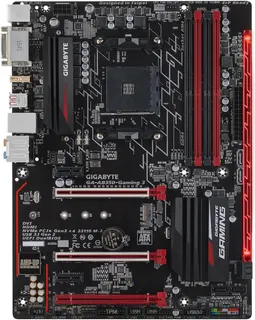

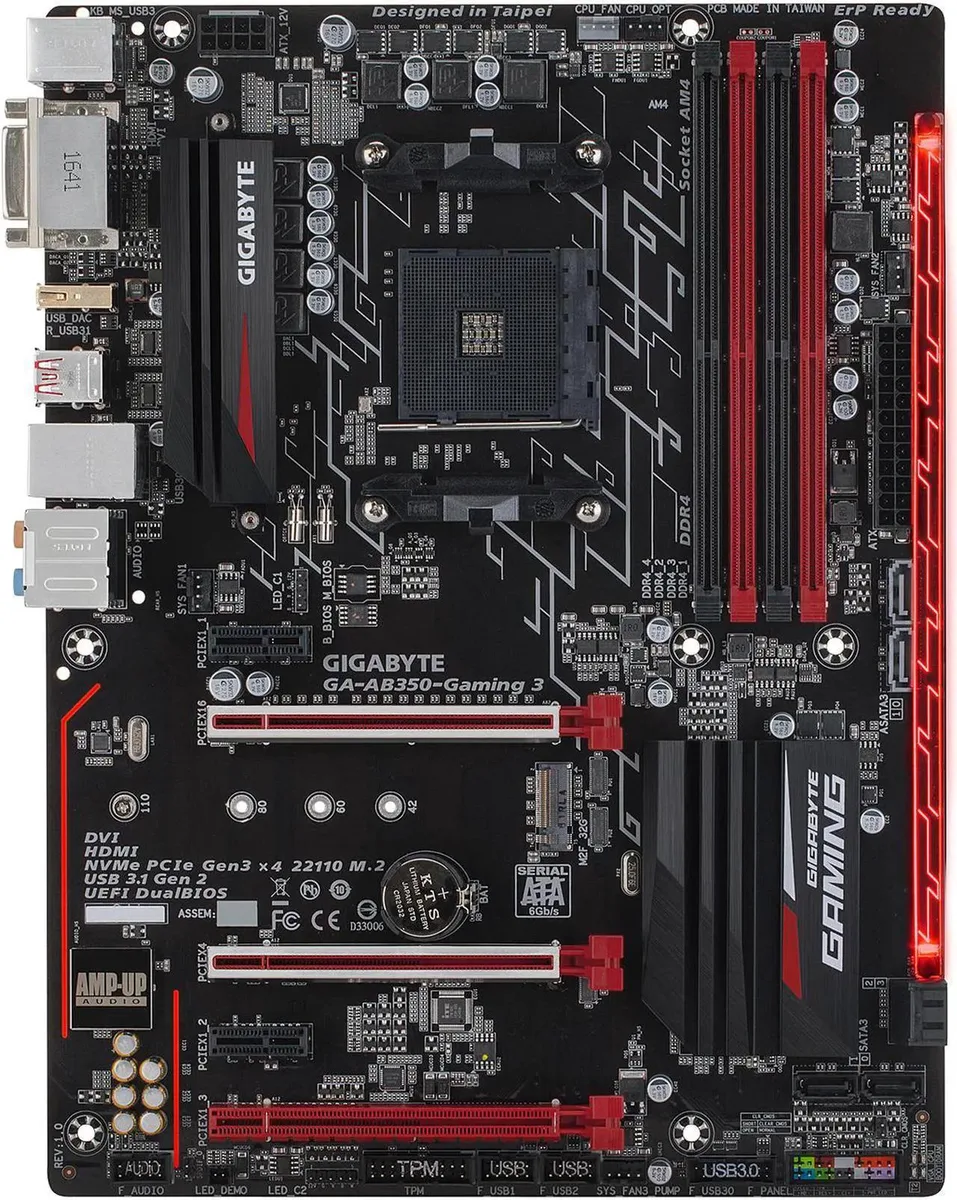

ATX motherboard with black PCB, silver heatsinks, AM4 socket, four DDR4 slots, PCIe x16 slot, HDMI and DVI-D ports, six SATA connectors

GIGABYTE

GIGABYTE GA-AB350-GAMING 3 AM4 AMD B350 motherboard

SKU CH-62ZC-AWNEF

Socket AM4 B350 board with four DDR4 slots up to 3200, one PCIe 3.0 x16, one PCIe 2.0 x4, two PCIe x1, six SATA 6Gb/s, one M.2 key‑M, Realtek ALC1220 audio and GbE LAN

  • CPU Socket TypeAM4
  • ChipsetAMD B350
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 3200 (O.C.) / 2933 (O.C.) / 2667 / 2400 / 2133
  • Channel SupportedDual Channel
  • PCI Express 3.0 x161 x PCI Express x16 slot, running at x16 (PCIEX16) For optim
  • Supports Ryzen 1000 to 5000 series processors with AM4 socket
  • DDR4 memory up to 3200 MHz overclocked across four slots
  • M.2 slot accepts 2242 2260 2280 22110 SATA and PCIe SSDs
  • Six SATA 6Gb/s ports with RAID 0 1 10 support
  • Realtek ALC1220 audio delivers 7.1-channel output

AM4 B350 Gaming Board

The GIGABYTE GA-AB350-GAMING 3 is an ATX motherboard built on the AMD B350 chipset for AM4 processors. It supports Ryzen 1000 through 5000 series CPUs, including G-series APUs. Four DDR4 slots accept memory up to 3200 MT/s when overclocked. The board provides a foundation for a mid-range gaming or productivity system.

Suitability And Alternatives

Builders wanting integrated graphics output will appreciate the HDMI and DVI-D ports driven by compatible APUs. Six SATA 6Gb/s ports and an M.2 socket supporting 2242 to 22110 drives suit storage-heavy setups. Users needing multiple full-speed PCIe 3.0 x16 slots or onboard Wi-Fi should consider a different chipset.

Build Integration

A single PCIe 3.0 x16 slot runs at x16 for the primary graphics card while a second x16 slot operates at x4 and shares bandwidth with two x1 slots. Realtek ALC1220 audio delivers up to 7.1-channel output. Gigabit LAN, USB 3.1 and PS/2 round out rear I/O. The board fits standard ATX cases and power supplies.

Highlights

  • Supports Ryzen 1000 to 5000 series processors with AM4 socket
  • DDR4 memory up to 3200 MHz overclocked across four slots
  • M.2 slot accepts 2242 2260 2280 22110 SATA and PCIe SSDs
  • Six SATA 6Gb/s ports with RAID 0 1 10 support
  • Realtek ALC1220 audio delivers 7.1-channel output

Specifications

BrandGIGABYTE
ModelGA-AB350-GAMING 3
CPU Socket TypeAM4
ChipsetAMD B350
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 3200 (O.C.) / 2933 (O.C.) / 2667 / 2400 / 2133
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express x16 slot, running at x16 (PCIEX16)
For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Actual support may vary by CPU.
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
PCI Express 2.0 x161 x PCI Express x16 slot, running at x4 (PCIEX4)
The PCIEX4 slot shares bandwidth with the PCIEX1_2 and PCIEX1_3 slots. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_2/PCIEX1_3 slot is populated. The PCIEX4 slot operates at up to x4 mode when both of the PCIEX1_2 and PCIEX1_3 slots are empty.
Actual support may vary by CPU.
1 x PCI Express x16 slot, running at x1 (PCIEX1_3)
PCI Express x12 x PCI Express x1 slots
(The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
Serial ATA (SATA)6 x SATA 6Gb/s
M.21 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
Actual support may vary by CPU.
SATA RAIDSupport for RAID 0, RAID 1, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Onboard Video ChipsetIntegrated Graphics Processor:
1 x DVI-D port, supporting a maximum resolution of 1920 x 1200 at 60 Hz
The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096 x 2160 at 24 Hz
Support for HDMI 1.4 version.
Maximum shared memory of 2GB
Audio ChipsetRealtek ALC1220
Audio Channels2 / 4 / 5.1 / 7.1-channel
LAN ChipsetRealtek GbE LAN chip
Max LAN Speed1Gbps

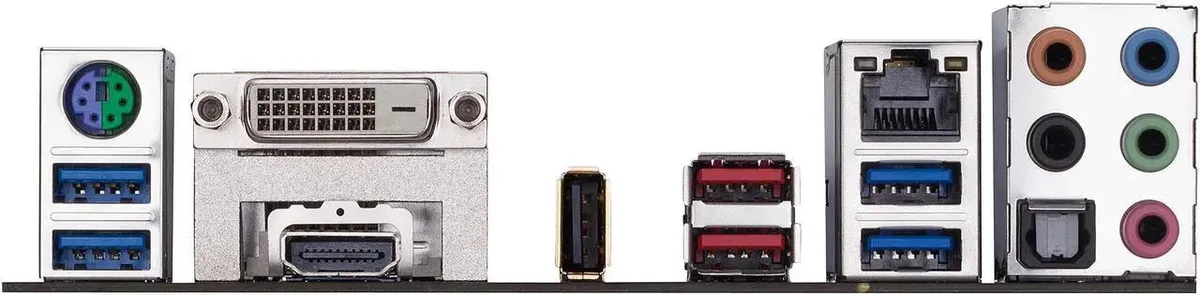

PS/21 x PS/2 keyboard/mouse port
Video Ports1 x DVI-D port
HDMI1 x HDMI
RJ451 x RJ45
USB 3.14 x USB 3.1 Gen 1 ports
2 x USB 3.1 Gen 2 Type-A ports (red)
USB 1.1/2.01 x USB 2.0
S/PDIF Out1 x Optical
Audio Ports5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
Onboard USB1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
2 x system fan headers
1 x system fan/water cooling pump header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x Trusted Platform Module (TPM) header
1 x CPU cooler LED strip/RGB LED strip extension cable header
1 x RGB (RGBW) LED strip extension cable header
1 x Clear CMOS jumper
Form FactorATX
Dimensions (W x L)12.0" x 9.1"
Power Pin24 Pin
FeaturesI/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specific

Questions about this item

Which AMD Ryzen processors are compatible with the AM4 socket on this board?

The board supports Ryzen 1000, 2000, 2000G, 3000, 3000G, 4000, 4000G, 5000 and 5000G series processors in the AM4 socket.

Can I keep my existing PCIe 2.0 expansion cards when upgrading to this motherboard?

Yes, the board provides one PCIe 2.0 x16 slot running at x4 and two PCIe 2.0 x1 slots that accept older PCIe 2.0 cards.

How do I confirm the DDR4 memory is running at the intended 3200 MT/s after assembly?

Enter the BIOS and verify the memory frequency reads 3200, or use a system information tool in the operating system to check the reported DRAM speed.
