Green micro ATX motherboard with black DIMM slots and silver I/O shield

GIGABYTE

GIGABYTE GA-B150M-D2V B150 LGA 1151 DDR4 Micro ATX Intel Motherboard

SKU CH-KDMC-3JWQ2

Micro ATX board with LGA 1151 socket, four DDR4 DIMM slots up to 32 GB, six SATA ports and four USB 3.0 ports

  • Supports up to 32 GB DDR4 for multitasking
  • Dual-channel 2133 MHz memory for responsive performance
  • Four DIMM slots allow flexible upgrades
  • Six SATA ports connect multiple drives
  • Micro ATX form factor fits compact builds

Micro ATX B150 board for LGA 1151 CPUs

The GIGABYTE GA-B150M-D2V fits micro ATX cases and accepts Intel Celeron, Pentium, Core i3, Core i5 and Core i7 processors in the LGA 1151 socket. Four DIMM slots support dual-channel DDR4 memory up to 32 GB at 2133 MHz with both ECC and non-ECC modules. Six SATA III ports and one internal USB 3.0 header provide storage and front-panel connectivity for mainstream builds.

Dual-channel DDR4 capped at 2133 MHz

Memory runs at 2133 MHz in dual-channel mode across the four slots, so faster DDR4 modules will operate at this ceiling. Six SATA III connectors share the chipset bandwidth, limiting simultaneous drive throughput when all ports are saturated. The single internal USB 3.0 header restricts front-panel Type-A ports to one header, and the rear panel supplies four USB 3.0 Type-A ports alongside two USB 2.0 ports for legacy devices.

Micro ATX layout with legacy video outputs

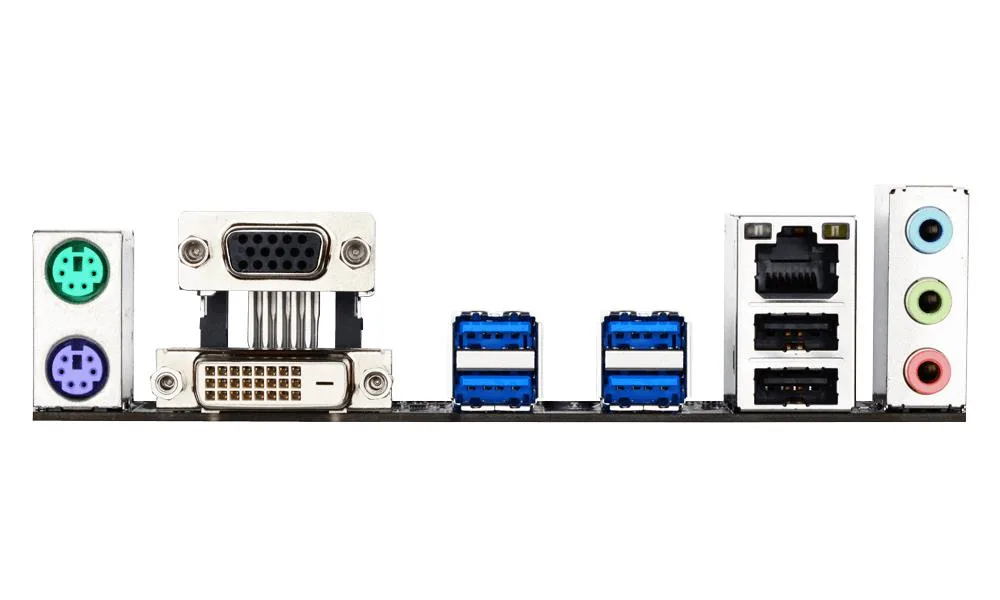

The micro ATX form factor fits compact chassis while exposing a 24-pin ATX and an 8-pin EPS power connector for standard PSUs. Rear I/O includes VGA, DVI-D with dual-link support, PS/2 keyboard and mouse ports, Gigabit Ethernet and analogue audio jacks. Internal headers cover front-panel audio, USB 2.0, a TPM module, a serial port and S/PDIF output, giving integrators flexibility for office or industrial enclosures.

Highlights

  • Supports up to 32 GB DDR4 for multitasking
  • Dual-channel 2133 MHz memory for responsive performance
  • Four DIMM slots allow flexible upgrades
  • Six SATA ports connect multiple drives
  • Micro ATX form factor fits compact builds

Specifications

No published specifications for this item yet.

Questions about this item

Should I populate all four DIMM slots or start with two for dual-channel DDR4?

The board has four DIMM slots wired for dual-channel DDR4. Installing two identical modules in the correct colour-coded slots activates dual-channel; adding two more later expands capacity up to 32 GB while keeping dual-channel operation.

What does the 2133 MHz DDR4 rating mean once the CPU and memory are installed?

2133 MHz is the highest JEDEC speed the memory controller guarantees. Compatible Celeron, Core i3, i5, i7 or Pentium processors will run supported DDR4 at that frequency by default; faster modules simply down-clock to 2133 MHz unless the BIOS offers an XMP profile.

How many SATA III devices can I connect and what throughput does the interface cap at?

Six SATA III connectors are provided, each capped at the SATA III 6 Gb/s signalling rate. You can attach up to six drives — SSDs, HDDs or optical units — simultaneously without needing extra controllers.
