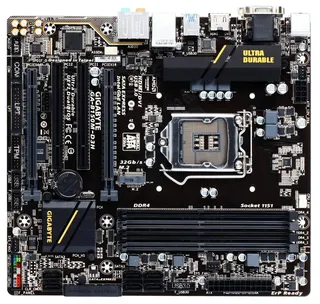

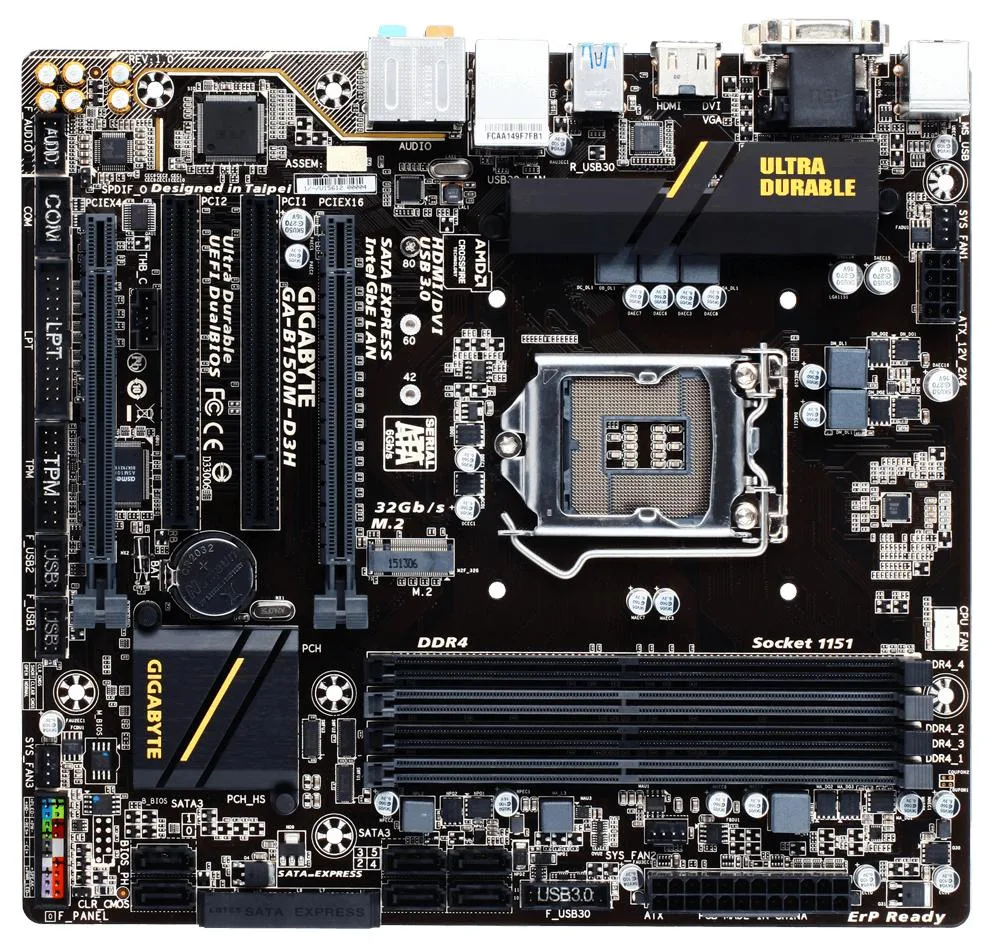

Micro ATX motherboard, black PCB, silver heatsinks, LGA 1151 socket, four DDR4 slots, PCIe x16 and x4 slots

GIGABYTE

GIGABYTE GA-B150M-D3H (rev. 1.0) Intel motherboard

SKU CH-93CB-62Y3Y

Micro-ATX Intel B150 board with LGA 1151 socket, four DDR4 2133 slots up to 64 GB, one PCIe 3.0 x16 and one x4 slot, six SATA 6Gb/s ports, M.2 Socket 3, Realtek ALC892 audio and Intel Gigabit LAN

  • CPU Socket TypeLGA 1151
  • ChipsetIntel B150
  • Onboard Video ChipsetIntegrated Graphics Processor - Intel HD Graphics support: -
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 2133
  • Maximum Memory Supported64GB
  • LGA 1151 socket supports Intel 6th and 7th Gen processors
  • Four DDR4 slots accept up to 64 GB at 2133 MHz
  • PCI Express 3.0 x16 slot runs at full x16 for graphics cards
  • Six SATA 6 Gb/s ports plus one SATA Express and one M.2 connector
  • Realtek ALC892 codec delivers 7.1-channel audio with Intel gigabit LAN

Micro-ATX board for 6th and 7th Gen Intel CPUs

This micro-ATX motherboard uses the Intel B150 chipset and an LGA 1151 socket to support Celeron, Pentium, Core i3, i5 and i7 processors from the 6th and 7th generations. It provides a compact foundation for office or home systems that do not require overclocking features. The board ships with the BIOS already updated to the latest version.

Four DDR4 slots and dual-channel support

Four 288-pin DDR4 slots accept memory up to 2133 MT/s in dual-channel mode, allowing a total capacity of 64 GB. Six SATA 6 Gb/s ports and one SATA Express connector handle traditional drives, while a single M.2 Socket 3 slot adds a fast storage option. Realtek ALC892 audio delivers up to 7.1-channel output and Intel GbE LAN provides 1 Gbps wired networking.

One full-speed PCI Express 3.0 x16 slot

The primary PCI Express 3.0 x16 slot runs at x16 electrical speed for a discrete graphics card. A second x16-size slot operates at x4 and two legacy PCI slots complete the expansion layout. Onboard video outputs include a D-Sub port and a DVI-D port, each capable of 1920x1200 at 60 Hz when a processor with integrated graphics is installed.

Highlights

  • LGA 1151 socket supports Intel 6th and 7th Gen processors
  • Four DDR4 slots accept up to 64 GB at 2133 MHz
  • PCI Express 3.0 x16 slot runs at full x16 for graphics cards
  • Six SATA 6 Gb/s ports plus one SATA Express and one M.2 connector
  • Realtek ALC892 codec delivers 7.1-channel audio with Intel gigabit LAN

Specifications

BrandGIGABYTE
ModelGA-B150M-D3H (rev. 1.0)
CPU Socket TypeLGA 1151
ChipsetIntel B150
Onboard Video ChipsetIntegrated Graphics Processor - Intel HD Graphics support:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version.
- Support for up to 3 displays at the same time
- Maximum shared memory of 512 MB
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 2133
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express x161 x PCI Express x16 slot, running at x4 (PCIEX4)
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
PCI Slots2 x PCI Slots
Serial ATA (SATA)6 x SATA 6Gb/s connectors
SATA Express1 x SATA Express connector
M.21 x M.2 Socket 3 connector
Audio ChipsetRealtek ALC892
Audio Channels2/4/5.1/7.1-channel
LAN ChipsetIntel GbE LAN chip
Max LAN Speed1Gbps

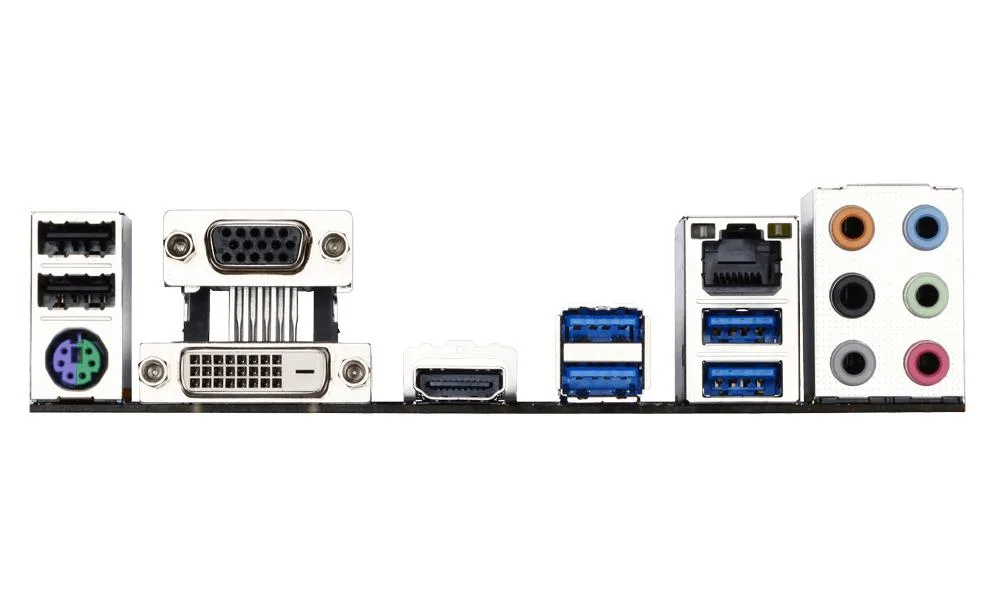

PS/21 x PS/2 keyboard/mouse port
Video Ports1 x D-Sub port
1 x DVI-D port
HDMI1 x HDMI
RJ451 x RJ45
USB 3.04 x USB 3.0/2.0 ports
USB 1.1/2.02 x USB 2.0/1.1 ports
Audio Ports6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
Onboard USB1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
Other Connectors1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x Trusted Platform Module (TPM) header
1 x Thunderbolt add-in card connector
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper
Form FactorMicro ATX
Dimensions (W x L)9.61" x 8.86"
Power Pin24 Pin
FeaturesMulti-Graphics Technology:
- Support for 2-Way AMD CrossFire technology
I/O Controller:
- iTE I/O Controller Chip
H/W Monitoring:
- System voltage detection
- CPU/System temperature detection
- CPU/System fan speed detection
- CPU/System overheating warning
- CPU/System fan fail warning
- CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS:
- 2 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- Support for DualBIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features:
- Support for APP Center
*

Questions about this item

What maintenance will the Intel B150 chipset and LGA 1151 socket need after long daily use?

The Intel B150 chipset and LGA 1151 socket are soldered components with no moving parts; they require no scheduled maintenance or replacement under normal operation.

Which limit appears first when all four DDR4 2133 slots are populated and the system runs sustained loads?

The memory controller caps total capacity at 64 GB across the four 288-pin slots, so that ceiling is reached before any slot or channel bandwidth limit.

How much heat and fan noise does the Realtek ALC892 audio codec and Intel GbE LAN add during all-day operation?

Both the Realtek ALC892 codec and the Intel GbE LAN controller are low-power integrated blocks that add negligible heat and no audible fan noise.
