Rectangular green ATX board with silver sockets and black expansion slots

GIGABYTE

GIGABYTE GA-B75-D3V Intel B75 motherboard LGA 1155 DDR3 32GB ATX

SKU CH-9JSK-T5H8P

Supports LGA 1155 Intel CPUs with B75 chipset, four DDR3 slots for 32 GB, PCI Express 3.0 x16, SATA III and SATA II ports, Realtek ALC887 7.1 audio and gigabit LAN

  • CPU Socket TypeLGA 1155
  • CPU Type1. Support LGA1155 Slot Processor: Intel Core ™ i7 Processor
  • ChipsetIntel B75
  • Maximum Memory Supported32GB
  • PCI Slots1 PCI Express x16 slot, supporting x16 operating specificati
  • SATA RAID4XSATA II interface; 1xSATA III interface
  • Supports Intel Core i7, i5, i3, Pentium and Celeron CPUs on LGA 1155 socket
  • Four DDR3 DIMM slots accept up to 32 GB of system memory
  • PCI Express 3.0 x16 slot delivers full graphics card bandwidth
  • Realtek ALC887 codec provides 7.1 channel high-definition audio
  • Atheros Gigabit LAN controller enables 10/100/1000 Mbit wired networking

LGA 1155 Intel B75 Motherboard

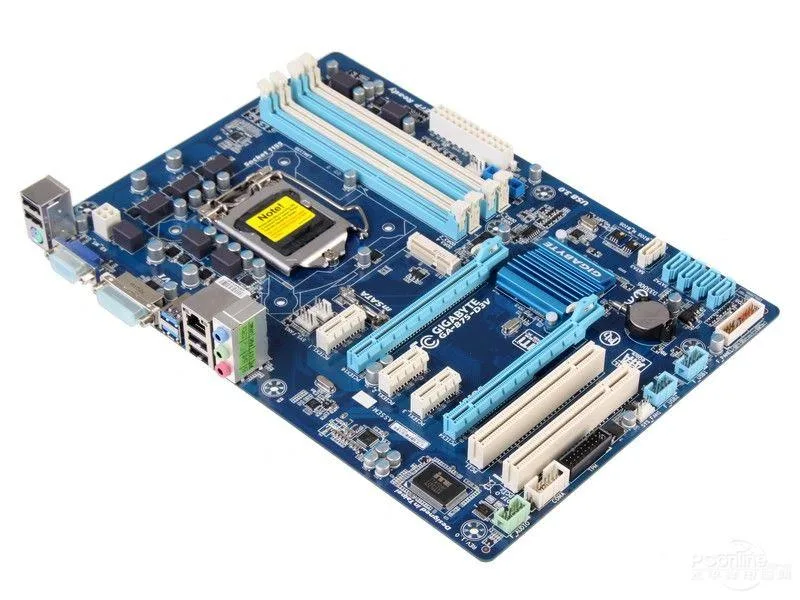

The GIGABYTE GA-B75-D3V is an ATX motherboard built around the Intel B75 chipset for LGA 1155 processors. It accepts Intel Core i7, i5, i3, Pentium and Celeron CPUs, making it suited for budget desktop builds or legacy system repairs. Four DDR3 DIMM slots support up to 32GB of system memory.

PCI Express 3.0 x16 and SATA Layout

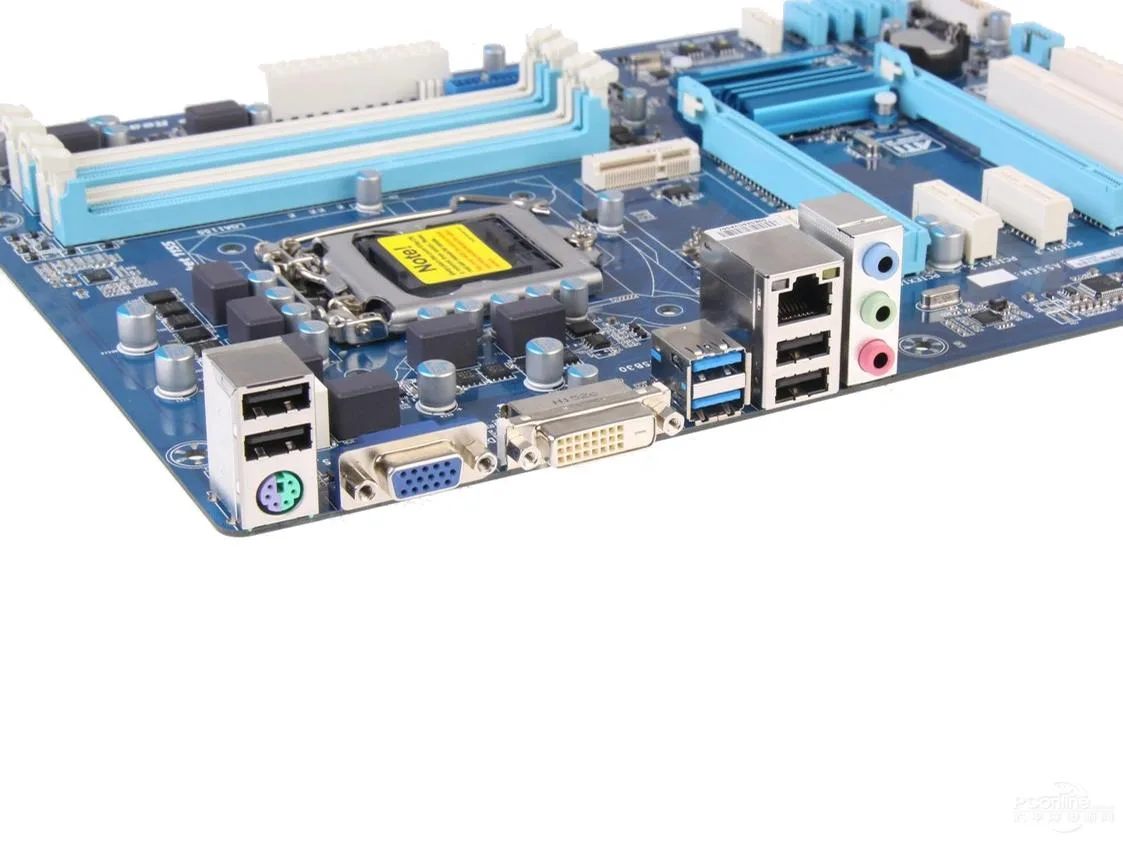

A single PCI Express 3.0 x16 slot provides the primary expansion path for a discrete graphics card. Storage connectivity comes from four SATA II ports and one SATA III port, allowing a mix of hard drives and a faster SSD. Two USB 3.0 ports sit on the rear I/O panel, with headers for two additional front-panel USB 3.0 connections.

Realtek ALC887 Audio and Gigabit LAN

Onboard audio uses the Realtek ALC887 codec with support for up to 7.1 channel output through the front-panel header. Networking is handled by an Atheros Gigabit Ethernet controller rated at 10/100/1000 Mbit. The board measures 30.5 by 21.5 cm and ships with a metal battery and one SATA cable.

Highlights

  • Supports Intel Core i7, i5, i3, Pentium and Celeron CPUs on LGA 1155 socket
  • Four DDR3 DIMM slots accept up to 32 GB of system memory
  • PCI Express 3.0 x16 slot delivers full graphics card bandwidth
  • Realtek ALC887 codec provides 7.1 channel high-definition audio
  • Atheros Gigabit LAN controller enables 10/100/1000 Mbit wired networking

Specifications

BrandGIGABYTE
SeriesGIGABYTE GA-B75-D3V
ModelGIGABYTE GA-B75-D3V
CPU Socket TypeLGA 1155
CPU Type1. Support LGA1155 Slot Processor: Intel Core ™ i7 Processor/Intel Core ™ i5 Processor/Intel Core ™ i3 Processor/Intel Pentium Processor/Intel Celeron Processor
2. L3 cache depends on CPU
ChipsetIntel B75
Maximum Memory Supported32GB
PCI Slots1 PCI Express x16 slot, supporting x16 operating specifications (PCIEX16)
(PCIEX16 slot supports PCI Express 3.0)
To maximize the performance of the graphics card, it is necessary to install it in the PCIEX16 slot when installing a graphics card.
If a 32nm (Sandy Bridge) CPU is installed, the PCI Express x16 slot supports up to PCI Express 2.0.
1 PCI Express x16 slot, supporting x4 operating specifications (PCIEX4)
3 PCI Express x1 slots
(PCIEX4 and all PCI Express x1 slots support PCI Express 2.0)
4. 2 PCI slots
SATA RAID4XSATA II interface; 1xSATA III interface
Audio Chipset1. Built-in Realtek ALC887 chip
2. Support High Definition Audio
3. Support 2/4/5 1/7.1 channels
To activate the 7.1 channel audio output, you must use the front panel audio output of the HD (High Definition, High Fax) audio module and select the multi-channel audio function through the audio software.
4. Support S/PDIF output
LAN ChipsetBuilt-in Atheros GbE network chip (10/100/1000 Mbit)
Onboard USBBuilt-in chipset:
1. Support up to 4 USB 3.0/2 ports (2 on the rear panel, 2 need to be connected from the USB socket in the main board via the cable)
In the operating system Windows XP, Intel USB 3.0 only supports USB 2.0 transfer rates.
2. Support up to 8 USB 2.0/1 ports (4 on the rear panel, 4 need to be connected from the USB socket in the main board via the cable)

Questions about this item

How much DDR3 memory can the GA-B75-D3V take before the 32 GB limit is reached?

The board has four DDR3 DIMM slots and supports a maximum of 32 GB total, so filling all four slots with 8 GB modules reaches the limit.

What noise or heat should I expect from the onboard Atheros GbE LAN and Realtek ALC887 audio when the system runs all day?

Both controllers are passive silicon with no fans; they add negligible noise and only modest heat that the case airflow normally handles.

Which CPU cooler mounting holes does the LGA 1155 socket use so I know my existing cooler will fit?

The LGA 1155 socket uses the standard 75 mm square mounting pattern common to Intel desktop sockets of that era.
