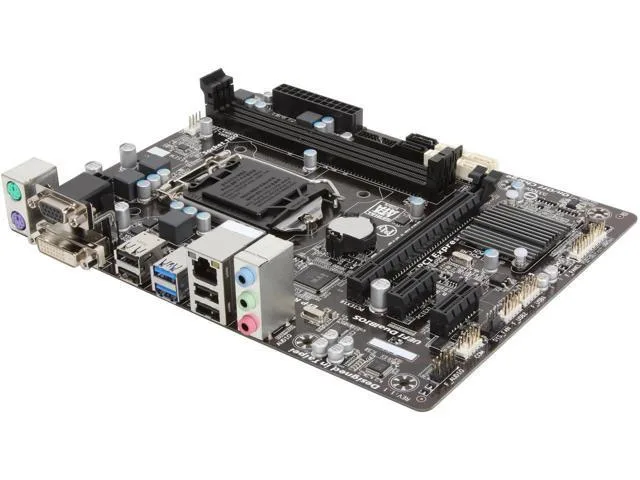

Micro ATX motherboard, black PCB, silver heatsinks, LGA 1150 socket, two DDR3 slots, one PCIe x16, two PCIe x1, four SATA ports

GIGABYTE

GIGABYTE GA-B85M-D2V LGA 1150 Intel B85 Micro ATX Motherboard

SKU CH-RWH0-9JGXH

Micro ATX board for LGA 1150 CPUs with dual-channel DDR3 up to 16 GB, one PCIe 3.0 x16 slot, four SATA 6Gb/s ports, 7.1 audio and gigabit LAN

  • CPU Socket TypeLGA 1150
  • CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1150)
  • ChipsetIntel B85
  • Number of Memory Slots2x240pin
  • Memory StandardDDR3 1600/1333
  • Maximum Memory Supported16GB
  • Supports Core i7, i5, i3, Pentium and Celeron processors on LGA 1150 socket
  • Dual-channel DDR3 memory up to 16 GB across two 240-pin slots
  • PCI Express 3.0 x16 slot ready for modern graphics cards
  • Four SATA 6 Gb/s ports for high-speed storage drives
  • Realtek ALC887 codec delivers 7.1-channel audio output

LGA 1150 Micro ATX Board

This Intel B85 motherboard fits the LGA 1150 socket and accepts Core i7, i5, i3, Pentium and Celeron processors. The Micro ATX layout provides one PCI Express 3.0 x16 slot and two PCI Express 2.0 x1 slots for expansion cards.

Two DIMM Slots And Dual Channel

Two 240-pin slots support DDR3 at 1600 and 1333 MT/s in dual-channel mode up to 16 GB total. Realtek ALC887 delivers 7.1-channel audio while the Realtek LAN controller provides 1 Gbps Ethernet connectivity.

Four SATA Ports And Legacy Video

Four SATA 6 Gb/s ports handle SSDs and hard drives, and two additional SATA 3 Gb/s connectors are available. Back-panel video includes D-Sub and DVI-D outputs that work only with processors featuring integrated graphics.

Highlights

  • Supports Core i7, i5, i3, Pentium and Celeron processors on LGA 1150 socket
  • Dual-channel DDR3 memory up to 16 GB across two 240-pin slots
  • PCI Express 3.0 x16 slot ready for modern graphics cards
  • Four SATA 6 Gb/s ports for high-speed storage drives
  • Realtek ALC887 codec delivers 7.1-channel audio output

Specifications

BrandGIGABYTE
ModelGA-B85M-D2V
CPU Socket TypeLGA 1150
CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1150)
ChipsetIntel B85
Number of Memory Slots2x240pin
Memory StandardDDR3 1600/1333
Maximum Memory Supported16GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI Express x12 (PCI Express 2.0)
Serial ATA (SATA)4 x SATA 6Gb/s
Audio ChipsetRealtek ALC887
Audio Channels7.1 Channels
LAN ChipsetRealtek
Max LAN Speed1Gbps
Back I/O Ports2 x PS/2 / 2 x USB 3.0 / 4 x USB 2.0/1.1
PS/21 x PS/2 keyboard 1 x PS/2 mouse
Video Ports1 x D-Sub 1 x DVI-D
USB 3.02 x USB 3.0
USB 1.1/2.04 x USB 2.0
Audio Ports3 Ports
Onboard USB2 x USB 3.0 + 4 x USB 2.0
Other Connectors1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x system fan header1 x front panel header1 x front panel audio header1 x serial port header1 x Clear CMOS jumper
Form FactorMicro ATX
Dimensions (W x L)8.9" x 6.85"
Power Pin24 Pin
FeaturesGIGABYTE Ultra Durable 4 Plus TechnologyGIGABYTE UEFI DualBIOSGIGABYTE 333 Onboard Acceleration (USB 3.0, SATA 3.0 & 3x USB Power)GIGABYTE On/Off Charge for USB devicesLAN with high ESD ProtectionSupport for Q-FlashSupport for Xpress InstallSupport for APP Center* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.-@BIOS-EasyTune-EZ Setup-USB Blocker-Smart TimeLock-Smart Recovery 2

Questions about this item

Will the two DDR3 slots limit a future RAM upgrade?

The board has two 240-pin slots supporting DDR3 1600/1333 up to 16 GB total, so you can fill both slots once and cannot add more later.

Which spec caps performance first during long gaming sessions?

The single PCI Express 3.0 x16 slot and two PCI Express 2.0 x1 lanes set the expansion ceiling, while the four SATA 6Gb/s ports define the storage bandwidth limit.

How loud and hot does the Realtek ALC887 audio section run with the board powered all day?

The Realtek ALC887 codec is a low-power 7.1-channel part that adds negligible heat or noise; overall system thermals depend on the CPU cooler and case airflow you choose.
