Green rectangular Micro ATX motherboard with black sockets and silver heatsinks

GIGABYTE

GIGABYTE GA-B85M-D3H LGA 1150 Intel B85 Micro ATX Intel motherboard

SKU CH-NQFB-QAVX5

Supports 4th-generation LGA 1150 CPUs with four DDR3 1600 slots up to 32 GB, one PCI Express 3.0 x16 slot, four SATA 6 Gb/s ports, 7.1-channel audio.

  • CPU Socket TypeLGA 1150
  • CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1150)
  • Supported CPU TechnologiesTurbo Boost Technology 2.0
  • ChipsetIntel B85
  • Number of Memory Slots4x240pin
  • Memory StandardDDR3 1600
  • Supports 4th-gen Intel Core processors via LGA 1150 socket
  • Dual-channel DDR3 1600 memory up to 32 GB across four slots
  • PCI Express 3.0 x16 slot for modern graphics cards
  • Four SATA 6 Gb/s ports for fast storage arrays
  • 1-channel audio and Gigabit LAN for media and networking

B85 micro-ATX board for LGA 1150 CPUs

This micro-ATX motherboard uses the Intel B85 chipset and fits LGA 1150 processors including Core i7, i5, i3, Pentium and Celeron. It targets office builds and basic home systems that need legacy expansion slots. The board delivers essential modern connectivity without enthusiast features.

Four DDR3 slots and mixed PCIe plus PCI

Four 240-pin slots support DDR3 1600 and 1333 in dual-channel mode up to 32 GB total. One PCI Express 3.0 x16 slot and one PCI Express x16 slot sit alongside two classic PCI slots for older add-in cards. SATA 6 Gb/s and 3 Gb/s ports provide six drive connections.

PCIe 3.0 x16 and SATA 6 Gb/s limits

The single PCI Express 3.0 x16 slot caps graphics bandwidth at the 3.0 specification. Integrated graphics output via HDMI works only when the installed CPU includes an onboard GPU. Gigabit LAN tops out at 1000 Mbps and audio reaches 7.1 channels.

Highlights

  • Supports 4th-gen Intel Core processors via LGA 1150 socket
  • Dual-channel DDR3 1600 memory up to 32 GB across four slots
  • PCI Express 3.0 x16 slot for modern graphics cards
  • Four SATA 6 Gb/s ports for fast storage arrays
  • 1-channel audio and Gigabit LAN for media and networking

Specifications

BrandGIGABYTE
CPU Socket TypeLGA 1150
CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1150)
Supported CPU TechnologiesTurbo Boost Technology 2.0
ChipsetIntel B85
Number of Memory Slots4x240pin
Memory StandardDDR3 1600
Maximum Memory Supported32GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI Express x161 x PCI Express x16
PCI Slots2 x PCI Slots
Serial ATA (SATA)4 x SATA 6Gb/s
Audio Channels7.1 Channels
Max LAN Speed1Gbps

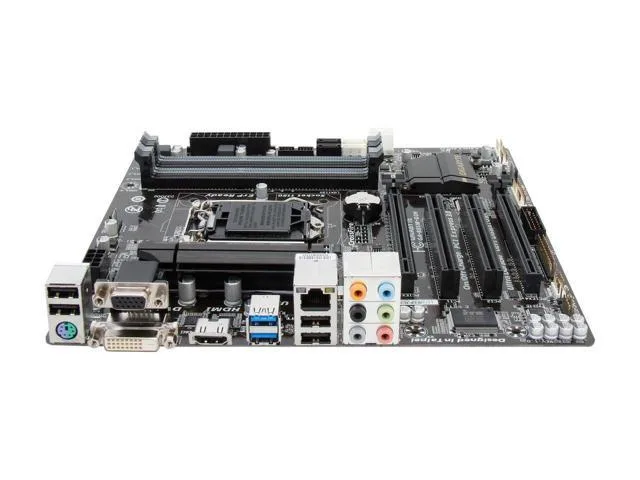

Back I/O Ports1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 3.0 / 4 x USB 2.0/1.1
PS/21 x PS/2 keyboard/mouse port
HDMI1 x HDMI
RJ451 x RJ45
USB 3.02 x USB 3.0
USB 1.1/2.04 x USB 2.0
Audio Ports6 Ports
Onboard USB2 x USB 3.0 + 4 x USB 2.0
Form FactorMicro ATX
Power Pin24 Pin

Questions about this item

Will my existing DDR3 1600 memory work in the four 240-pin slots?

Yes, the board supports DDR3 1600 in a dual-channel configuration across all four slots, up to a total of 32 GB.

Can I use the HDMI port with a processor that lacks integrated graphics?

No, the HDMI output is only active when the installed CPU provides integrated graphics.

How many SATA 6 Gb/s drives can I connect directly to the board?

Four SATA 6 Gb/s ports are available for SSDs or hard drives.
