Green Micro ATX motherboard with black sockets and silver heatsinks

GIGABYTE

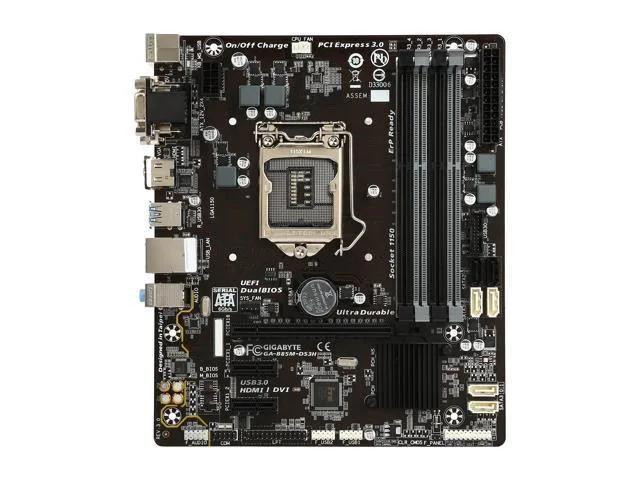

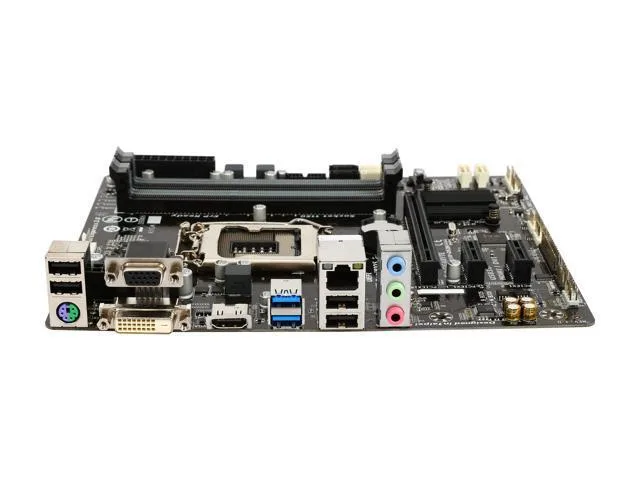

GIGABYTE GA-B85M-DS3H rev. 3.0 Intel motherboard

SKU CH-ETBS-5QMQD

Micro-ATX Intel B85 board for LGA 1150 CPUs with DDR3 1600/1333, SATA 6Gb/s and HDMI output

  • CPU TypeCore i7 / i5 / i3 (LGA1155)
  • Supports 4th Gen Intel Core processors via LGA1150 socket
  • Intel B85 chipset delivers platform performance and power efficiency
  • DDR3 memory up to 1600 MHz for responsive multitasking
  • Integrated HD4600 graphics enable 4K playback over HDMI
  • Micro ATX form factor fits compact builds with full feature set

GIGABYTE B85 Micro ATX Motherboard

This GIGABYTE GA-B85M-DS3H rev. 3.0 board uses the Intel B85 chipset on a Micro ATX form factor. It accepts 4th Generation Intel Core i7, i5, i3, Pentium and Celeron processors in the LGA1150 socket. The platform supports DDR3 memory at 1600 and 1333 speeds in non-ECC configuration. It provides a compact foundation for office or home systems.

Upgrade From Older LGA1155 Platforms

Moving from an LGA1155 system brings the newer 4th Generation Intel Core architecture and the B85 chipset. The jump is worthwhile when you need native HDMI output with HD4600 processor graphics for 4K playback. SATA 6Gb/s and USB 3.0 connectivity are also included for faster storage and peripheral transfers compared to previous generation boards.

Limits Of The B85 Chipset And DDR3 Memory

The B85 chipset does not support CPU overclocking, locking multiplier adjustments on K-series processors. Memory is restricted to DDR3 non-ECC modules at 1600 or 1333 speeds with no official support for higher frequencies. Expansion is limited to the Micro ATX layout, reducing the number of available PCIe and storage connections compared to full-size ATX alternatives.

Highlights

  • Supports 4th Gen Intel Core processors via LGA1150 socket
  • Intel B85 chipset delivers platform performance and power efficiency
  • DDR3 memory up to 1600 MHz for responsive multitasking
  • Integrated HD4600 graphics enable 4K playback over HDMI
  • Micro ATX form factor fits compact builds with full feature set

Specifications

CPU TypeCore i7 / i5 / i3 (LGA1155)

Questions about this item

What CPU socket and chipset combination does the GA-B85M-DS3H rev. 3.0 use?

This board pairs an LGA 1150 socket with the Intel B85 chipset for 4th generation Intel Core i7, i5, i3, Pentium and Celeron processors.

Which memory standard and speeds are supported on the four DDR3 slots?

Install DDR3 modules rated at 1600 or 1333 MHz; the board runs them in non-ECC unbuffered mode across four DIMM slots.

What maintenance does the onboard CMOS battery require over time?

The coin-cell battery keeps BIOS settings when the system is unplugged; replace it when the clock drifts or settings reset.
