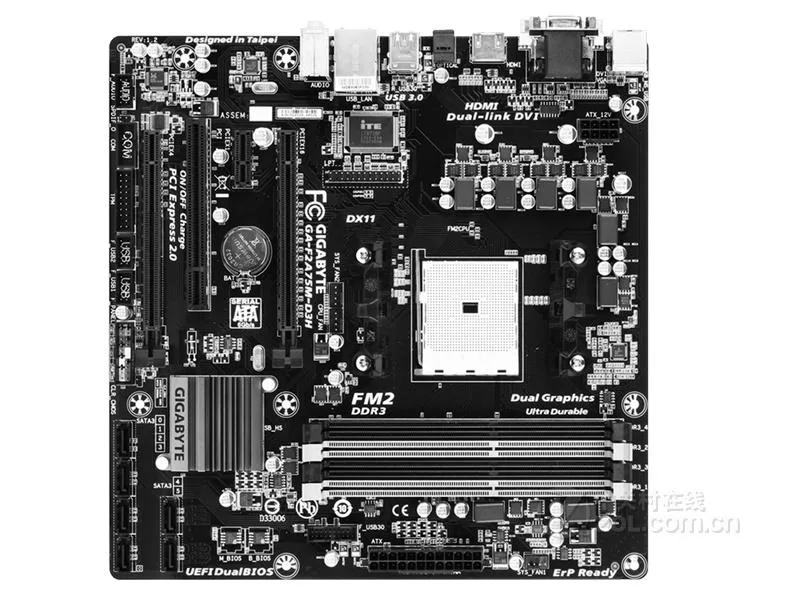

Micro ATX motherboard, black PCB, silver heatsinks, four DDR3 slots, CPU socket FM2, rear I/O panel visible

GIGABYTE

GIGABYTE GA-F2A75M-D3H rev.1.2 AMD motherboard

SKU CH-Q2H0-00Z9G

Socket FM2 Micro ATX board with AMD A75 chipset, four DDR3 slots for 64GB, one PCI Express x16 slot, six SATA ports and Realtek audio and LAN

  • CPU Socket TypeSocket AM3+
  • CPU TypeAM3+ Socket: 1. Support AM3 + processor 2. Support AMD Pheno
  • ChipsetAMD A75
  • Maximum Memory Supported64GB
  • PCI Slots1 PCI Express x16 slot, supporting x16 operating specificati
  • SATA RAID6XSATA III interface
  • Supports AMD FM2 processors on A75 chipset
  • Up to 64GB DDR3 memory across four DIMM slots
  • 1 PCI Express x16 slot for graphics card performance
  • 6 SATA III ports for multiple storage drives
  • Realtek ALC887 audio with 7.1 channel support

Socket FM2 Micro ATX board

The GIGABYTE GA-F2A75M-D3H rev.1.2 is a Socket FM2 motherboard built on the AMD A75 chipset in a 24.4cm Micro ATX form factor. It provides four DDR3 DIMM slots supporting up to 64GB of system memory and a single PCI Express x16 slot for graphics installation.

Suits FM2 APU builds, not AM3+ CPUs

This board fits builders assembling an FM2-based APU system who need six SATA III ports, Realtek ALC887 7.1-channel audio and a Realtek GbE LAN controller. It does not accept AM3+ processors and the USB 3.0 connectivity is limited to two rear ports plus two internal headers.

Four DDR3 slots define the memory limit

The four DDR3 DIMM slots set a hard ceiling of 64GB maximum memory supported, so the board is the right part only if that capacity and memory type match the planned configuration.

Highlights

  • Supports AMD FM2 processors on A75 chipset
  • Up to 64GB DDR3 memory across four DIMM slots
  • 1 PCI Express x16 slot for graphics card performance
  • 6 SATA III ports for multiple storage drives
  • Realtek ALC887 audio with 7.1 channel support

Specifications

BrandGIGABYTE
SeriesGIGABYTE GA-F2A75M-D3H(rev.1.2)
ModelGIGABYTE GA-880GM-USB3(rev.3.1)
CPU Socket TypeSocket AM3+
CPU TypeAM3+ Socket:
1. Support AM3 + processor
2. Support AMD Phenom ™ II processor/AMD Athlon ™ II processor
ChipsetAMD A75
Maximum Memory Supported64GB
PCI Slots1 PCI Express x16 slot, supporting x16 operating specifications (PCIEX16)
To maximize the performance of the graphics card, it is necessary to install it in the PCIEX16 slot when installing a graphics card.
1 PCI Express x16 slot, supporting x4 operating specifications (PCIEX4)
3. 1 PCI Express x1 slot
All PCI Express slots support PCI Express 2.0.
4. 1 PCI slot
SATA RAID6XSATA III interface
Audio Chipset1. Built-in Realtek ALC887 chip
2. Support High Definition Audio
3. Support 2/4/5 1/7.1 channels
4. Support S/PDIF output
LAN ChipsetBuilt-in Realtek GbE network chip (10/100/1000 Mbit)
Onboard USBBuilt-in chipset:
1. Supports up to 4 USB 3.0/2 ports (2 on the rear panel, 2 via cable from the USB socket in the motherboard)
2. Support up to 8 USB 2.0/1 ports (4 on the rear panel, 4 need to be connected from the USB socket in the motherboard via the cable)

Questions about this item

How can I confirm the GA-F2A75M-D3H rev.1.2 is posting correctly after assembly?

Power on the board; a single beep from the onboard speaker and the Realtek ALC887 audio codec initialising indicate the CPU socket FM2 and DDR3 memory are detected and the system is ready for BIOS entry.

What ships with the motherboard and what must I source separately?

The box contains the Micro ATX board (24.4×24.4 cm), one SATA cable and the chassis I/O back panel; CPU cooler, DDR3 modules (up to 64 GB across four DIMMs), graphics card for the PCI Express x16 slot and storage drives are not included.

Which revision of the GA-F2A75M-D3H should I select for an FM2 APU build?

Choose the rev.1.2 version listed here; it uses the AMD A75 chipset with Socket FM2, four DDR3 slots supporting 64 GB maximum, one PCI Express x16 slot, six SATA III ports, Realtek GbE LAN and four USB 3.0 ports (two rear, two via header).
