Green micro-ATX board with black sockets and silver heatsinks

GIGABYTE

GIGABYTE GA-F2A78M-D3H AMD motherboard

SKU CH-R2Q1-CFP2W

Micro ATX board for FM2+/FM2 APUs with DDR3 up to 2400 OC, one PCIe 3.0 x16, six SATA 6Gb/s and triple-monitor video outputs

  • CPU Socket TypeFM2+ / FM2
  • CPU TypeAthlon/A- Series
  • ChipsetAMD A78 (Bolton D3)
  • Number of Memory Slots4x240
  • Memory StandardDDR3 2400(OC)/2133/1866/1600/1333
  • Maximum Memory Supported64GB
  • Supports FM2+ and FM2 AMD A-Series APUs
  • DDR3 memory up to 2400(OC) MHz across four slots
  • 64GB maximum dual-channel memory capacity
  • 1-channel Realtek ALC887 audio for surround sound
  • Six SATA 6Gb/s ports with RAID 0, 1, 10 and JBOD

Socket FM2+ A78 micro-ATX board

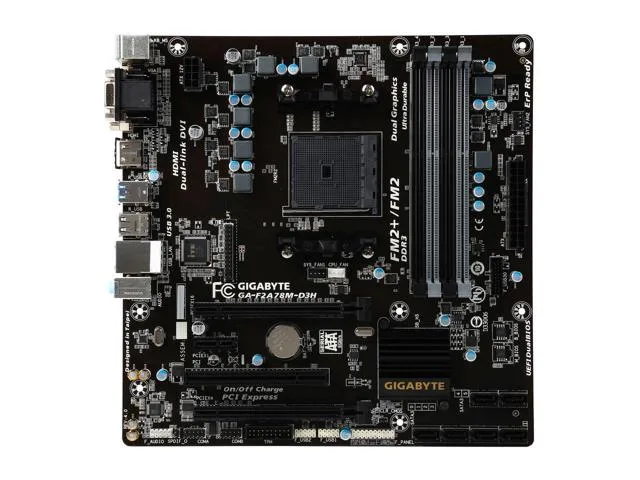

The GIGABYTE GA-F2A78M-D3H is a micro-ATX motherboard built on the AMD A78 chipset for socket FM2+ and FM2 APUs. It targets builders who want an affordable platform for integrated graphics or a modest discrete card. Four DDR3 slots support up to 64 GB in dual-channel mode.

Suits APU builders; not for newer sockets

This board suits users upgrading an existing FM2 system or building a basic desktop around an A-series APU. It will not fit AM4 or later processors, and the single PCIe 3.0 x16 slot limits multi-GPU setups to two-way CrossFire only.

DDR3 2400 OC memory ceiling

The maximum supported memory speed is DDR3 2400 (OC) with fallback to 2133, 1866, 1600 and 1333 MHz. Buyers must match this DDR3 standard; newer DDR types are physically and electrically incompatible.

Highlights

  • Supports FM2+ and FM2 AMD A-Series APUs
  • DDR3 memory up to 2400(OC) MHz across four slots
  • 64GB maximum dual-channel memory capacity
  • 1-channel Realtek ALC887 audio for surround sound
  • Six SATA 6Gb/s ports with RAID 0, 1, 10 and JBOD

Specifications

BrandGIGABYTE
ModelGA-F2A78M-D3H
CPU Socket TypeFM2+ / FM2
CPU TypeAthlon/A- Series
ChipsetAMD A78 (Bolton D3)
Number of Memory Slots4x240
Memory StandardDDR3 2400(OC)/2133/1866/1600/1333
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI Express 2.0 x161 (running at x4)
PCI Express x11 x PCI Express x1
PCI Slots1 x PCI Slot
Serial ATA (SATA)6 x SATA 6Gb/s
SATA RAID0/1/10/JBOD
Onboard Video ChipsetIntegrated Graphics
Audio ChipsetRealtek ALC887
Audio Channels7.1 Channels
LAN ChipsetRealtek GbE
Max LAN Speed1Gbps

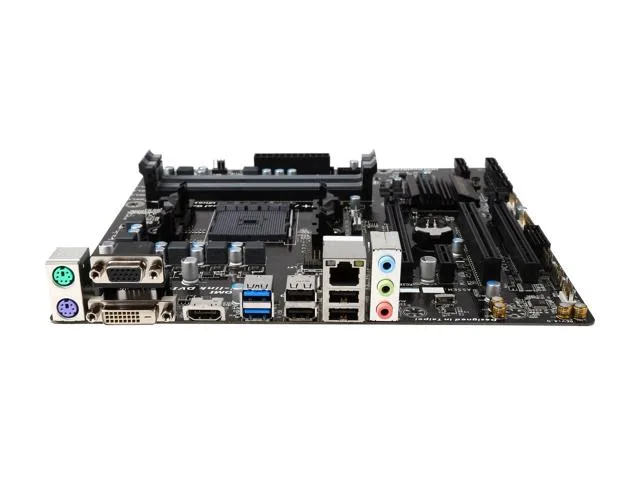

Back I/O Ports1 x D-Sub / 1 x DVI-D / 1 x HDMI / 1 x PS/2 / 2 x USB 3.1 Gen 1 / 3 x Audio Jacks / 4 x USB 2.0/1.1
PS/21 x PS/2 keyboard/mouse port
Video Ports1 x D-Sub 1 x DVI-D
HDMI1 x HDMI
USB 3.02 x USB 3.0
USB 1.1/2.04 x USB 2.0
S/PDIF Out1 x Optical
Audio Ports3 Ports
Onboard USB2 x USB 3.0 + 4 x USB 2.0
Other Connectors1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x APU fan header2 x system fan headers1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x serial port header1 x parallel port header1 x Clear CMOS jumper1 x Trusted Platform Module (TPM) header
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Power Pin24 Pin
FeaturesSocket FM2+ supports AMD FM2+/FM2 A-series APUGIGABYTE Ultra Durable 4 Plus TechnologyGIGABYTE UEFI DualBIOS2-way CrossFire SupportGIGABYTE On/Off Charge for USB devices4 USB 3.0 ports with GIGABYTE 3x USB powerHDMI, Dual-link DVI, D-sub ports for Triple-Monitor supportHigh ESD Protection on GbE LAN and USB portsAll solid capacitors designSupport for @BIOSSupport for Q-FlashSupport for Xpress InstallSupport for EasyTune* Available functions in EasyTune may differ by motherboard model.Support for Smart Recovery 2
Package ContentsREFURBISHED items may not come with accessories, installation discs or documentation.

Questions about this item

Will this board accept an AMD A-Series APU in an FM2+ socket?

Yes, the FM2+ socket supports both FM2+ and FM2 A-Series APUs, including Kaveri parts with Steamroller cores.

What is the maximum system memory and which DDR3 speeds are supported?

Four slots take up to 64 GB of DDR3 at 2400 (OC), 2133, 1866, 1600 or 1333 MHz in dual-channel mode.

Can I run three monitors from the onboard video outputs?

The board provides HDMI, dual-link DVI and D-Sub ports, enabling triple-monitor configurations with an APU that has integrated graphics.
