Green micro-ATX motherboard with silver LGA 1155 socket and black DDR3 slots

GIGABYTE

GIGABYTE GA-H61M-S2P-B3 rev.1.0 Intel motherboard

SKU CH-6K4H-0DE3M

Micro-ATX LGA 1155 board with Intel H61 chipset, two DDR3 slots for 16 GB, one PCIe x16, one PCIe x1, two PCI, four SATA ports, 7.1 audio and gigabit LAN

  • CPU Socket TypeLGA 1155
  • CPU Type1. Support LGA1155 Slot Processor: Intel Core ™ i7 Processor
  • ChipsetIntel H61
  • Maximum Memory Supported16GB
  • PCI Slots1 PCI Express x16 slot, supporting x16 operating specificati
  • SATA RAID4XSATA II interface
  • LGA 1155 socket fits Core i7, i5, i3, Pentium and Celeron CPUs
  • Intel H61 chipset provides stable platform for everyday computing
  • 16 GB maximum DDR3 memory capacity across two DIMM slots
  • Gigabit LAN via Atheros AR8151 for wired network speeds up to 1000 Mbit
  • 1-channel high-definition audio from VIA VT1708 for surround sound

LGA 1155 Micro ATX Board for Basic Builds

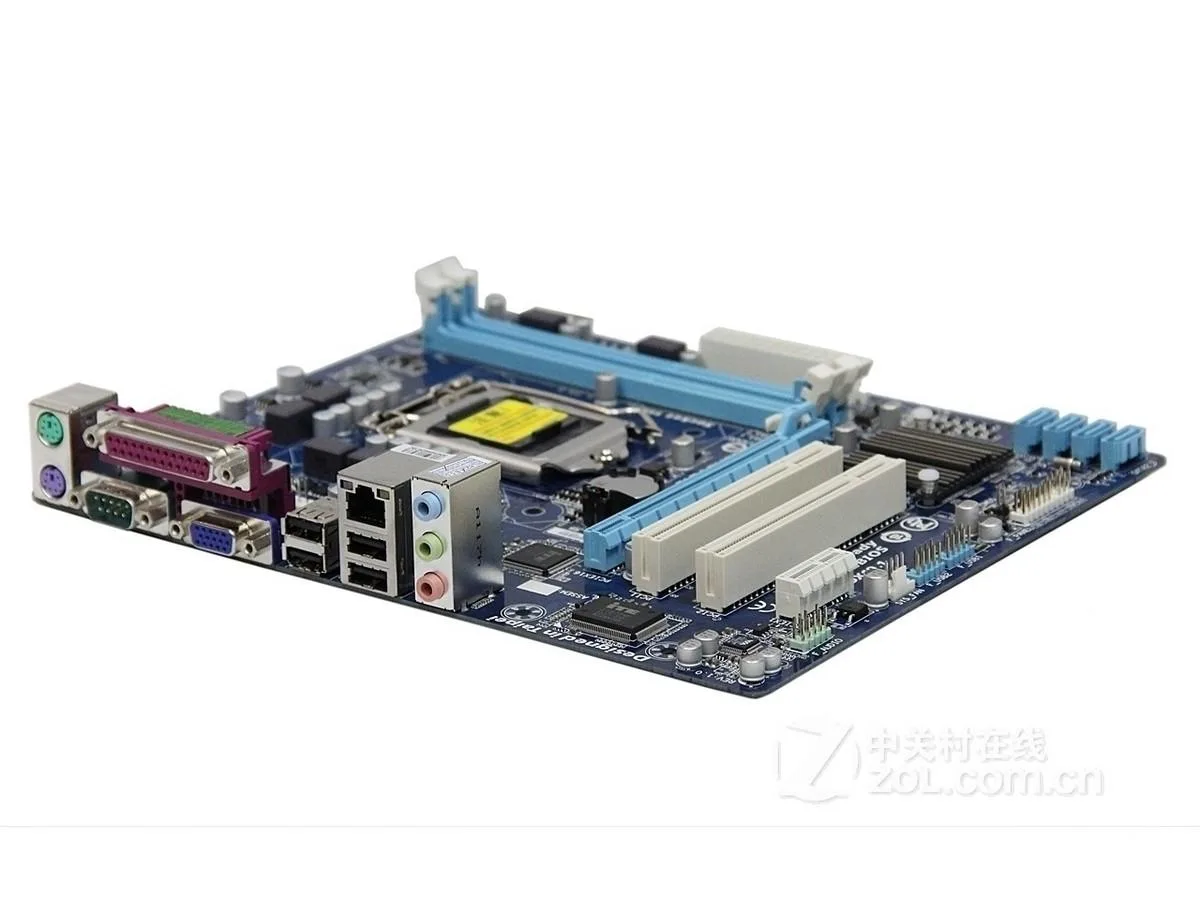

The GIGABYTE GA-H61M-S2P-B3 revision 1.0 is a Micro ATX motherboard built around the Intel H61 chipset. It accepts LGA 1155 socket processors including Core i7, i5, i3, Pentium and Celeron models. Two DDR3 DIMM slots support up to 16 GB of system memory. The board measures 24.4 by 20 cm and includes one PCI Express x16 slot, one PCI Express x1 slot and two legacy PCI slots.

Suits Legacy Upgrades; Not for Modern Systems

This board suits owners replacing a failed H61 board or building a low-cost secondary PC from existing LGA 1155 parts. Integrated Atheros AR8151 gigabit LAN and VIA VT1708 audio with 7.1 channel support cover basic connectivity. Buyers needing USB 3.0, SATA 6 Gbps, M.2 slots or support for current generation CPUs should choose a newer platform.

16 GB Memory Ceiling and SATA II Storage Limits

Maximum memory capacity is 16 GB across two DDR3 slots, adequate for office applications and older games. Four SATA II ports provide up to 3 Gbps throughput each, limiting modern SSD performance. The single PCI Express 2.0 x16 slot restricts graphics bandwidth compared to newer standards, while eight USB 2.0 ports handle peripherals without high-speed transfers.

Highlights

  • LGA 1155 socket fits Core i7, i5, i3, Pentium and Celeron CPUs
  • Intel H61 chipset provides stable platform for everyday computing
  • 16 GB maximum DDR3 memory capacity across two DIMM slots
  • Gigabit LAN via Atheros AR8151 for wired network speeds up to 1000 Mbit
  • 1-channel high-definition audio from VIA VT1708 for surround sound

Specifications

BrandGIGABYTE
SeriesGIGABYTE GA-H61M-S2P-B3(rev.1.0)
ModelGIGABYTE GA-H61M-S2P-B3(rev.1.0)
CPU Socket TypeLGA 1155
CPU Type1. Support LGA1155 Slot Processor: Intel Core ™ i7 Processor/Intel Core ™ i5 Processor/Intel Core ™ i3 Processor/Intel Pentium Processor/Intel Celeron Processor
2. L3 cache depends on CPU
ChipsetIntel H61
Maximum Memory Supported16GB
PCI Slots1 PCI Express x16 slot, supporting x16 operating specifications
2. 1 PCI Express x1 slot
All PCI Express slots support PCI Express 2.0.
3. 2 PCI slots
SATA RAID4XSATA II interface
Audio ChipsetBuilt-in VIA VT1708 chip
2. Support High Definition Audio
3. Support 2/4/5 1/7.1 channels
LAN ChipsetBuilt-in 1 Atheros AR8151 chip (10/100/1000 Mbit)
Onboard USBBuilt-in chipset:
Up to 8 USB 2.0/1 ports (4 on the rear panel, 4 to be connected from the USB socket in the main board via cable)

Questions about this item

Which processor socket must my CPU match for this GIGABYTE GA-H61M-S2P-B3 rev.1.0 board?

The board uses an LGA 1155 socket, so the CPU must be an LGA 1155 model such as a Core i7, i5, i3, Pentium or Celeron processor.

Will my existing PCI Express 2.0 graphics card run at full speed in the x16 slot?

Yes, the single PCI Express x16 slot operates at the PCI Express 2.0 specification, matching your card's interface.

How can I confirm the onboard VIA VT1708 audio is active after assembly?

Enter the BIOS and verify High Definition Audio is enabled, then check Windows Device Manager for the VT1708 device and test 7.1-channel output.
