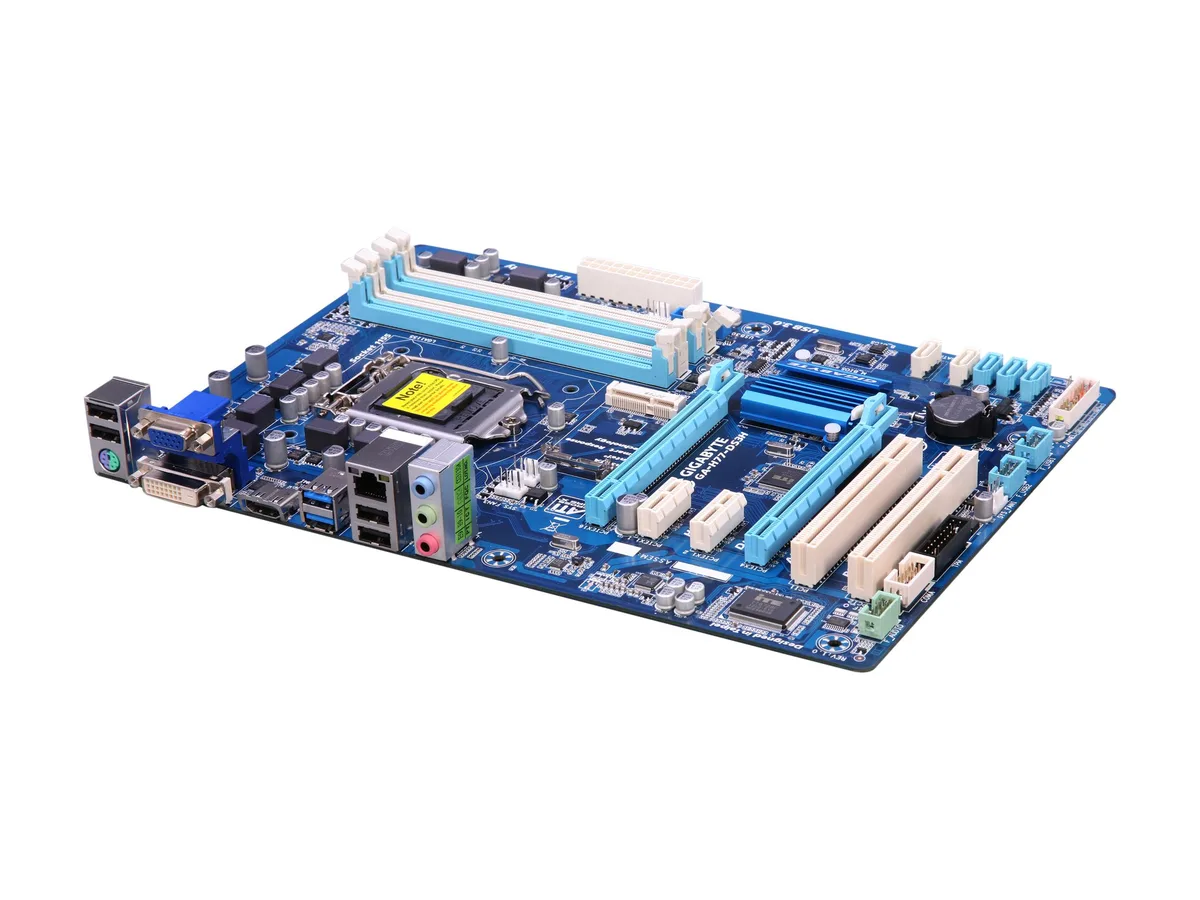

ATX motherboard in blue and black with silver heatsinks and multiple expansion slots

GIGABYTE

GIGABYTE GA-H77-DS3H LGA 1155 Intel motherboard DDR3 32GB

SKU CH-EQ35-MX5WV

ATX board with LGA 1155 socket, H77 chipset, four DDR3 slots up to 32 GB, one PCIe 3.0 x16 and one PCIe 2.0 x16 @x4, two SATA 6 Gb/s plus three SATA 3 Gb/s, Realtek ALC887 8-channel audio.

  • CPU Socket TypeLGA 1155
  • CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1155)
  • ChipsetIntel H77
  • Number of Memory Slots4x240pin
  • Memory StandardDDR3 1600/1333/1066
  • Maximum Memory Supported32GB
  • Supports up to 32GB DDR3 memory across four 240-pin slots
  • PCI Express 3.0 x16 slot delivers 16-lane GPU bandwidth
  • Two SATA 6Gb/s ports plus three SATA 3Gb/s ports for mixed storage
  • Realtek ALC887 provides 8-channel high-definition audio
  • Gigabit LAN with 10/100/1000Mbps speeds for wired networking

LGA 1155 desktop board

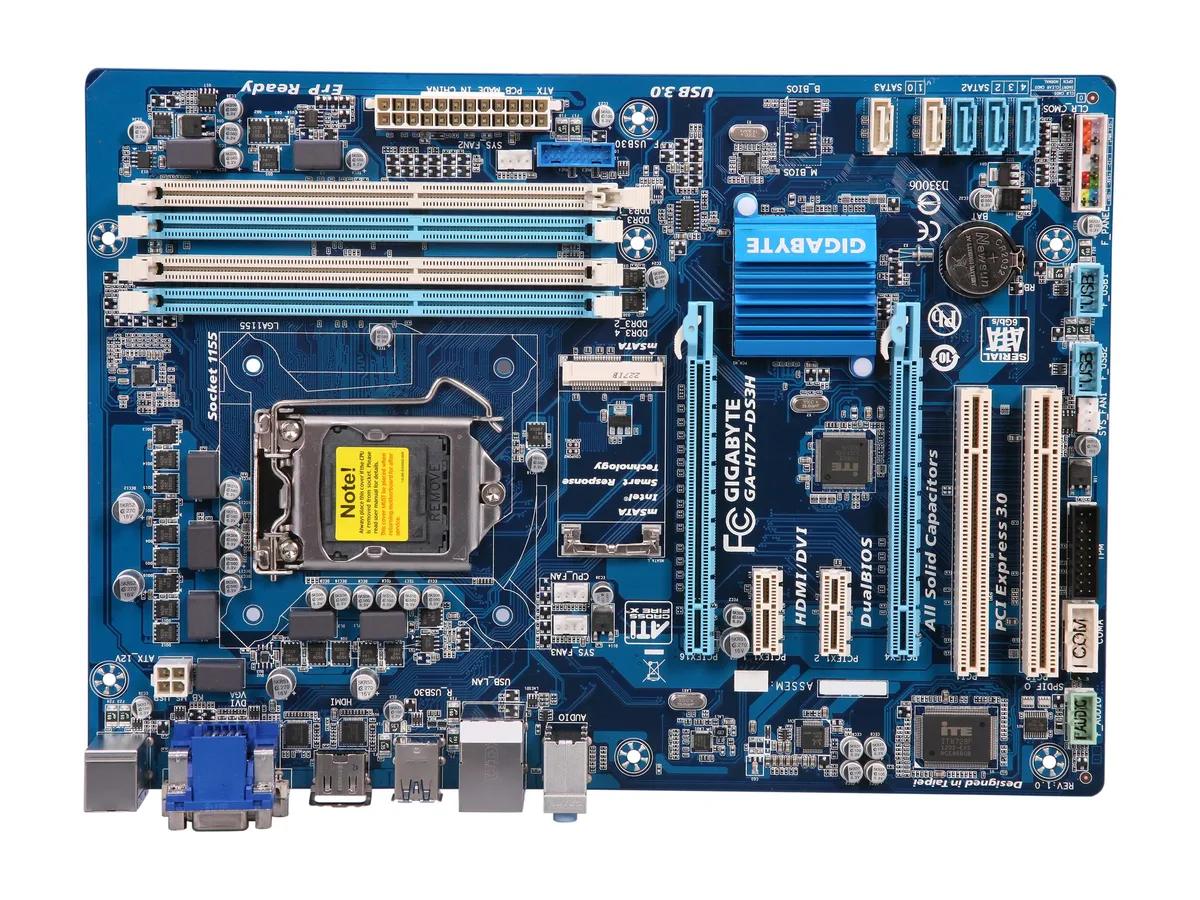

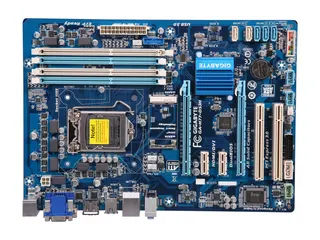

The GIGABYTE GA-H77-DS3H is an ATX motherboard built around the Intel H77 chipset for LGA 1155 processors. It accepts Core i7, i5, i3, Pentium and Celeron CPUs and provides four 240-pin slots for DDR3 memory up to 32 GB in dual-channel mode.

Thermals noise and power

The board uses standard voltage-regulation and fan-header layouts typical of the H77 platform, so thermal performance and acoustic output depend on the chosen CPU cooler and case airflow. Power draw scales with the installed processor and the number of active expansion cards.

Expansion and I/O

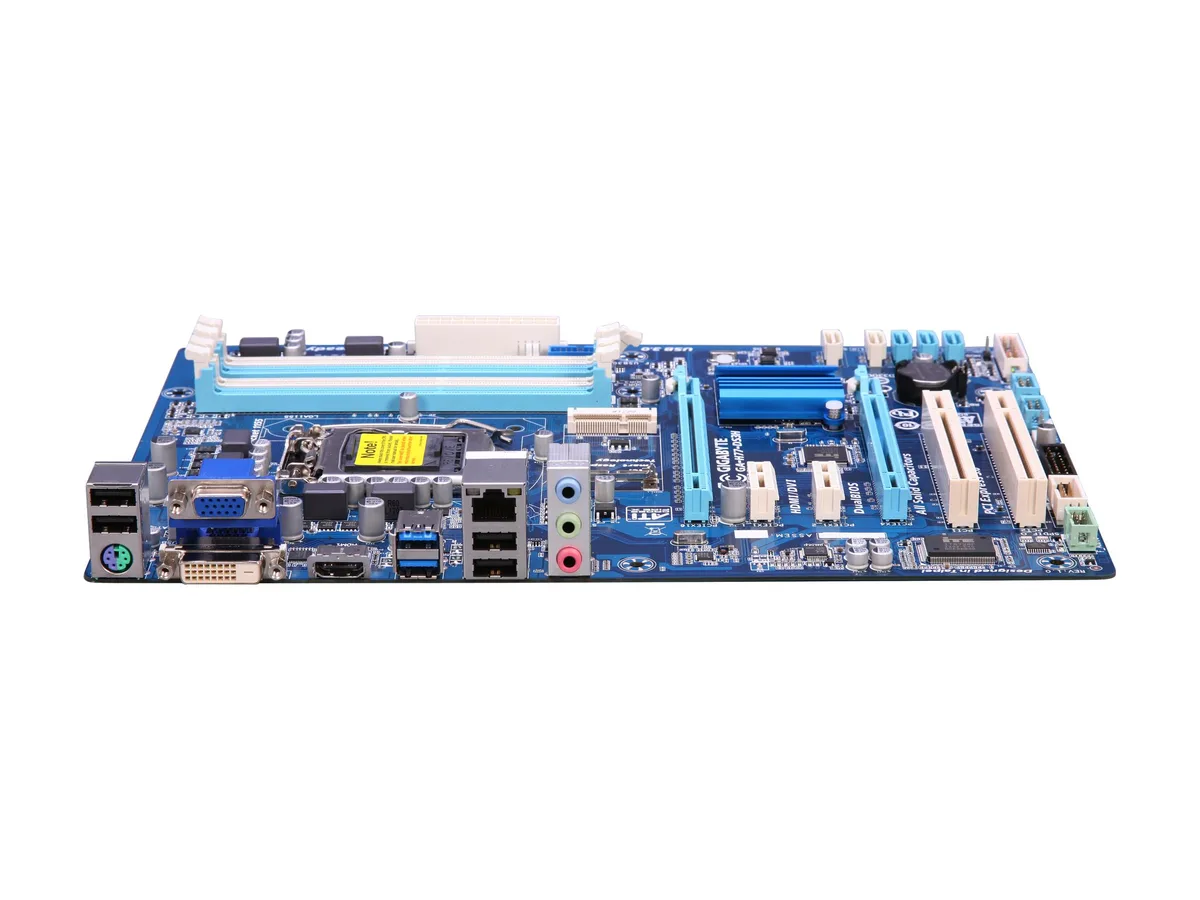

One PCI Express 3.0 x16 slot and one PCI Express 2.0 x16 slot running at x4 give room for a graphics card and an additional add-in board. Two PCI Express x1 slots and two legacy PCI slots support older peripherals. Storage includes two SATA 6 Gb/s ports and three SATA 3 Gb/s ports with RAID 0, 1, 5 and 10. Rear I/O supplies HDMI, a PS/2 combo port, two USB 3.0 ports and four USB 2.0/1.1 ports. Gigabit LAN and 8-channel Realtek ALC887 audio complete the connectivity.

Highlights

  • Supports up to 32GB DDR3 memory across four 240-pin slots
  • PCI Express 3.0 x16 slot delivers 16-lane GPU bandwidth
  • Two SATA 6Gb/s ports plus three SATA 3Gb/s ports for mixed storage
  • Realtek ALC887 provides 8-channel high-definition audio
  • Gigabit LAN with 10/100/1000Mbps speeds for wired networking

Specifications

BrandGIGABYTE
ModelGA-H77-DS3H
CPU Socket TypeLGA 1155
CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1155)
ChipsetIntel H77
Number of Memory Slots4x240pin
Memory StandardDDR3 1600/1333/1066
Maximum Memory Supported32GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI Express 2.0 x161 @x4
PCI Express x12 x PCI Express x1
PCI Slots2 x PCI Slots
Serial ATA (SATA)2 x SATA 6Gb/s
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC887
Audio Channels8 Channels
Max LAN Speed1Gbps
Back I/O Ports1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 3.0 / 4 x USB 2.0/1.1
PS/21 x PS/2 keyboard/mouse port
Video PortsD-Sub + DVI
HDMI1 x HDMI
USB 3.02 x USB 3.0
USB 1.1/2.04 x USB 2.0
Audio Ports3 Ports
Onboard USB2 x USB 3.0 + 4 x USB 2.0
Other Connectors1 x 24-pin ATX main power connector/1 x 4-pin ATX 12V power connector/1 x mSATA connector/1 x CPU fan header/3 x system fan headers/1 x front panel header/1 x front panel audio header/1 x S/PDIF Out header/1 x Clear CMOS jumper/1 x serial port header/1 x Trusted Platform Module (TPM) header
Form FactorATX
Dimensions (W x L)12" x 8.46"
Power Pin24 Pin
FeaturesGIGABYTE 3D BIOS //3rd Generation Intel Core processors//Designed for PCI Express Gen.3 Support//GIGABYTE Ultra Durable 4 Classic//Intel Rapid Start Technology//Intel Smart Connect Technology

Questions about this item

Will this board take 32 GB of DDR3 memory?

Yes, the four 240-pin slots support up to 32 GB of DDR3 running at 1600, 1333 or 1066 MHz in dual-channel mode.

Which CPUs fit the LGA 1155 socket?

The socket accepts Core i7, i5, i3, Pentium and Celeron processors built for LGA 1155.

How many SATA 6 Gb/s ports are available for SSDs or hard drives?

Two SATA 6 Gb/s ports are provided, plus three additional SATA 3 Gb/s ports for extra drives.
