Green Micro ATX motherboard with silver heatsinks and black slots

GIGABYTE

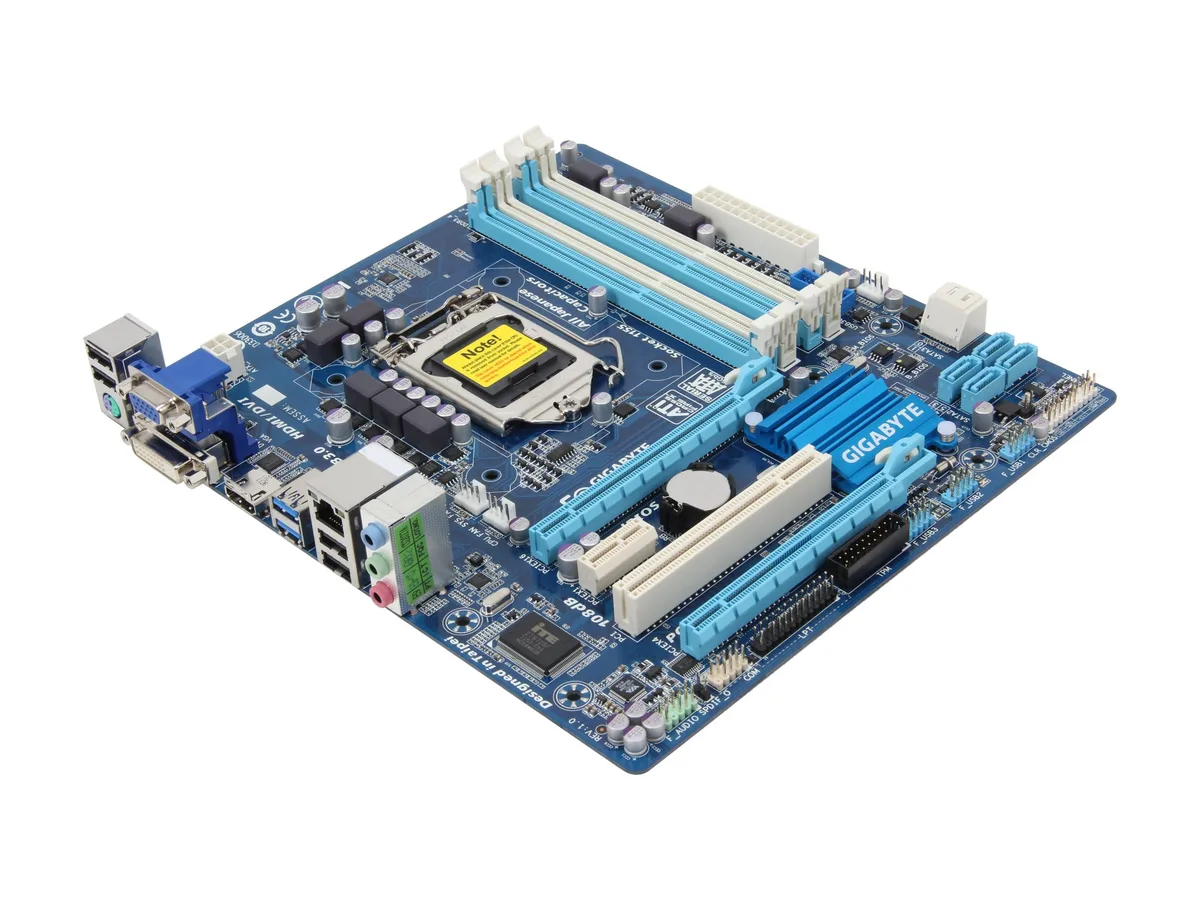

GIGABYTE GA-H77M-D3H Intel motherboard

SKU CH-196X-KQZ2M

Micro-ATX board with H77 chipset for LGA 1155 CPUs, four DDR3 slots up to 32 GB, PCIe 3.0 x16, dual SATA 6 Gb/s and gigabit LAN

  • CPU Socket TypeLGA 1155
  • CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1155)
  • ChipsetIntel H77
  • Number of Memory Slots4x240pin
  • Memory StandardDDR3 1600/1333/1066
  • Maximum Memory Supported32GB
  • Supports up to 32GB DDR3 memory using four 240-pin slots
  • PCI Express 3.0 x16 slot provides 16 lanes for modern graphics cards
  • Dual SATA 6Gb/s ports enable fast SSD or hard-drive performance
  • Gigabit LAN delivers 1000Mbps wired network throughput
  • 8-channel VIA VT2021 audio codec produces high-definition surround sound

Socket LGA 1155 H77 platform

The GIGABYTE GA-H77M-D3H is a Micro ATX board built around the Intel H77 chipset for LGA 1155 processors. It accepts Core i7, i5, i3, Pentium and Celeron CPUs and supports up to 32 GB of DDR3 memory across four 240-pin slots running at 1600, 1333 or 1066 MHz. Integrated graphics output is available when the installed CPU provides it.

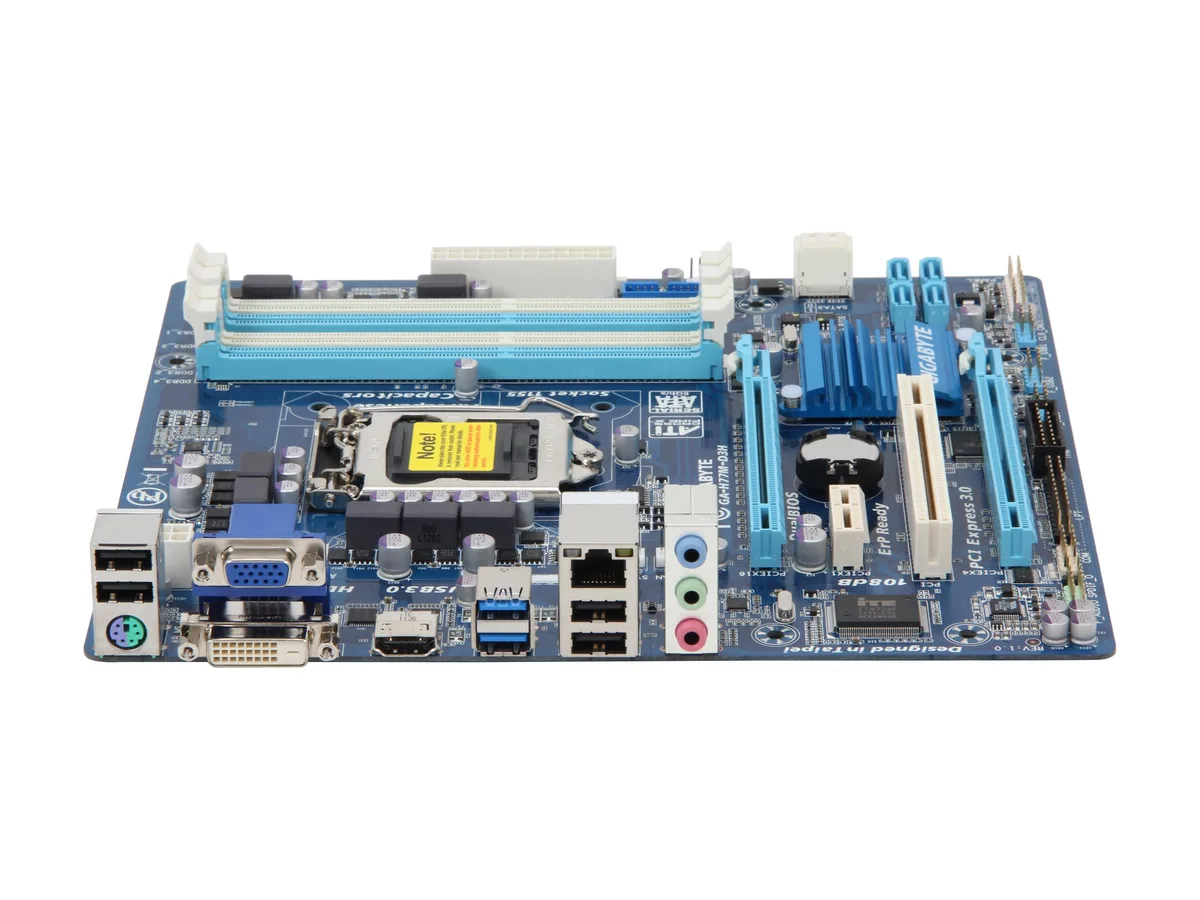

Expansion layout and rear I/O

One PCI Express 3.0 x16 slot and one PCI Express 2.0 x16 slot wired at x4 sit alongside a single PCI Express x1 slot and a legacy PCI slot for older add-in cards. Storage connects through two SATA 6 Gb/s ports and four SATA 3 Gb/s ports with RAID 0, 1, 5 and 10 support. The back panel supplies HDMI, a PS/2 combo port, two USB 3.0 ports and four USB 2.0/1.1 ports. Gigabit LAN tops out at 1 Gbps.

Thermals and power characteristics

The H77 chipset and voltage regulation run cool enough for standard Micro ATX chassis airflow without specialised cooling. Onboard audio uses the VIA VT2021 codec for eight-channel output. With no high-wattage components onboard, the board draws modest power in typical desktop workloads and adds negligible acoustic load to the system.

Highlights

  • Supports up to 32GB DDR3 memory using four 240-pin slots
  • PCI Express 3.0 x16 slot provides 16 lanes for modern graphics cards
  • Dual SATA 6Gb/s ports enable fast SSD or hard-drive performance
  • Gigabit LAN delivers 1000Mbps wired network throughput
  • 8-channel VIA VT2021 audio codec produces high-definition surround sound

Specifications

BrandGIGABYTE
ModelGA-H77M-D3H
CPU Socket TypeLGA 1155
CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1155)
ChipsetIntel H77
Number of Memory Slots4x240pin
Memory StandardDDR3 1600/1333/1066
Maximum Memory Supported32GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI Express 2.0 x161 @x4
PCI Express x11 x PCI Express x1
PCI Slots1 x PCI Slot
Serial ATA (SATA)2 x SATA 6Gb/s
SATA RAID0/1/5/10
Audio ChipsetVIA VT2021
Audio Channels8 Channels
Max LAN Speed1Gbps
Back I/O Ports1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 3.0 / 4 x USB 2.0/1.1
PS/21 x PS/2 keyboard/mouse port
Video PortsD-Sub + DVI
HDMI1 x HDMI
USB 3.02 x USB 3.0
USB 1.1/2.04 x USB 2.0
Audio Ports3 Ports
Onboard USB2 x USB 3.0 + 6 x USB 2.0
Other Connectors1 x 24-pin ATX main power connector/1 x 8-pin ATX 12V power connector/1 x CPU fan header/2 x system fan headers/1 x front panel header/1 x front panel audio header/1 x S/PDIF Out header/1 x serial port header/1 x parallel port/1 x Trusted Platform Module (TPM) header/1 x Clear CMOS jumper
Form FactorMicro ATX
Dimensions (W x L)9.6" x 8.66"
Power Pin24 Pin
FeaturesGIGABYTE 3D BIOS//GIGABYTE Ultra Durable 4 Classic//Designed for PCI Express Gen.3 Support//Intel Rapid Start Technology//Intel Smart Connect Technology//GIGABYTE EZ Smart Response

Questions about this item

Will this board take my LGA 1155 Core i5 and DDR3 1600 memory?

Yes, the LGA 1155 socket supports Core i7, i5, i3, Pentium and Celeron CPUs, and the four 240-pin slots run DDR3 at 1600, 1333 or 1066 in dual-channel mode up to 32 GB total.

Can I add a modern graphics card and two SATA SSDs?

The board provides one PCI Express 3.0 x16 slot for a graphics card and two SATA 6 Gb/s ports plus four SATA 3 Gb/s ports for drives; RAID 0, 1, 5 and 10 are supported on the SATA ports.

What video output does the back panel give if my CPU has integrated graphics?

The rear I/O includes one HDMI port that is driven by the CPU’s integrated graphics; if the processor lacks graphics you will need a discrete card.
