Green Micro ATX motherboard with silver heatsinks, black slots, and rear I/O shield

GIGABYTE

GIGABYTE GA-H97M-D3H LGA1150 Intel motherboard

SKU CH-C6H1-ECVFP

Micro ATX board with LGA 1150 socket, Intel H97 chipset, four DDR3 slots up to 32 GB, one PCIe 3.0 x16 and one PCIe 2.0 x4, six SATA 6 Gb/s ports, 7.1 audio and gigabit LAN

  • CPU Socket TypeLGA 1150
  • CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1150)
  • ChipsetIntel H97
  • Number of Memory Slots4x240pin
  • Memory StandardDDR3 1600/1333
  • Maximum Memory Supported32GB
  • Supports up to 32GB DDR3 1600 memory with four 240-pin slots
  • Intel H97 chipset runs Core i7, i5, i3, Pentium and Celeron LGA1150 CPUs
  • Single PCI Express 3.0 x16 slot plus a PCI Express 2.0 x16 running at x4
  • Six SATA 6Gb/s ports with RAID 0, 1, 5 and 10 support
  • Realtek ALC892 delivers 7.1 channel audio and Realtek 8111F-VL provides 1Gbps LAN

LGA 1150 micro ATX platform

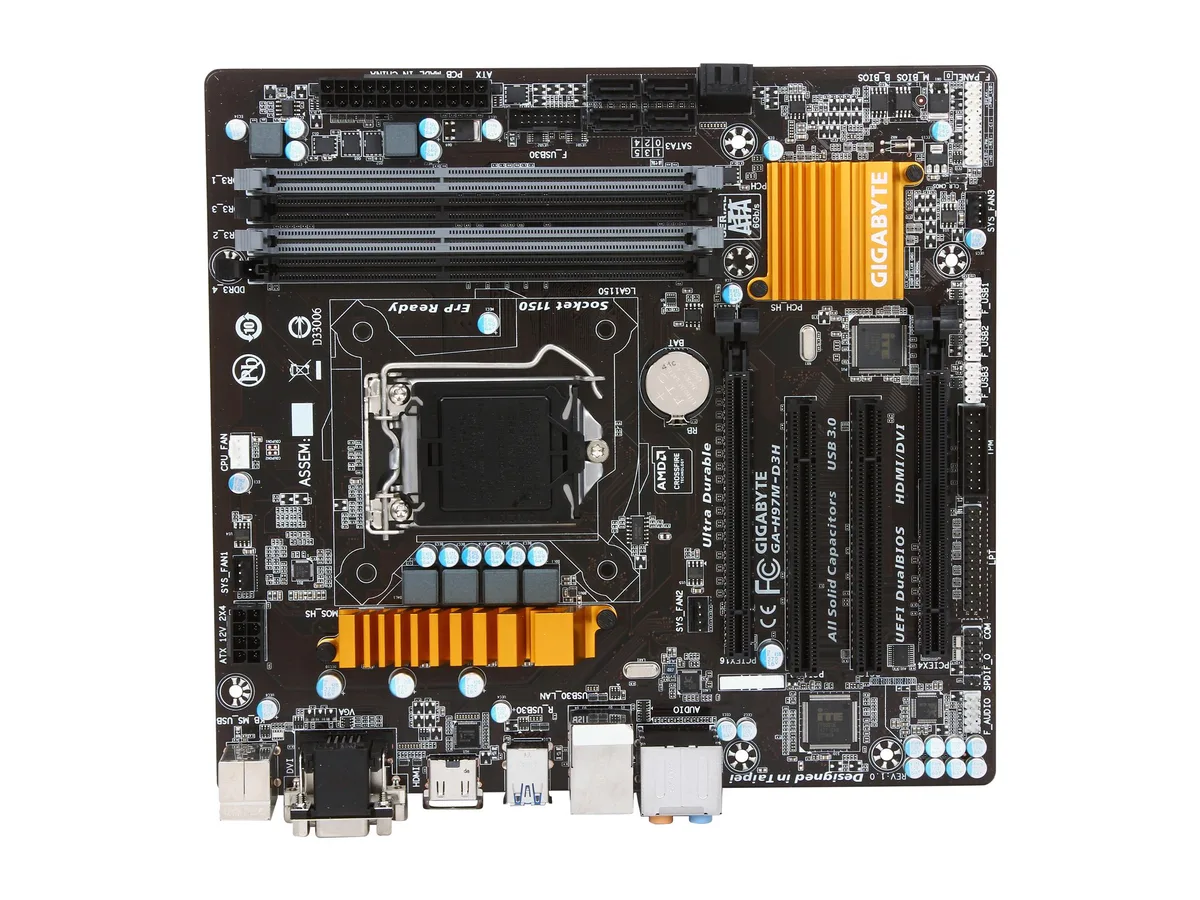

The GIGABYTE GA-H97M-D3H is a micro ATX motherboard built around the Intel H97 chipset for LGA 1150 processors. It accepts Core i7, i5, i3, Pentium and Celeron CPUs and provides four 240-pin slots for DDR3 memory at 1600 or 1333 MT/s in dual-channel mode. Onboard graphics output via HDMI is available when the installed CPU includes an integrated graphics engine.

DDR3 1600 dual-channel ceiling

Memory runs at DDR3 1600 or 1333 across two channels with a hard limit of 32 GB across the four slots. The single PCI Express 3.0 x16 slot delivers full bandwidth for a graphics card while the second x16-size slot operates at x4 over PCI Express 2.0. Six SATA 6 Gb/s ports support RAID 0, 1, 5 and 10 and a Realtek 8111F-VL controller caps wired networking at 1 Gbps.

32 GB RAM and six SATA ports

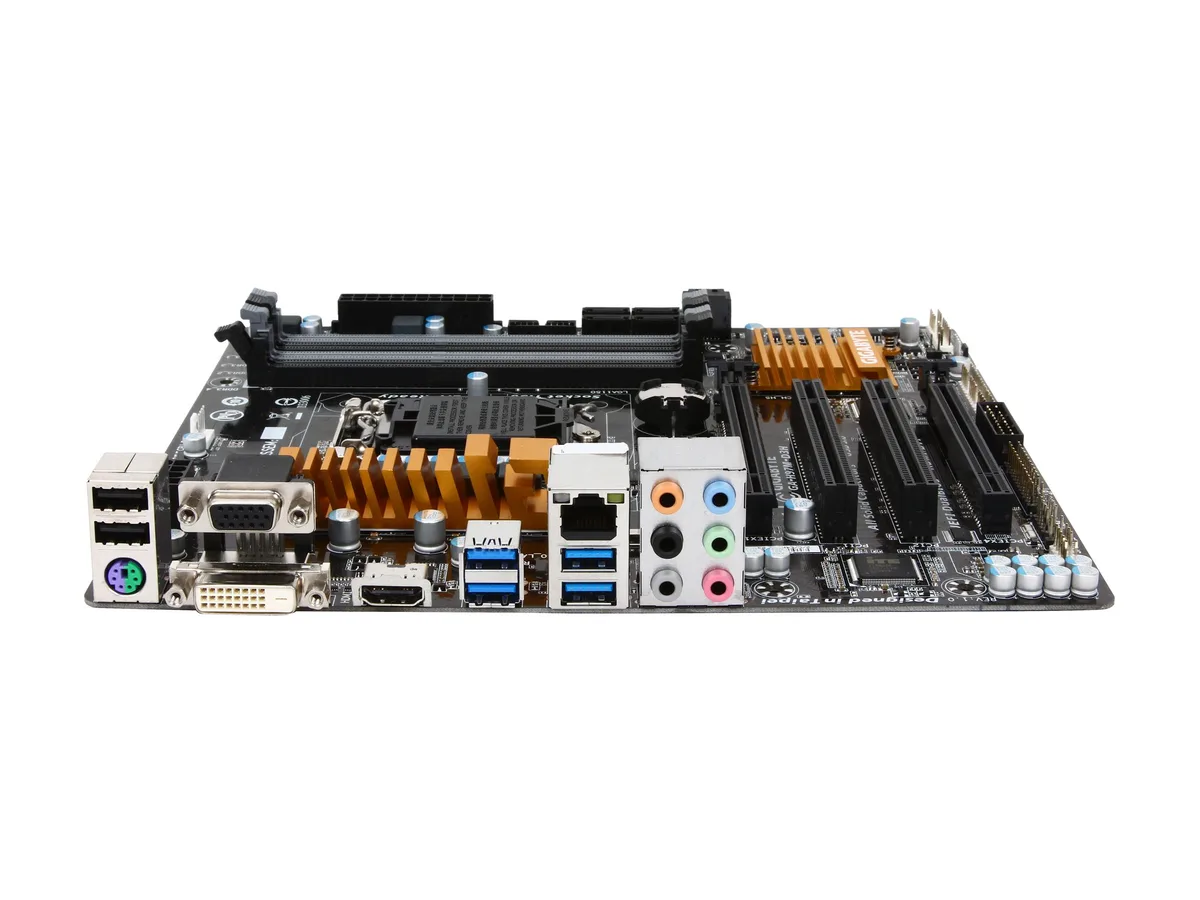

The board comfortably handles mainstream workloads with up to 32 GB of DDR3 and six SATA drives in RAID arrays. Expansion beyond the primary x16 slot is limited to one PCI Express 2.0 x4 slot and two legacy PCI slots. Rear I/O supplies four USB 3.0 ports, two USB 2.0 ports, a PS/2 combo port and 7.1-channel audio from the Realtek ALC892 codec.

Highlights

  • Supports up to 32GB DDR3 1600 memory with four 240-pin slots
  • Intel H97 chipset runs Core i7, i5, i3, Pentium and Celeron LGA1150 CPUs
  • Single PCI Express 3.0 x16 slot plus a PCI Express 2.0 x16 running at x4
  • Six SATA 6Gb/s ports with RAID 0, 1, 5 and 10 support
  • Realtek ALC892 delivers 7.1 channel audio and Realtek 8111F-VL provides 1Gbps LAN

Specifications

BrandGIGABYTE
ModelGA-H97M-D3H
CPU Socket TypeLGA 1150
CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1150)
ChipsetIntel H97
Number of Memory Slots4x240pin
Memory StandardDDR3 1600/1333
Maximum Memory Supported32GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI Express 2.0 x161 (x4)
PCI Slots2 x PCI Slots
Serial ATA (SATA)6 x SATA 6Gb/s
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC892
Audio Channels7.1 Channels
LAN ChipsetRealtek 8111F-VL
Max LAN Speed1Gbps
Back I/O Ports1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 4 x USB 3.0
PS/21 x PS/2 keyboard/mouse port
Video Ports1 x DVI-D / 1 x VGA
HDMI1 x HDMI
RJ451 x RJ45
USB 3.04 x USB 3.0
USB 1.1/2.02 x USB 2.0
Audio Ports6 Ports
Onboard USB2 x USB 3.0 + 6 x USB 2.0
Other Connectors1 x 24-pin ATX main power connector / 1 x 8-pin ATX 12V power connector / 1 x CPU fan header / 3 x system fan headers / 1 x front panel header / 1 x front panel audio header / 1 x S/PDIF Out header / 1 x serial port header / 1 x parallel port header / 1 x Clear CMOS jumper / 1 x Trusted Platform Module (TPM) header
Form FactorMicro ATX
Dimensions (W x L)9.6" x 8.9"
Power Pin24 Pin
FeaturesSupports 4th and 5th Generation Intel Core processors / / Extreme multi graphics support / / HD Audio support / / Highly efficient MOSFET design / / LAN with high ESD Protection / / GIGABYTE LAN Optimizer / / Long lifespan Durable Solid caps / / APP Center including EasyTune and Cloud Station utilities / / GIGABYTE UEFI DualBIOS / / Intel Small Business Advantage

Questions about this item

Should I pick the 1600 or 1333 DDR3 speed for this board?

Both speeds work; install DDR3 1600 modules to run at the higher 1600 rate, or DDR3 1333 modules which will run at 1333.

What does the 32 GB maximum memory mean for my build?

You can populate all four 240-pin slots with up to 8 GB DDR3 modules each, giving a total of 32 GB in dual-channel mode.

How fast is the single PCI Express 3.0 x16 slot in practice?

The slot delivers PCI Express 3.0 x16 bandwidth for a graphics card; the second long slot is wired as PCI Express 2.0 x4.
