Green ATX motherboard with black LGA 1155 socket two DDR3 slots blue PCIe x16 and white PCIe x1 ports silver heatsinks

GIGABYTE

GIGABYTE GA-P61-S3 rev.2.0 LGA 1155 Intel H61 DDR3 16GB ATX Intel motherboard

SKU CH-9P1E-5ZS24

LGA 1155 ATX board with Intel H61 chipset, two DDR3 slots for up to 16GB, one PCIe 3.0 x16 slot, two PCIe x1 slots, four SATA ports, Realtek ALC887 audio and RTL8111F gigabit LAN

  • CPU Socket TypeLGA 1155
  • CPU Type1. Support LGA1155 Slot Processor: Intel Core ™ i7 Processor
  • ChipsetIntel H61
  • Maximum Memory Supported16GB
  • PCI Slots1 PCI Express x16 slot, supporting x16 operating specificati
  • SATA RAID4XSATA II interface

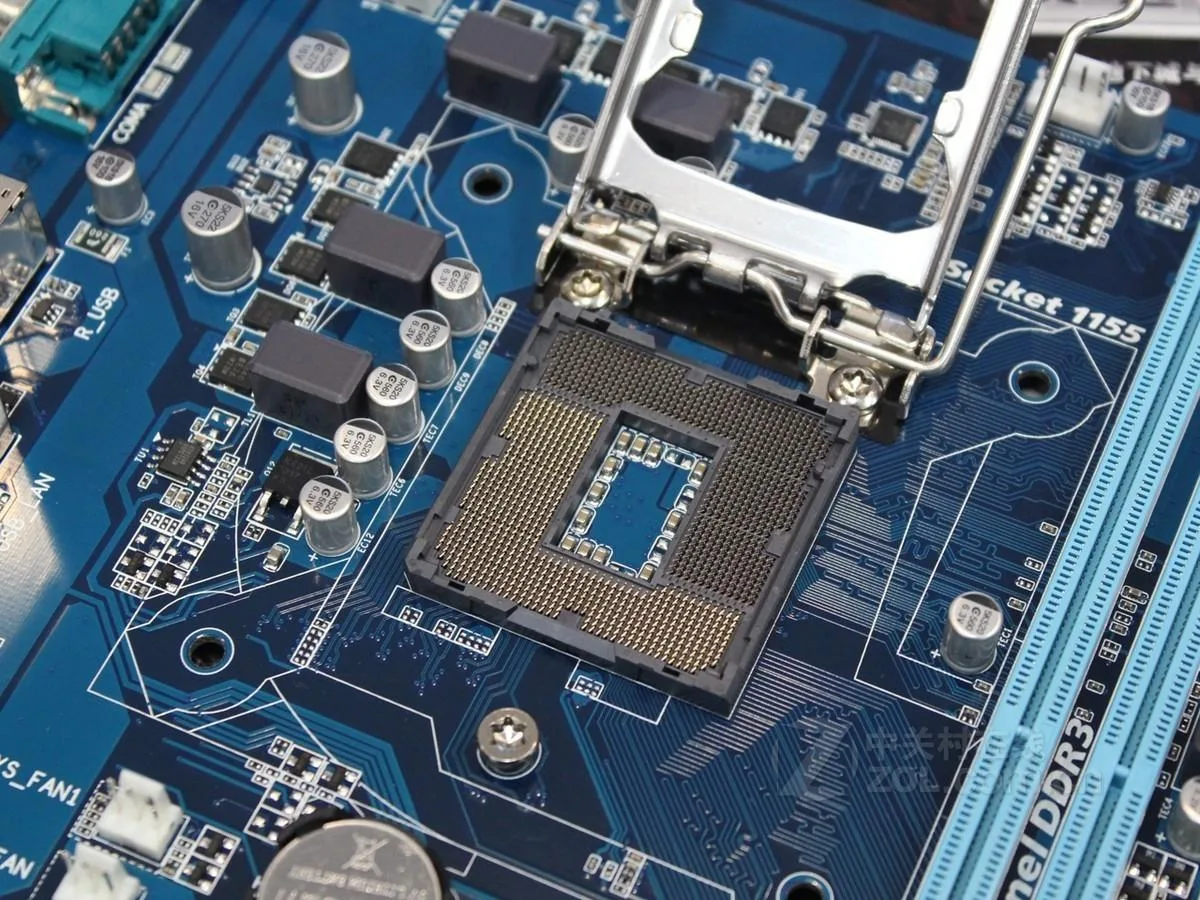

  • LGA 1155 socket supports Core i7, i5, i3, Pentium and Celeron CPUs
  • Intel H61 chipset delivers stable platform for everyday computing
  • Two DDR3 DIMM slots accept up to 16 GB memory
  • Realtek ALC887 codec provides 7.1 channel high-definition audio
  • Realtek RTL8111F LAN controller enables 10/100/1000 Mbit wired networking

GIGABYTE GA-P61-S3 rev.2.0 LGA 1155 ATX Motherboard

This motherboard uses the Intel H61 chipset and fits the LGA 1155 socket. It provides two DDR3 DIMM slots for up to 16GB of system memory. The board follows the standard ATX layout measuring 30.5 by 19 centimetres.

Suits repairs and legacy builds; not for new systems

The board targets users replacing a failed H61 motherboard or assembling a system around an existing LGA 1155 processor. It lacks modern interfaces such as USB 3.0 or SATA 6Gb/s, so builders starting a new platform should select a current chipset.

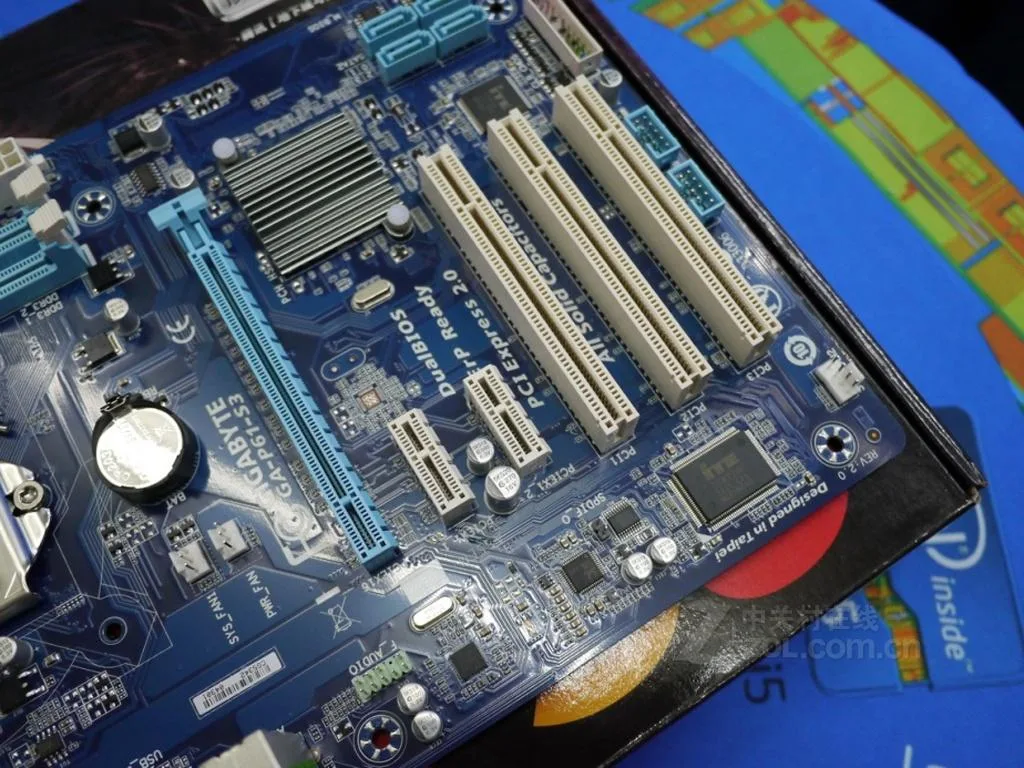

PCI Express x16 slot with 3.0 support

A single PCI Express x16 slot operates at the 3.0 specification when the installed processor and graphics card both support it. This slot determines which graphics cards can run at their rated bandwidth.

Highlights

  • LGA 1155 socket supports Core i7, i5, i3, Pentium and Celeron CPUs
  • Intel H61 chipset delivers stable platform for everyday computing
  • Two DDR3 DIMM slots accept up to 16 GB memory
  • Realtek ALC887 codec provides 7.1 channel high-definition audio
  • Realtek RTL8111F LAN controller enables 10/100/1000 Mbit wired networking

Specifications

BrandGIGABYTE
SeriesGIGABYTE GA-P61-S3(rev.2.0)
ModelGIGABYTE GA-P61-S3(rev.2.0)
CPU Socket TypeLGA 1155
CPU Type1. Support LGA1155 Slot Processor: Intel Core ™ i7 Processor/Intel Core ™ i5 Processor/Intel Core ™ i3 Processor/Intel Pentium Processor/Intel Celeron Processor
2. L3 cache depends on CPU
ChipsetIntel H61
Maximum Memory Supported16GB
PCI Slots1 PCI Express x16 slot, supporting x16 operating specifications
(PCI Express x16 slot supports PCI Express 3.0)
PCIe Gen.3 depends on CPU support and graphics card compatibility.
2 PCI Express x1 slots
All PCI Express x1 slots support PCI Express 2.0.
3. 3 PCI slots
SATA RAID4XSATA II interface
Audio Chipset1. Built-in Realtek ALC887 sound chip
2. Support High Definition Audio
3. Support 2/4/5 1/7.1 channels
To activate the 7.1 channel audio output, you must use the front panel audio output of the HD (High Definition, High Fax) audio module and select the multi-channel audio function through the audio software.
4. Support S/PDIF output
LAN ChipsetBuilt-in 1 Realtek RTL8111F LAN chip (10/100/1000 Mbit)
Onboard USBBuilt-in chipset:
Up to 8 USB 2.0/1 ports (4 on the rear panel, 4 to be connected from the USB socket in the main board via cable)

Questions about this item

What PCI Express generation does the single x16 slot support, and what limits its speed in practice?

The x16 slot is wired for PCI Express 3.0, but actual Gen 3 operation depends on the installed CPU and graphics card; if either lacks Gen 3 support the link falls back to a lower generation.

What are the board dimensions and mounting pattern for case fitment?

The board measures 30.5 by 19 cm and follows the standard ATX mounting pattern, so it fits any case that accepts ATX motherboards.

How is the front-panel audio header connected to enable 7.1 channel output, and what step is often missed?

Connect the case front-panel audio cable to the onboard HD audio header; 7.1 channel output only activates when speakers are plugged into that front panel, not the rear jacks.
