Black ATX motherboard with silver heatsinks, eight DDR4 slots and two full-length PCIe x16 slots

GIGABYTE

GIGABYTE GA-X99-UD4 Intel motherboard LGA 2011-v3 DDR4 64GB

SKU CH-T8WV-V4JEA

An ATX Intel X99 board with eight DDR4 slots supporting up to 64 GB, dual full-speed PCIe 3.0 x16 slots and ten SATA 6 Gb/s ports

  • CPU Socket TypeLGA 2011-v3
  • CPU TypeCore i7 (LGA2011-v3)
  • ChipsetIntel X99
  • Number of Memory Slots8x288pin (DDR4)
  • Memory StandardDDR4 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 213
  • Maximum Memory Supported64GB
  • Supports 64 GB DDR4 across eight 288-pin slots
  • Quad-channel DDR4 up to 3000 MHz overclocked speeds
  • Dual PCI Express 3.0 x16 slots for multi-GPU builds
  • Ten SATA 6 Gb/s ports plus one SATA Express connector
  • Realtek ALC1150 7.1-channel audio with optical S/PDIF output

Socket LGA 2011-v3 platform

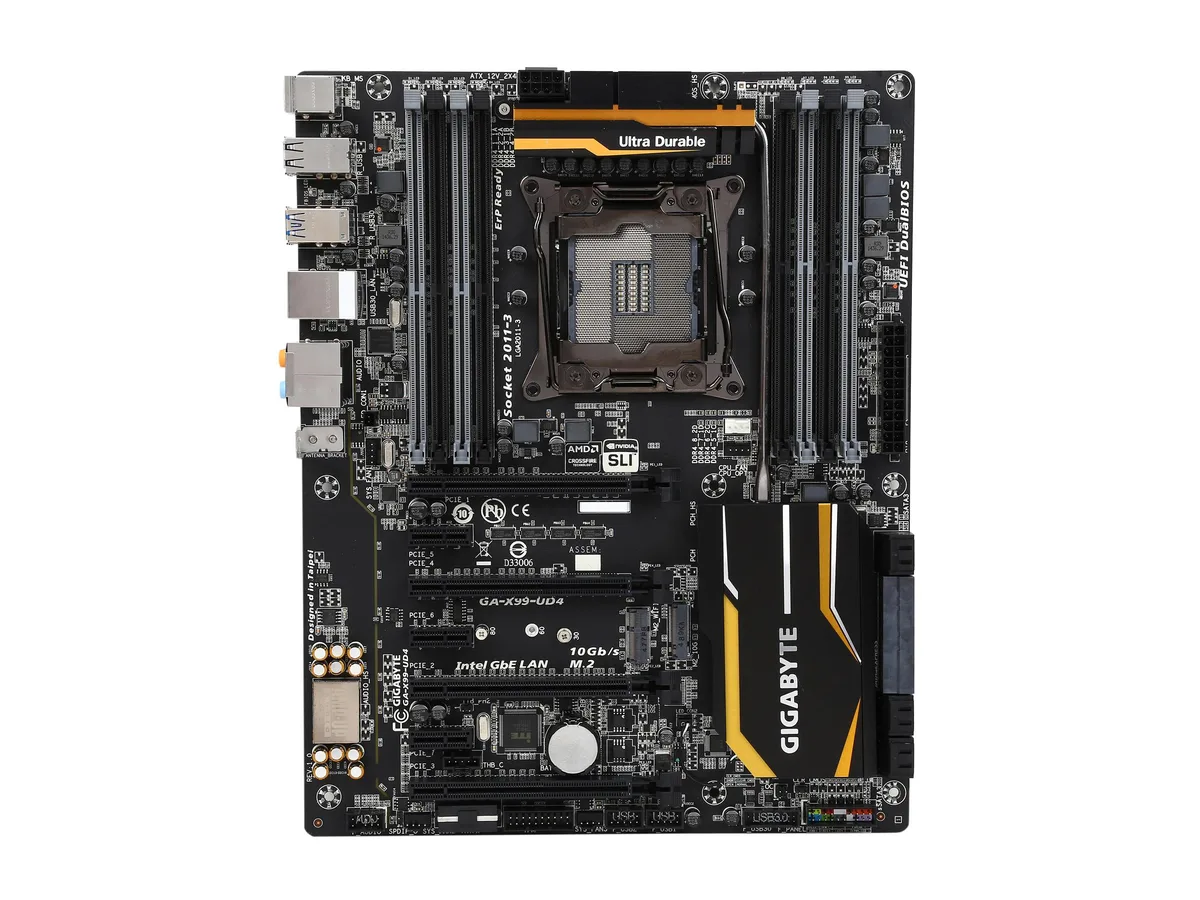

The GIGABYTE GA-X99-UD4 is an ATX motherboard built around the Intel X99 chipset for Core i7 processors in the LGA 2011-v3 package. It targets workstation and enthusiast builds that need quad-channel memory bandwidth and multi-GPU expandability in a standard form factor.

Expansion layout and storage

Two full-length PCI Express 3.0 x16 slots run at x16 each when used as a pair, while two additional x16 slots operate at x8 and share bandwidth with the first slot. Three PCI Express 2.0 x1 slots add peripheral capacity. Ten SATA 6Gb/s ports and one SATA Express connector provide high-density storage connectivity without occupying PCIe lanes.

Memory capacity and headroom

Eight 288-pin DDR4 slots support up to 64GB in quad-channel mode with validated speeds of 2133, 2400, 2666, 2800 and 3000 MHz via overclocking. The Realtek ALC1150 codec delivers 7.1-channel audio, while a single Gigabit LAN port and a mix of six USB 3.0 plus four USB 2.0 ports handle baseline I/O.

Highlights

  • Supports 64 GB DDR4 across eight 288-pin slots
  • Quad-channel DDR4 up to 3000 MHz overclocked speeds
  • Dual PCI Express 3.0 x16 slots for multi-GPU builds
  • Ten SATA 6 Gb/s ports plus one SATA Express connector
  • Realtek ALC1150 7.1-channel audio with optical S/PDIF output

Specifications

BrandGIGABYTE
ModelGA-X99-UD4
CPU Socket TypeLGA 2011-v3
CPU TypeCore i7 (LGA2011-v3)
ChipsetIntel X99
Number of Memory Slots8x288pin (DDR4)
Memory StandardDDR4 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133
Maximum Memory Supported64GB
Channel SupportedQuad Channel
PCI Express x162 x PCI Express x16 slots, running at x16 (PCIE_1, PCIE_2) / * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIE_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIE_1 and PCIE_2 slots. / / 2 x PCI Express x16 slots, running at x8 (PCIE_3, PCIE_4) / * The PCIE_4 slot shares bandwidth with the PCIE_1 slot. When the PCIE_4 slot is populated, the PCIE_1 slot will operate at up to x8 mode. / * When an i7-5820K CPU is installed, the PCIE_2 slot operates at up to
PCI Express x13 x PCI Express x1 slots / (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
Serial ATA (SATA)10 x SATA 6Gb/s
SATA Express1 x SATA Express connector
M.21 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC1150
Audio Channels7.1 Channels
Max LAN Speed1Gbps

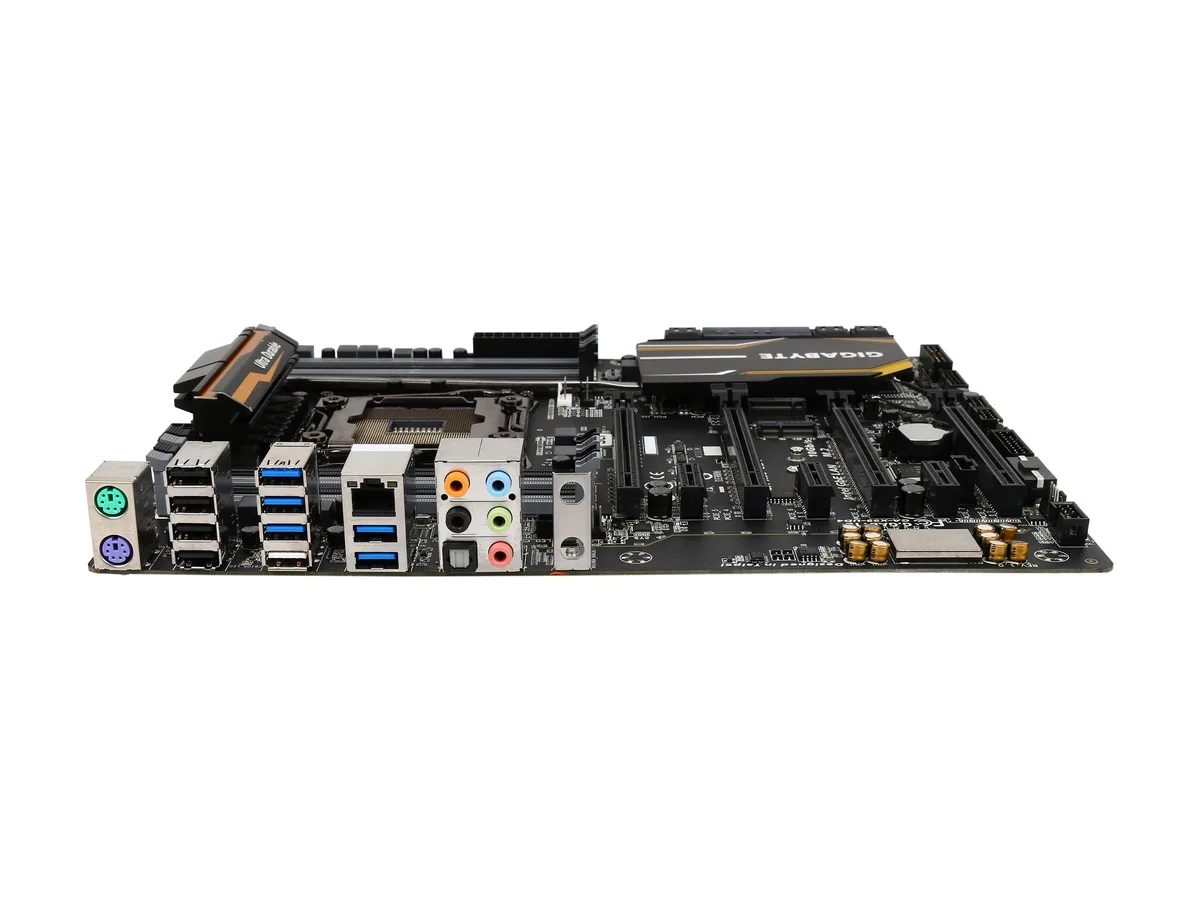

Back I/O Ports1 x Optical S/PDIF Out / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x USB 3.0
PS/21 x PS/2 keyboard port / 1 x PS/2 mouse port
RJ451 x RJ45
USB 3.06 x USB 3.0
USB 1.1/2.04 x USB 2.0
S/PDIF Out1 x Optical
Audio Ports5 Ports
Onboard USB2 x USB 3.0 + 4 x USB 2.0
Other Connectors1 x 24-pin ATX main power connector / 1 x 8-pin ATX 12V power connector / 1 x PCIe power connector / 1 x I/O shield audio LED power connector / 1 x heatsink LED power connector / 1 x CPU fan header / 1 x water cooling fan header (CPU_OPT) / 3 x system fan headers / 1 x front panel header / 1 x front panel audio header / 1 x Trusted Platform Module (TPM) header / 1 x Thunderbolt add-in card connector / 1 x Clear CMOS jumper
Form FactorATX
Dimensions (W x L)12.01" x 9.61"
Power Pin24 Pin
FeaturesSupports New Intel Core i7 Processor Extreme Edition / 4 Channel DDR4, 8 DIMMs / Genuine All Digital Power Design with IR Digital PWM & IR PowIRstage ICs / 4-Way Graphics with Premium PCIe Lane / Dual M.2 Technology for SSD Drive and WIFI card / 6x(30µ) Gold Plating for CPU socket, Memory DIMMs and PCIe slots / Realtek ALC1150 115dB SNR HD audio with built-in Rear Audio Amplifier / Independent Right and Left Audio Channel PCB Layers / LED lighting for the audio guard light path and the back panel LED / All Stainless Steel connectors on rear panel / High end quality audio capacito

Questions about this item

Will my existing DDR4-2133 memory work without overclocking?

Yes, the board runs DDR4-2133 at stock speed; speeds above that require manual overclocking in the BIOS.

Can I install a 64 GB kit using all eight slots?

The board supports up to 64 GB across its eight 288-pin DDR4 slots, so a full 64 GB kit will work.

What happens to the top PCIe x16 slot if I add a card in the fourth slot?

Populating the fourth x16 slot forces the first slot to drop from x16 to x8 electrical bandwidth.
