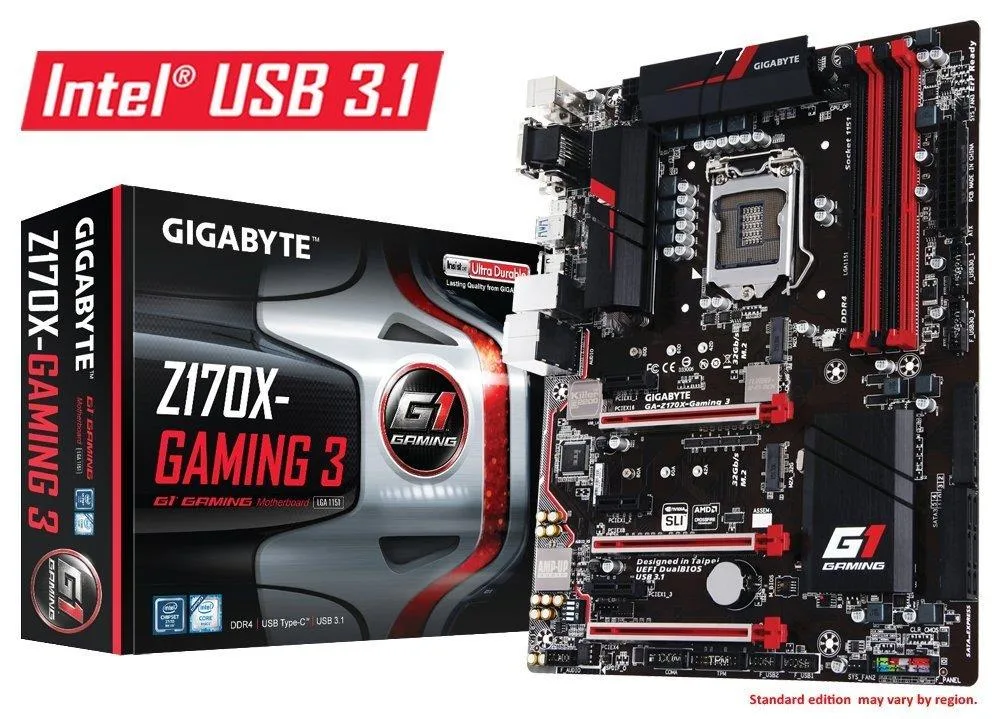

ATX motherboard with black PCB, silver heatsinks and red accents

GIGABYTE

GIGABYTE GA-Z170X-Gaming 3 Intel motherboard

SKU CH-MT0J-62TN3

LGA 1151 ATX board with Intel Z170 chipset, four DDR4 slots up to 64 GB, dual PCIe 3.0 x16 slots, 7.1-channel Realtek ALC1150 audio, Killer E2201 LAN, six SATA 6Gb/s ports.

  • CPU Socket TypeLGA 1151
  • CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1151)
  • ChipsetIntel Z170
  • Onboard Video ChipsetIntegrated Graphics Processor-Intel HD Graphics support1 x D
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 3466*(*O.C.)/ 3400*/ 3333*/ 3300*/ 3200*/ 3000*/ 2800*/
  • Supports up to 64 GB DDR4 memory
  • Dual-channel DDR4 up to 3466 MHz overclocked
  • Realtek ALC1150 delivers 7.1-channel high-definition audio
  • Qualcomm Atheros Killer E2201 LAN for low-latency networking
  • Two M.2 sockets plus three SATA Express for fast storage

G1 Gaming Z170 ATX Motherboard

The GIGABYTE GA-Z170X-Gaming 3 is an ATX motherboard built on the Intel Z170 chipset for LGA 1151 processors. It supports Core i7, i5, i3, Pentium and Celeron CPUs with four DDR4 DIMM slots running in dual-channel mode up to 64 GB. The board includes onboard Intel HD Graphics via D-Sub and DVI-D outputs at 1920x1200@60 Hz.

Suited for Multi-GPU and High-Speed Storage Builds

This motherboard fits builders who want multi-graphics support with one PCI Express 3.0 x16 slot, a second running at x8 and a third at x4 plus three-way CrossFire and two-way SLI capability. Storage options include six SATA 6Gb/s ports, three SATA Express connectors and two M.2 Socket 3 slots. Users needing integrated Wi-Fi or a smaller form factor should look at other models.

Z170 Chipset Decides CPU and Overclocking Scope

The Intel Z170 chipset determines which LGA 1151 processors are compatible and enables CPU overclocking with K-series parts. It also sets the native PCI Express 3.0 lane allocation and the maximum supported memory speed of DDR4 3466 (O.C.). Verify your processor and cooling plans match this chipset before purchase.

Highlights

  • Supports up to 64 GB DDR4 memory
  • Dual-channel DDR4 up to 3466 MHz overclocked
  • Realtek ALC1150 delivers 7.1-channel high-definition audio
  • Qualcomm Atheros Killer E2201 LAN for low-latency networking
  • Two M.2 sockets plus three SATA Express for fast storage

Specifications

BrandGIGABYTE
SeriesG1 Gaming
ModelGA-Z170X-Gaming 3
CPU Socket TypeLGA 1151
CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1151)
ChipsetIntel Z170
Onboard Video ChipsetIntegrated Graphics Processor-Intel HD Graphics support1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz* The DVI-D port does not support D-Sub connection by adapter.1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz* Support for HDMI 1.4 version.Support for up to 3 displays at the same timeMaximum shared memory of 512 MBMulti-Graphics Technology Support for 3-Way/2-Way AMD CrossFire and 2-Way NVIDIA SLI Technology
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 3466*(*O.C.)/ 3400*/ 3333*/ 3300*/ 3200*/ 3000*/ 2800*/ 2666*/ 2400*/ 2133
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express x16 slot, running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.1 x PCI Express x16 slot, running at x8 (PCIEX8)* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode.1 x PCI Express x16 slot, running at x4 (PCIEX4)* The PCIEX4 slot shares bandwidth with the PCIEX1_3 slot. When the PCIEX1_3 slot is populated, the PCIEX4 slot will operate at up to x1 mode.
PCI Express x13 x PCI Express x1 slots(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Serial ATA (SATA)6 x SATA 6Gb/s connectors
SATA Express3 x SATA Express connectors
M.22 x M.2 Socket 3 connectors
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC1150
Audio Channels2/4/5.1/7.1-channel
LAN ChipsetQualcomm Atheros Killer E2201 LAN chip
Max LAN Speed1Gbps

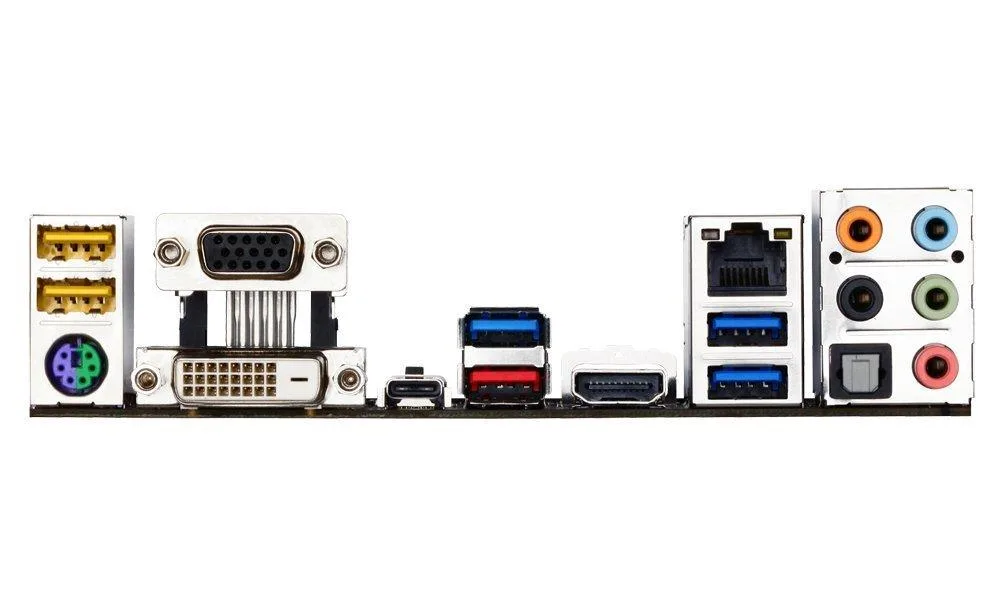

PS/21 x PS/2 keyboard/mouse port
Video Ports1 x D-Sub port1 x DVI-D port
HDMI1 x HDMI
RJ451 x RJ45
USB 3.11 x USB Type-C port, with USB 3.1 support1 x USB 3.1 port
USB 3.03 x USB 3.0
USB 1.1/2.02 x USB 2.0
S/PDIF Out1 x optical S/PDIF Out connector
Audio Ports5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
Onboard USB2 x USB 3.0/2.0 headers2 x USB 2.0/1.1 headers
Other Connectors1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x water cooling fan header (CPU_OPT)3 x system fan headers1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x Trusted Platform Module (TPM) header1 x Thunderbolt™ add-in card connector1 x serial port header1 x Clear CMOS jumper1 x audio gain control switch
Form FactorATX
Dimensions (W x L)12.01" x 9.25"
FeaturesI/O Controller iTE I/O Controller ChipH/W Monitoring System voltage detectionCPU/System/Chipset temperature detectionCPU/CPU OPT/System fan speed detectionCPU/System/Chipset overheating warningCPU/CPU OPT/System fan fail warningCPU/CPU OPT/System fan speed control* Whether the fan speed control function is supported will depend on the cooler you install.BIOS 2 x 64 Mbit flashUse of licensed AMI UEFI BIOSSupport for DualBIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique Features Support for APP Center* Available applications in APP Center may vary by motherboard model. Suppor

Questions about this item

Do I need an LGA 1151 processor and DDR4 memory to use this board?

Yes, the GA-Z170X-Gaming 3 requires an LGA 1151 CPU such as Core i7, i5, i3, Pentium or Celeron and takes four 288-pin DDR4 DIMMs in dual-channel mode up to 64 GB.

Will my PCI Express 3.0 x16 graphics card run at full speed if I also use the M.2 slots?

The primary PCI Express 3.0 x16 slot runs at x16; the second x16 slot runs at x8 and the x4 slot at x4, so a single GPU in the top slot keeps full bandwidth while both M.2 Socket 3 connectors remain usable.

How can I confirm the Realtek ALC1150 audio is active after building the system?

In Windows Device Manager check for Realtek High Definition Audio under Sound, video and game controllers, then open the Realtek Audio Console to verify 7.1-channel output and test each speaker.
