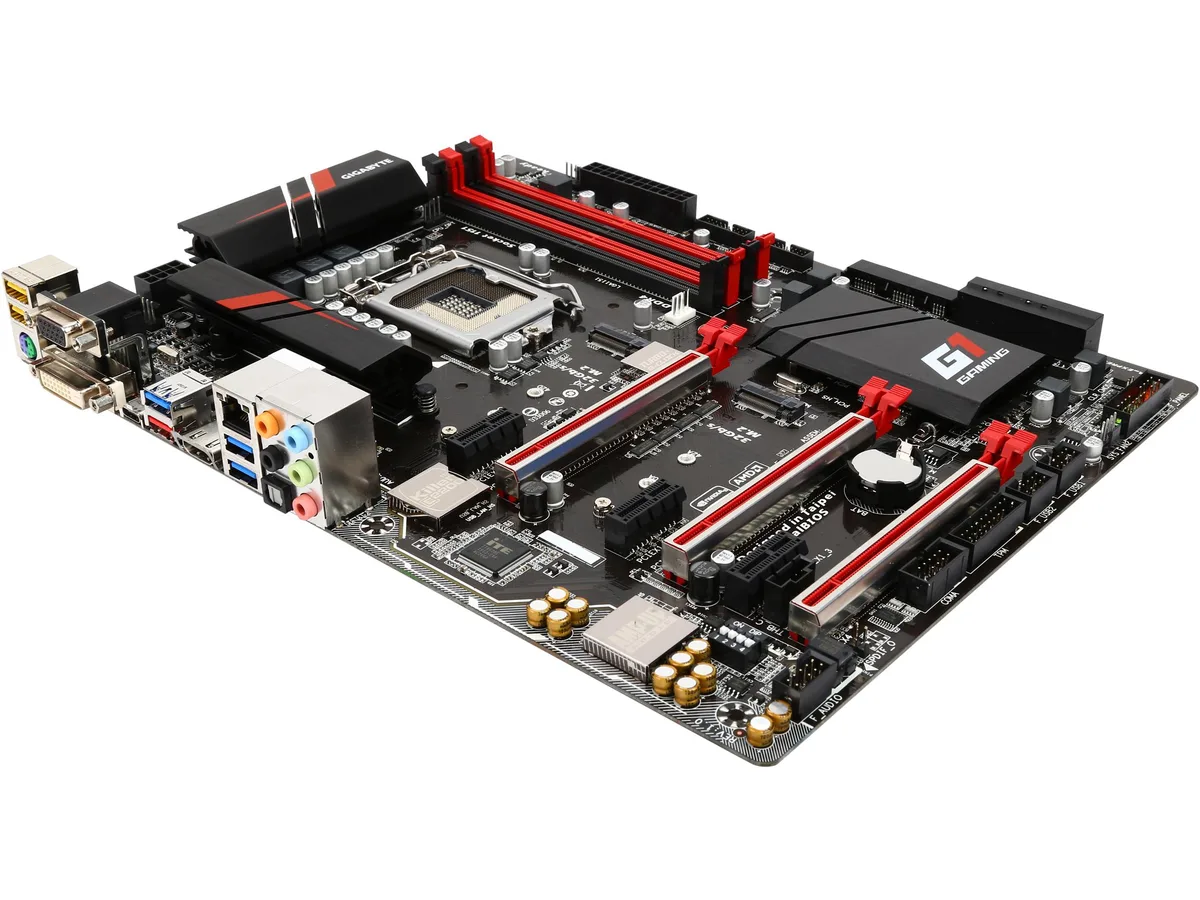

ATX motherboard with black PCB and red accents, LGA 1151 socket, four DDR4 slots, multiple PCIe x16 and x1 slots, M.2 connectors

GIGABYTE

GIGABYTE GA-Z170X-Gaming 3 rev 1.0 LGA 1151 Intel motherboard

SKU CH-PVHW-A7RZZ

ATX board with Intel Z170 chipset for LGA 1151 CPUs, four DDR4 slots up to 64 GB, dual x16 PCIe 3.0 slots, six SATA 6 Gb/s ports, two M.2 connectors and Realtek ALC1150 7.1 audio

  • CPU Socket TypeLGA 1151
  • CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1151)
  • ChipsetIntel Z170
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 3466*(*O.C.)/ 3400*/ 3333*/ 3300*/ 3200*/ 3000*/ 2800*/
  • Maximum Memory Supported64GB
  • Supports 6th and 7th Gen Intel CPUs via LGA 1151 socket
  • Four DDR4 slots accept up to 64 GB at speeds up to 3466 MHz OC
  • Realtek ALC1150 delivers 7.1-channel high-definition audio
  • Killer E2201 LAN provides low-latency 1 Gbps networking
  • Two M.2 sockets plus six SATA 6 Gb/s ports for flexible storage

Z170 ATX Board for LGA 1151 CPUs

The GIGABYTE GA-Z170X-Gaming 3 revision 1.0 is an ATX motherboard built on the Intel Z170 chipset for LGA 1151 processors including Core i7, i5, i3, Pentium and Celeron. It targets enthusiasts who want a feature-rich foundation for a gaming or workstation build without moving to a newer platform.

Four DDR4 Slots and Flexible PCIe Layout

Four 288-pin slots support dual-channel DDR4 up to 3466 MT/s overclocked with a 64 GB maximum capacity. A primary PCIe 3.0 x16 slot runs at x16, a second at x8 sharing bandwidth, and a third at x4 sharing with a PCIe x1 slot, giving options for single or multi-GPU arrangements while three additional x1 slots handle add-in cards.

Six SATA Ports Plus Two M.2 Sockets

Storage connectivity includes six SATA 6 Gb/s ports with RAID 0, 1, 5 and 10 support, three SATA Express connectors and two M.2 Socket 3 connectors for fast solid-state drives. Onboard audio uses the Realtek ALC1150 codec for up to 7.1-channel output and networking is handled by a Qualcomm Atheros Killer E2201 controller at 1 Gbps.

Highlights

  • Supports 6th and 7th Gen Intel CPUs via LGA 1151 socket
  • Four DDR4 slots accept up to 64 GB at speeds up to 3466 MHz OC
  • Realtek ALC1150 delivers 7.1-channel high-definition audio
  • Killer E2201 LAN provides low-latency 1 Gbps networking
  • Two M.2 sockets plus six SATA 6 Gb/s ports for flexible storage

Specifications

BrandGIGABYTE
SeriesG1 Gaming
ModelGA-Z170X-Gaming 3 (rev. 1.0)
CPU Socket TypeLGA 1151
CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1151)
ChipsetIntel Z170
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 3466*(*O.C.)/ 3400*/ 3333*/ 3300*/ 3200*/ 3000*/ 2800*/ 2666*/ 2400*/ 2133
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express x16 slot, running at x16 (PCIEX16)/* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot./1 x PCI Express x16 slot, running at x8 (PCIEX8)/* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode./1 x PCI Express x16 slot, running at x4 (PCIEX4)/* The PCIEX4 slot shares bandwidth with the PCIEX1_3 slot. When the PCIEX1_3 slot is populated, the PCIEX4 slot will operate at up to x1 mode.
PCI Express x13 x PCI Express x1 slots/(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Serial ATA (SATA)6 x SATA 6Gb/s connectors
SATA Express3 x SATA Express connectors
M.22 x M.2 Socket 3 connectors
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC1150
Audio Channels2/4/5.1/7.1-channel
LAN ChipsetQualcomm Atheros Killer E2201 LAN chip
Max LAN Speed1Gbps
PS/21 x PS/2 keyboard/mouse port
Video Ports1 x D-Sub port/1 x DVI-D port
HDMI1 x HDMI
RJ451 x RJ45
USB 3.11 x USB Type-C port, with USB 3.1 support/1 x USB 3.1 port
USB 3.03 x USB 3.0
USB 1.1/2.02 x USB 2.0
S/PDIF Out1 x optical S/PDIF Out connector
Audio Ports5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
Onboard USB2 x USB 3.0/2.0 headers/2 x USB 2.0/1.1 headers
Other Connectors1 x 24-pin ATX main power connector/1 x 8-pin ATX 12V power connector/1 x CPU fan header/1 x water cooling fan header (CPU_OPT)/3 x system fan headers/1 x front panel header/1 x front panel audio header/1 x S/PDIF Out header/1 x Trusted Platform Module (TPM) header/1 x Thunderbolt™ add-in card connector/1 x serial port header/1 x Clear CMOS jumper/1 x audio gain control switch
Form FactorATX
Dimensions (W x L)12.01" x 9.25"
FeaturesI/O Controller /iTE I/O Controller Chip//H/W Monitoring /System voltage detection/CPU/System/Chipset temperature detection/CPU/CPU OPT/System fan speed detection/CPU/System/Chipset overheating warning/CPU/CPU OPT/System fan fail warning/CPU/CPU OPT/System fan speed control/* Whether the fan speed control function is supported will depend on the cooler you install.//BIOS /2 x 64 Mbit flash/Use of licensed AMI UEFI BIOS/Support for DualBIOS/PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0//Unique Features /Support for APP Center/* Available applications in APP Center may vary by mothe

Questions about this item

How many DDR4 slots does the GA-Z170X-Gaming 3 have for memory upgrades?

The board provides four 288-pin DDR4 slots supporting up to 64 GB in dual-channel mode.

What is the highest DDR4 speed the GA-Z170X-Gaming 3 can reach with overclocking?

The memory standard lists DDR4 3466 (O.C.) as the top overclocked frequency.

Which audio chipset drives the onboard sound on the GA-Z170X-Gaming 3?

The Realtek ALC1150 codec handles 2/4/5.1/7.1-channel output.
