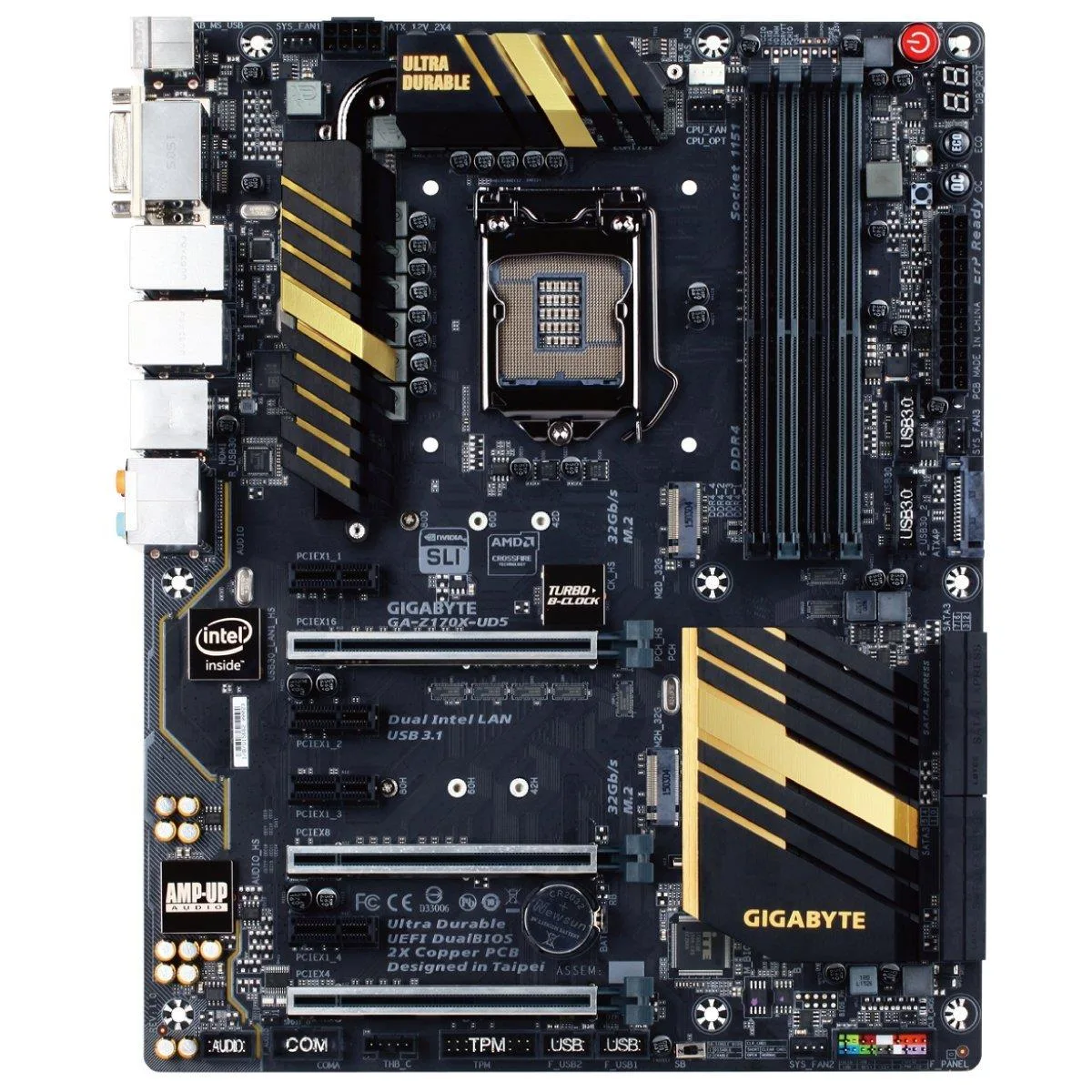

ATX motherboard, black PCB with silver heatsinks and multiple expansion slots

GIGABYTE

GIGABYTE GA-Z170X-UD5 (rev. 1.0) Intel motherboard

SKU CH-1G0Y-FZA8R

ATX board with LGA 1151 socket, four DDR4 slots up to 64 GB, eight SATA 6.0 Gb/s ports, three PCI-Express x16 slots, USB 3.1 and 3.0 rear ports, 7.1-channel audio, and dual Gigabit LAN

  • Supports 64 GB DDR4 across four slots
  • LGA 1151 socket fits Intel Core i7 and i5 CPUs
  • Three PCI-Express x16 slots enable AMD CrossFireX and NVIDIA SLI
  • Eight SATA III 6.0 Gbps ports give abundant storage connectivity
  • 1-channel Realtek ALC1150 audio with Intel Gigabit LAN

Socket LGA 1151 ATX motherboard

The Gigabyte GA-Z170X-UD5 revision 1.0 uses the Intel Z170 Express chipset and an LGA 1151 socket. It accepts Intel Core i7 and Core i5 processors up to a 91 watt TDP. The board provides four DDR4 memory slots supporting up to 64 GB at 2133 MHz with 2800 MHz overclocking capability.

Expansion focused builders

Eight SATA III ports and three PCI Express x16 slots give room for multiple graphics cards and many drives. AMD CrossFireX and NVIDIA SLI are supported for multi-GPU setups. Builders who need integrated Wi-Fi, Bluetooth or an M.2 slot should look at a different board because those interfaces are not present.

91 watt CPU power limit

The socket is rated for a maximum TDP of 91 watts, so processors with higher power draw are not supported. Check your chosen CPU specification against this limit before purchasing.

Highlights

  • Supports 64 GB DDR4 across four slots
  • LGA 1151 socket fits Intel Core i7 and i5 CPUs
  • Three PCI-Express x16 slots enable AMD CrossFireX and NVIDIA SLI
  • Eight SATA III 6.0 Gbps ports give abundant storage connectivity
  • 1-channel Realtek ALC1150 audio with Intel Gigabit LAN

Specifications

BrandGIGABYTE
ModelGA-Z170X-UD5

Questions about this item

How do I verify the GA-Z170X-UD5 is working after installing a CPU and memory?

Power on the system and confirm the POST screen appears; check the BIOS reports the installed Core i7 or i5 processor, shows all four DDR4 slots populated up to 64 GB at 2133 MHz, and lists the eight SATA III 6.0 Gbps ports and the Intel Gigabit LAN adapter.

What ships with the GA-Z170X-UD5 rev. 1.0 and what must I purchase separately?

The motherboard itself is supplied; you must buy an LGA 1151 Intel Core i7 or i5 CPU (max 91 W TDP), up to four DDR4 DIMMs (2133 MHz native, 2800 MHz OC), a graphics card for the PCIe x16/x8/x4 slots if you need discrete video, storage drives for the eight SATA III ports, and a chassis that fits the 12" x 9.6" ATX form factor.

Which GA-Z170X-UD5 version should I choose for my build?

Only the rev. 1.0 ATX model is listed; it provides the Z170 chipset, LGA 1151 socket, four DDR4 slots supporting 64 GB, three PCIe slots (x16, x8, x4) for CrossFireX or SLI, eight SATA III 6.0 Gbps ports, rear DVI/HDMI/DisplayPort outputs, three USB 3.0 plus two USB 2.0 ports, 7.1-channel Realtek ALC1150 audio, and dual Intel Gigabit LAN.
