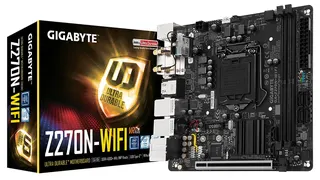

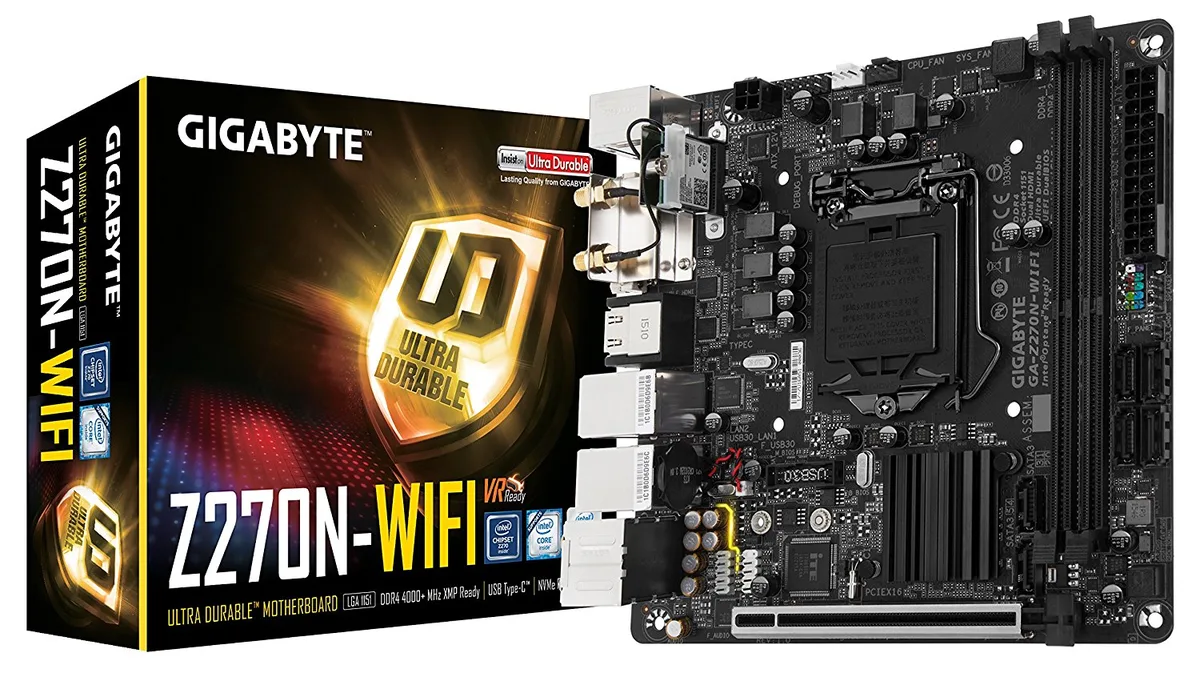

Compact Mini ITX motherboard with black PCB and silver I/O shield

GIGABYTE

GIGABYTE GA-Z270N-WIFI (rev. 1.0) Intel motherboard

SKU CH-9ZD2-1980W

Mini-ITX board for LGA 1151 CPUs with dual HDMI, six SATA 6Gb/s ports, dual Intel gigabit LAN, DDR4 up to 32 GB and Realtek ALC1220 audio

  • CPU Socket TypeLGA 1151
  • CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1151)
  • ChipsetIntel Z270
  • Onboard Video ChipsetIntegrated Graphics Processor - Intel HD Graphics support:-
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.
  • Compact Mini ITX board fits small builds
  • Z270 chipset supports LGA 1151 processors
  • Four DDR4 slots allow up to 32GB memory
  • Dual Intel gigabit LAN for wired throughput
  • Realtek ALC1220 audio with 7.1-channel output

Socket LGA 1151 Mini ITX Z270 board

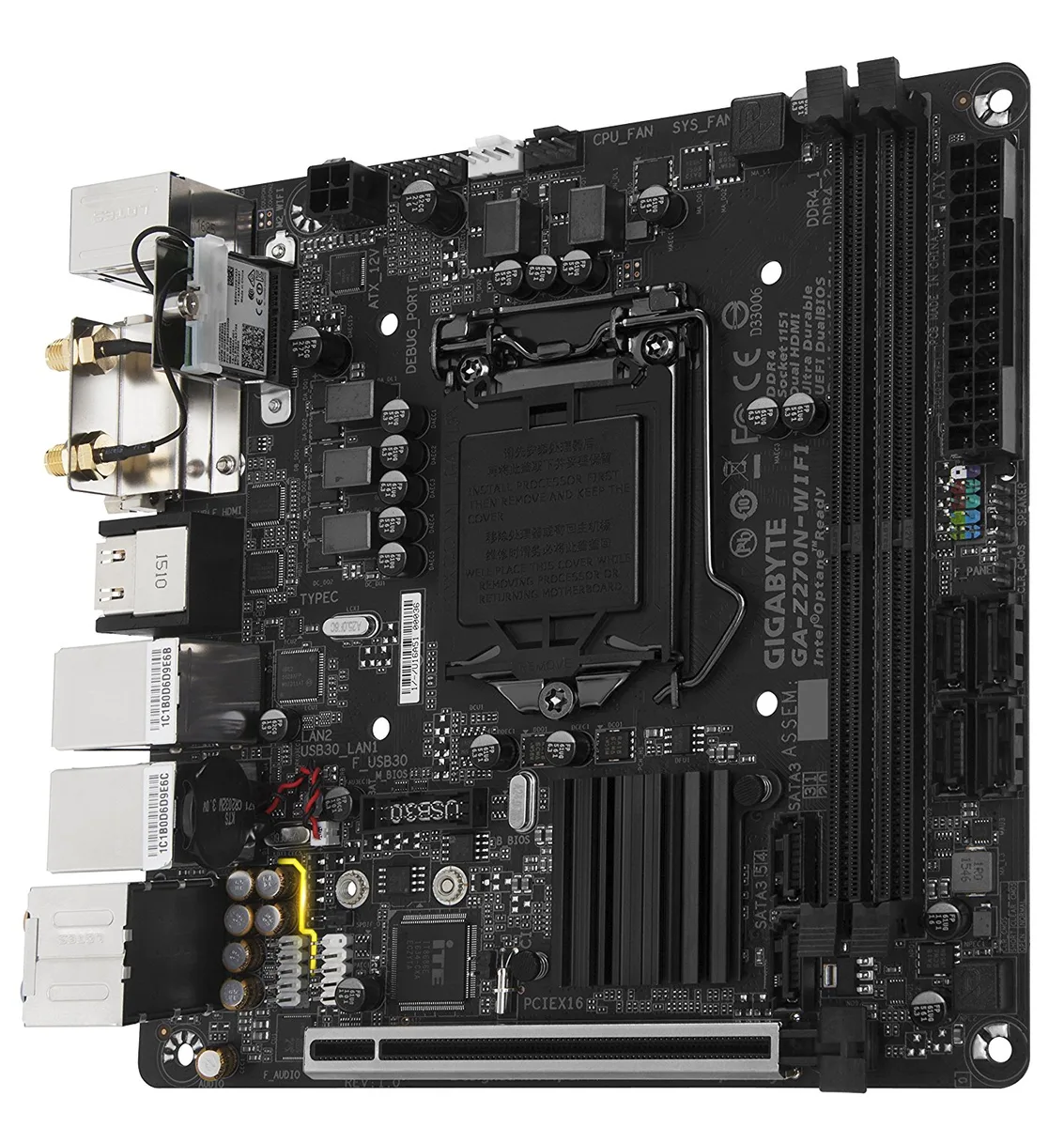

This GIGABYTE GA-Z270N-WIFI motherboard fits the Mini ITX form factor and uses the Intel Z270 chipset with an LGA 1151 socket. It accepts Core i7, i5, i3, Pentium and Celeron processors. The board provides integrated Intel HD graphics output through one DVI-D port and two HDMI ports.

Dual-channel DDR4 up to 32 GB

Four 288-pin slots support DDR4 memory running at speeds from 2133 up to 4000 when overclocked, with a maximum capacity of 32 GB in dual-channel mode. The single PCI Express 3.0 x16 slot runs at full x16 speed for a graphics card.

Two Intel Gigabit LAN and Realtek ALC1220 audio

Dual Intel GbE LAN chips deliver two 1 Gbps network connections. The Realtek ALC1220 codec handles 2, 4, 5.1 and 7.1-channel audio. Six SATA 6Gb/s ports and one M.2 Socket 3 connector on the rear support SATA and PCIe x4 or x2 SSDs in 2260 or 2280 form factors.

Highlights

  • Compact Mini ITX board fits small builds
  • Z270 chipset supports LGA 1151 processors
  • Four DDR4 slots allow up to 32GB memory
  • Dual Intel gigabit LAN for wired throughput
  • Realtek ALC1220 audio with 7.1-channel output

Specifications

BrandGIGABYTE
ModelGA-Z270N-WIFI (rev. 1.0)
CPU Socket TypeLGA 1151
CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1151)
ChipsetIntel Z270
Onboard Video ChipsetIntegrated Graphics Processor - Intel HD Graphics support:- 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz* The DVI-D port does not support D-Sub connection by adapter.- 2 x HDMI ports, supporting a maximum resolution of 4096x2160@24 Hz* Support for HDMI 1.4 version.Support for up to 3 displays at the same timeMaximum shared memory of 1GB
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400(O.C.)/ 2133
Maximum Memory Supported32GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express x16 slot, running at x16(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
Other Slots1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
Serial ATA (SATA)6 x SATA 6Gb/s
M.21 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support)
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC1220
Audio Channels2/4/5.1/7.1-channel
LAN ChipsetIntel GbE LAN chip
Second LAN ChipsetIntel GbE LAN chip
Max LAN Speed2 x 1Gbps
Wireless LANWi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
BluetoothBLUETOOTH 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR
PS/21 x PS/2 keyboard/mouse port
Video Ports1 x DVI-D port
HDMI2 x HDMI
RJ452 x RJ45
USB 3.14 x USB 3.1 Gen 1 ports1 x USB Type-C port, with USB 3.1 Gen 1 support
S/PDIF Out1 x Optical
Audio Ports5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
Antenna Connectors2 x SMA antenna connectors (2T2R)
Onboard USB1 x USB 3.1 Gen 1 header1 x USB 2.0/1.1 header
Other Connectors1 x 24-pin ATX main power connector1 x 4-pin ATX 12V power connector1 x CPU fan header1 x system fan header1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x speaker header1 x Clear CMOS jumper1 x chassis intrusion header
Form FactorMini ITX
Dimensions (W x L)6.7" x 6.7"
Power PinI/O Controller- iTE I/O Controller ChipHardware Monitor- Voltage detection- Temperature detection- Fan speed detection- Overheating warning- Fan fail warning- Fan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.BIOS- 2 x 128 Mbit flash- Use of licensed AMI UEFI BIOS- Support for DualBIOS- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique Features- Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherb

Questions about this item

What does the DDR4 4000 (O.C.) rating mean for everyday use?

The board can run DDR4 up to 4000 MT/s when overclocked; at stock it operates at 2133 MT/s, so you must enable XMP in the BIOS to reach the higher speeds.

How fast can the rear M.2 slot actually run?

The rear M.2 socket supports PCIe 3.0 x4 and SATA modes, so a PCIe 3.0 x4 SSD will hit its full rated throughput while a SATA M.2 drive is limited to the 6 Gb/s SATA ceiling.

What clearance does the single PCIe x16 slot need in a Mini-ITX case?

The slot follows the PCI Express 3.0 x16 standard and sits at the board edge, so any Mini-ITX chassis with a standard expansion-slot cut-out will accommodate a full-length graphics card.
