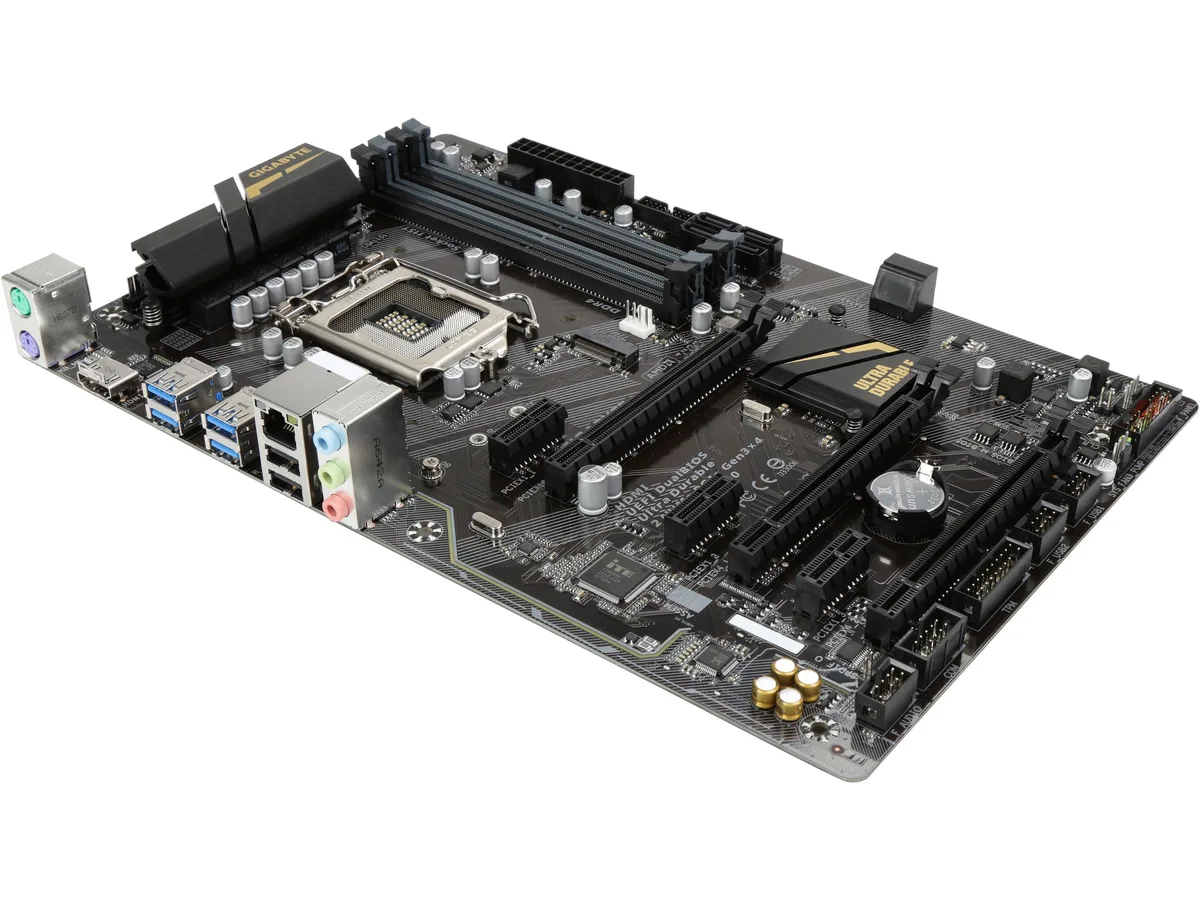

Gigabyte Z270 ATX motherboard, dark PCB with silver heatsinks and blue slots

GIGABYTE

GIGABYTE GA-Z270P-D3 rev 1.0 Intel motherboard

SKU CH-Y8JX-2XXQN

ATX board with Intel Z270 chipset, LGA 1151 socket, four DDR4 slots up to 64 GB, one PCIe 3.0 x16 slot, three PCIe x1 slots, six SATA 6Gb/s ports, one M.2 connector.

  • CPU Socket TypeLGA 1151
  • CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1151)
  • ChipsetIntel Z270
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.
  • Maximum Memory Supported64GB / * Due to a Windows 32-bit operating system limitation
  • Supports 7th and 6th gen Intel Core CPUs via LGA 1151 socket
  • DDR4 memory up to 3866(O.C.) across four 288-pin slots
  • Intel Z270 chipset with PCI Express 3.0 x16 graphics slot
  • M.2 connector for 2242/2260/2280 SATA and PCIe SSDs
  • Realtek ALC887 audio with 7.1-channel and S/PDIF Out

Z270 chipset ATX board

The GIGABYTE GA-Z270P-D3 rev 1.0 is an ATX motherboard built around the Intel Z270 chipset for LGA 1151 processors. It supports 6th and 7th generation Core i7, i5, i3, Pentium and Celeron CPUs. Four DDR4 slots accept up to 64 GB of memory with dual-channel architecture. A single M.2 socket 3 M-key connector takes 2242, 2260 or 2280 SATA and PCIe x4 or x2 SSDs. Six SATA 6 Gb/s ports provide additional storage connectivity.

Straightforward ATX installation

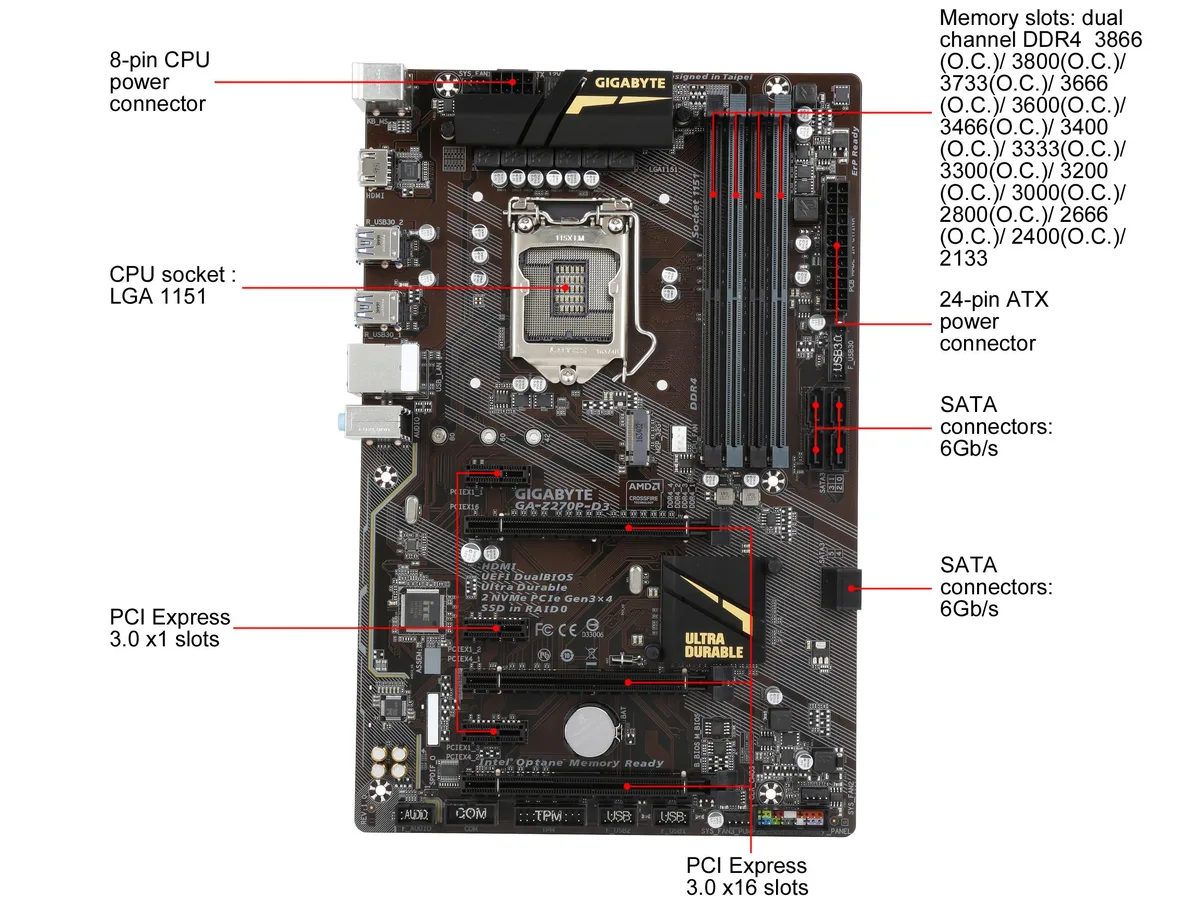

The board follows standard ATX mounting holes and a 24-pin plus 8-pin power layout familiar to most builders. The primary PCI Express 3.0 x16 slot runs at x16 electrical; install the graphics card there for full bandwidth. Two further x16 physical slots operate at x4 and three x1 slots complete the expansion array. M.2 retention screw standoffs are pre-installed for 2280 drives; shorter modules need the standoff moved. Rear I/O shield aligns with typical case cut-outs.

Builders targeting 6th or 7th gen Intel

This board suits system integrators assembling new machines with 6th or 7th generation Intel Core, Pentium or Celeron processors and DDR4 memory. It also fits upgraders replacing a failed Z270 board while retaining existing CPU, cooler and RAM. Buyers needing 8th or 9th generation Intel support, newer chipset features or integrated Wi-Fi should select a different platform.

Highlights

  • Supports 7th and 6th gen Intel Core CPUs via LGA 1151 socket
  • DDR4 memory up to 3866(O.C.) across four 288-pin slots
  • Intel Z270 chipset with PCI Express 3.0 x16 graphics slot
  • M.2 connector for 2242/2260/2280 SATA and PCIe SSDs
  • Realtek ALC887 audio with 7.1-channel and S/PDIF Out

Specifications

BrandGIGABYTE
ModelGA-Z270P-D3 (rev. 1.0)
CPU Socket TypeLGA 1151
CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1151)
ChipsetIntel Z270
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400/ 2133
Maximum Memory Supported64GB / * Due to a Windows 32-bit operating system limitation, when more than 4GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express x16 slot, running at x16 (PCIEX16) / * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. / 2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2)
PCI Express x13 x PCI Express x1 slots / (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Serial ATA (SATA)6 x SATA 6Gb/s
M.21 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC887
Audio Channels2/4/5.1/7.1-channel / Support for S/PDIF Out
LAN ChipsetRealtek GbE LAN chip
Max LAN Speed1Gbps

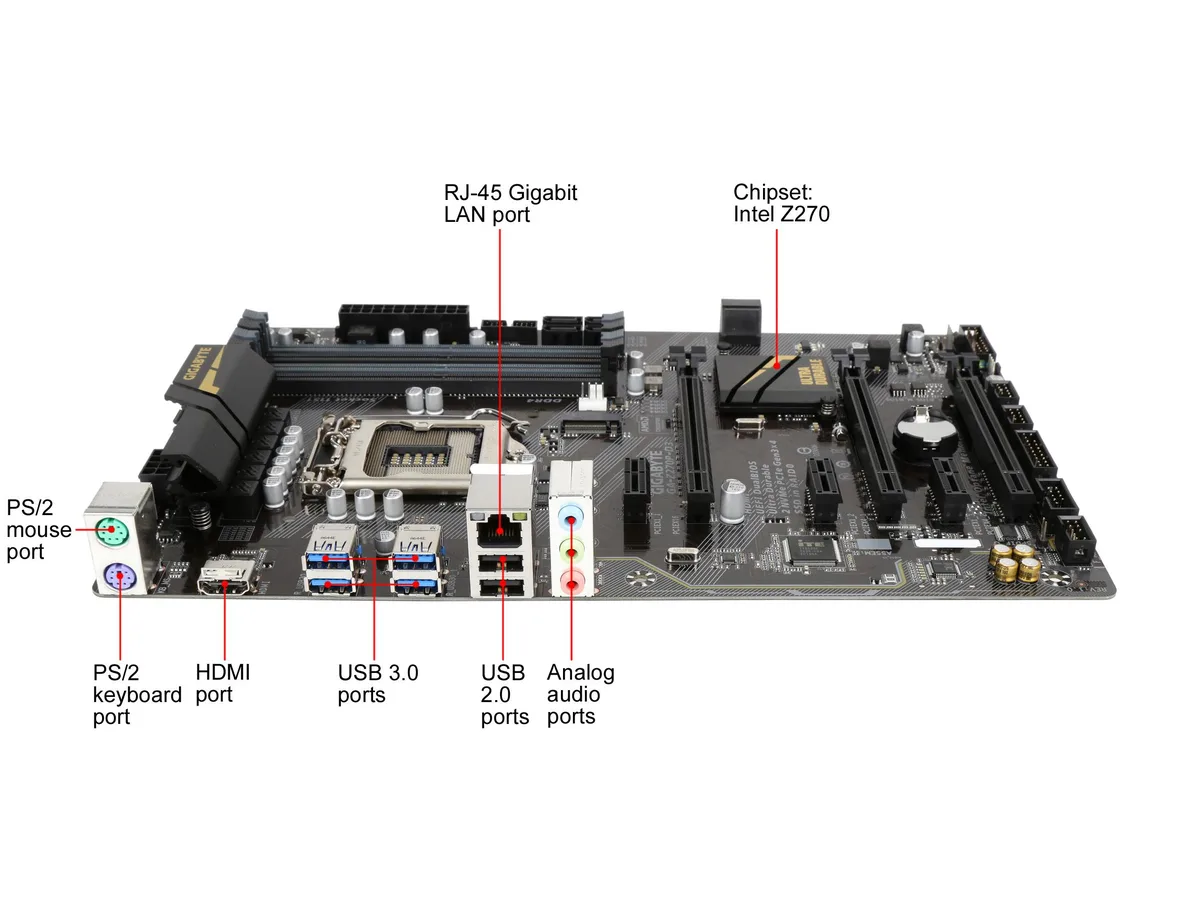

Back I/O Ports1 x HDMI / 2 x PS/2 / 2 x USB 2.0/1.1 / 4 x USB 3.1 Gen 1 Type-A
PS/21 x PS/2 mouse port / 1 x PS/2 Keyboard port
HDMI1 x HDMI
RJ451 x RJ45
USB 3.14 x USB 3.1 Gen 1 ports
USB 1.1/2.02 x USB 2.0
Audio Ports3 x audio jacks (Line In, Line Out, Mic In)
Onboard USB1 x USB 3.1 Gen 1 header / 2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header / 2 x system fan headers / 1 x system fan/water cooling pump header / 1 x front panel header / 1 x front panel audio header / 1 x S/PDIF Out header / 1 x Trusted Platform Module (TPM) header / 1 x serial port header / 1 x Clear CMOS jumper
Form FactorATX
Dimensions (W x L)12.0" x 7.8"
Power Pin1 x 24-pin ATX main power connector / 1 x 8-pin ATX 12V power connector
FeaturesMulti-Graphics Technology: / Support for AMD Quad-GPU CrossFireX and 2-Way AMD CrossFire technologies (PCIEX16 and PCIEX4) / / I/O Controller: / iTE I/O Controller Chip / / H/W Monitoring: / Voltage detection / Temperature detection / Fan speed detection / Overheating warning / Fan fail warning / Fan speed control / * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. / / BIOS: / 2 x 64 Mbit flash / Use of licensed AMI UEFI BIOS / Support for DualBIOS / PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 / / Unique Features: / Support

Questions about this item

How do I confirm the GA-Z270P-D3 rev 1.0 is working after setup?

Power on and verify the POST screen appears. Check BIOS detects the LGA 1151 CPU, all installed DDR4 modules across four 288-pin slots, the M.2 SSD, and SATA drives. Confirm HDMI output at up to 4096x2160@24 Hz and 1000 Mbps LAN link.

What is included with the GA-Z270P-D3 rev 1.0 and what must I buy separately?

The motherboard ships with an I/O shield, SATA cables, and driver media. You must purchase an LGA 1151 processor, DDR4 memory up to 64 GB, a graphics card for the PCIe x16 slot, M.2 2242/2260/2280 SSD, storage drives, ATX power supply, and chassis.

Which memory speed should I choose for the GA-Z270P-D3 rev 1.0?

The board runs DDR4 at 2133 or 2400 natively. Speeds from 2666 to 3866 are overclocking profiles; select a kit rated for your desired frequency and enable the matching XMP profile in BIOS.
