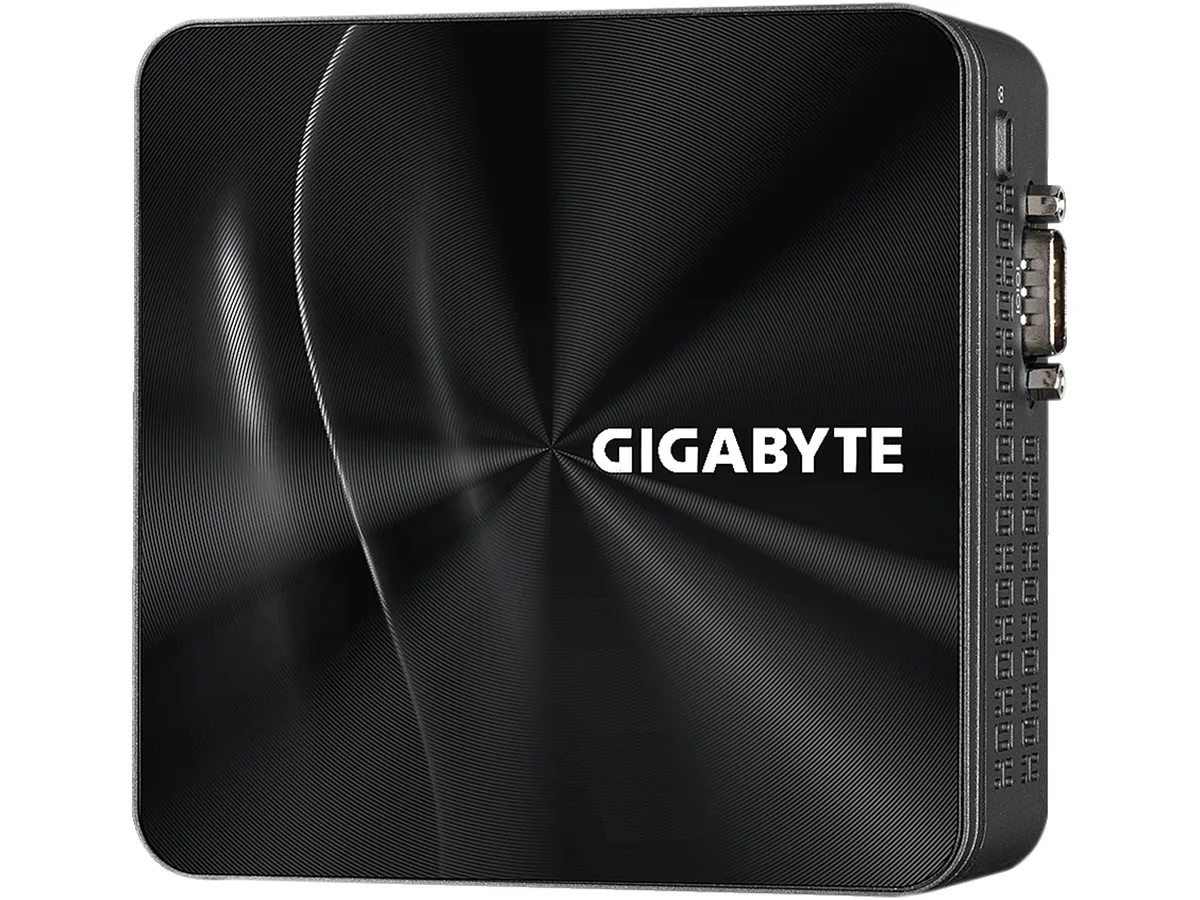

Compact black barebone mini PC with vertical orientation

GIGABYTE

GIGABYTE GB-BRR7H-4800-BWUS barebone mini PC RYZEN R7-4800U DDR4 64GB

SKU CH-G4NY-PE1E6 MPN GB-BRR7H-4800-BWUS

Ultra-compact barebone kit with an 8-core Ryzen 4800U processor and Radeon graphics, supporting up to 64 GB of DDR4 memory and dual 2.5 GbE LAN

  • CPU TypeAMD RYZEN R7-4800U 2.0G - 4.1G Turbo, 8C/16T Core, 12MB L3 C
  • Memory installedNo Memory
  • Memory slot2 x 260Pin SO-DIMM
  • Memory Type SupportedDDR4 3200
  • Max Memory Supported64GB
  • PCI1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT
  • 8-core 16-thread Ryzen 7 4800U up to 4.1 GHz for heavy multitasking
  • Radeon graphics at 1750 MHz handles 4K media and light gaming
  • Dual SO-DIMM slots accept DDR4 3200 up to 64 GB total
  • 5 GbE LAN plus WiFi6 for fast wired and wireless networking
  • Front USB-C 3.2 Gen 2 with DP alt mode drives external displays

BRIX barebone with Ryzen 7 4800U

The GIGABYTE BRIX GB-BRR7H-4800-BWUS is a barebone mini PC built around an AMD RYZEN R7-4800U processor with 8 cores and 16 threads running at 2.0 GHz base and 4.1 GHz boost. Integrated AMD Radeon graphics operate at 1750 MHz within a 15 W envelope. It targets system builders who want a compact foundation for home, office or digital-signage deployments.

Two SO-DIMM slots and dual M.2 bays

The board provides two 260-pin SO-DIMM slots supporting DDR4 3200 up to 64 GB total, one M.2 2280 slot for storage and one M.2 2230 A-E key slot pre-occupied by an Intel WiFi6 AX200 card delivering WiFi6 and BT 5.2. A 2.5-inch SATA bay accepts 7.0 mm or 9.5 mm drives. No memory or storage is included.

Straightforward assembly

Installing SO-DIMM modules and a 2.5-inch drive requires removing the chassis base; the M.2 2280 slot is accessible in the same step. The WiFi6 AX200 module already occupies the 2230 slot, so builders cannot swap it for a different wireless card without desoldering. Front I/O includes one USB 3.2 Type-C with DP alt mode, three USB 3.2 Type-A ports, a headset jack and the power button.

Highlights

  • 8-core 16-thread Ryzen 7 4800U up to 4.1 GHz for heavy multitasking
  • Radeon graphics at 1750 MHz handles 4K media and light gaming
  • Dual SO-DIMM slots accept DDR4 3200 up to 64 GB total
  • 5 GbE LAN plus WiFi6 for fast wired and wireless networking
  • Front USB-C 3.2 Gen 2 with DP alt mode drives external displays

Specifications

BrandGIGABYTE
SeriesBRIX
ModelGB-BRR7H-4800-BWUS
CPU TypeAMD RYZEN R7-4800U 2.0G - 4.1G Turbo, 8C/16T Core, 12MB L3 Cache
AMD Radeon GPU 1750Mhz , 15W
Memory installedNo Memory
Memory slot2 x 260Pin SO-DIMM
Memory Type SupportedDDR4 3200
Max Memory Supported64GB
PCI1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card
Storage InstalledNo Hard Drive
Serial ATASupports 2.5" HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
PCIe Gen3 X4 /SATA
M.2 Slot1 x M.2 slot (2280_storage)
Integrated GraphicsAMD Radeon Graphics
Onboard AudioRealtek ALC255
LAN2.5G LAN (Realtek 8125)
Wireless LANIntel WiFi6 AX200
BluetoothBT 5.2

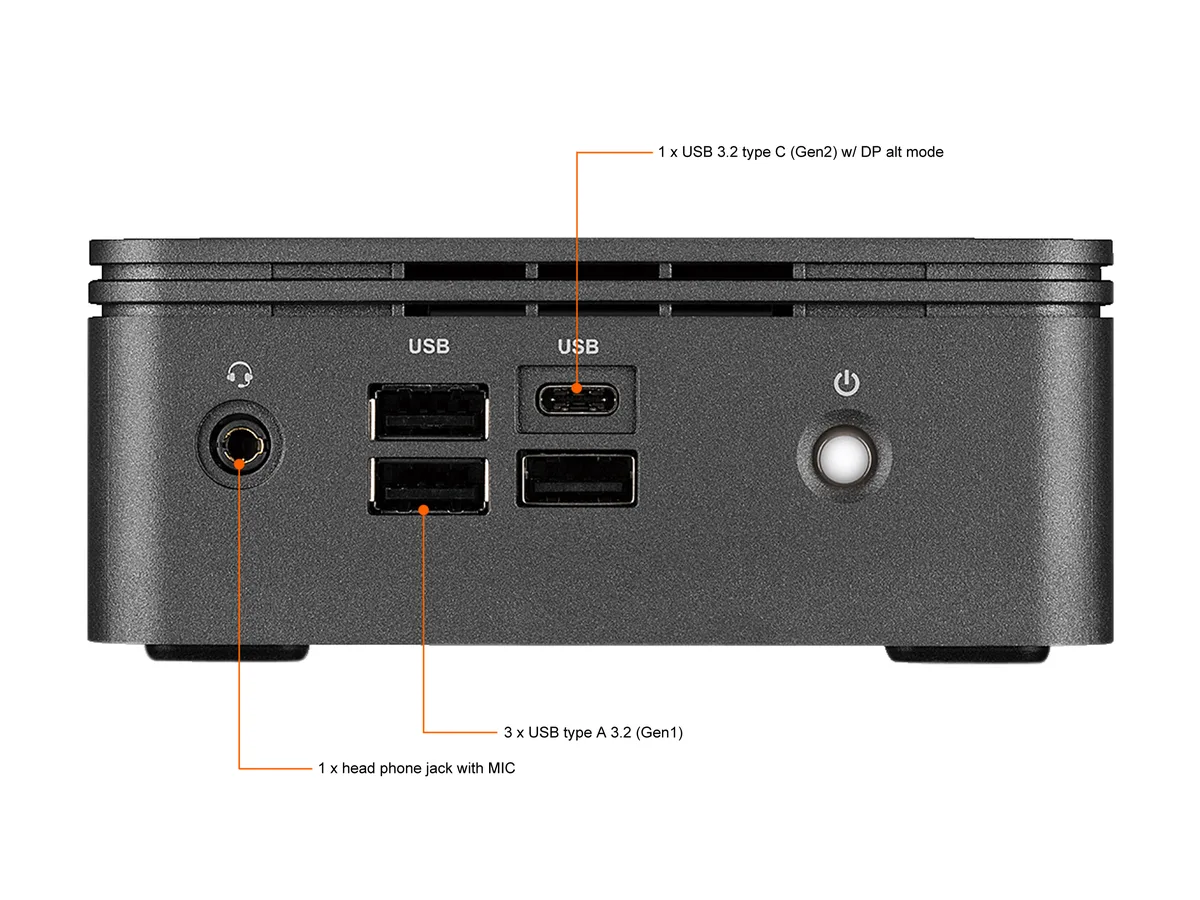

Front USB1 x USB 3.2 type C (Gen2) w/ DP alt mode
3 x USB type A 3.2 (Gen1)
Front Audio Ports1 x head phone jack with MIC
Other Front Ports1 x Power Button

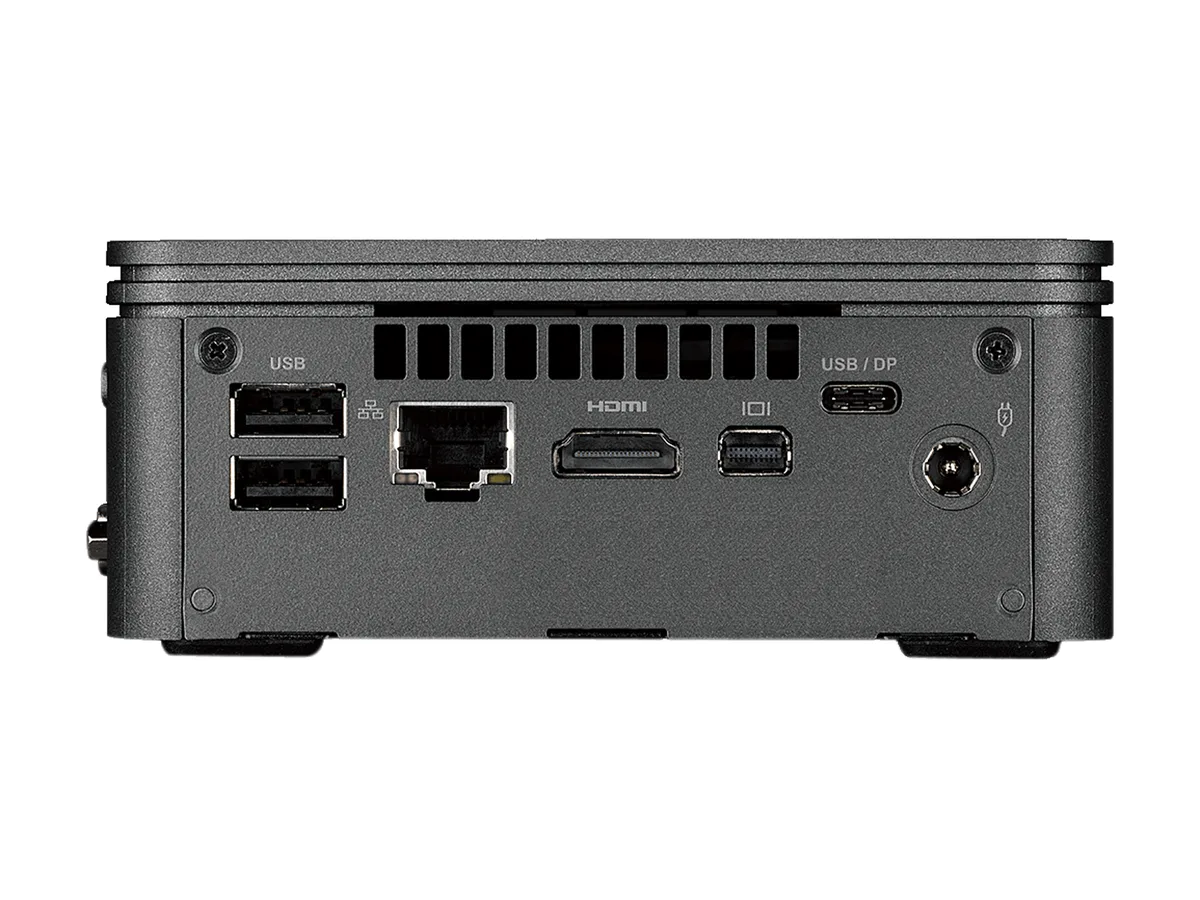

HDMI1 x HDMI(2.0a)
DisplayPort1 x mDP
Rear USB1 x USB 3.2 type C (Gen2) w/ DP alt mode
2 x USB 3.2 type A (Gen 1)
RJ451
Other Rear Ports1 x DC-In
Power SupplyInput: AC 100-240V
Output: DC 19V/4.74A, 90W
Dimensions1.84" x 4.70" x 4.70"
FeaturesHigh Performance Ultra Compact PC (46.8 x 119.5 x 119.5 mm)
Ultra compact PC design in 2 size (Slim /HDD)
Supports 2.5" HDD/SSD, 7.0/9.5 mm thick (1x6Gbps SATA 3)
1 x M.2 SSD (2280) slot support PCI-e x4 /SATA
2 x SO-DIMM DDR4 slots support 3200Mhz, Max 64GB
Intel WIFI6 +BT5.2
Realtek 2.5G LAN RTL8125
QUAD display : 2x Type C / HDMI / mDP with HDCP @4x4K/60P
RS232 COM port in HDD version
5x USB 3.2 Gen1 Type A + 2x USB 3.2 Gen2 Type C (4F,3R)
Realtek ALC255 Codec
Headphone Jack
VESA Mounting Bracket (75 x 75mm + 100 x 100mm)
AC-DC adapter : 100-240V input, 19V/90W
OS Support : Micros
Shipping weight1.50 kg
Package size292 × 178 × 83 mm

Questions about this item

Will I need to buy DDR4 SO-DIMM modules separately, and what is the maximum capacity the two slots support?

The barebone ships without memory; you must add two 260-pin DDR4 3200 SO-DIMMs for a total of 64 GB.

What thermal ceiling stops the AMD R7-4800U from holding its 4.1 GHz turbo during long workloads?

The processor is rated at 15 W, so sustained turbo clocks are limited by the cooling solution’s ability to dissipate that power envelope.

How loud does the fan get and how much heat does the 15 W chip produce when the unit runs all day?

The 15 W AMD R7-4800U with Radeon graphics at 1750 MHz generates modest heat; the compact chassis uses a single fan that stays relatively quiet under continuous load.
