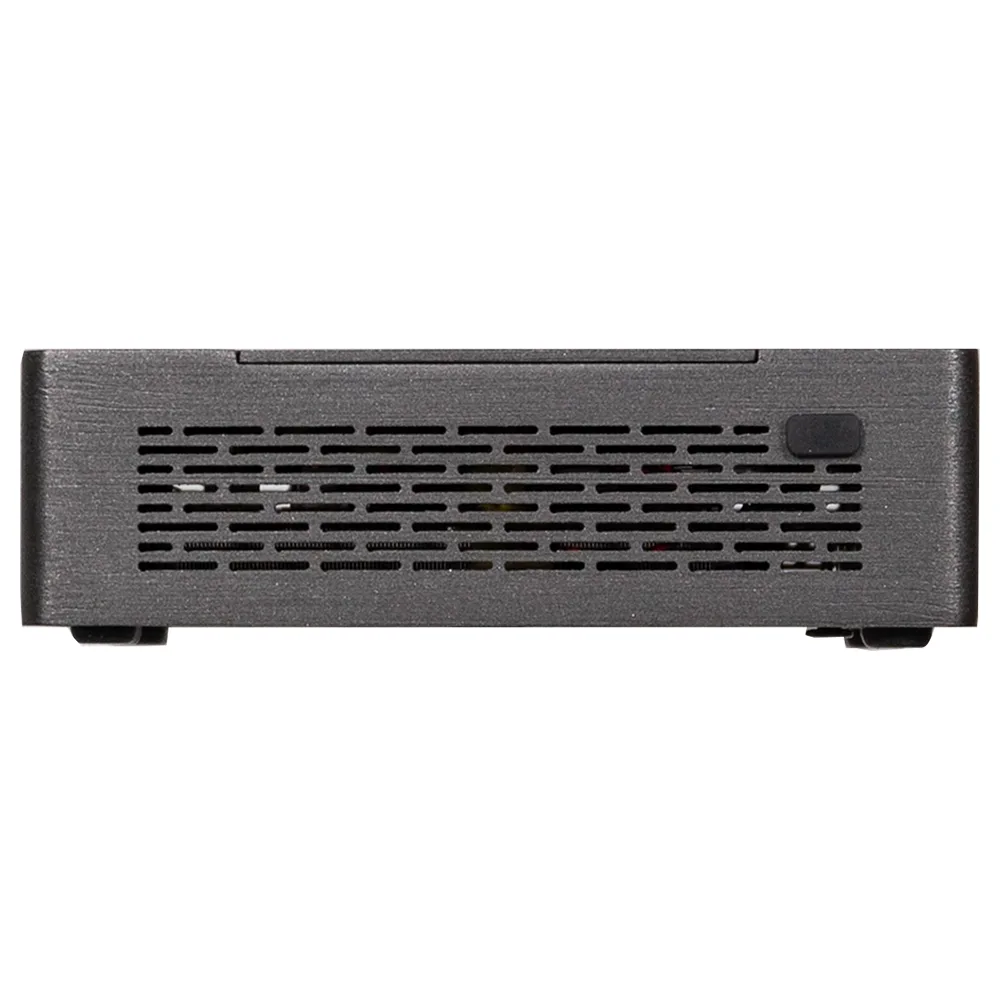

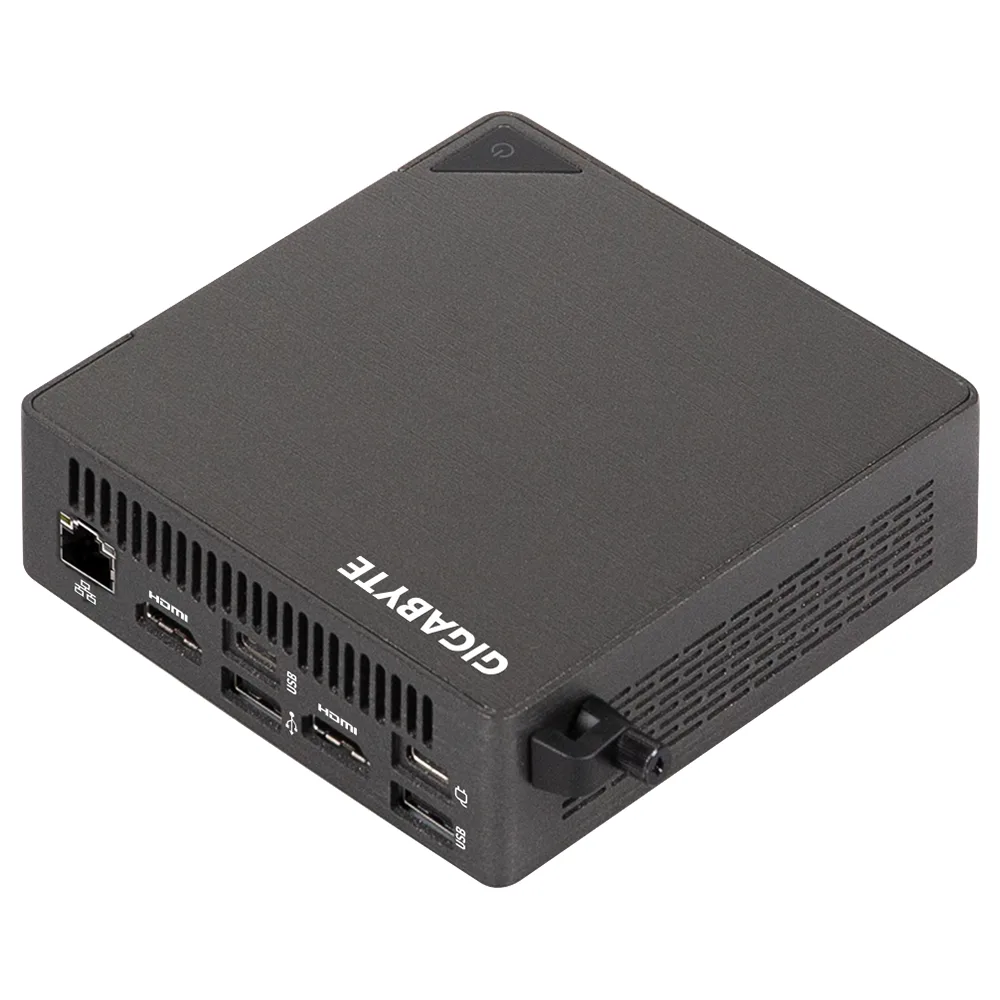

Compact silver mini PC with vented top panel and front ports

GIGABYTE

GIGABYTE GB-BRU5-225H AI edge system, Core Ultra 5 225H, Arc 130T

SKU CH-EN7B-ANZJN MPN GB-BRU5-225H

A compact AI-ready mini PC with a 14-core Intel Core Ultra 5 225H processor, Intel Arc 130T graphics, dual DDR5 slots supporting up to 96 GB, four 4K display outputs and 2.5G LAN

  • TypeMini PC
  • Rack Height1U
  • CPU TypeIntel Core Ultra (Series 2)
  • CPU SpeedIntel Core Ultra 5 225H
  • CPU Features28W
  • MAX Processors1

Model GB-BRU5-225H

Struck-through versions exist but are not stocked here.

  • 14-core Intel Core Ultra 5 225H delivers responsive AI performance
  • Intel Arc 130T graphics with XeSS accelerates creative workloads
  • Dual DDR5 SO-DIMM slots support up to 96 GB memory
  • 5 GbE LAN plus Wi-Fi 7 module ensures fast connectivity
  • Four 4K outputs via HDMI 2.1 and USB-C DP alt mode

Compact AI Mini PC

The GIGABYTE GB-BRU5-225H is a 1U mini PC built around the Intel Core Ultra 5 225H processor with integrated Arc 130T graphics. It targets edge AI workloads, digital signage and space-constrained deployments where a low 28W thermal envelope and quiet operation matter. No memory or storage is included, so the unit arrives as a barebone platform.

Verify Memory And Storage Needs

Confirm you have SO-DIMM DDR5 modules; the board offers two slots at 5600MHz and two CSO-DIMM slots at 6400MHz with a combined ceiling of 96GB. Plan for M.2 SSDs because no drive is installed. Check that your display cables match the two HDMI 2.1 and two USB-C DP alt mode outputs for 4K multi-monitor setups.

VESA Mount And Connectivity

A VESA bracket lets the chassis attach behind a monitor or on a wall, saving desk space in kiosks or control rooms. The single 2.5G LAN port and Wi-Fi 7 module handle wired and wireless links without extra dongles. Three USB 3.2 Gen2 Type-A ports provide room for peripherals while the fan profile keeps acoustic output low during continuous operation.

Highlights

  • 14-core Intel Core Ultra 5 225H delivers responsive AI performance
  • Intel Arc 130T graphics with XeSS accelerates creative workloads
  • Dual DDR5 SO-DIMM slots support up to 96 GB memory
  • 5 GbE LAN plus Wi-Fi 7 module ensures fast connectivity
  • Four 4K outputs via HDMI 2.1 and USB-C DP alt mode

Specifications

BrandGigabyte
SeriesBRIXs
ModelGB-BRU5-225H
Part Number6BXARH5SWMR-00
TypeMini PC
Rack Height1U
CPU TypeIntel Core Ultra (Series 2)
CPU SpeedIntel Core Ultra 5 225H
CPU Features28W
MAX Processors1
Installed Memory SizeNo
Number of Memory Slots2
Memory TypeSO-DIMM DDR5
Max Memory Capacity96GB
Memory Features2 x SO-DIMM DDR5 slots, support up to 5600MHz
2 x CSO-DIMM DDR5 slots, support up to 6400MHz
Hard Drive (Installed)No Hard Drive
SSD (Installed)No
GPU TypeIntel Arc 130T Graphics
Ethernet ControllerIntel I226V
LAN Ports1 x Ports
Expansion Slots1 x M.2 M Key 2280 slot (PCIe Gen4x4) (PCIe Gen5x4, ready design)
1 x M.2 M Key 2280 slot (PCIe Gen4x4+SATA)
1 x M.2 E Key 2230 Wi-Fi & BT slot (Wi-Fi 7 RTL8922AE)

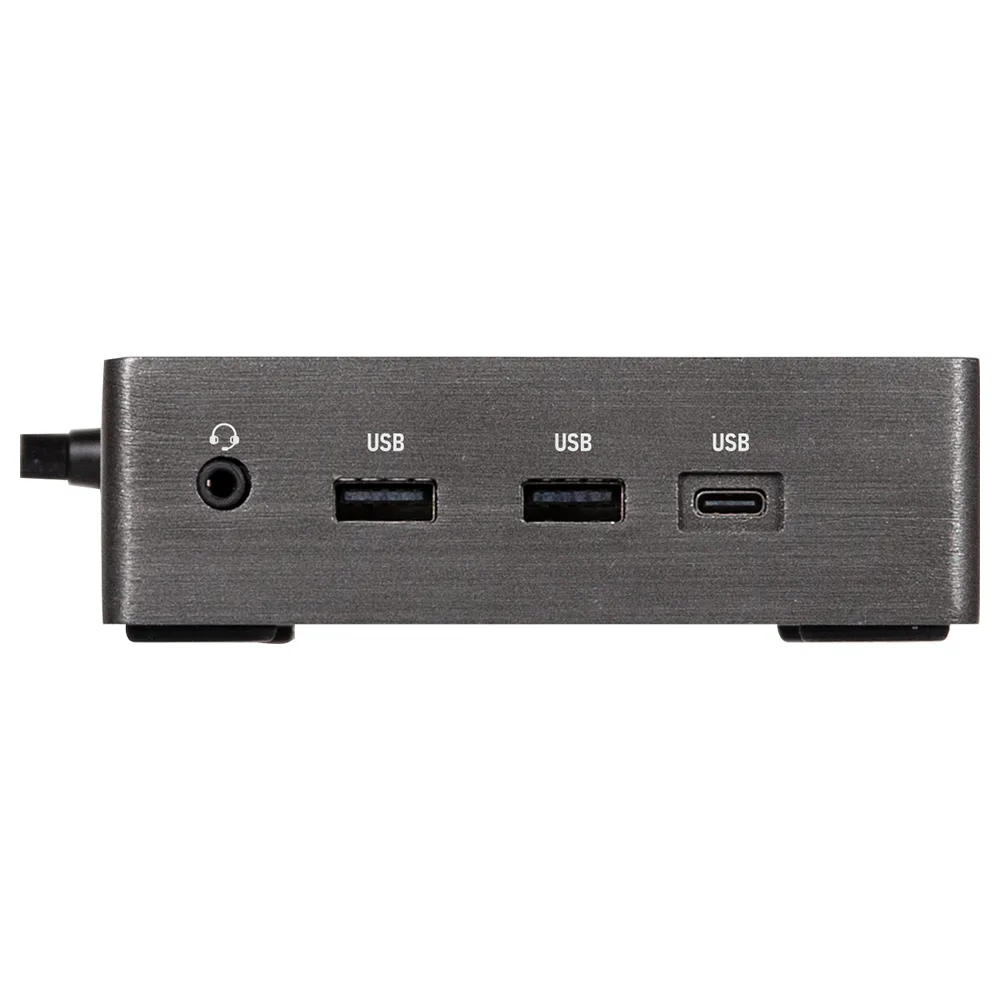

Other portsFront I/O:
1 x Headset
2 x USB 3.2 Gen2 Type A
1 x USB 3.2 Gen2 Type C (ALT)

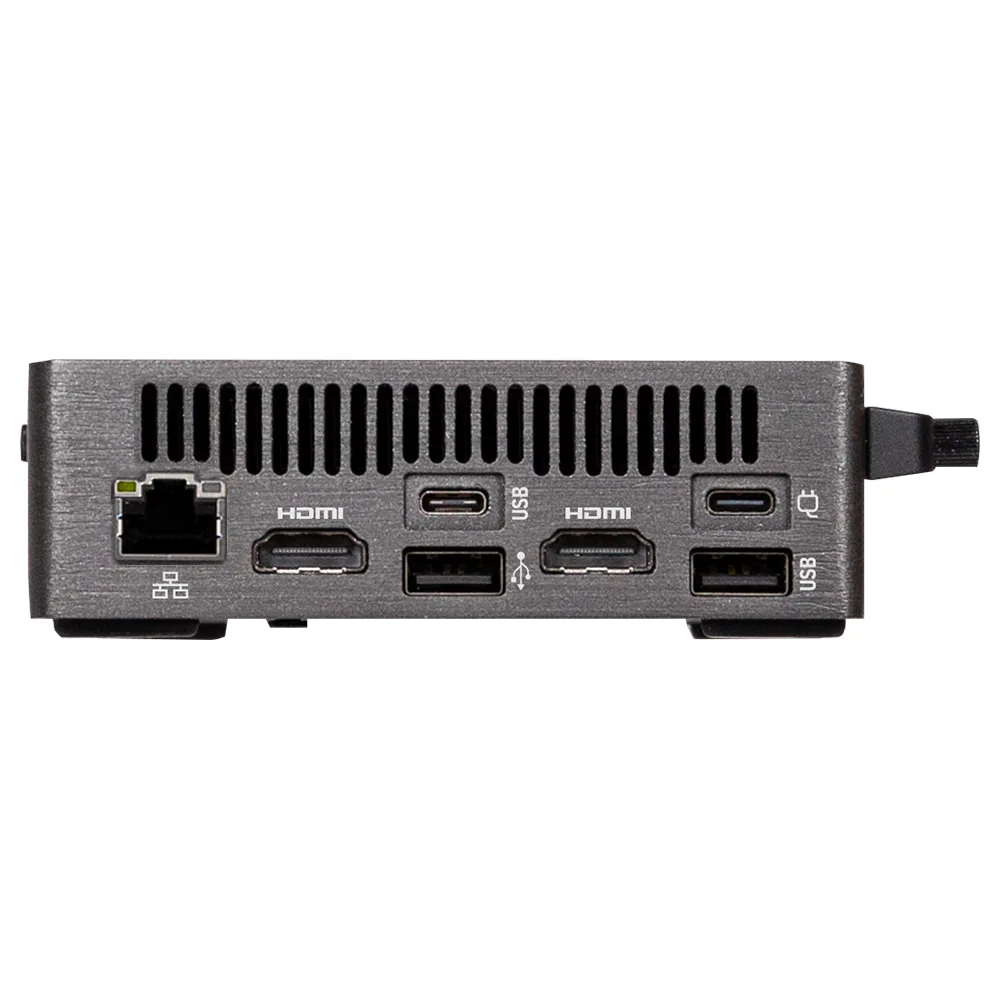

Rear I/O:
2 x HDMI (TMDS & CEC)
1 x USB4
1 x USB 3.2 Gen2 Type C (PD IN)
1 x USB 3.2 Gen2 Type A
1 x USB 2.0 Type A
1 x RJ45
Management Portno management port
Redundant Hot-swap PowerNo
Power CharacteristicsInput : AC 100-240V
Output : DC 20V/5A, 100W (Type-C PD)
TemperatureOperating Temperature: 0°C to +35°C
Storage Temperature: -20°C to +60°C
Dimensions1.35" x 4.43" x 4.7" (Slim chassis design)
Package Contents1x 100W type c power supply
1x quick start guide
1x VESA mont bracket
1x wire clamp screw
1x DDR PAD
Shipping weight1.32 kg
Package size210 × 171 × 127 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What memory do I need to add and how much can I install?

Install two SO-DIMM DDR5 modules; the board supports up to 96 GB total at 5600 MHz or 6400 MHz depending on the slot used.

Which displays can I connect without adapters?

Two HDMI 2.1 ports and two USB-C ports with DP alt mode each drive a 4K screen, giving four native outputs.

Does the unit include storage or must I supply my own?

No drive is fitted; you add your own M.2 SSD in the internal slot.
