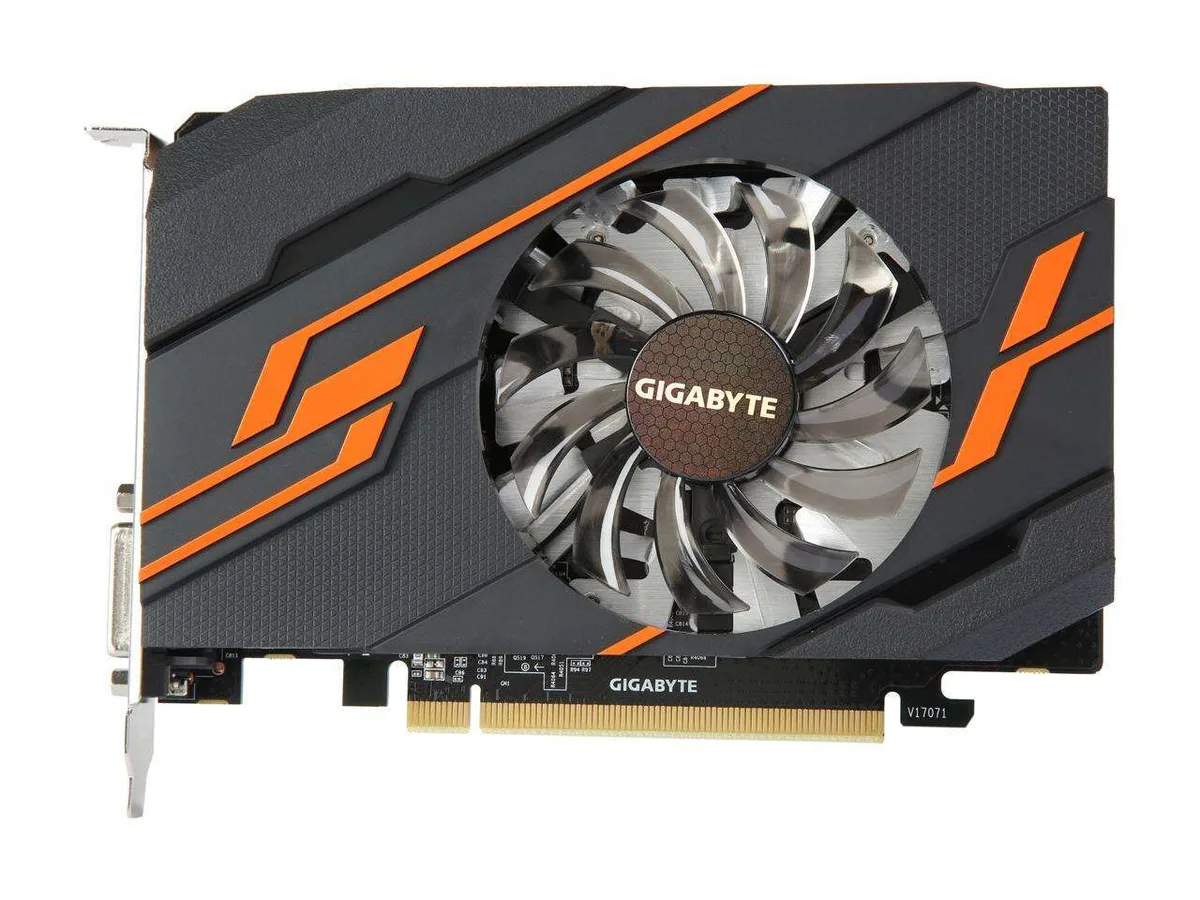

GIGABYTE GeForce GT 1030 graphics card with single fan cooler and metal bracket

GIGABYTE

GIGABYTE GeForce GT 1030 OC 2GB GDDR5 graphics card

SKU CH-STV0-YR17E

Entry-level graphics card with 2 GB GDDR5 memory, 384 CUDA cores and a 30 W TDP for basic 4K video and light gaming

  • InterfacePCI Express 3.0 x16
  • Chipset ManufacturerNVIDIA
  • GPUGeForce GT 1030
  • Core Clock1290 MHz in OC Mode, 1265 MHz in Gaming Mode
  • Boost Clock1544 MHz in OC Mode, 1518 MHz in Gaming Mode
  • CUDA Cores384
  • Entry-level 384 CUDA cores handle everyday graphics tasks
  • 2 GB GDDR5 memory at 6008 MHz effective speed
  • Dual HDMI 2.0b and DVI-D outputs drive two 4K displays
  • 30 W TDP runs cool on a single fan cooler
  • One-click OC mode lifts boost clock to 1544 MHz

Entry-level desktop graphics

The GIGABYTE GeForce GT 1030 OC 2GB GDDR5 graphics card is a low-profile video card for office PCs and compact builds. It adds discrete graphics to systems that rely on integrated output or an ageing board. The 384 CUDA cores handle everyday workloads and light creative tasks without a supplementary power connector.

PCIe 3.0 x16 and 64-bit memory interface

The board plugs into a PCI Express 3.0 x16 slot and runs at a 30 W thermal design power. A 64-bit memory bus feeds the 2 GB GDDR5 frame buffer at an effective 6008 MHz clock. Display outputs are one HDMI 2.0b and one DVI-D port, supporting up to 4096 x 2160 resolution at 60 Hz for dual-monitor setups.

Upgrade from integrated or basic display adapters

Moving up from integrated graphics or a basic display adapter adds dedicated video memory and hardware decode for smooth 4K playback and HTML5 browsing. The jump is worth it when the system needs multi-monitor support, DirectX 12 and OpenGL 4.5 compatibility, or a single-slot cooler that fits tight chassis.

Highlights

  • Entry-level 384 CUDA cores handle everyday graphics tasks
  • 2 GB GDDR5 memory at 6008 MHz effective speed
  • Dual HDMI 2.0b and DVI-D outputs drive two 4K displays
  • 30 W TDP runs cool on a single fan cooler
  • One-click OC mode lifts boost clock to 1544 MHz

Specifications

BrandGIGABYTE
ModelGV-N1030OC-2GI
InterfacePCI Express 3.0 x16
Chipset ManufacturerNVIDIA
GPUGeForce GT 1030
Core Clock1290 MHz in OC Mode, 1265 MHz in Gaming Mode
Boost Clock1544 MHz in OC Mode, 1518 MHz in Gaming Mode
CUDA Cores384
Effective Memory Clock6008 MHz
Memory Size2GB
Memory Interface64-Bit
Memory TypeGDDR5
DirectXDirectX 12
OpenGLOpenGL 4.5
Multi-Monitor Support2
HDMI1 x HDMI 2.0b
DVI1 x DVI-D
Max Resolution4096 x 2160
CoolerSingle Fan
Thermal Design Power30W
System RequirementsRecommended PSU: 300W
Max GPU Length168 mm
Card Dimensions (L x H)6.60" x 4.38"

Questions about this item

Which core clock mode should I pick for this GT 1030 — 1290 MHz OC or 1265 MHz Gaming?

Choose 1290 MHz OC mode for a small performance lift in games, or 1265 MHz Gaming mode for slightly lower power draw and thermals. Both are selectable through the AORUS Graphics Engine utility with one click.

What does the 1544 MHz boost clock actually deliver inside a PC?

The 1544 MHz boost clock in OC mode raises the GPU frequency under load, giving higher frame rates in light titles and smoother 4K video playback at 4096 x 2160 via the HDMI 2.0b output.

How does the PCI Express 3.0 x16 interface limit this card in practice?

The PCI Express 3.0 x16 slot provides more than enough bandwidth for the GT 1030's 384 CUDA cores and 2GB GDDR5 memory, so the interface does not cap gaming or 4K playback performance.
