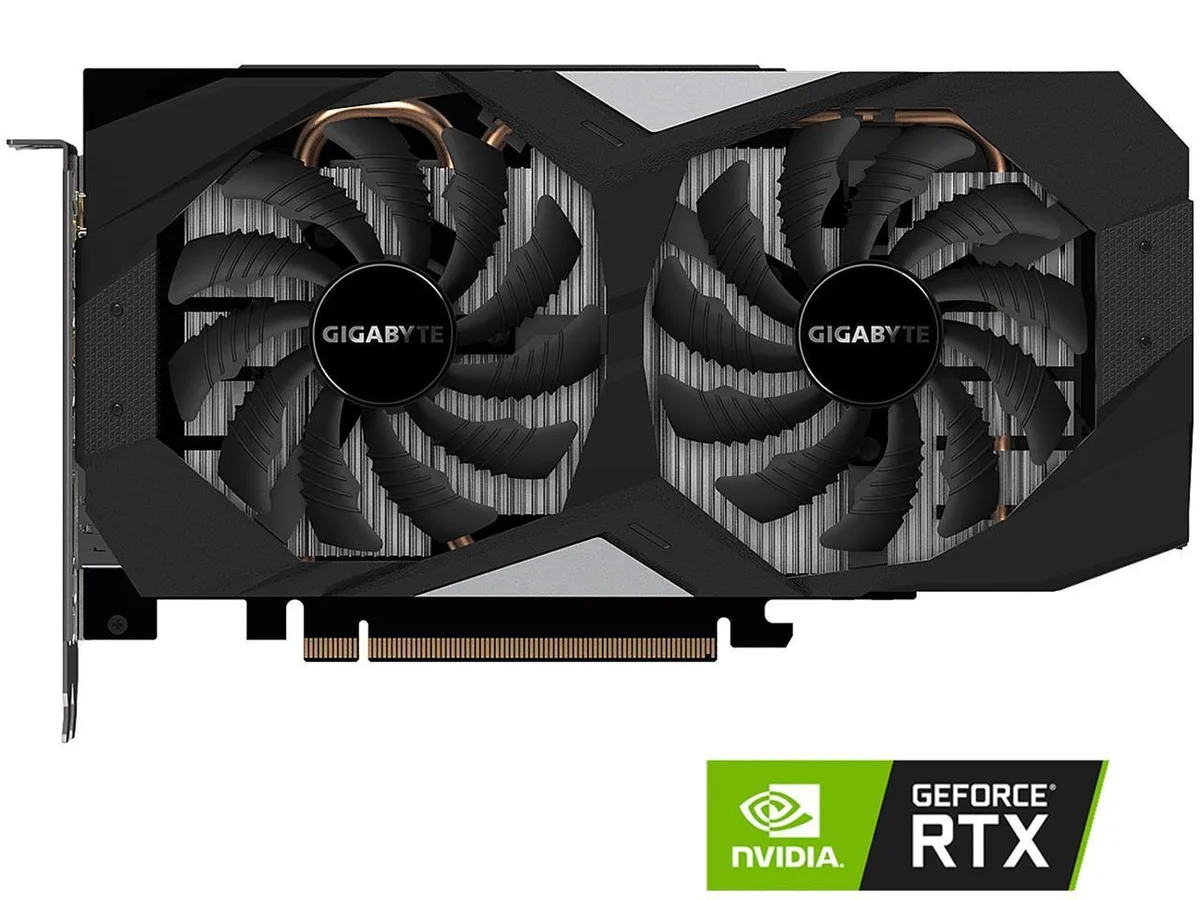

GIGABYTE GeForce RTX 2060 OC dual-slot graphics card with two WINDFORCE fans, matte black finish, metal backplate, HDMI and three

GIGABYTE

GIGABYTE GeForce RTX 2060 OC 6GB graphics card

SKU CH-MV1M-2WK32

Dual-fan GeForce RTX 2060 with 6 GB GDDR6, 1755 MHz boost, 192-bit bus and four display outputs for 7680 x 4320 at 60 Hz

  • InterfacePCI Express 3.0 x16
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 20 Series
  • GPUGeForce RTX 2060
  • Core Clock1755 MHz
  • CUDA Cores1920
  • Boosted 1755 MHz core clock raises frame rates
  • WINDFORCE 2X alternate-spinning fans keep thermals low

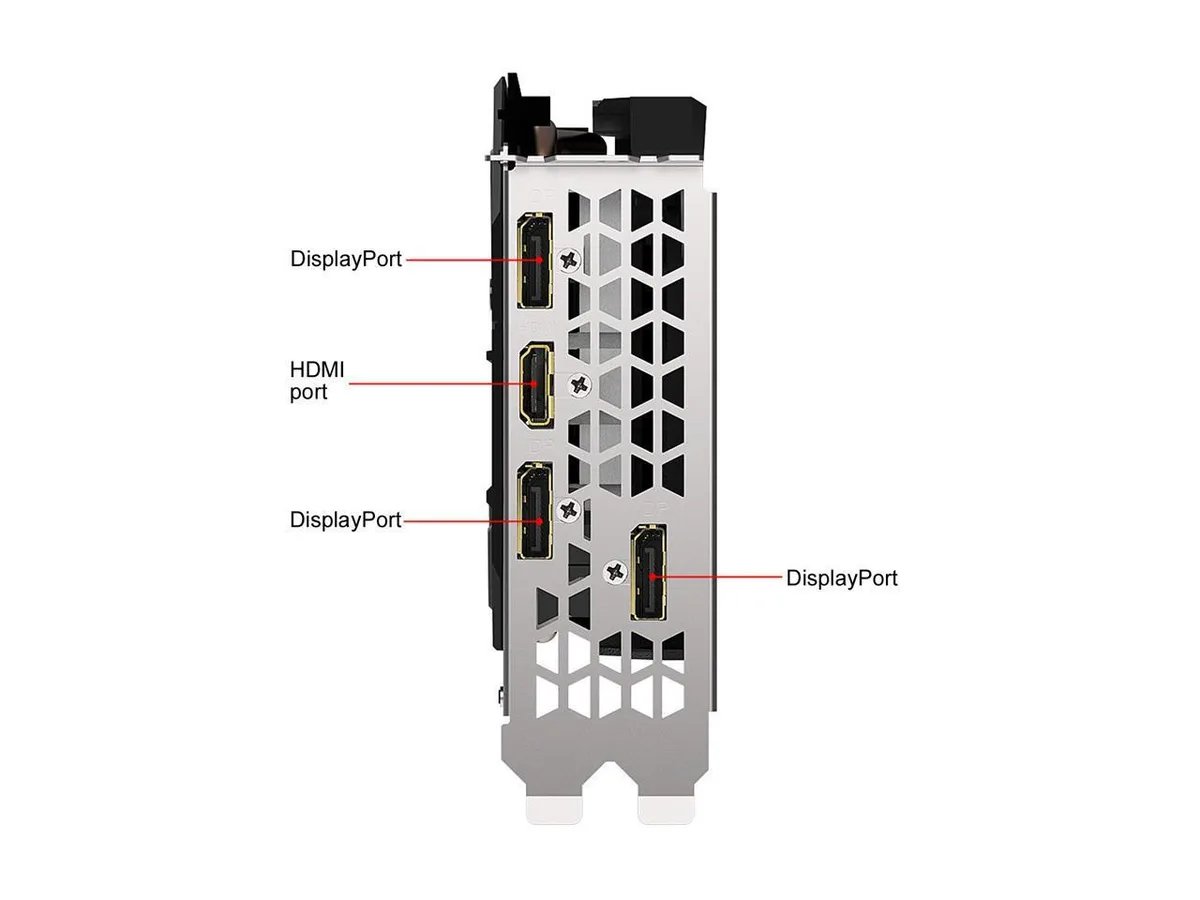

  • Four simultaneous displays via HDMI 2.0b and three DisplayPort 1.4
  • Turing architecture enables real-time ray tracing
  • 6 GB GDDR6 on 192-bit bus feeds high-res textures

Core specs and purpose

The GIGABYTE GeForce RTX 2060 OC 6GB is a PCI Express 3.0 x16 graphics card built on the NVIDIA Turing architecture. It delivers 1920 CUDA cores and 6GB of GDDR6 memory across a 192-bit interface. The factory overclock pushes the core clock to 1755 MHz against a 1680 MHz reference baseline. It targets 1080p and 1440p gaming with real-time ray tracing support.

Who it suits and who should look elsewhere

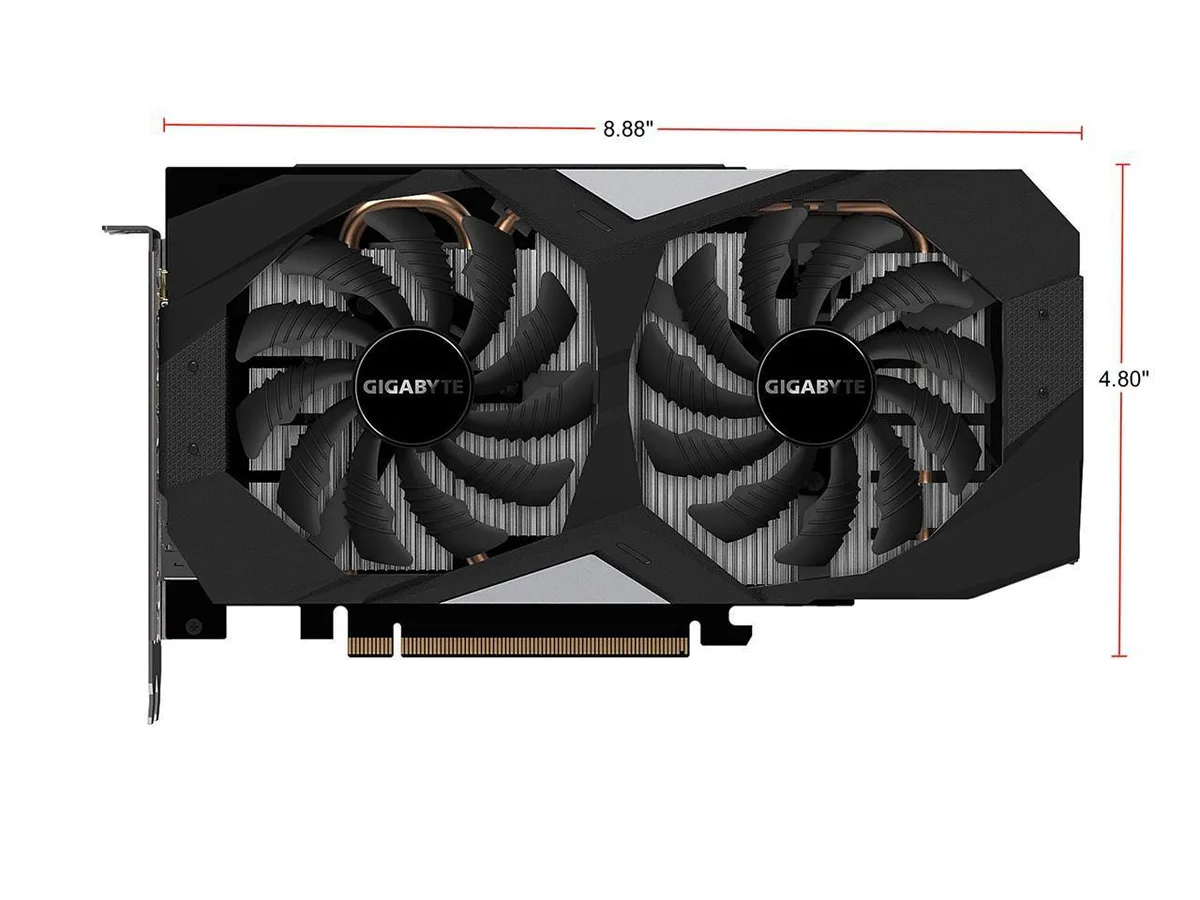

This card suits builders who need a dual-slot design measuring 8.88 inches by 4.80 inches and want four-display output via three DisplayPort 1.4 ports and one HDMI 2.0b port. It supports DirectX 12 and OpenGL 4.6 for modern titles. Users requiring SLI multi-GPU scaling or more than 6GB of video memory for heavy 4K workloads should consider a higher-tier model.

The deciding specification

The 6GB GDDR6 frame buffer on a 192-bit bus is the single specification that decides fit. It caps usable texture resolution and limits 4K performance in current titles. If your workflow or target games demand 8GB or more, this card will bottleneck; otherwise the 1755 MHz core and Turing feature set deliver solid value at 1440p.

Highlights

  • Boosted 1755 MHz core clock raises frame rates
  • WINDFORCE 2X alternate-spinning fans keep thermals low
  • Four simultaneous displays via HDMI 2.0b and three DisplayPort 1.4
  • Turing architecture enables real-time ray tracing
  • 6 GB GDDR6 on 192-bit bus feeds high-res textures

Specifications

BrandGIGABYTE
ModelGV-N2060OC-6GD ver 2.0
InterfacePCI Express 3.0 x16
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 20 Series
GPUGeForce RTX 2060
Core Clock1755 MHz
CUDA Cores1920
Effective Memory Clock14000 MHz
Memory Size6GB
Memory Interface192-Bit
Memory TypeGDDR6
DirectXDirectX 12
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort 1.4
Max Resolution7680 x 4320 @ 60 Hz
SLI SupportNo
Virtual Reality ReadyYes
Thermal Design Power160W
System RequirementsSystem PSU Limitation (W): 500
Power Connector8-Pin
Form FactorATX
Max GPU Length226 mm
Card Dimensions (L x H)8.88" x 4.80"
Slot Width2 Slots
Package ContentsAccessories: Quick guide, Driver CD

Questions about this item

How do I install the GV-N2060OC-6GD ver 2.0 into a PCI Express 3.0 x16 slot, and what step do people get wrong?

Align the card with the PCI Express 3.0 x16 slot, press down until the retention bracket clicks, then connect the required power cables; the step people miss is securing the dual-slot bracket screws to the case so the card cannot sag.

What maintenance or replacement will the WINDFORCE 2X cooling system with alternate spinning fans need later?

The WINDFORCE 2X fans should be cleaned with compressed air every few months to remove dust; if a fan bearing becomes noisy or stops spinning, the fan assembly can be replaced without removing the heatsink.

What limit shows up first on the GeForce RTX 2060 6GB GDDR6 during sustained 14000 MHz memory workloads?

The 192-bit memory interface and 6 GB GDDR6 capacity saturate before the 1920 CUDA cores reach full utilisation, so texture-heavy scenes hit a bandwidth ceiling first.
