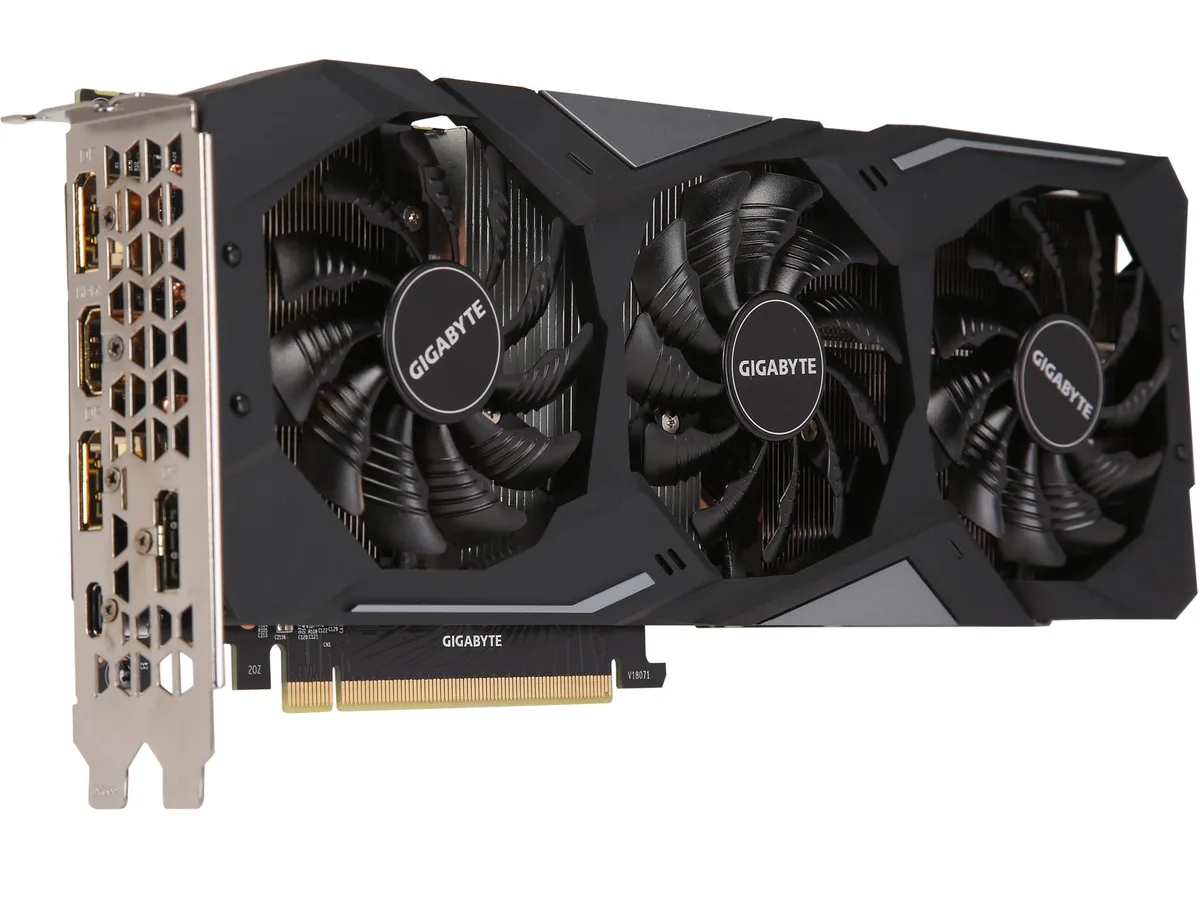

Dual-slot graphics card with three fans and metal backplate

GIGABYTE

GIGABYTE GeForce RTX 2060 SUPER GAMING OC 8GB graphics card

SKU CH-6EDQ-E2N7H

GeForce RTX 2060 SUPER card with 2176 CUDA cores, 8GB 256-bit GDDR6, 1815 MHz core clock and four display outputs for 7680 x 4320 at 60 Hz

  • InterfacePCI Express 3.0 x16
  • Chipset ManufacturerNVIDIA
  • GPUGeForce RTX 2060 SUPER
  • Core Clock1815 MHz
  • CUDA Cores2176
  • Effective Memory Clock14000 MHz
  • 8GB 256-bit GDDR6 memory enables smooth 1440p gaming
  • Core clock reaches 1815 MHz for responsive frame rates
  • 2176 CUDA cores accelerate rendering and compute tasks
  • Four display outputs include HDMI 2.0b and three DisplayPort 1.4 ports
  • VirtualLink USB-C port simplifies VR headset connectivity

Target GPU

The GIGABYTE GeForce RTX 2060 SUPER GAMING OC 8GB is a graphics card built for 1440p gaming and content creation. It uses the NVIDIA GPU with 2176 CUDA cores and 8GB of GDDR6 memory on a 256-bit bus. The core clock reaches 1815 MHz with an effective memory clock of 14000 MHz. It supports DirectX 12 and OpenGL 4.5 for modern titles.

Installation notes

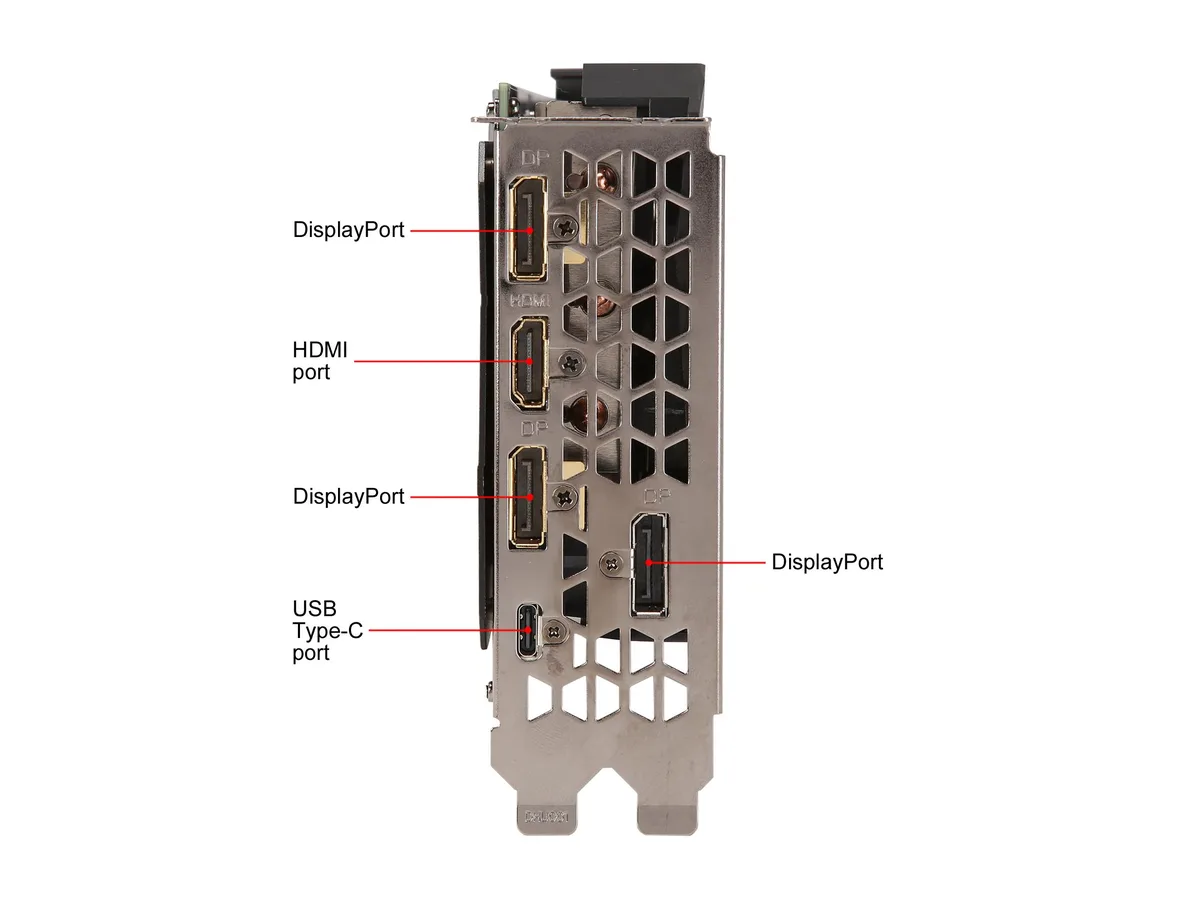

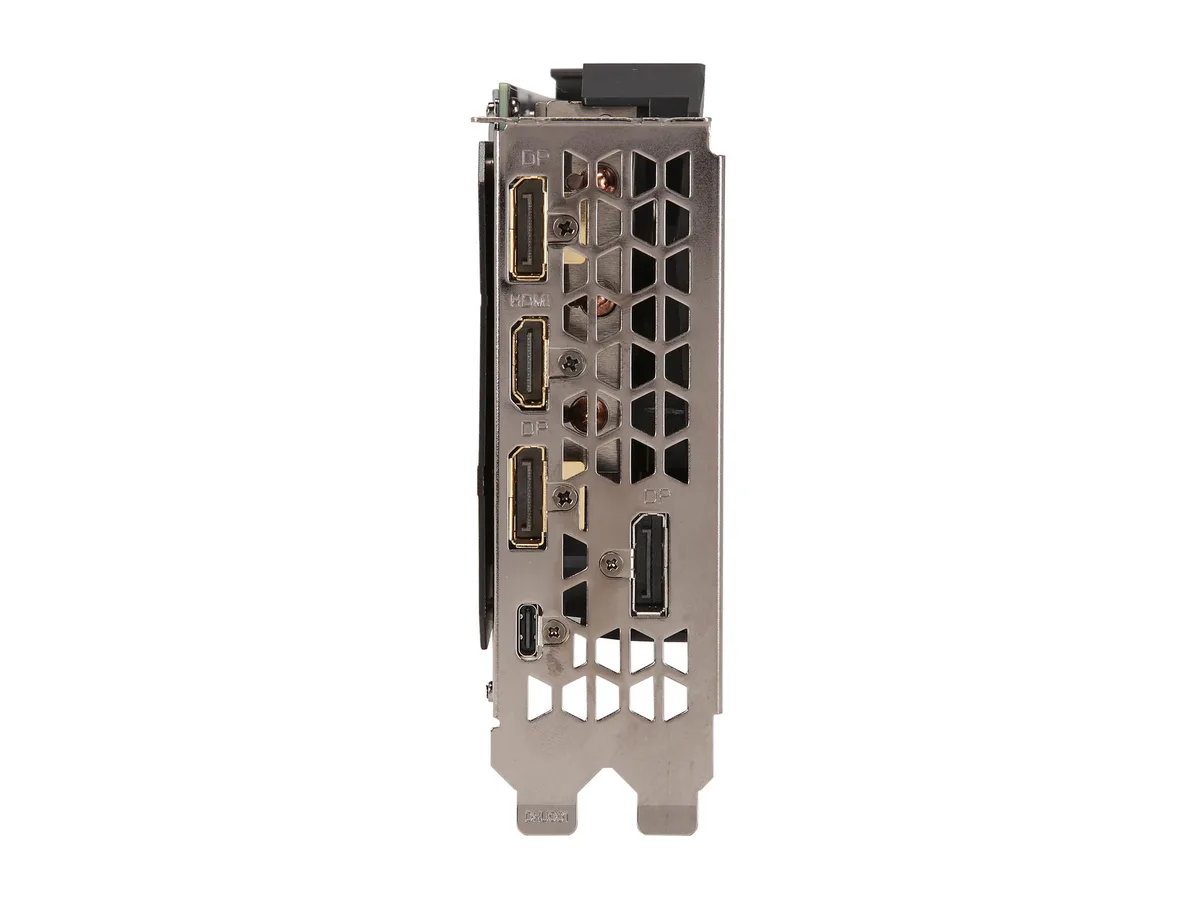

The card fits a PCI Express 3.0 x16 slot and occupies a dual-slot width. Physical dimensions are 11.04 inches by 4.58 inches, so verify case clearance before mounting. Connect display cables to the three DisplayPort 1.4 outputs, the HDMI 2.0b port, or the USB Type-C VirtualLink connector. Ensure the power supply meets the board's requirements.

Interface limits

The PCI Express 3.0 x16 link provides up to 16 GT/s per lane for data transfer between the GPU and the system. DisplayPort 1.4 and HDMI 2.0b outputs drive a maximum resolution of 7680 x 4320 at 60 Hz. Multi-monitor support extends to four displays simultaneously. SLI is not supported on this model.

Highlights

  • 8GB 256-bit GDDR6 memory enables smooth 1440p gaming
  • Core clock reaches 1815 MHz for responsive frame rates
  • 2176 CUDA cores accelerate rendering and compute tasks
  • Four display outputs include HDMI 2.0b and three DisplayPort 1.4 ports
  • VirtualLink USB-C port simplifies VR headset connectivity

Specifications

BrandGIGABYTE
ModelGV-N206SGAMING OC-8GC
InterfacePCI Express 3.0 x16
Chipset ManufacturerNVIDIA
GPUGeForce RTX 2060 SUPER
Core Clock1815 MHz
CUDA Cores2176
Effective Memory Clock14000 MHz
Memory Size8GB
Memory Interface256-Bit
Memory TypeGDDR6
DirectXDirectX 12
OpenGLOpenGL 4.5
Multi-Monitor Support4
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort 1.4
Other Ports1 x USB Type-C (support VirtualLink)
Max Resolution7680 x 4320 @ 60 Hz
SLI SupportNo
Virtual Reality ReadyYes
Thermal Design Power175W
System RequirementsSystem PSU Limitation: 550W
Power Connector1 x 6-pin, 1 x 8-pin
FeaturesPowered by GeForce RTX 2060 SUPER//Integrated with 8GB GDDR6 256-bit memory interface//WINDFORCE 3X Cooling System with alternate spinning fans//4 Copper Heat Pipes direct touch GPU//RGB Fusion 2.0 - synchronize with other AORUS devices//Metal Back Plate
Form FactorATX
Max GPU Length280 mm
Card Dimensions (L x H)11.04" x 4.58"
Slot Width2 Slots

Questions about this item

How can I confirm the GPU is running at its 1815 MHz core clock after installation?

Open GPU-Z or the NVIDIA Control Panel and check the sensor tab while a 3D load is running; the boost clock should read 1815 MHz.

Which cables and adapters are included with the GV-N206SGAMING OC-8GC and what must I supply myself?

The box contains the dual-slot graphics card and a quick-install guide; you must provide a PCIe 3.0 x16 slot, an 8-pin power connector and your own DisplayPort 1.4 or HDMI 2.0b cables.

The card has 8 GB of GDDR6 on a 256-bit bus — is that the only memory configuration available for this model?

Yes, the GV-N206SGAMING OC-8GC is offered only with 8 GB of GDDR6 memory across a 256-bit interface; no other capacity or bus-width versions exist for this SKU.
