GIGABYTE

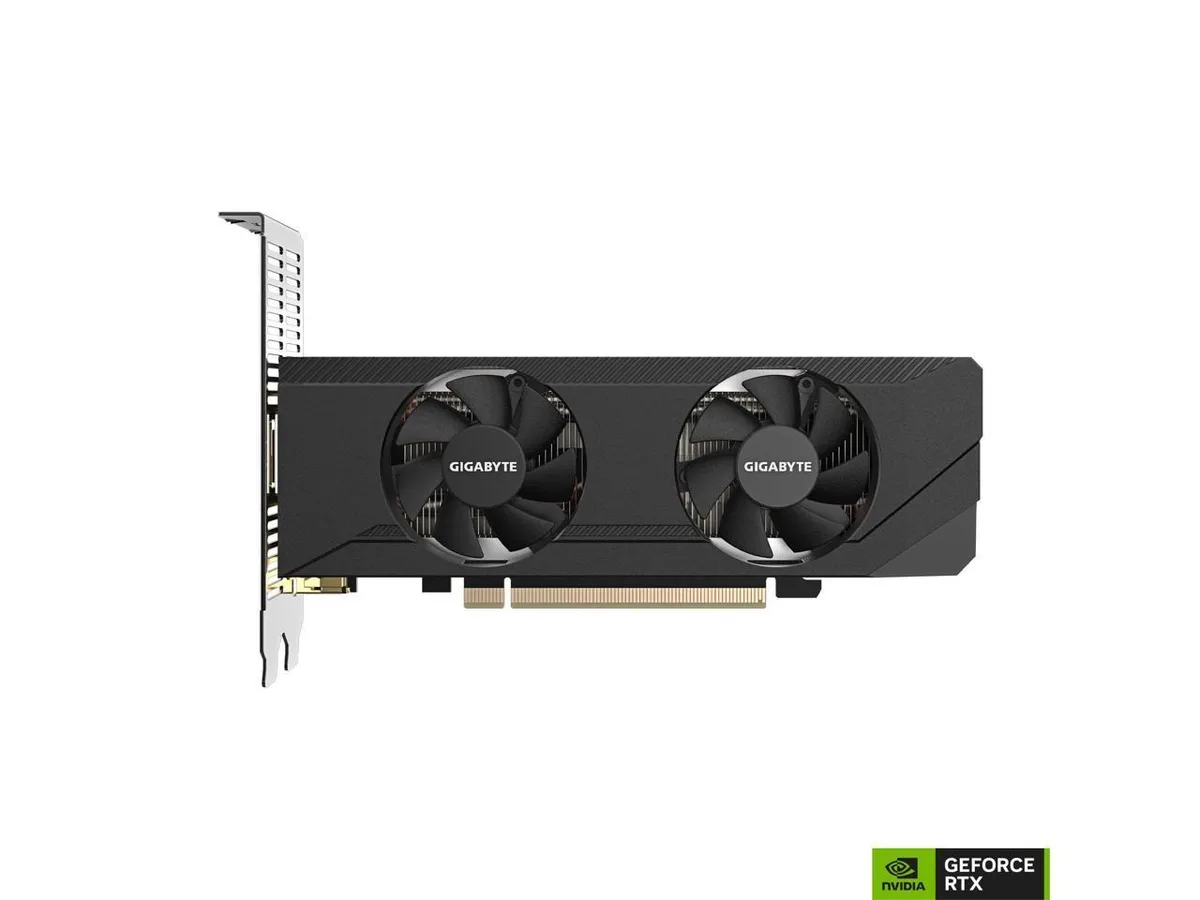

GIGABYTE GeForce RTX 3050 OC Low Profile 6G graphics card
Low-profile card with 6GB GDDR6 and 70W TDP fits small builds while driving four displays up to 7680 x 4320
- InterfacePCI Express 4.0 x8
- Chipset ManufacturerNVIDIA
- GPU SeriesNVIDIA GeForce RTX 30 Series
- GPUGeForce RTX 3050
- ArchitectureAmpere
- Effective Memory Clock14000 MHz
- 6 GB GDDR6 memory handles modern textures at 1080p
- 70 W TDP runs on a 300 W power supply
- Low-profile dual-fan cooler fits slim chassis builds
- PCIe 4.0 x8 interface keeps data moving to the GPU
- Four display outputs drive multi-monitor workspaces
Low-profile RTX 3050 for compact builds
The GIGABYTE GeForce RTX 3050 OC Low Profile 6G fits small-form-factor cases with a single-slot cooler. It targets users who need modern NVIDIA Ampere features such as DirectX 12 and OpenGL 4.6 without a full-height card. A 70 W TDP and 300 W PSU recommendation keep power demands modest for slim chassis.
Simple PCIe x8 installation with clearance checks
The card plugs into a PCI Express 4.0 x8 slot and requires no auxiliary power connector. Installers must verify that the low-profile bracket matches the case cutout and that the 96-bit memory bus fits the motherboard layout. The dual WINDFORCE fans need minimal airflow space, so avoid blocking the heatsink with cables or drive cages.
6 GB GDDR6 handles 1080p workloads
Six gigabytes of GDDR6 running at 14000 MHz across a 96-bit interface provide enough frame buffer for 1080p gaming and multi-monitor productivity. Four display outputs — two HDMI 2.1 and two DisplayPort 1.4a — support up to 7680 x 4320 resolution. The memory capacity becomes a bottleneck at higher texture settings or 1440p gaming.
Highlights
- 6 GB GDDR6 memory handles modern textures at 1080p
- 70 W TDP runs on a 300 W power supply
- Low-profile dual-fan cooler fits slim chassis builds
- PCIe 4.0 x8 interface keeps data moving to the GPU
- Four display outputs drive multi-monitor workspaces
Specifications
| Brand | GIGABYTE |
|---|---|
| Model | GV-N3050OC-6GL |
| Interface | PCI Express 4.0 x8 |
| Chipset Manufacturer | NVIDIA |
| GPU Series | NVIDIA GeForce RTX 30 Series |
| GPU | GeForce RTX 3050 |
| Architecture | Ampere |
| Effective Memory Clock | 14000 MHz |
| Memory Size | 6GB |
| Memory Interface | 96-Bit |
| Memory Type | GDDR6 |
| DirectX | DirectX 12 |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
| HDMI | 2 x HDMI 2.1 |
| DisplayPort | 2 x DisplayPort 1.4a |
| Max Resolution | 7680 x 4320 |
| Cooler | low profile fan |
| Thermal Design Power | 70W |
| Recommended PSU Wattage | 300W |
| Form Factor | Low Profile |

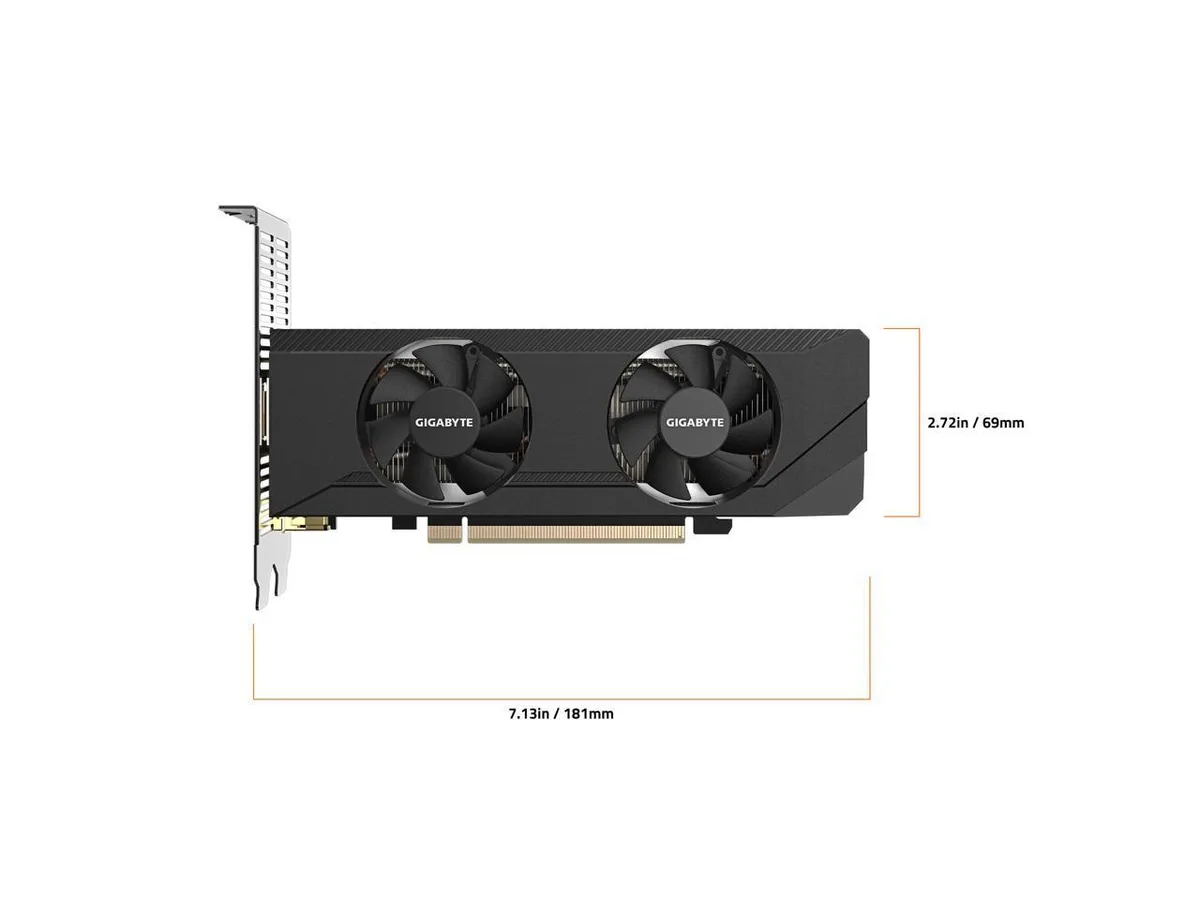

| Max GPU Length | 181 mm |
| Slot Width | 2 Slots |
| Package Contents | Accessories Quick guide |
Questions about this item
How can I confirm the GV-N3050OC-6GL is running at its 14000 MHz effective memory clock after installation?
Open GPU-Z or the NVIDIA Control Panel and check the memory clock reading; it should show 14000 MHz when the card is under load.
What comes in the box with the GV-N3050OC-6GL and what extra cables or adapters might I need to buy?
The card includes a low-profile bracket installed and a full-height bracket in the box; you may need a DisplayPort or HDMI 2.1 cable if your monitor does not already have one.
The GV-N3050OC-6GL only exists in this 6 GB 96-bit GDDR6 version, so how do I know it fits my build?
It needs a PCI Express 4.0 x8 slot, a 300 W power supply, and enough case clearance for a low-profile, dual-slot cooler with two fans.
