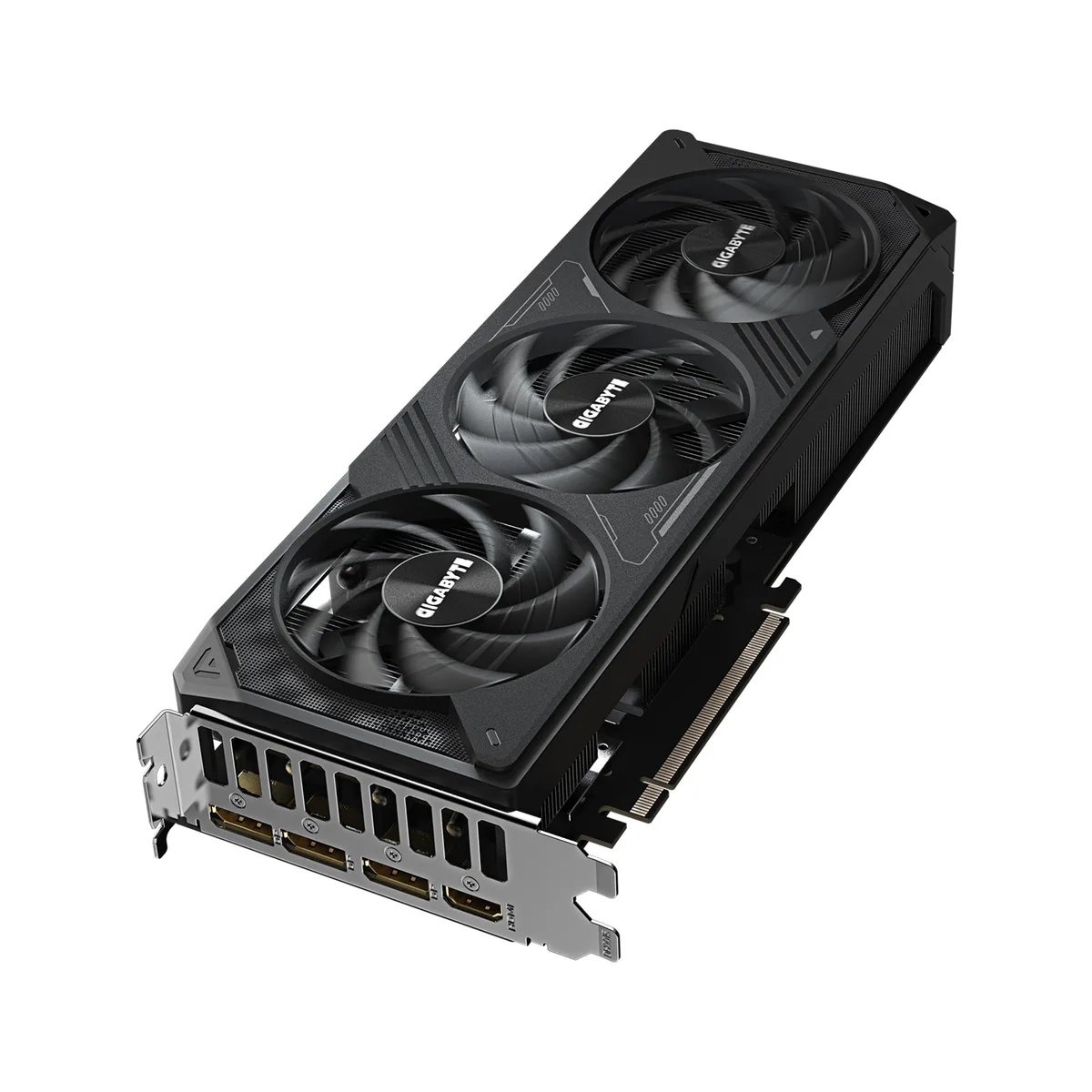

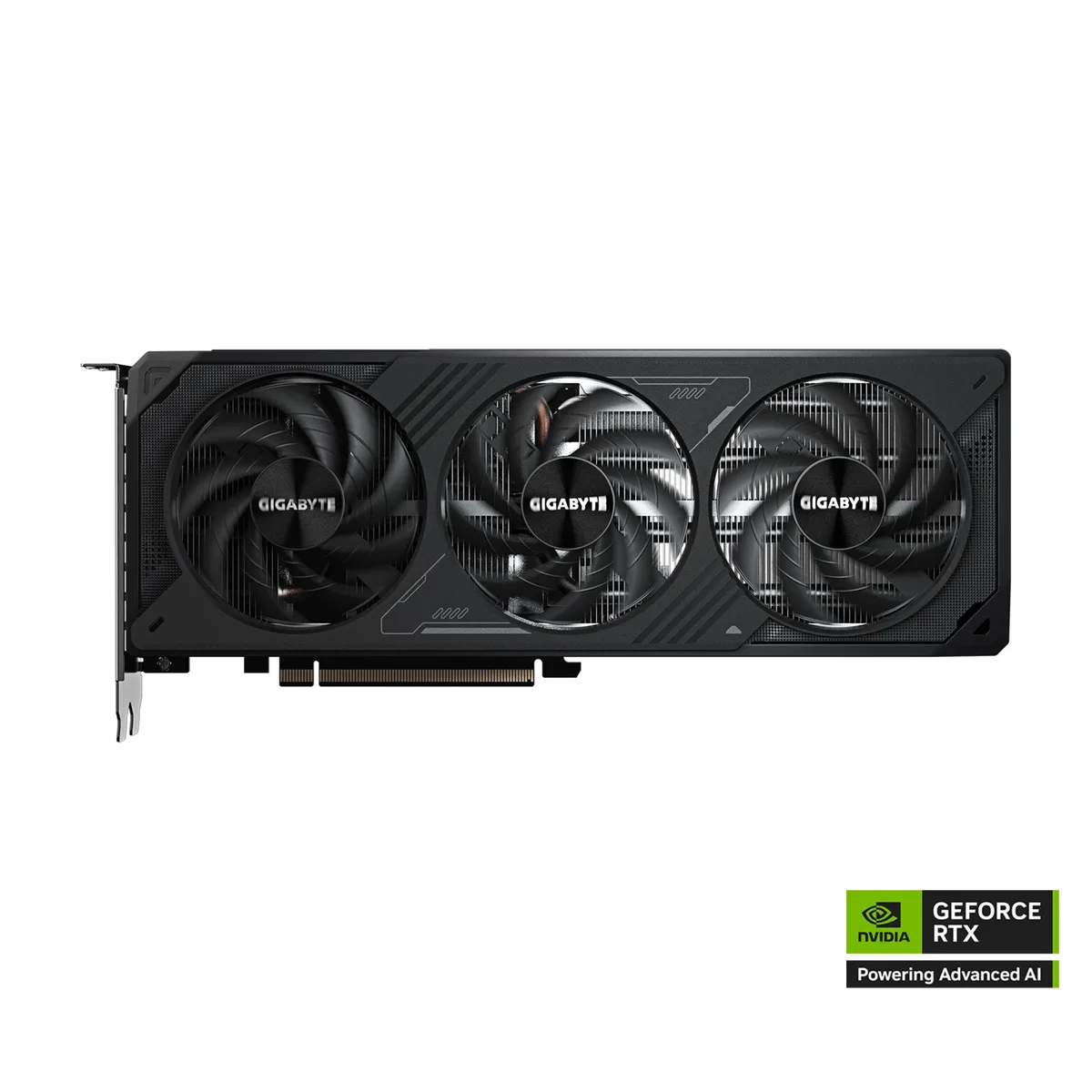

Black triple-fan graphics card, 282 mm long, matte finish

GIGABYTE

GIGABYTE GeForce RTX 5070 WindForce 12GB GV-N5070WF3-12GD graphics card

SKU CH-1F08-K76MR MPN GV-N5070WF3-12GD

PCI Express 5.0 graphics card with 12GB GDDR7 memory, 6144 CUDA cores, and triple-fan cooling

  • InterfacePCI Express 5.0
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5070
  • Core Clock2512 MHz
  • CUDA Cores6144
  • 12GB GDDR7 memory delivers high bandwidth for 4K gaming
  • 6144 CUDA cores accelerate ray tracing and AI workloads
  • PCI Express 5.0 interface doubles link throughput versus older slots
  • Triple-fan WindForce cooler keeps thermals low in compact builds
  • HDMI 2.1b plus three DisplayPort 2.1b outputs drive four 8K displays

GIGABYTE RTX 5070 WindForce 12GB

This graphics card uses the NVIDIA GeForce RTX 5070 GPU with 6144 CUDA cores and a 2512 MHz core clock. It provides 12GB of GDDR7 memory on a 192-bit bus running at 28 Gbps. The board connects through a PCI Express 5.0 slot and draws auxiliary power from one 16-pin connector. A 750W power supply is recommended.

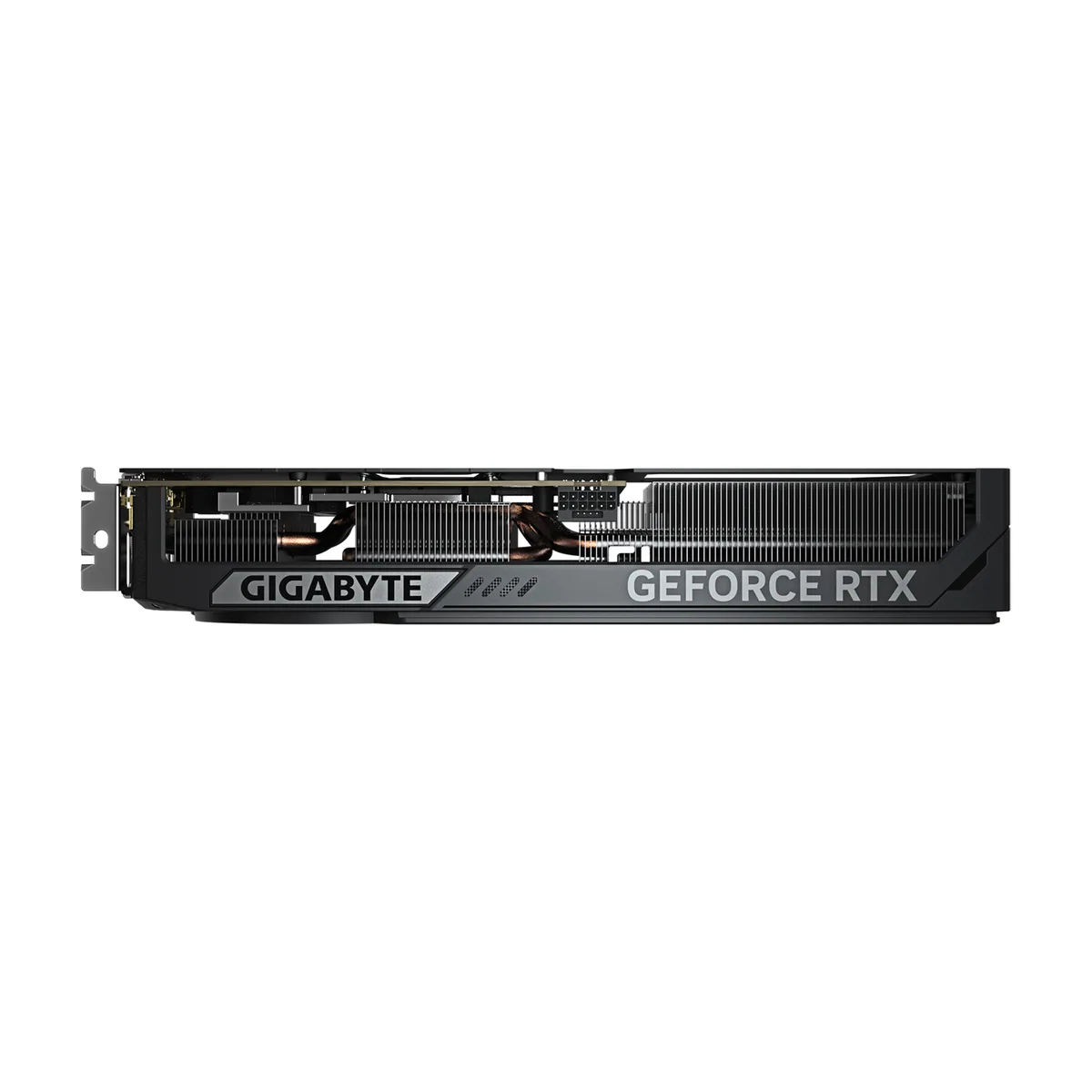

Triple-fan WindForce cooler

The card ships with a triple-fan WindForce cooler in a black ATX form factor measuring 282 x 110 x 50 mm. No separate software bundle or accessory kit is listed in the specifications. The cooler handles thermal dissipation for the GPU and memory without additional hardware.

Standard ATX installation

Installation follows the usual PCI Express 5.0 x16 slot procedure and requires a single 16-pin power cable from the supply. The 282 mm length fits most mid-tower cases, but builders should verify clearance before mounting. Driver support covers DirectX 12 and OpenGL 4.6 for immediate operation.

Highlights

  • 12GB GDDR7 memory delivers high bandwidth for 4K gaming
  • 6144 CUDA cores accelerate ray tracing and AI workloads
  • PCI Express 5.0 interface doubles link throughput versus older slots
  • Triple-fan WindForce cooler keeps thermals low in compact builds
  • HDMI 2.1b plus three DisplayPort 2.1b outputs drive four 8K displays

Specifications

BrandGIGABYTE
SeriesWindForce
ModelGV-N5070WF3-12GD
Part NumberGV-N5070WF3-12GD
InterfacePCI Express 5.0
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5070
Core Clock2512 MHz
CUDA Cores6144
Effective Memory Clock28 Gbps
Memory Size12GB
Memory Interface192-Bit
Memory TypeGDDR7
DirectXDirectX 12
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorBlack
Max Resolution7680 x 4320
SLI SupportNo
Virtual Reality ReadyYes
CoolerTriple Fans
Recommended PSU Wattage750W
Power Connector1 x 16-Pin
HDCP ReadyYes
FeaturesSmall Form Factor Ready
Form FactorATX
Max GPU Length282 mm

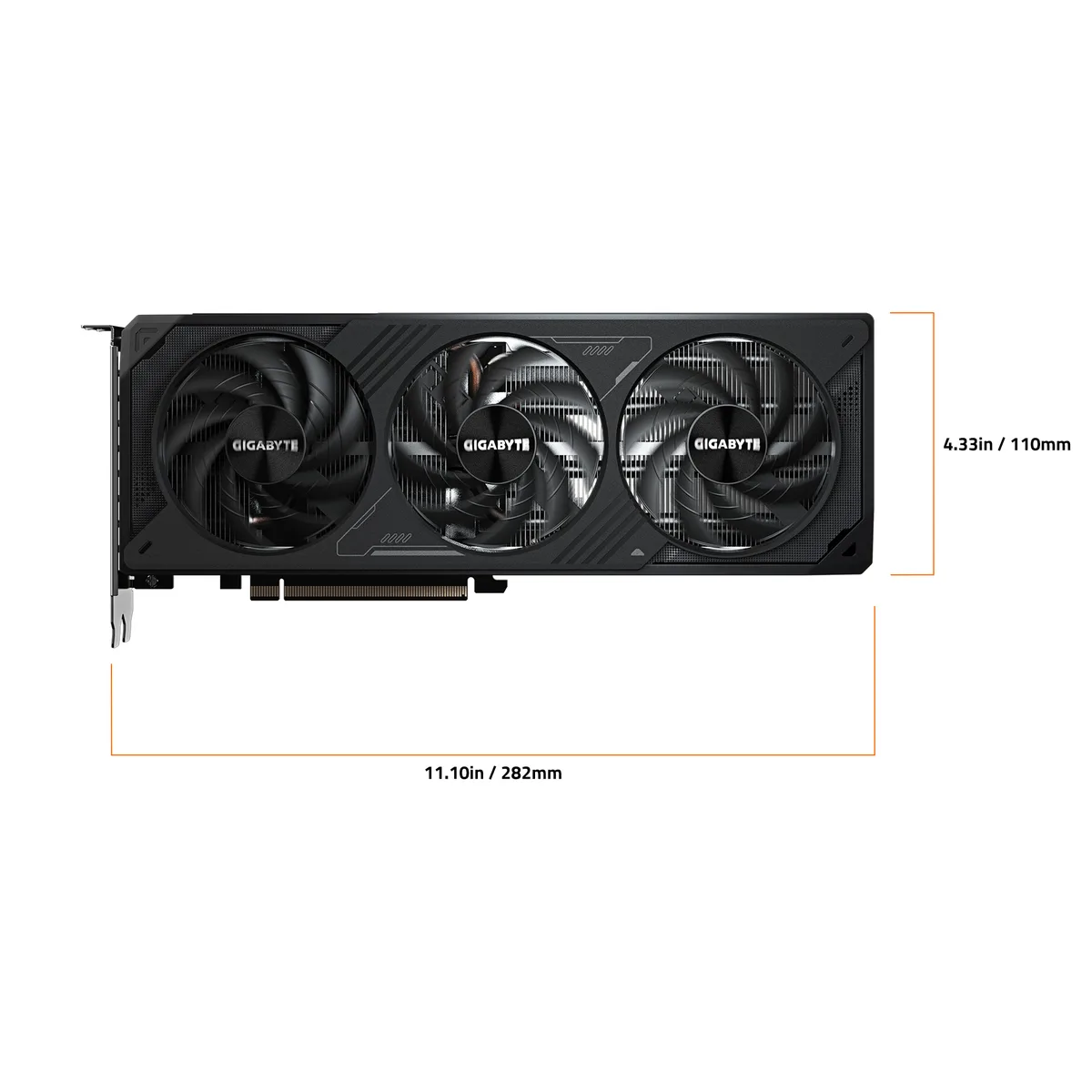

Card Dimensions (L x H)282 x 110 x 50 mm
Shipping weight1.27 kg
Package size362 × 188 × 79 mm

Questions about this item

How often should the triple-fan cooler be cleaned to keep the 2512 MHz core clock stable?

Dust the three fans and heatsink fins every three to six months with compressed air; blocked airflow is the main reason clocks drop under load.

Will the 192-bit GDDR7 memory interface hit its bandwidth ceiling before the GPU does in long renders?

The 28 Gbps GDDR7 on a 192-bit bus feeds the 6144 CUDA cores, so sustained compute-heavy workloads typically saturate memory bandwidth first.

How loud and hot does the card get when the 16-pin connector draws near the 750 W PSU limit all day?

Under continuous full load the triple-fan design keeps temperatures in the normal operating range and fan noise stays at a moderate level inside a ventilated case.
