GIGABYTE
GIGABYTE GP-AE1000PM PG5 ICE Rev1.1 1000W ATX 3.1 power supply
Fully modular 1000W ATX 3.1 unit with native 12VHPWR connector for PCIe 5.1 graphics cards, 80 PLUS Platinum efficiency, Japanese capacitors and a 120mm FDB fan
- ColorWhite
- TypeATX 3.1 Compatible
- Maximum Power1000 W
- Fans120mm Fluid Dynamic Bearing (FDB) Fan
- PFCActive PFC (>0.9 typical)
- Max PSU Length140 mm
- Delivers 1000 W on a single +12 V rail for stable high-load performance
- Meets Intel ATX 3.1 spec with 200 % power excursion support
- Native 12VHPWR cable powers PCIe 5.1 graphics cards up to 600 W
- 80 PLUS Platinum certification gives 92 % efficiency at typical load
- 120 mm FDB fan and 100 % Japanese capacitors ensure quiet, long-life operation
ATX 3.1 power supply for modern builds
This GIGABYTE unit delivers 1000 W through a single +12 V rail and meets the Intel ATX 3.1 specification. A native 12VHPWR connector supports PCIe 5.1 graphics cards with up to 600 W. The fully modular design uses 100 % Japanese capacitors and a 120 mm fluid dynamic bearing fan.
Suits high-end GPU and CPU combinations
Builders pairing a flagship graphics card with a powerful processor will benefit from the 200 % total power excursion capability and 92 % efficiency at typical load. Systems that require more than 1000 W or lack space for a 140 mm deep unit should consider a higher capacity or shorter form factor.
Handles sustained loads with 16 ms hold-up time
The Platinum-rated platform maintains stable output during transient spikes of three times the GPU power rating. Protection circuits cover over-voltage, over-power, short-circuit, under-voltage, over-current and over-temperature events. Continuous loads beyond 1000 W exceed the rated capacity of this model.
Highlights
- Delivers 1000 W on a single +12 V rail for stable high-load performance
- Meets Intel ATX 3.1 spec with 200 % power excursion support
- Native 12VHPWR cable powers PCIe 5.1 graphics cards up to 600 W
- 80 PLUS Platinum certification gives 92 % efficiency at typical load
- 120 mm FDB fan and 100 % Japanese capacitors ensure quiet, long-life operation
Specifications
| Brand | GIGABYTE |
|---|---|
| Model | GP-AE1000PM PG5 ICE |
| Color | White |
| Type | ATX 3.1 Compatible |
| Maximum Power | 1000 W |
| Fans | 120mm Fluid Dynamic Bearing (FDB) Fan |
| PFC | Active PFC (>0.9 typical) |
| Max PSU Length | 140 mm |
| Modular | Full Modular |
| Power Good Signal | 100-150ms |
| Hold-up Time | >16ms |
| Efficiency | 92% at typical load |
| Energy-Efficient | 80 PLUS PLATINUM Certified |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 60-50 Hz |
| Input Current | 15-6.5A |
| MTBF | >100,000 Hours |

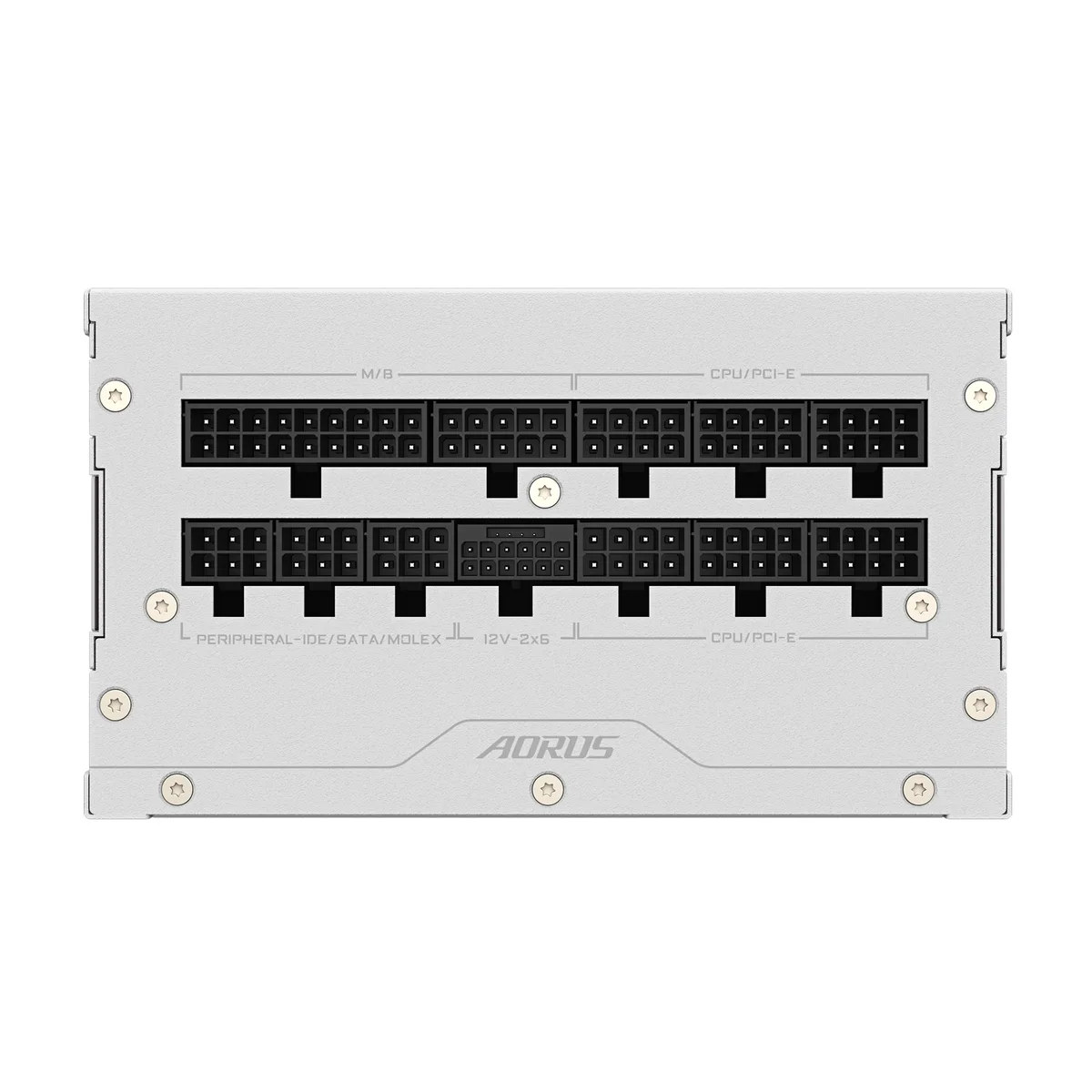

| Connectors | 1 x 12VHPWR (12+4) PCIe / 1 x 24 pin (20+4) ATX / 3 x 4 pin Peripheral / 6 x 8 pin (6+2) PCIe |
| Cable Spec | ATX/MB 20+4 Pin x 1 : 650mm*1 CPU/EPS 4+4 Pin x 2 : 700mm*2 PCI-e 16 Pin x 1: 700mm*1 PCI-e 6+2 Pin x 6 : 650mm+150mm*2, 750mm*2 SATA x 8 : 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1 |
| Shipping weight | 3.18 kg |
| Package size | 343 × 216 × 127 mm |
Questions about this item
Will the native 12VHPWR cable support a PCIe Gen 5 graphics card drawing 600W?
Yes, the included native 16-pin cable is designed for PCIe Gen 5.1 cards and can deliver up to 600W.
Is the 140mm length compatible with compact cases?
At 140mm long, this ATX 3.1 unit fits many mid-tower and some compact builds; verify your case clearance before ordering.
What protections guard components during power anomalies?
The unit provides OVP, OPP, SCP, UVP, OCP and OTP to shield hardware from voltage spikes, shorts and overheating.
