GIGABYTE

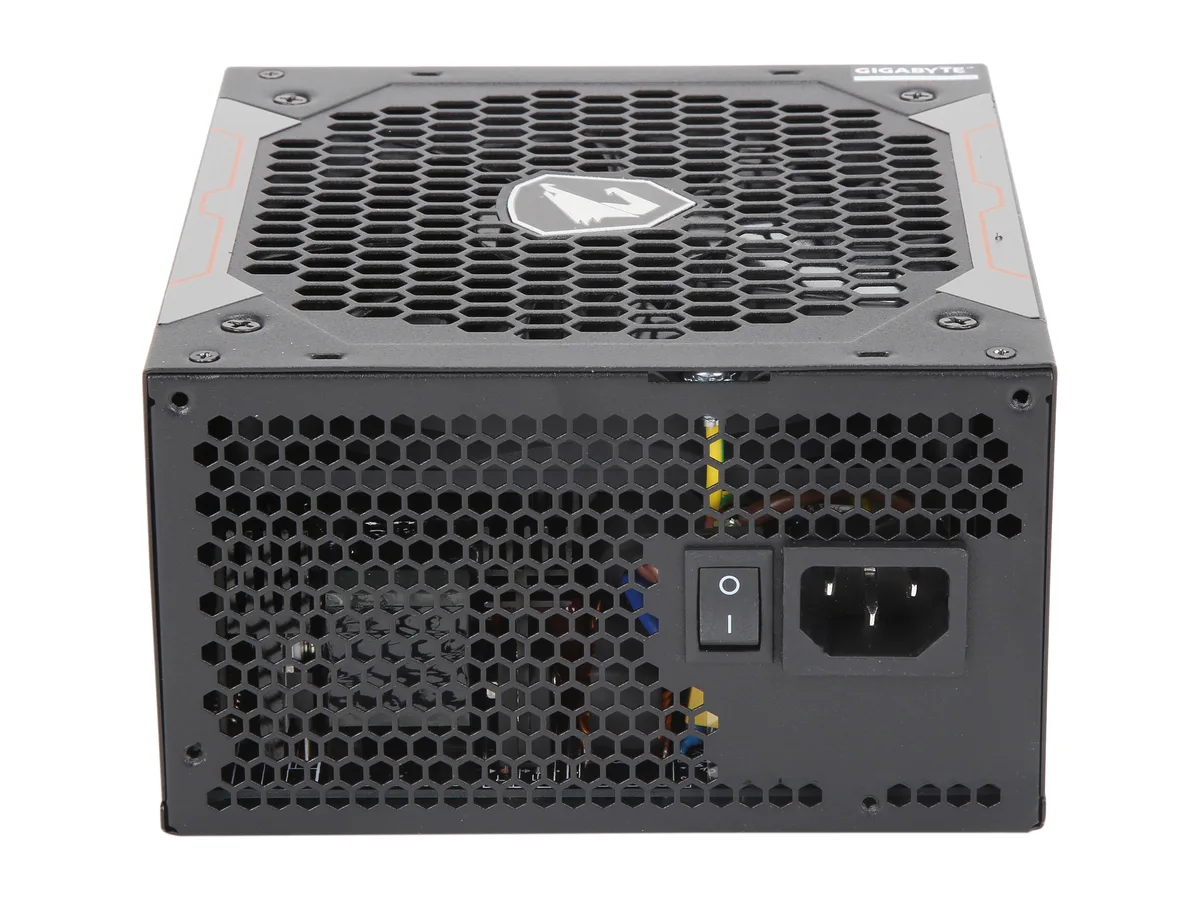

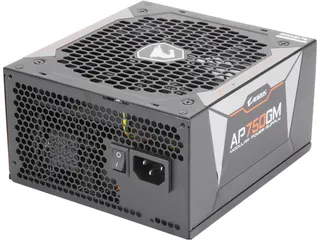

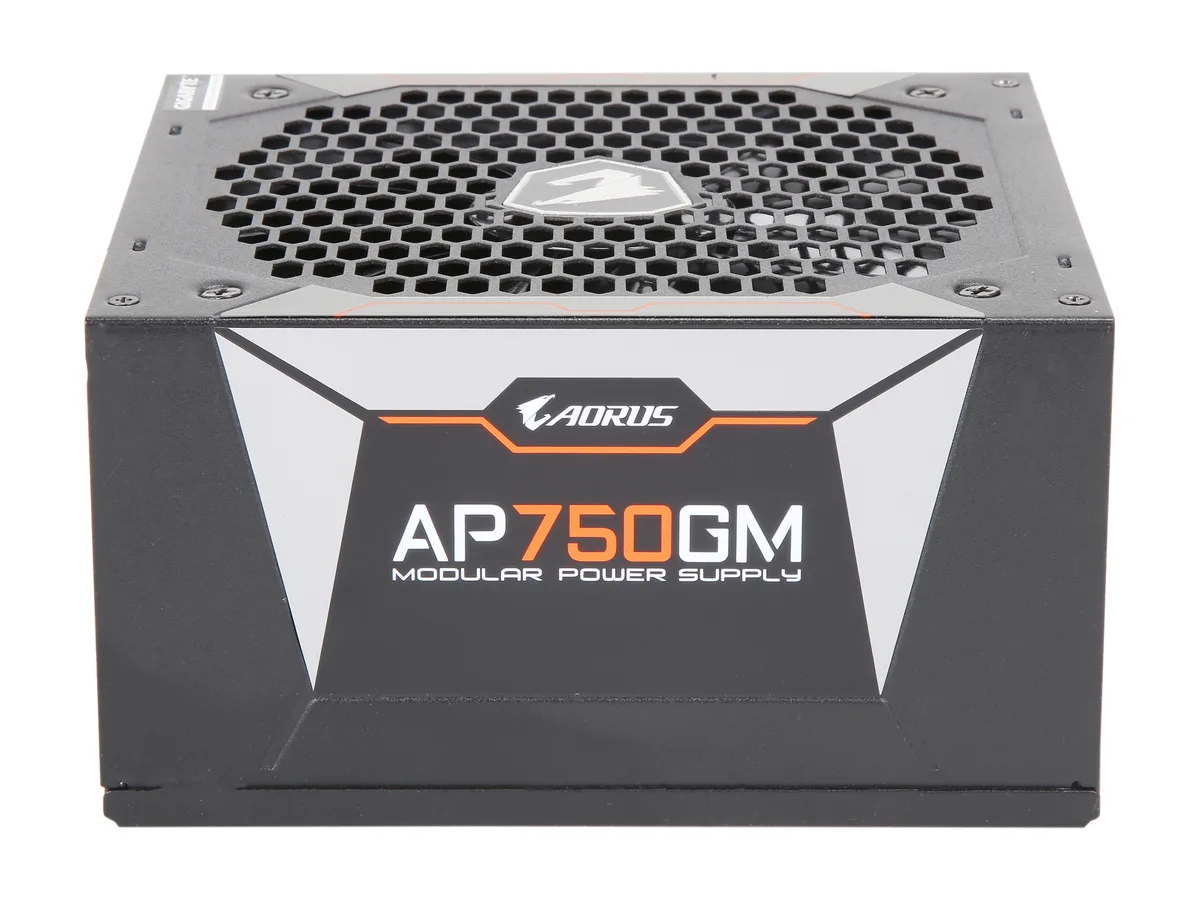

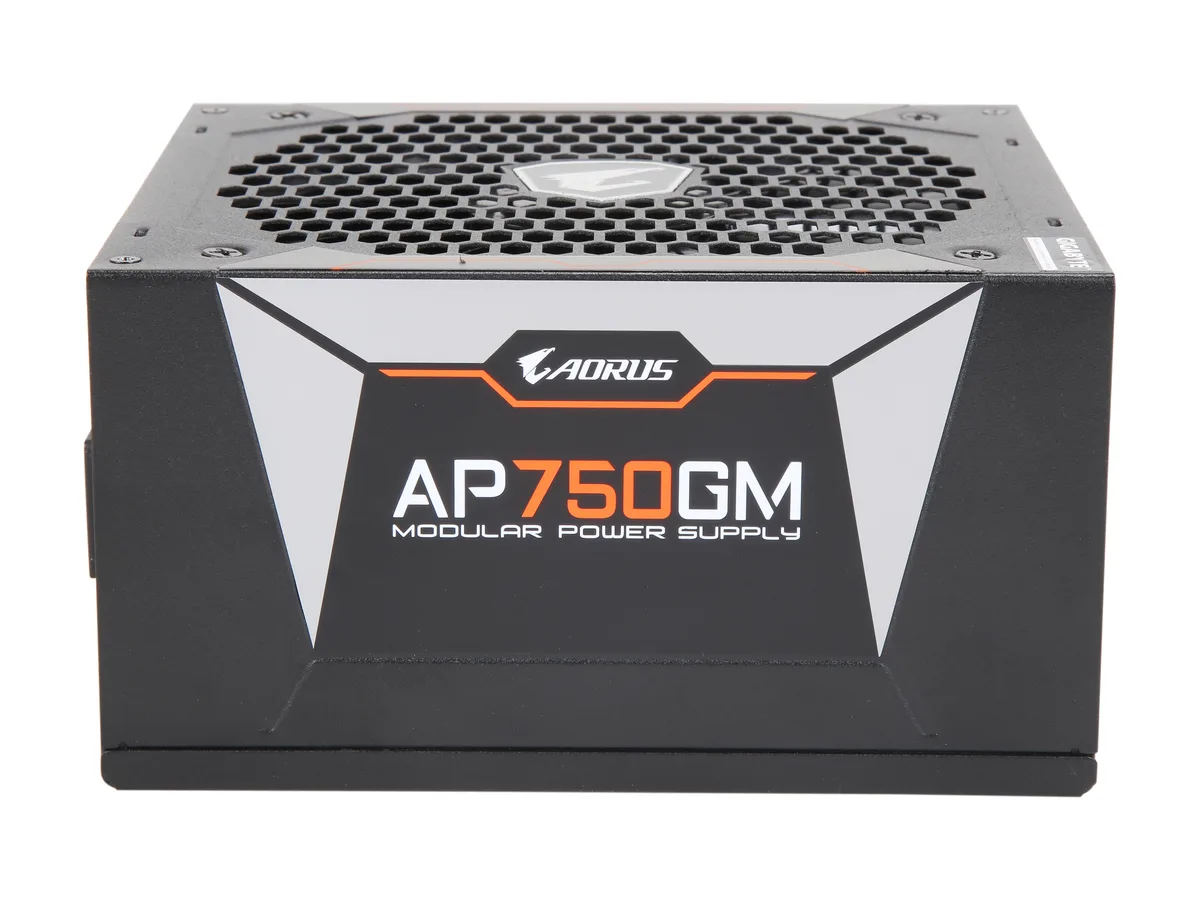

GIGABYTE GP-AP750GM 750 W power supply
A 750 W ATX power supply with full modular cabling, 80 PLUS Gold efficiency and a 135 mm double ball bearing fan
- TypeATX 12V v2.31
- Maximum Power750 W
- Fans1 x 135mm Double ball bearing fan
- PFCActive
- Main Connector20+4Pin
- +12V RailsSingle
Options ATX 80+ Gold (750W)
- ATX 80+ Gold (750W)
- ATX 80+ Gold (850W)
- 750 W output powers demanding builds
- 80 PLUS Gold certification delivers 90% efficiency at typical load
- Fully modular cabling keeps the case tidy
- 135 mm double ball bearing fan with stop function runs quietly
- Single +12 V rail provides 62 A for stable GPU power
What this power supply delivers
The GIGABYTE GP-AP750GM is a 750 W ATX 12V v2.31 unit built for mid-range and high-end desktop builds. A single +12V rail provides 62 A for stable GPU and CPU power. Full modular cabling lets you connect only the 20+4-pin, two 4+4-pin CPU, four 6+2-pin PCIe, six SATA, five peripheral and two floppy leads you need. Japanese capacitors and a 100 000-hour MTBF rating back long-term reliability.
Sustained load behaviour
At typical load the unit reaches 90 % efficiency, meeting 80 PLUS Gold requirements. Hold-up time exceeds 16 ms at full load on 115 V input, giving the system a brief ride-through during mains dips. Power good signal arrives within 100 to 500 ms after switch-on. Protections include OVP, OPP, SCP, UVP, OCP and OTP to shut down safely if voltage, current or temperature exceed safe limits.
Thermals noise and power draw

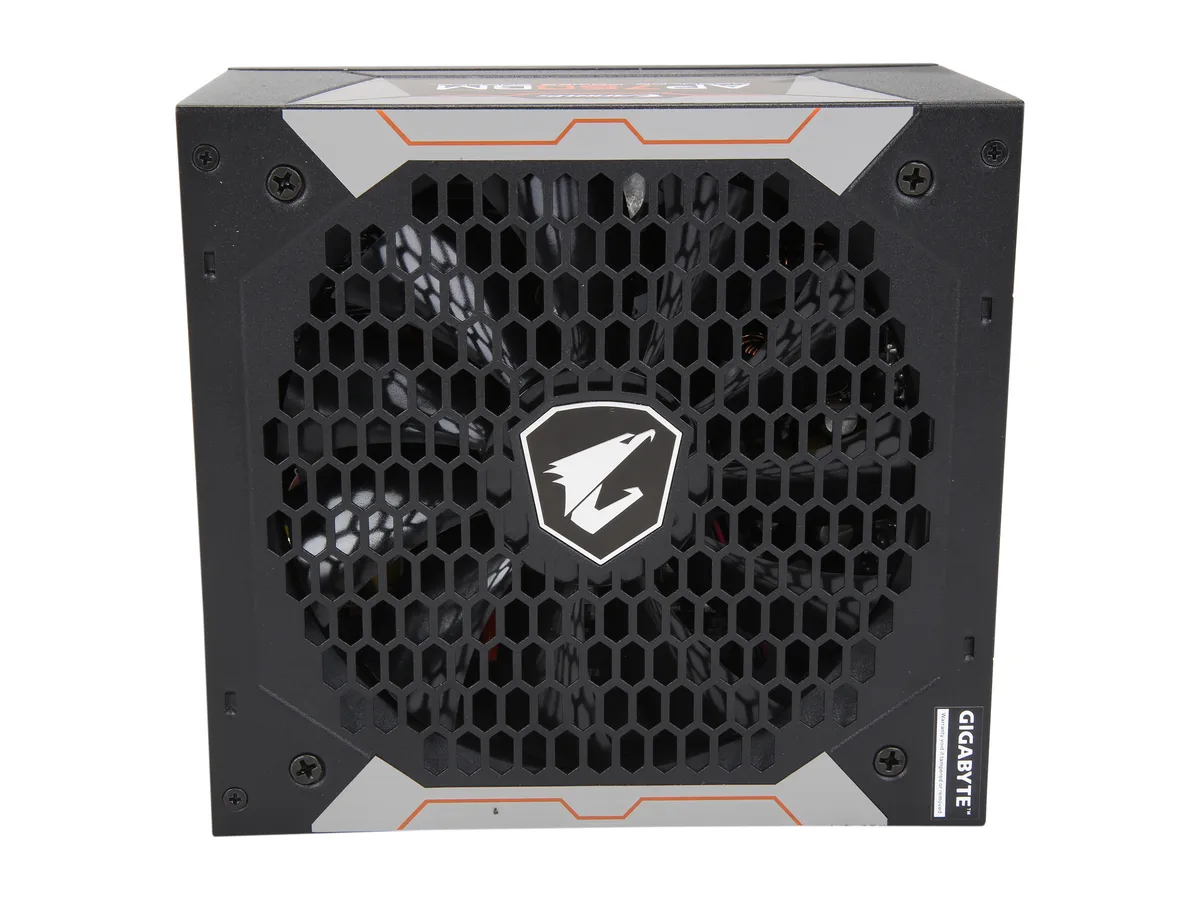

A 135 mm double ball-bearing fan spins only when needed thanks to a fan-stop function, keeping idle noise near zero. Under load the fan ramps to maintain component temperatures within spec while drawing 100 to 240 V at 50 to 60 Hz. Active PFC corrects the input current to 12 A at low line and 6 A at high line, reducing reactive power and heat inside the 160 mm deep chassis.
Highlights
- 750 W output powers demanding builds
- 80 PLUS Gold certification delivers 90% efficiency at typical load
- Fully modular cabling keeps the case tidy
- 135 mm double ball bearing fan with stop function runs quietly
- Single +12 V rail provides 62 A for stable GPU power
Specifications
| Brand | GIGABYTE |
|---|---|
| Series | AORUS P750W |
| Model | GP-AP750GM |
| Type | ATX 12V v2.31 |
| Maximum Power | 750 W |
| Fans | 1 x 135mm Double ball bearing fan |
| PFC | Active |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 4 x 6+2-Pin |
| SATA Power Connector | 6 |
| Max PSU Length | 160 mm |
| Modular | Full Modular |
| Power Good Signal | 100-500ms |
| Hold-up Time | > 16m sec at full load (115V) |
| Efficiency | 90% at typical load |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Over Voltage Protection | OVP / OPP / SCP / UVP / OCP / OTP |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50 - 60 Hz |
| Input Current | 12A - 6A |
| Output | +3.3V@20A, +5V@20A, +12V@62A, [email protected] , [email protected] |
| MTBF | >100,000 Hours |

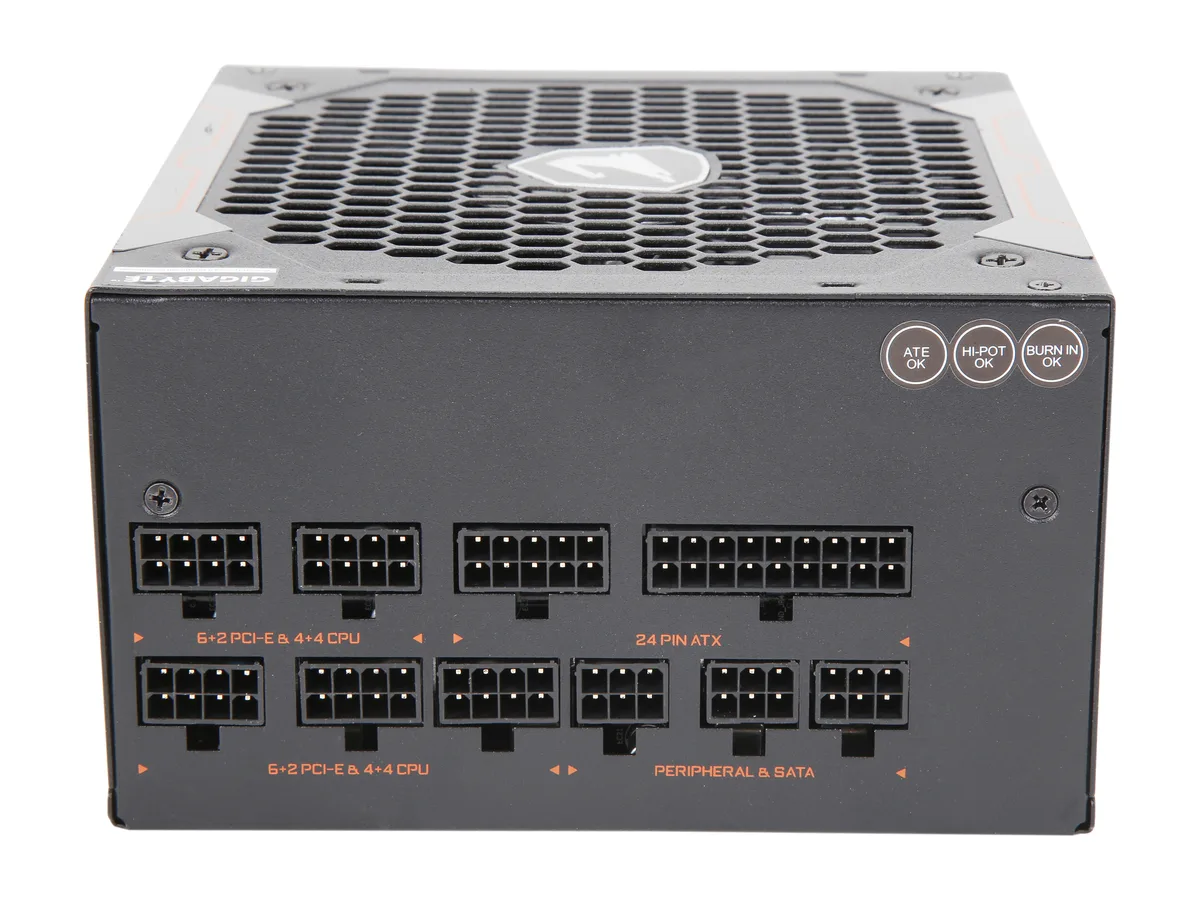

| Connectors | 1 x ATX/MB 20+4 Pin 2 x CPU/EPS 4+4 Pin 4 x PCI-e 6+2 Pin 6 x SATA 5 x 4 Pin Peripheral 2 x 4 Pin Floppy |
| Features | Fully Modular Design High quality 100% Japanese Capacitors 135mm 2 ball bearing smart fan with fan stop function 80 PLUS Gold certified: above 90% efficiency at 50% load Single +12V rail OCP/OTP/OVP/OPP/UVP/SCP protection 10 years warranty (Adjusted according to different regions) |
| Dimensions | 3.39" x 5.91" x 6.30" |
| Shipping weight | 3.10 kg |
| Package size | 348 × 224 × 147 mm |
Other versions of this model
1 more in the same range
Same family, different memory, cooler or clock — compare before you commit.
Questions about this item
How loud is the 135mm double ball bearing fan during continuous all-day operation?
The 135mm double ball bearing fan includes a fan-stop function that keeps it off at low loads; under sustained load it spins to maintain cooling while the 80 PLUS Gold efficiency reduces waste heat.
What cables must I already have to install this fully modular unit?
No cables are attached out of the box; you will use the supplied 20+4-pin ATX, two 4+4-pin CPU/EPS, four 6+2-pin PCIe, six SATA, five 4-pin peripheral and two 4-pin floppy cables included in the package.
Will the single +12V rail rated at 62A safely power an older graphics card that needs two 6-pin connectors?
Yes, the single +12V rail delivers up to 62A and the unit provides four 6+2-pin PCIe connectors, so two 6-pin plugs are supported without adapters.
