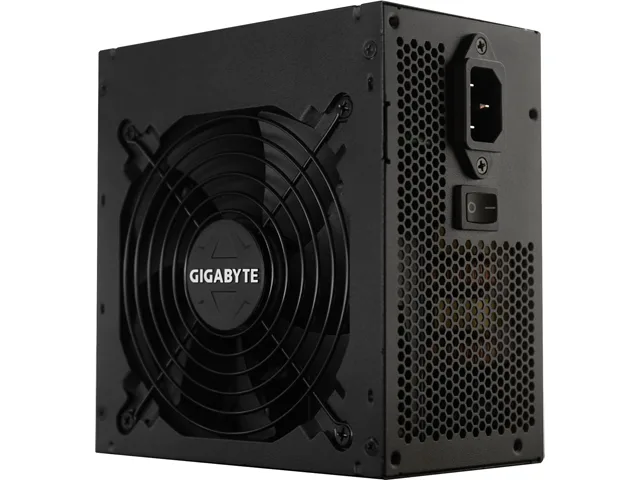

Black rectangular ATX power supply with modular cables and 120mm fan

GIGABYTE

GIGABYTE GP-B700H 700 W modular power supply

SKU CH-X89M-Q37G4 MPN GP-B700H

700 W ATX12V modular supply with 80 PLUS Bronze efficiency, single +12 V rail, four PCIe connectors and seven SATA connectors

  • TypeATX12V
  • Maximum Power700 W
  • Fans120mm Double ball bearing fan
  • PFCActive
  • Main Connector20+4Pin
  • +12V RailsSingle
  • 700 W output powers demanding CrossFire and SLI builds
  • 80 PLUS Bronze certification delivers at least 82 % efficiency from 20 % to 100 % load
  • Single +12 V rail gives stable power for overclocking with four 6+2-pin PCIe connectors
  • Modular cabling reduces clutter for better airflow and a clean black interior
  • Double ball bearing 120 mm fan and Japanese capacitors rated for over 100 000 hours MTBF

Power for gaming and multi-GPU builds

The GIGABYTE GP-B700H is a 700 W ATX12V unit built for systems that demand strong +12 V delivery. Its modular cabling and CrossFire certification suit builders who run dual graphics cards or a single high-end GPU.

Single +12 V rail with four PCIe connectors

A single +12 V rail supplies the full 700 W to the components that draw the most current. Four 6+2-pin PCIe connectors are provided so two graphics cards can be powered without adapters.

120 mm double ball-bearing fan and 80 PLUS Bronze

The 120 mm double ball-bearing fan adjusts speed under smart control to balance airflow and noise. 80 PLUS Bronze certification guarantees at least 82 % efficiency from 20 % to 100 % load with 85 % typical efficiency reducing waste heat.

Highlights

  • 700 W output powers demanding CrossFire and SLI builds
  • 80 PLUS Bronze certification delivers at least 82 % efficiency from 20 % to 100 % load
  • Single +12 V rail gives stable power for overclocking with four 6+2-pin PCIe connectors
  • Modular cabling reduces clutter for better airflow and a clean black interior
  • Double ball bearing 120 mm fan and Japanese capacitors rated for over 100 000 hours MTBF

Specifications

BrandGIGABYTE
ModelGP-B700H
TypeATX12V
Maximum Power700 W
Fans120mm Double ball bearing fan
PFCActive
Main Connector20+4Pin
+12V RailsSingle
PCI-Express Connector4 x 6+2-Pin
SATA Power Connector7
SLIYes
CrossFireCrossFire Certified
Max PSU Length160 mm
ModularModular
Efficiency85% at typical load
Energy-Efficient80 PLUS BRONZE Certified
Input Voltage100 - 240 V
Input Frequency Range47 - 63 Hz
Input Current10A
MTBF>100,000 Hours
ApprovalsCE / BSMI / EAC / TUV / FCC / UL / RCM / KCC / CCC
Connectors1 x MB 20+4 Pin
1 x CPU 4+4 Pin
4 x PCI-e 6+2 Pin
7 x SATA
3 x 4Pin Peripheral
1 x 4Pin Floopy
FeaturesModular Design
High quality Japanese electrolytic capacitors
120mm smart control fan
80 Plus Bronze certified
Single +12V rail
Supports NVIDIA SLI / AMD CROSSFIRE
Dimensions3.39" x 6.30" x 5.91"
Over Voltage ProtectionYes
Short Circuit ProtectionYes
Under Voltage ProtectionYes
Over Power ProtectionYes
Shipping weight2.34 kg
Package size277 × 203 × 114 mm

Questions about this item

How much usable power does the 700 W rating deliver to a typical gaming build?

The unit can supply up to 700 W continuously, with a single +12 V rail that keeps all CPU and GPU power on one rail for stable delivery under load.

What does the 80 PLUS Bronze badge guarantee for everyday efficiency?

Efficiency is at least 82 % from 20 % to 100 % load, and the supplier rates typical-load efficiency at 85 %, so less waste heat and lower running cost.

Will the 160 mm length and modular cables fit a standard mid-tower case?

At 160 mm long it matches the common ATX PSU envelope, and the modular design lets you connect only the cables you need for a cleaner interior.
