GIGABYTE

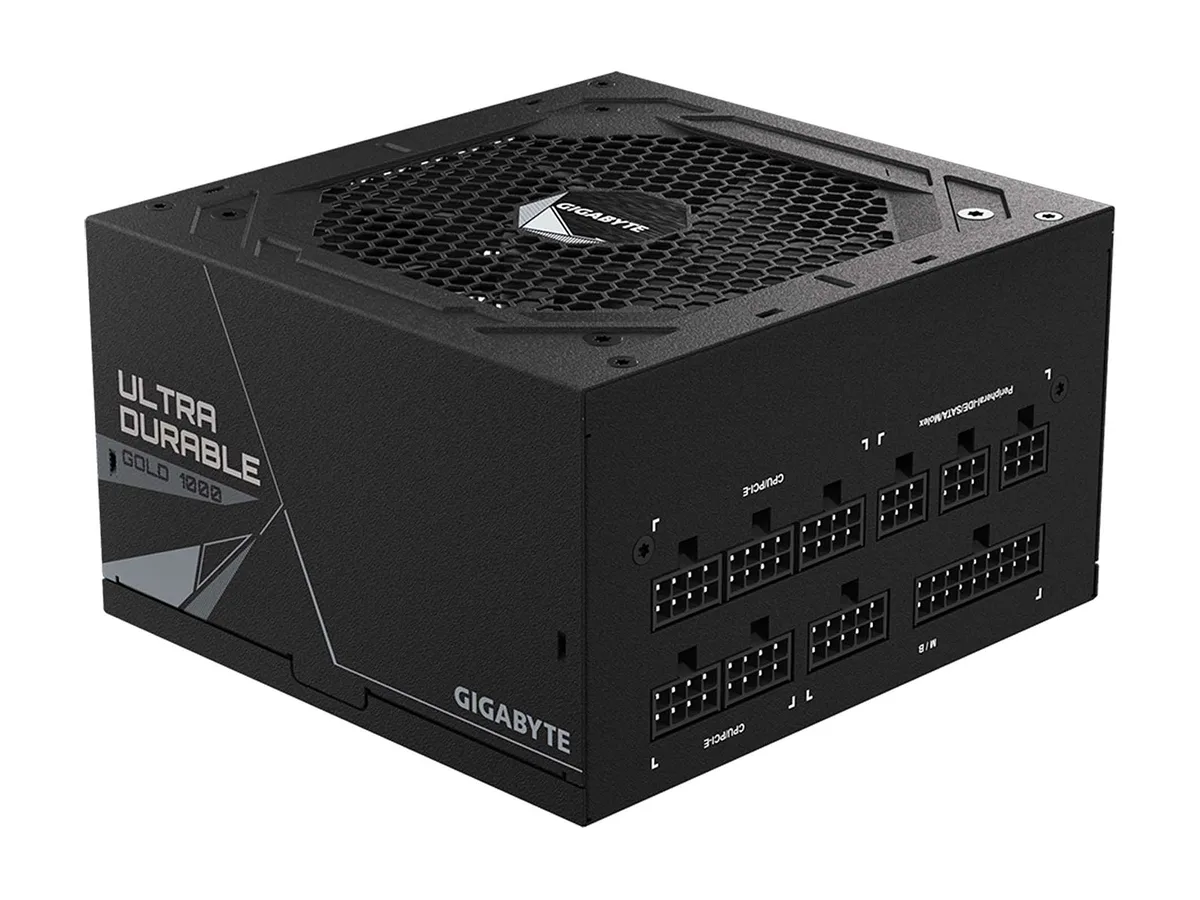

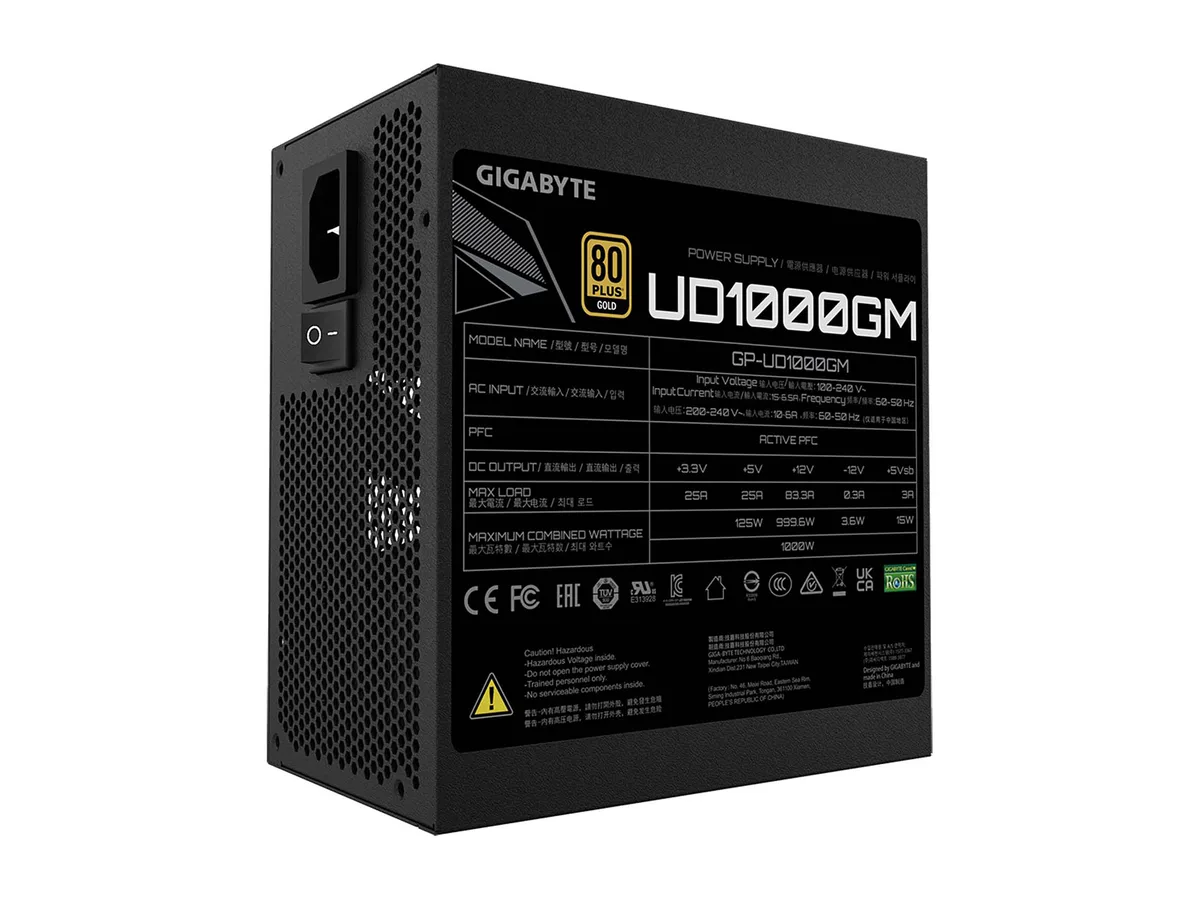

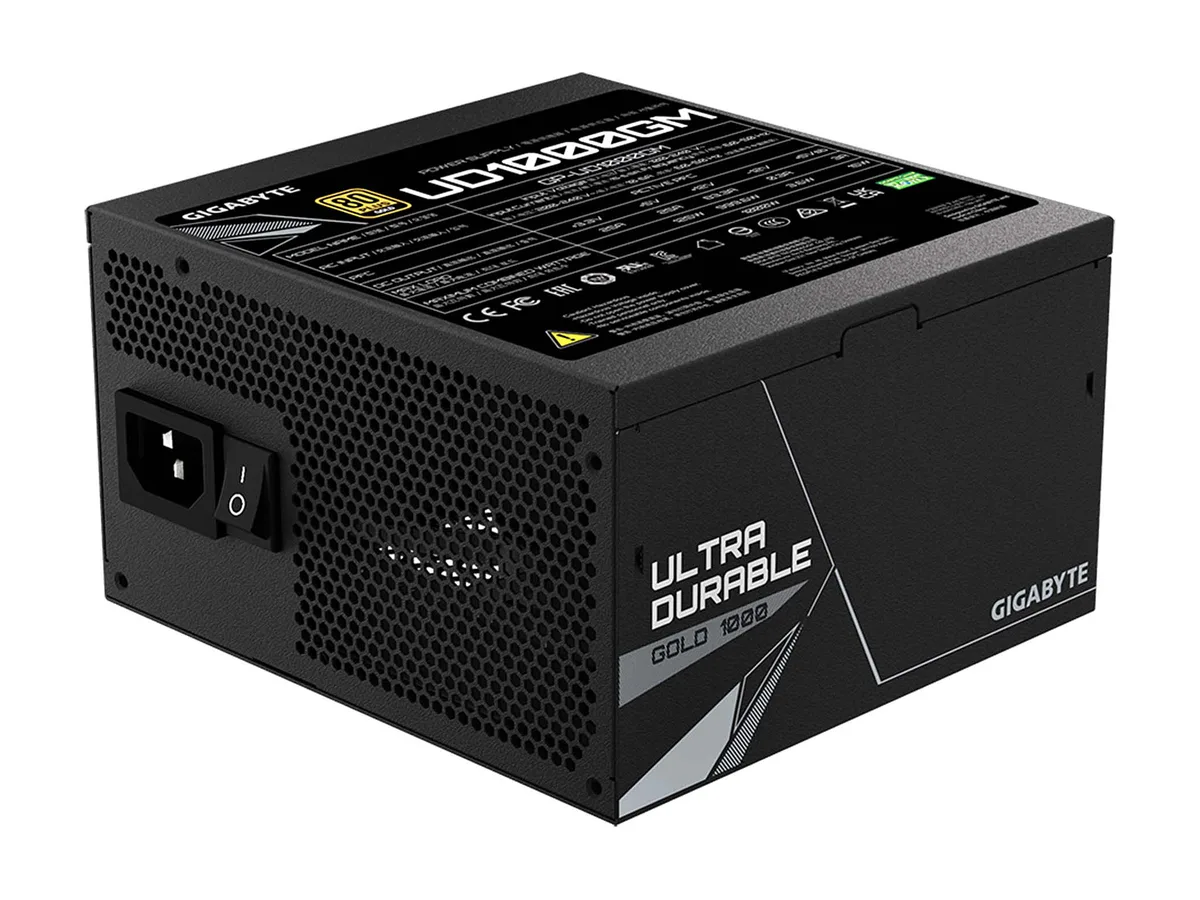

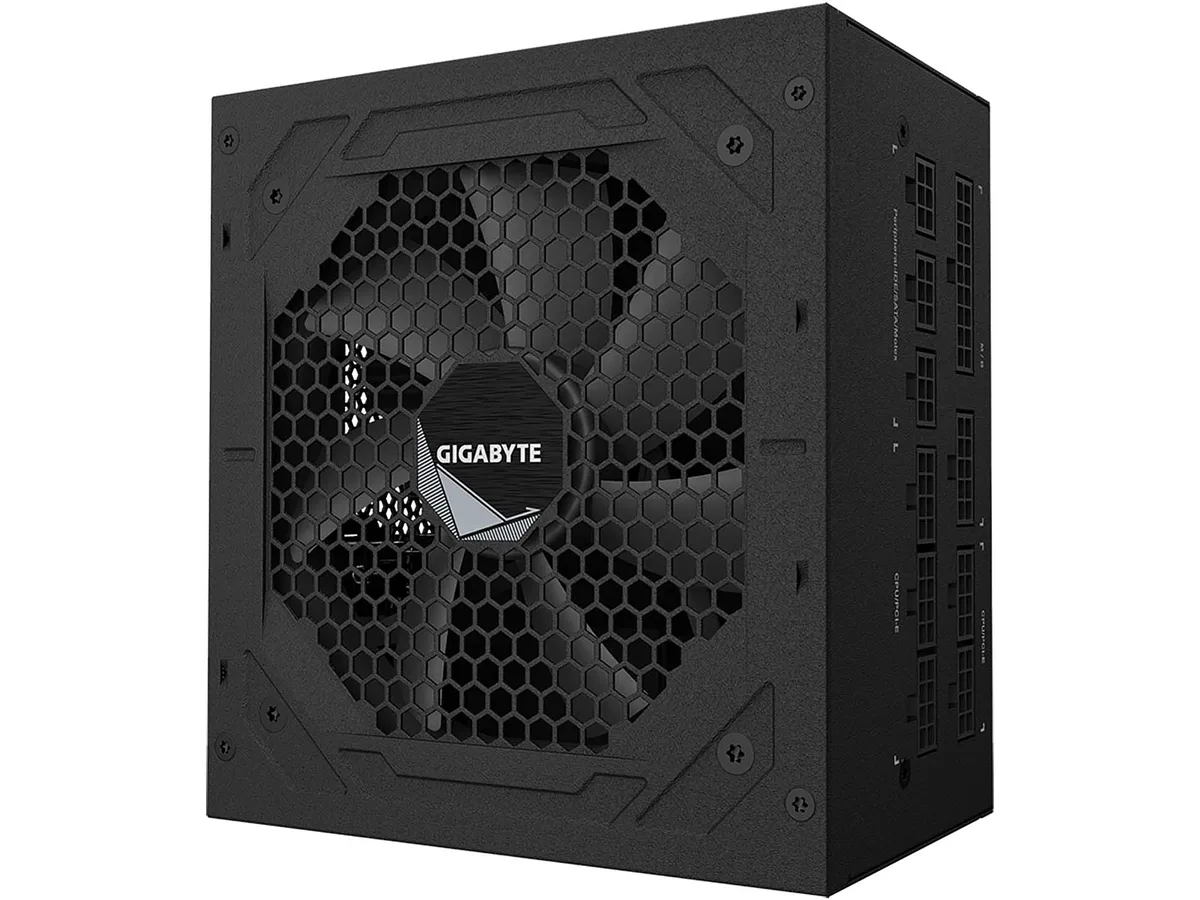

GIGABYTE GP-UD1000GM 1000 W power supply, 80 PLUS Gold, full modular, 140 mm
A full-modular 1000 W ATX supply with 80 PLUS Gold efficiency, Japanese capacitors, a 120 mm hydraulic-bearing fan and six protection circuits in a 140 mm chassis
- TypeATX 12V v2.31
- Maximum Power1000 W

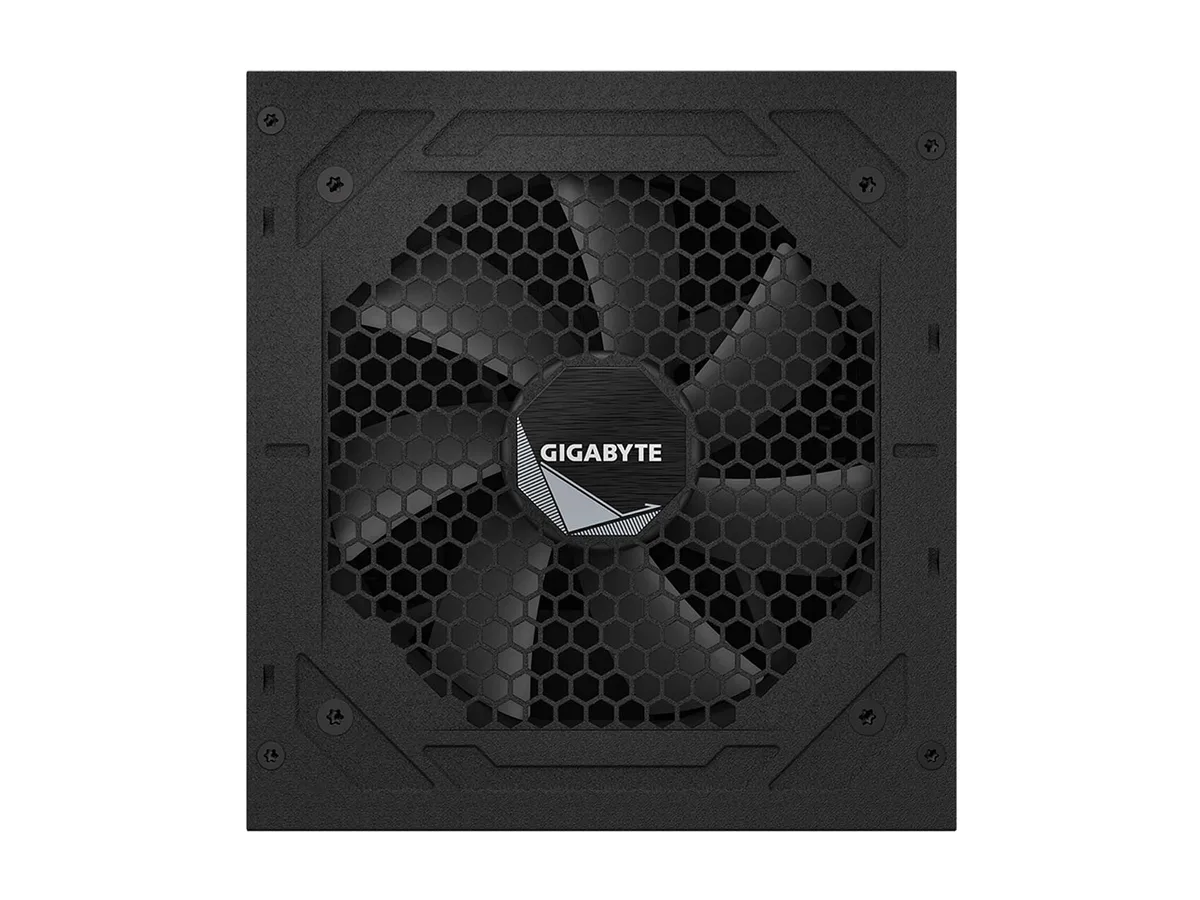

- Fans120mm Hydraulic Bearing (HYB) fan
- PFCActive
- Main Connector20+4Pin
- +12V RailsSingle
- 1000 W output handles demanding builds
- 80 PLUS Gold certified efficiency at 90% typical load
- Full modular design keeps cables tidy
- Compact 140 mm length fits smaller cases
- Japanese capacitors and enhanced heatsink improve reliability
1000 W ATX 12V v2.31 Power Supply
This 1000 W unit follows the ATX 12V v2.31 standard and delivers power through a single +12 V rail. Full modular cabling lets builders connect only the leads they need. It targets high-end desktop systems that demand clean, reliable energy.
80 PLUS Gold Efficiency Limits
The 80 PLUS Gold badge guarantees 90 % efficiency at typical load across a 100-240 V, 50/60 Hz input range. Active PFC corrects power factor automatically. Hold-up time exceeds 16 ms and the power-good signal arrives within 100-150 ms.

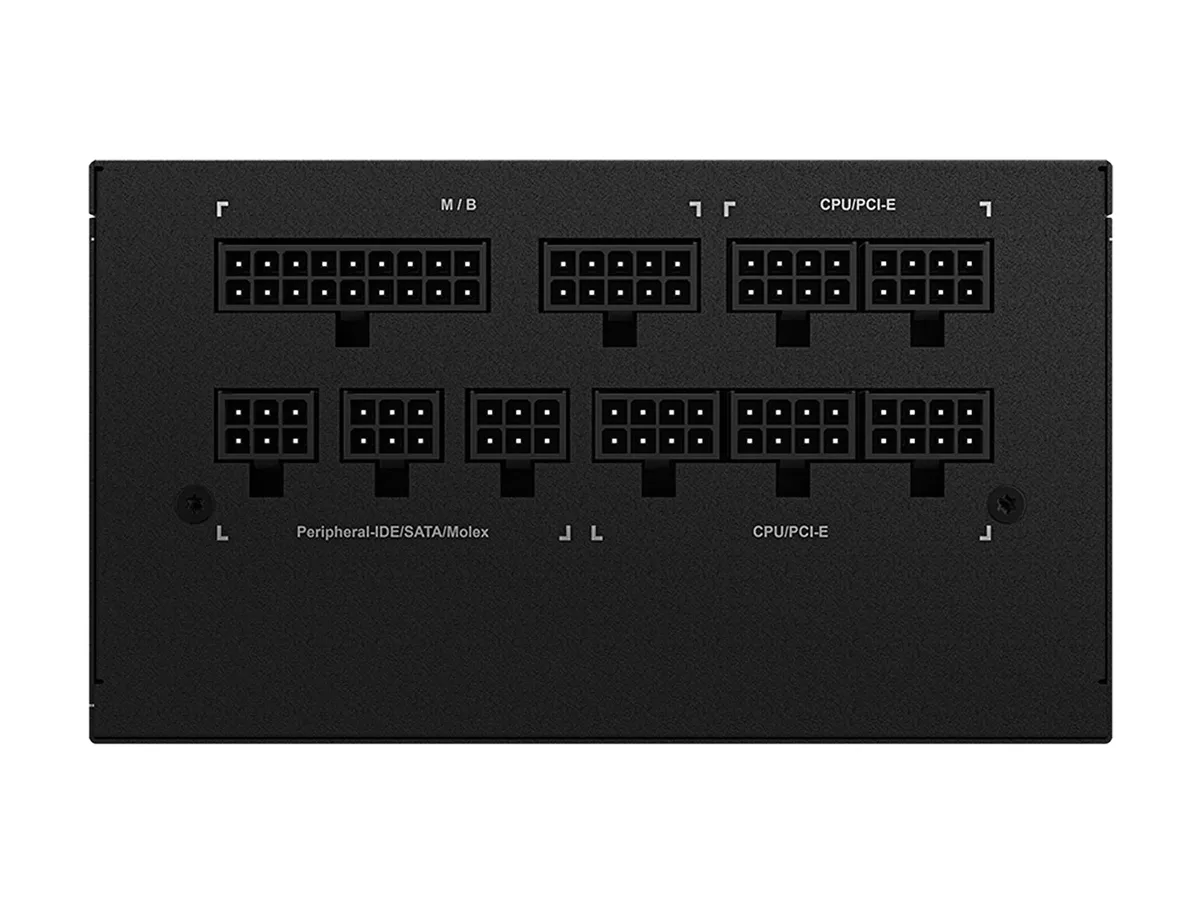

Six PCIe And Eight SATA Connectors
Six 6+2-pin PCIe plugs feed multiple graphics cards while eight SATA connectors serve storage arrays. The compact 140 mm depth fits tight chassis. Protections cover over-voltage, over-power, short-circuit, under-voltage, over-current and over-temperature.
Highlights
- 1000 W output handles demanding builds
- 80 PLUS Gold certified efficiency at 90% typical load
- Full modular design keeps cables tidy
- Compact 140 mm length fits smaller cases
- Japanese capacitors and enhanced heatsink improve reliability
Specifications
| Brand | GIGABYTE |
|---|---|
| Model | GP-UD1000GM |
| Type | ATX 12V v2.31 |
| Maximum Power | 1000 W |
| Fans | 120mm Hydraulic Bearing (HYB) fan |
| PFC | Active |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 6 x 6+2-Pin |
| SATA Power Connector | 8 |
| Max PSU Length | 140 mm |
| Modular | Full Modular |
| Power Good Signal | 100-150ms |
| Hold-up Time | >16ms |
| Efficiency | 90% at typical load |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 15-6.5A |
| Output | +3.3V@25A, +5V@25A, [email protected] , [email protected] , +5VSB@3A |
| MTBF | >100,000 Hours |
| Approvals | BSMI/CE/CCC/FCC/TUV/RCM/CB/EAC/KCC/UL |
| Connectors | 1 x 24 pin (20+4) ATX 2 x 8 pin (4+4) EPS (CPU) 6 x 8 pin (6+2) PCIe 8 x SATA 3 x 4 pin Peripheral 1 x Floppy |
| Cable Spec | 20+4Pin MB: One cable (610mm) 4+4Pin CPU: Two cables (600mm) 2 x PCI-E 6+2Pin: Three cables (600+150mm) 4 x SATA: Two cables (600+150+150+150mm) 3 x 4Pin Peripheral + 4Pin floppy: One cable (500+120+120+150mm) |
| Features | Ultra Durable - Main Japanese capacitors - Enhanced thermal solution - 120mm smart hydraulic bearing (HYB) fan - OVP/OPP/SCP/UVP/OCP/OTP protection 80 PLUS Gold certified Fully modular design Powerful single +12V rail Compact design |
| Dimensions | 3.39" x 5.91" x 5.51" |
| Shipping weight | 2.72 kg |
| Package size | 254 × 206 × 117 mm |
Questions about this item
Will this power supply fit in a case that only accepts units up to 140 mm deep?
Yes, the unit is exactly 140 mm long so it matches that limit.
Can I run a graphics card that needs two 8-pin PCIe connectors with the cables included?
The supply provides six 6+2-pin PCIe connectors, enough for multiple high-end cards.
Is the fan likely to stay quiet at low loads?
The 120 mm hydraulic bearing fan stops completely when the load is light, keeping noise to a minimum.
