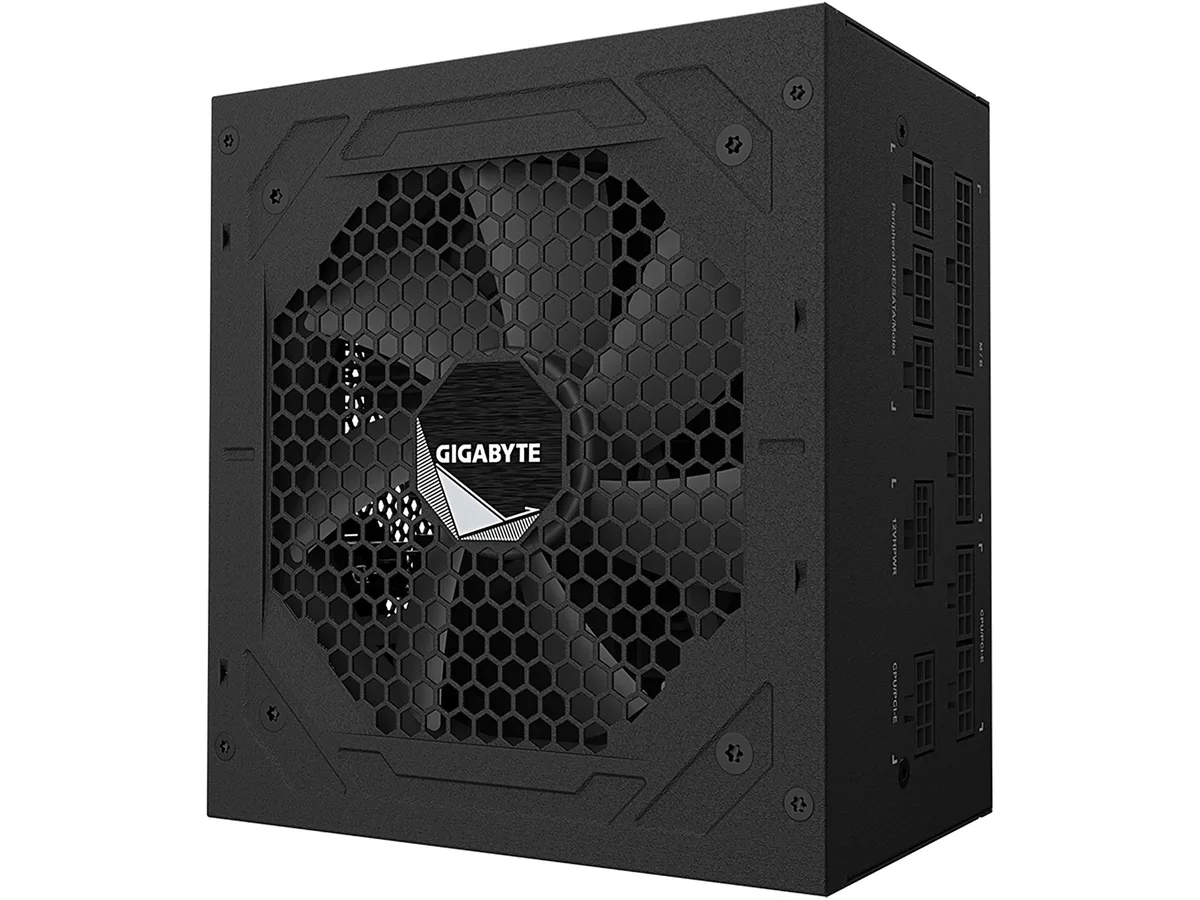

Rectangular black ATX power supply with 120mm fan, full modular cable sockets, compact 140mm depth

GIGABYTE

GIGABYTE GP-UD1000GM PG5 1000 W ATX 12V v2.31 80 PLUS Gold Full Modular Power Supply

SKU CH-HXA3-D58FV MPN GP-UD1000GM PG5

Full-modular 1000 W ATX 12V v2.31 supply with 80 PLUS Gold efficiency, native 16-pin PCIe 5.0 cable for 600 W graphics cards and Japanese capacitors

  • TypeATX 12V v2.31
  • Maximum Power1000 W
  • Fans120mm Hydraulic Bearing (HYB) fan
  • PFCActive
  • Main Connector20+4Pin
  • +12V Rails2
  • 1000 W output powers demanding builds with ATX 12V v2.31 compliance
  • 80 PLUS Gold certified 90% typical efficiency lowers running costs
  • Fully modular cabling reduces clutter and eases installation
  • Native 16-pin PCIe 5.0 cable delivers up to 600 W to graphics cards
  • Japanese capacitors and six protections ensure long-term reliability

1000 W ATX 12V v2.31 Power Supply

This fully modular unit delivers 1000 W of continuous power and carries 80 PLUS Gold certification for 90% typical-load efficiency. It targets builders who need reliable energy for high-end graphics cards and multi-drive systems. The compact 140 mm chassis fits standard ATX cases while keeping cable routing tidy.

Sustained Load Behaviour

Dual +12 V rails rated at 55 A on the 12VHPWR connector and 60 A on the standard +12 V rail maintain stable voltage during extended gaming or render sessions. Active PFC and a hold-up time above 16 ms keep output clean when mains fluctuate. Six protection circuits guard against over-voltage, over-power, short-circuit, under-voltage, over-current and over-temperature events.

Thermals Noise and Power Draw

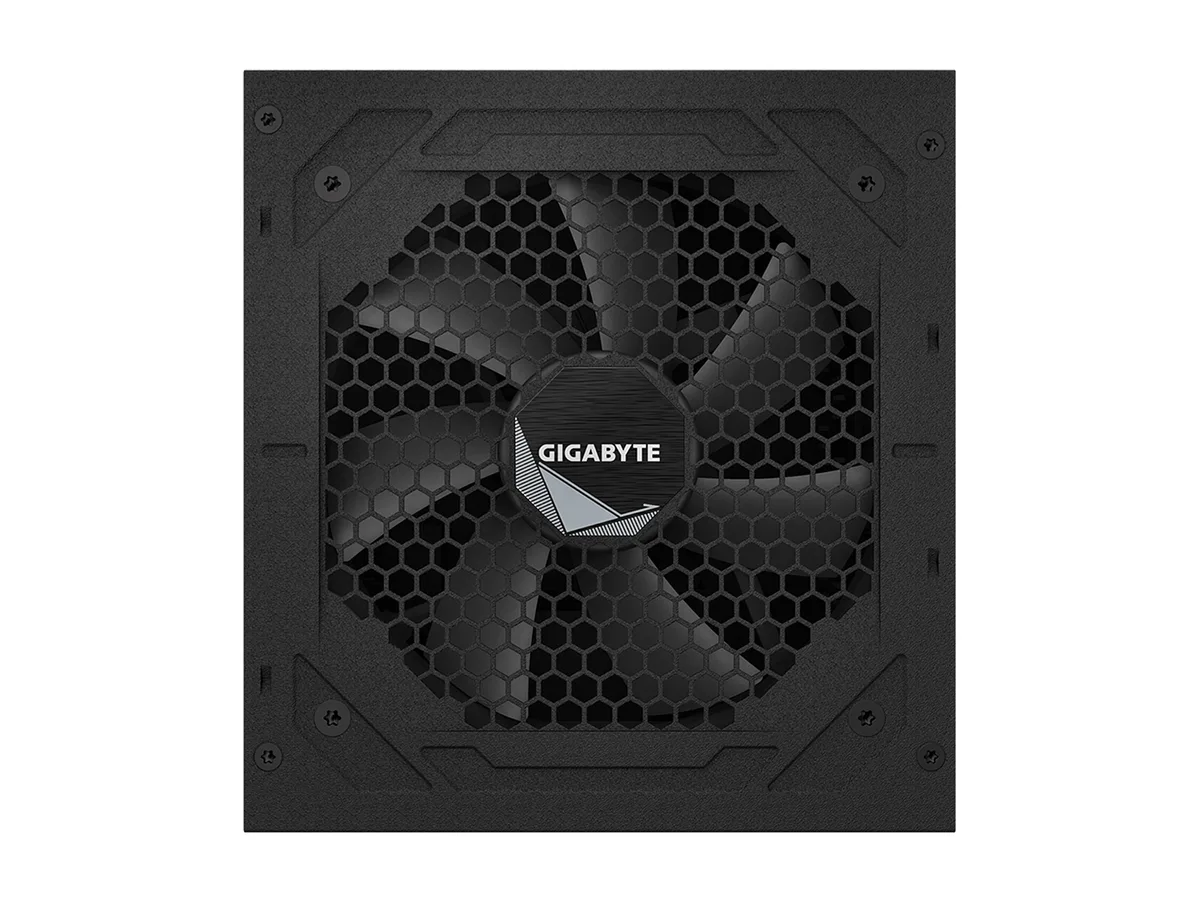

A 120 mm hydraulic bearing fan runs under smart control to balance airflow and acoustic output. Main Japanese capacitors and an enhanced thermal solution dissipate heat efficiently during normal operation. The supply accepts 100–240 V input at 50/60 Hz, drawing 15–6.5 A depending on load, while the power-good signal settles within 100–150 ms.

Highlights

  • 1000 W output powers demanding builds with ATX 12V v2.31 compliance
  • 80 PLUS Gold certified 90% typical efficiency lowers running costs
  • Fully modular cabling reduces clutter and eases installation
  • Native 16-pin PCIe 5.0 cable delivers up to 600 W to graphics cards
  • Japanese capacitors and six protections ensure long-term reliability

Specifications

BrandGIGABYTE
ModelGP-UD1000GM PG5
TypeATX 12V v2.31
Maximum Power1000 W
Fans120mm Hydraulic Bearing (HYB) fan
PFCActive
Main Connector20+4Pin
+12V Rails2
PCI-Express Connector1 x 16-Pin, 4 x 6+2-Pin
SATA Power Connector8
Max PSU Length140 mm
ModularFull Modular
Power Good Signal100-150ms
Hold-up Time>16ms
Efficiency90% at typical load
Energy-Efficient80 PLUS GOLD Certified
ProtectionOVP/OPP/SCP/UVP/OCP/OTP
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Input Current15-6.5A

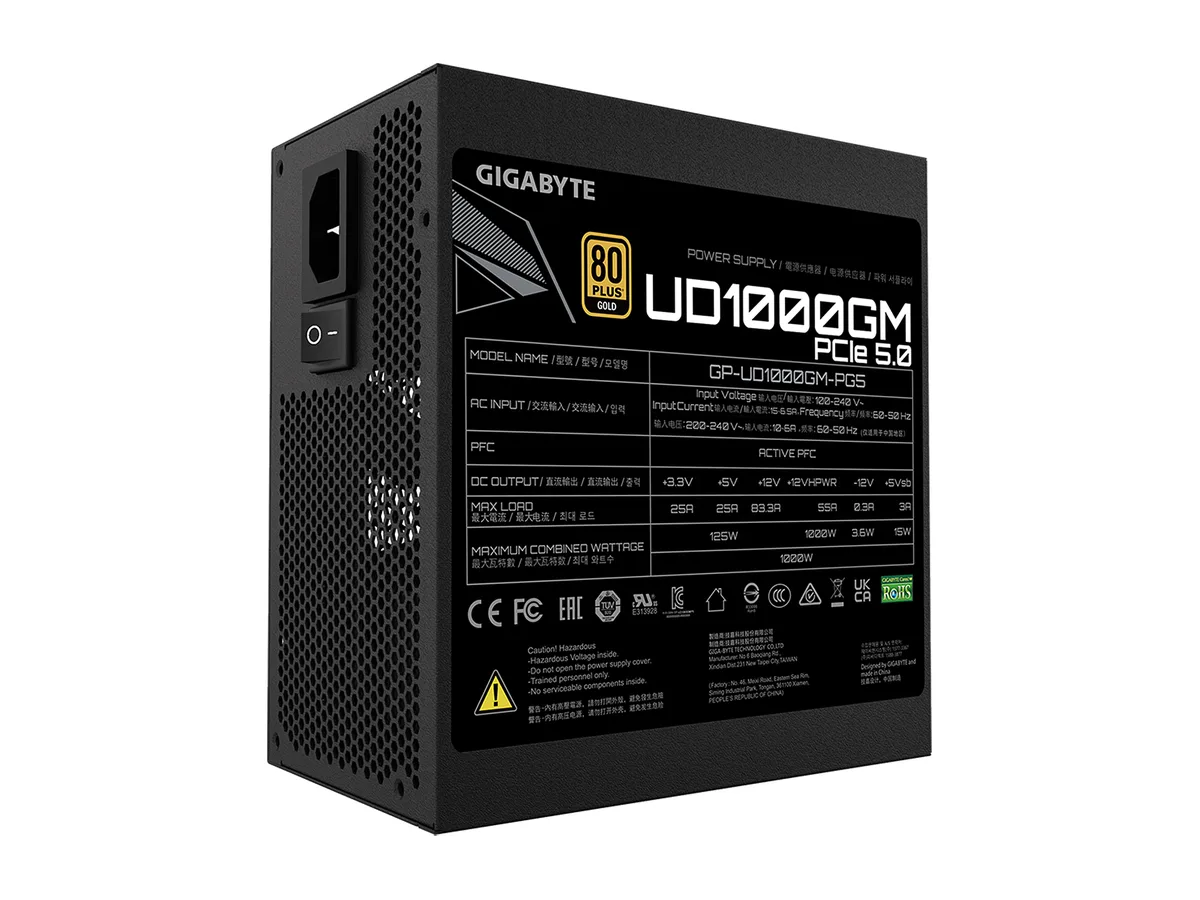

Output+3.3V@25A, +5V@25A, [email protected] , +12VHPWR@55A, [email protected] , +5VSB@3A
MTBF>100,000 Hours
ApprovalsBSMI/CE/CCC/FCC/TUV/RCM/CB/EAC/KCC/UL

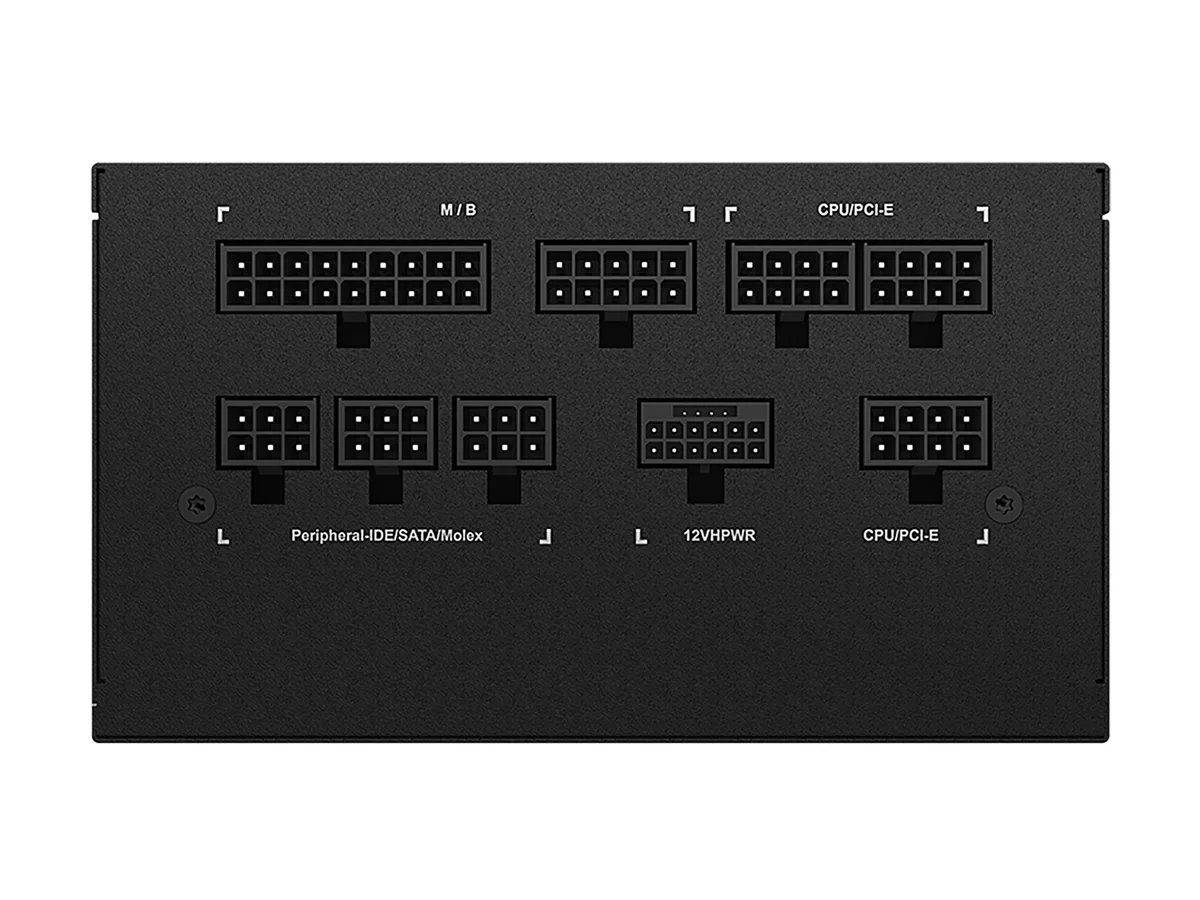

Connectors1 x 24 pin (20+4) ATX
2 x 8 pin (4+4) EPS (CPU)
1 x 16 pin PCIe
4 x 8 pin (6+2) PCIe
8 x SATA
3 x 4 pin Peripheral
1 x Floppy
Cable Spec20+4Pin MB: One cable (610mm)
2 x 4+4Pin CPU: One cable (600+200mm)
PCI-E 16Pin: One cable (700mm)
2 x PCI-E 6+2Pin: Two cables (600+150mm)
4 x SATA: Two cables (600+150+150+150mm)
3 x 4Pin Peripheral + 4Pin floppy: One cable (500+120+120+150mm)
FeaturesUltra Durable
- Main Japanese capacitors
- Enhanced thermal solution
- 120mm smart hydraulic bearing (HYB) fan
- OVP/OPP/SCP/UVP/OCP/OTP protection
Support PCIe Gen 5.0 graphics card
High-quality native 16-pin cable supports 600W output
80 PLUS Gold certified
Fully modular design
Compact design
Dimensions3.39" x 5.91" x 5.51"
Shipping weight2.72 kg
Package size254 × 206 × 117 mm

Questions about this item

Will the native 16-pin cable power my PCIe 5.0 graphics card without an adapter?

Yes, the included native 16-pin cable delivers up to 600W directly to a PCIe 5.0 graphics card, so no adapter is required.

Does the 140 mm length leave enough clearance for cable routing in a mid-tower case?

At 140 mm long, the unit fits most mid-tower cases and the fully modular design lets you connect only the cables you need for cleaner routing.

What protections guard the system if a rail exceeds its limit?

The PSU includes OVP, OPP, SCP, UVP, OCP and OTP circuits that shut down the affected rail before damage can occur.
