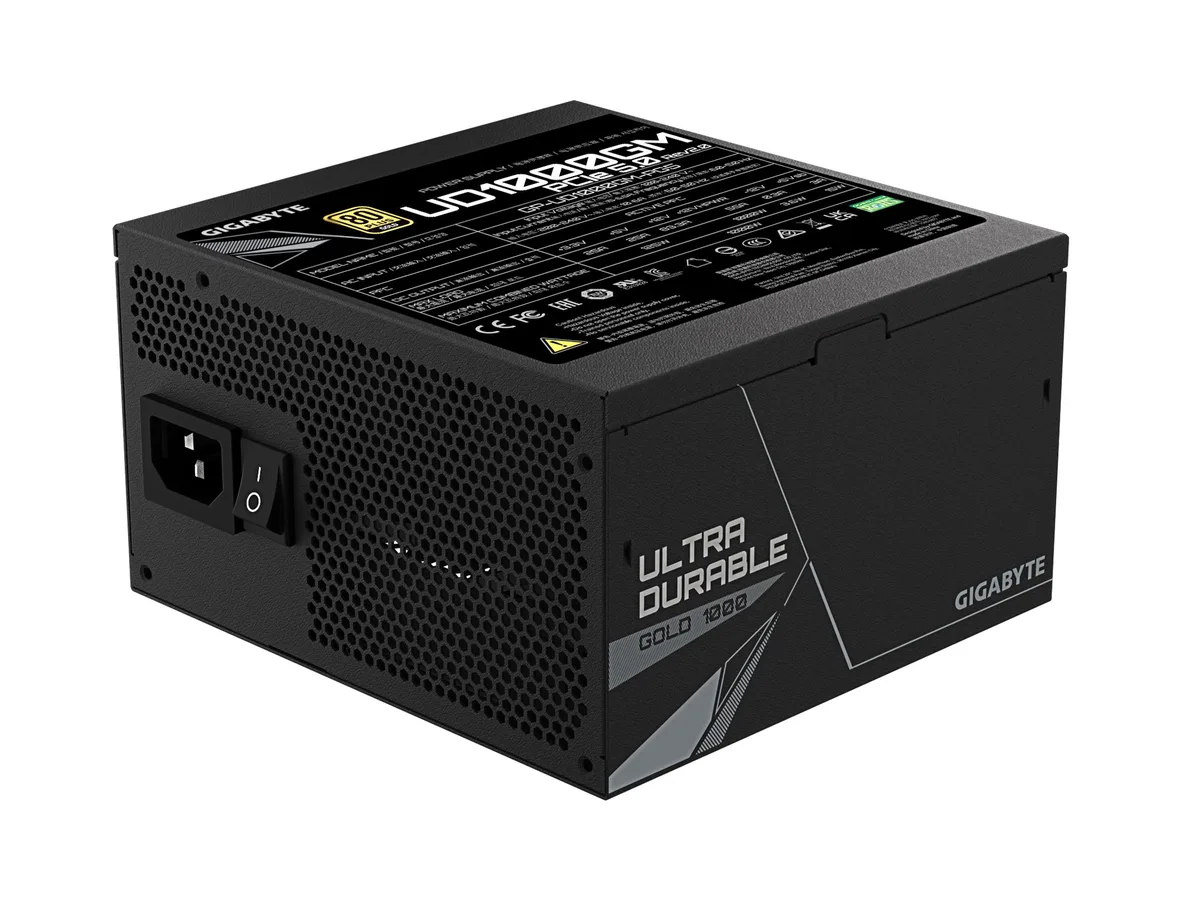

Rectangular black ATX power supply, fully modular, 120mm fan grille, 150mm deep

GIGABYTE

GIGABYTE GP-UD1000GM PG5 REV2.0 1000W power supply

SKU CH-TGEF-5EV28 MPN GP-UD1000GM PG5 REV2.0

Fully modular 1000 W ATX supply with a single +12 V rail, 80 Plus Gold efficiency and native 16-pin cable for PCIe 5.0 graphics cards

  • TypeATX12V
  • Maximum Power1000 W

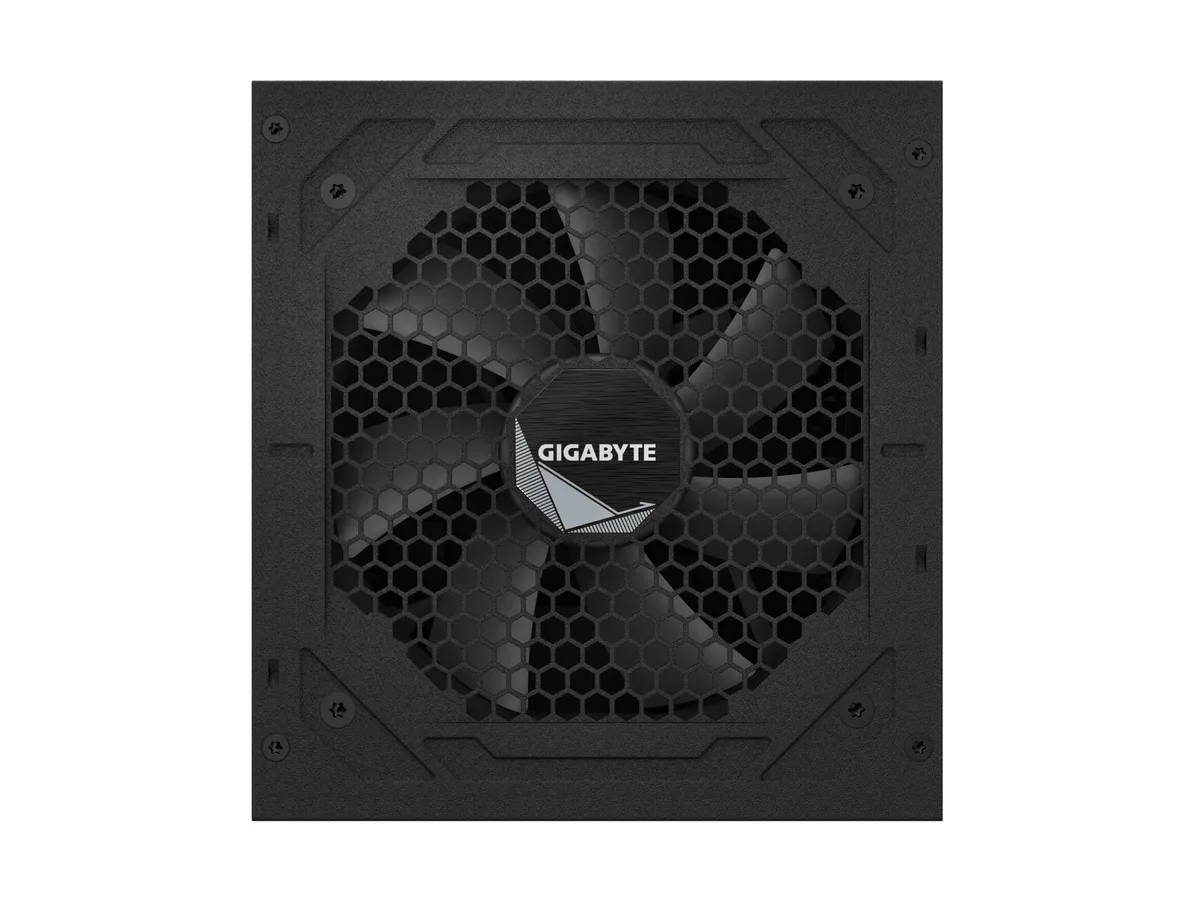

  • Fans120mm Hydraulic Bearing (HYB)Fan
  • PFCActive PFC (>0.9 typical)
  • Main Connector20+4Pin
  • +12V RailsSingle
  • Delivers 1000W on a single +12V rail for stable high-load performance
  • 80 Plus Gold certification confirms 90% typical-load efficiency
  • Fully modular design with 16-pin native cable enables clean PCIe 5.0 GPU installs
  • Intel ATX 3.0 certified for 200% power excursion and 70% low-load efficiency
  • 120mm hydraulic bearing fan and Japanese capacitors rated for 100000 hours MTBF

1000W ATX 3.0 power supply

This fully modular unit delivers 1000 W from a single +12 V rail and meets the Intel ATX 3.0 design guide. It includes a native 16-pin connector rated for 600 W to support PCIe 5.0 graphics cards. Japanese capacitors and a 120 mm hydraulic bearing fan complete the build.

Suits high-end GPU builds; skip for modest systems

Builders pairing a modern 600 W-class graphics card with a powerful CPU will benefit from the 200 % total power excursion allowance and 70 % efficiency at low load. Systems targeting mid-range or entry-level GPUs do not need this headroom and can choose a lower-wattage unit.

1000 W capacity with 600 W GPU headroom

The single-rail design comfortably feeds a 600 W graphics card plus CPU and peripherals while staying within the 80 Plus Gold 90 % typical-load efficiency mark. Protection circuits cover over-voltage, over-power, short-circuit, under-voltage, over-current and over-temperature events. Beyond the rated 1000 W the unit reaches its limit.

Highlights

  • Delivers 1000W on a single +12V rail for stable high-load performance
  • 80 Plus Gold certification confirms 90% typical-load efficiency
  • Fully modular design with 16-pin native cable enables clean PCIe 5.0 GPU installs
  • Intel ATX 3.0 certified for 200% power excursion and 70% low-load efficiency
  • 120mm hydraulic bearing fan and Japanese capacitors rated for 100000 hours MTBF

Specifications

BrandGIGABYTE
ModelGP-UD1000GM PG5 REV2.0
TypeATX12V
Maximum Power1000 W
Fans120mm Hydraulic Bearing (HYB)Fan
PFCActive PFC (>0.9 typical)
Main Connector20+4Pin
+12V RailsSingle
PCI-Express Connector4 x 6+2-Pin
SATA Power Connector8
Max PSU Length150 mm
ModularFull Modular
Efficiency90% at typical load
Energy-Efficient80 PLUS GOLD Certified
ProtectionOVP/OPP/SCP/UVP/OCP/OTP
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Input Current15A-6.5A
MTBF>100,000 Hours
ApprovalsBSMI/CE/CCC/FCC/TUV/RCM/CB/EAC/KCC/UL

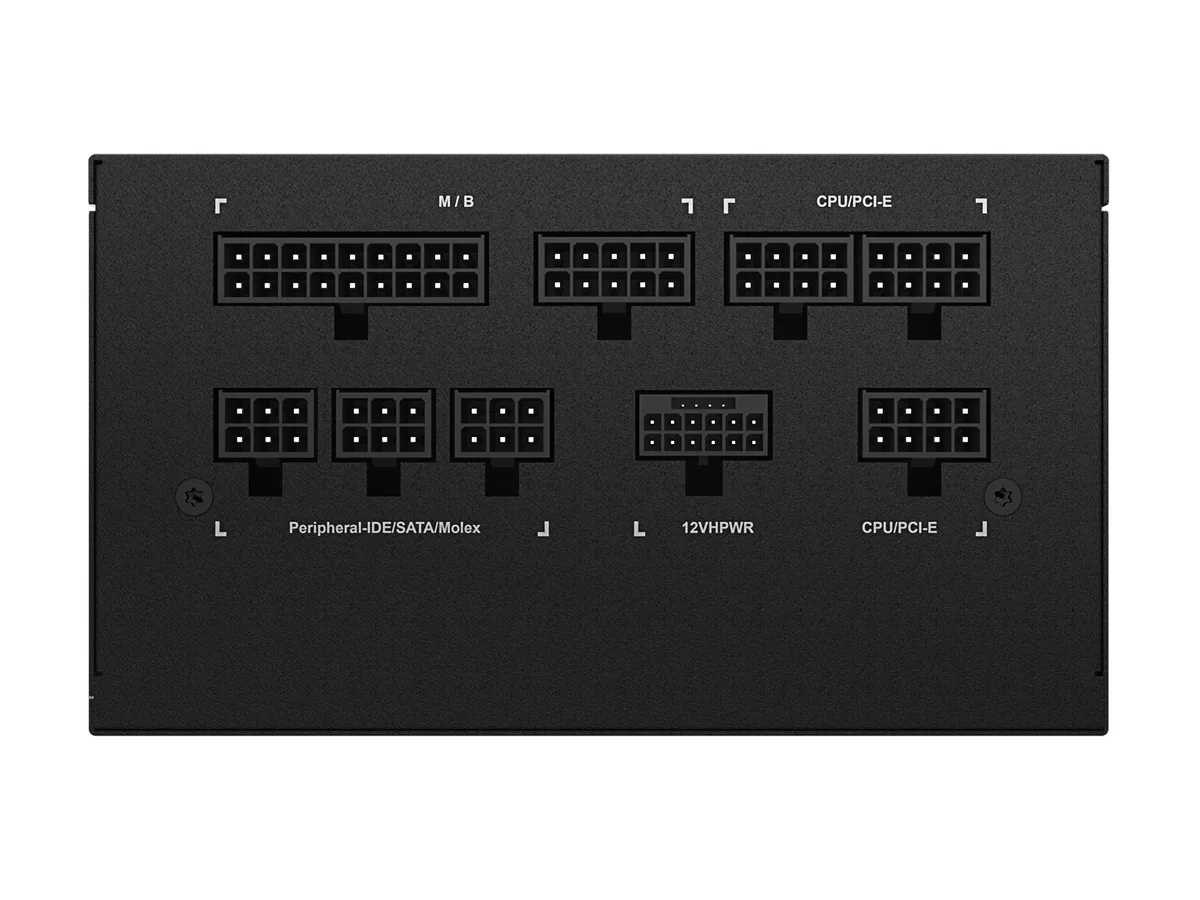

ConnectorsATX/MB 20+4 Pin x 1
EPS/ATX 12V 4+4pin x 2
PCI-e 6+2 pin x 4
PCI-e 16 pin x 1
SATA 5 pin x 8
Peripheral 4-pin x 3
Floppy 4-pin x 1
Cable SpecBlack Flat Cables
Dimensions140 x 150 x 86mm
Shipping weight2.86 kg
Package size259 × 207 × 119 mm

Questions about this item

Do I need an ATX 3.0 compatible motherboard to use this 1000W unit?

No. The PSU follows the ATX12V form factor and includes a 20+4-pin main connector, so it works with standard ATX motherboards. The ATX 3.0 certification means it can handle 200% power excursions and 70% low-load efficiency, but it does not require a new board.

Will the four 6+2-pin PCIe connectors and the 16-pin cable power an older graphics card that only has 8-pin sockets?

Yes. Each 6+2-pin plug can be used as a straight 6-pin or an 8-pin connector, and the native 16-pin cable is only needed for PCIe 5.0 cards rated up to 600W. Older GPUs simply use the 6+2-pin leads.

How can I confirm the fan is running in its low-noise mode after I build the system?

The 120mm hydraulic-bearing fan spins at a reduced speed under light loads and ramps up as power draw increases. You can hear the change in acoustic level when the system moves from idle to a heavy workload, confirming the smart fan curve is active.
