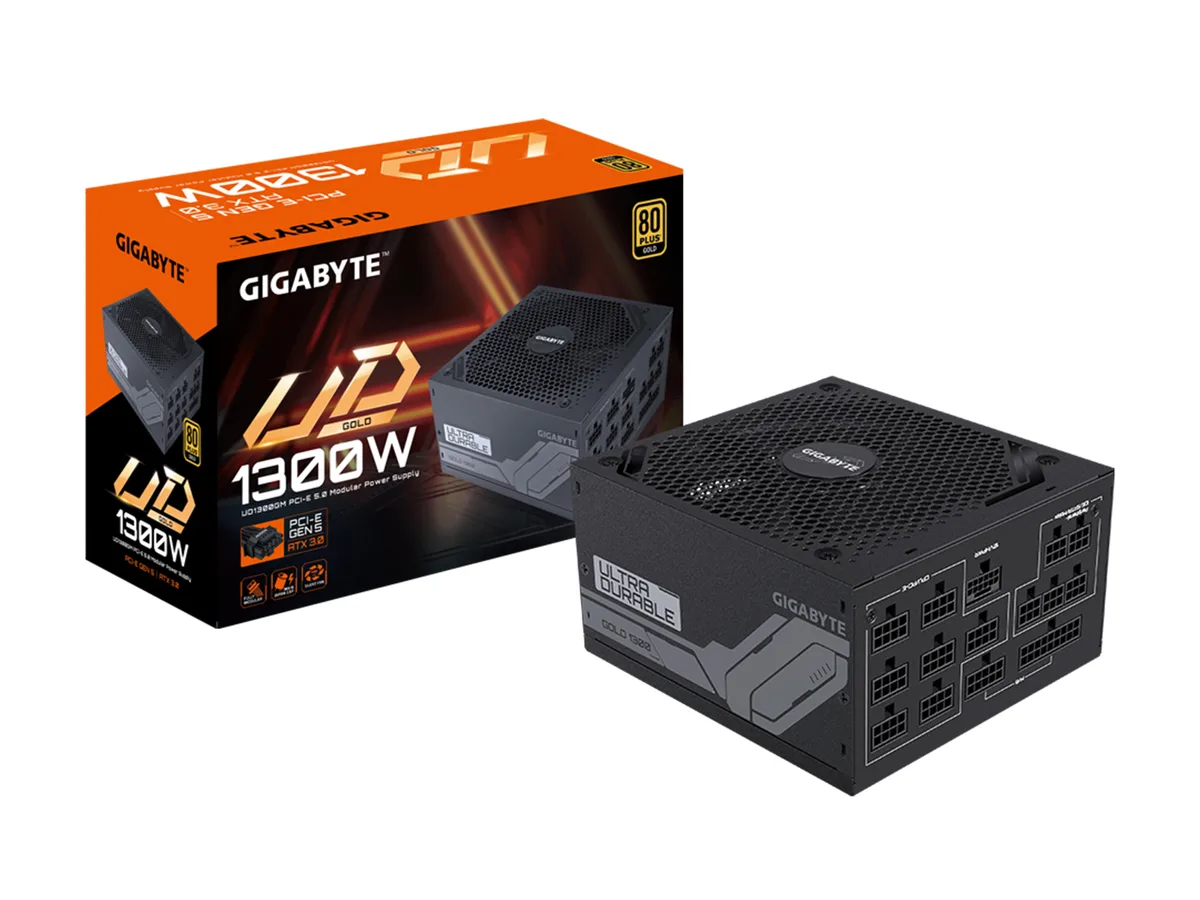

Rectangular ATX power supply, matte black finish, 140 mm fan grille, fully modular cable sockets visible

GIGABYTE

GIGABYTE GP-UD1300GM PG5 1300W power supply

SKU CH-XKK6-HKEW2 MPN GP-UD1300GM PG5

A 1300 W fully modular ATX power supply with a single +12 V rail, 80 Plus Gold efficiency, Japanese capacitors and a 140 mm hydraulic-bearing fan.

  • TypeATX12V
  • Maximum Power1300 W
  • Fans1 x 140 mm Hydraulic Bearing (HYB)Fan
  • PFCActive PFC (>0.9 typical)
  • +12V RailsSingle
  • PCI-Express Connector8 x 6+2-Pin
  • 1300 W on a single +12 V rail powers demanding builds
  • 80 PLUS Gold certified at 90 % typical efficiency saves energy
  • Fully modular design keeps cables tidy and airflow clear
  • 140 mm hydraulic bearing fan runs quietly under load
  • Japanese capacitors and six-way protection ensure long-term reliability

1300 W ATX12V power supply for high-end builds

This fully modular ATX12V unit delivers 1300 W through a single +12 V rail. It targets enthusiasts building workstations or multi-GPU systems that need clean, high-current power. The 160 mm length fits most mid-tower and larger cases. Japanese capacitors and a 140 mm hydraulic bearing fan support long-term reliability.

Native 16-pin cable and full modular cabling

A native 12VHPWR cable rated for 600 W enables direct connection to PCIe Gen 5.0 graphics cards without adapters. Full modularity lets builders install only the cables they need, reducing clutter and improving airflow. The package includes eight 6+2-pin PCIe connectors and twelve SATA connectors for drives and peripherals.

1300 W continuous with 200 % excursion headroom

The platform sustains 1300 W continuous output and can handle 200 % total power excursion per the Intel ATX 3.0 design guide. GPU power excursions up to 3x are supported on the 16-pin connector. Efficiency reaches 90 % at typical load and 70 % at low load, while active PFC maintains a power factor above .9 across 100-240 V input.

Highlights

  • 1300 W on a single +12 V rail powers demanding builds
  • 80 PLUS Gold certified at 90 % typical efficiency saves energy
  • Fully modular design keeps cables tidy and airflow clear
  • 140 mm hydraulic bearing fan runs quietly under load
  • Japanese capacitors and six-way protection ensure long-term reliability

Specifications

BrandGIGABYTE
ModelGP-UD1300GM PG5
TypeATX12V
Maximum Power1300 W
Fans1 x 140 mm Hydraulic Bearing (HYB)Fan
PFCActive PFC (>0.9 typical)
+12V RailsSingle
PCI-Express Connector8 x 6+2-Pin
SATA Power Connector12
Max PSU Length160 mm
ModularFull Modular
Hold-up Time>16ms
Efficiency90% at typical load
Energy-Efficient80 PLUS GOLD Certified
ProtectionOVP/OPP/SCP/UVP/OCP/OTP
Input Voltage100-240V(full range)
Input Frequency Range50/60 Hz
Input Current15A-7.5A
MTBF>100,000 Hours
ApprovalsBSMI/CE/CCC/FCC/TUV/RCM/CB/EAC/KCC/UL
ConnectorsATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 650mm*2
PCIe 16 Pin x 1: 700mm*1
PCIe 6+2 Pin x 8 : 650mm+150mm*3, 650mm*2
SATA x 12 : 650mm+150mm+150mm+150mm*3
4 Pin Peripheral x 6+4-Pin floppy x 2 : 600mm+150mm+150mm+150mm*2
Cable SpecBlack Flat Cables
Dimensions160 x 150 x 86mm
Shipping weight3.92 kg
Package size340 × 218 × 145 mm

Questions about this item

How often will the 140 mm hydraulic bearing fan need replacement?

The fan uses a hydraulic bearing rated for long life, and the unit's MTBF exceeds 100,000 hours, so replacement is unlikely during typical ownership.

What limits continuous output before protection triggers?

The single +12 V rail delivers the full 1300 W; sustained loads at that level are protected by OPP and OTP, which shut the unit down if limits are exceeded.

How loud and hot does the 140 mm fan run under all-day load?

The smart hydraulic bearing fan adjusts speed to load and temperature, keeping noise low at typical loads while maintaining safe thermals during extended 1300 W operation.
