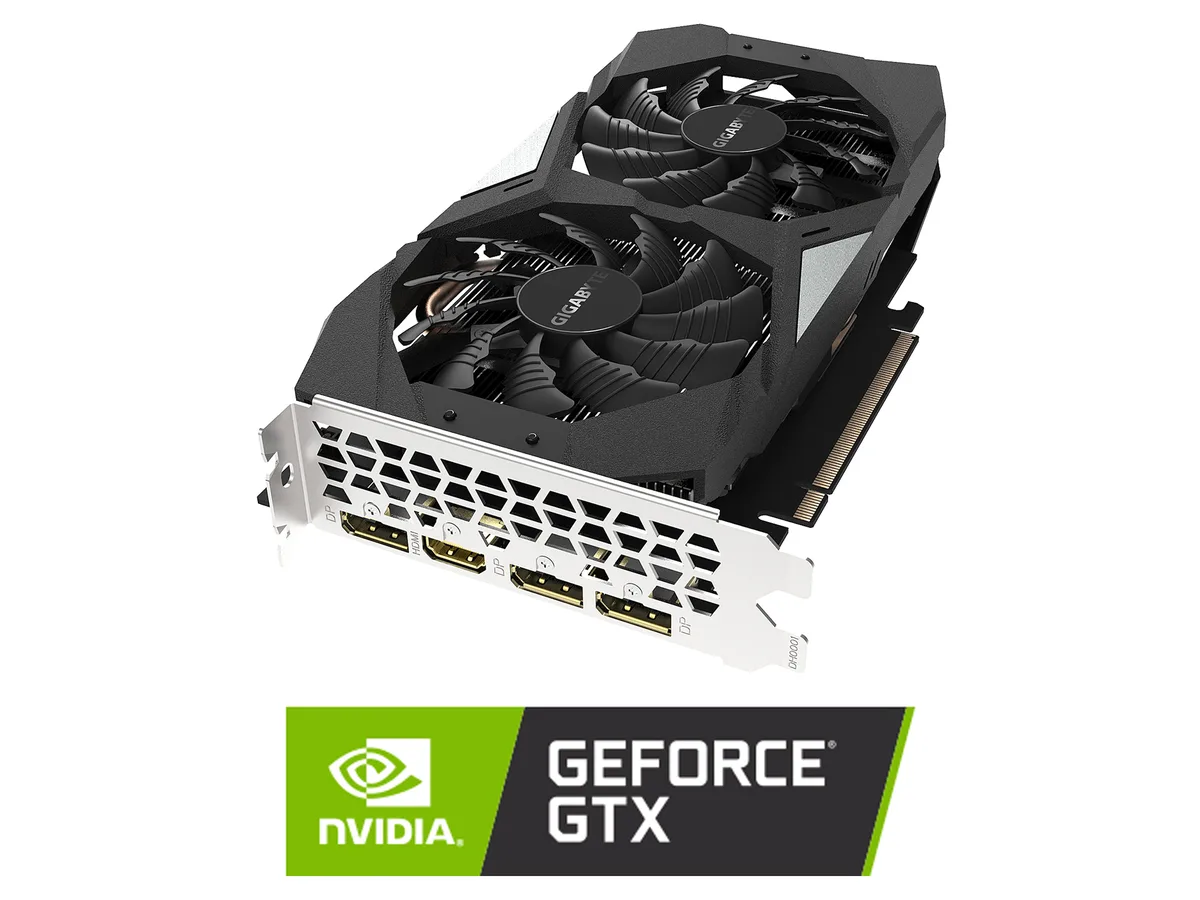

Black dual-fan graphics card with silver backplate, compact plug-in form factor

GIGABYTE

GIGABYTE GV-N166TOC-6GD GeForce GTX 1660 Ti OC 6GB GDDR6 graphics card

SKU CH-S4P2-6XG7V MPN GV-N166TOC-6GD

Refurbished GeForce GTX 1660 Ti with 6GB GDDR6 memory, 1536 CUDA cores and a WINDFORCE 2X cooler

  • InterfacePCI Express 3.0 x16
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce GTX 16 Series
  • GPUGeForce GTX 1660 Ti
  • Core Clock1800 MHz
  • CUDA Cores1536
  • Factory-overclocked 1800 MHz core clock boosts frame rates
  • WINDFORCE 2X alternate-spinning fans reduce turbulence for cooler operation
  • 6 GB GDDR6 on 192-bit bus delivers high memory bandwidth

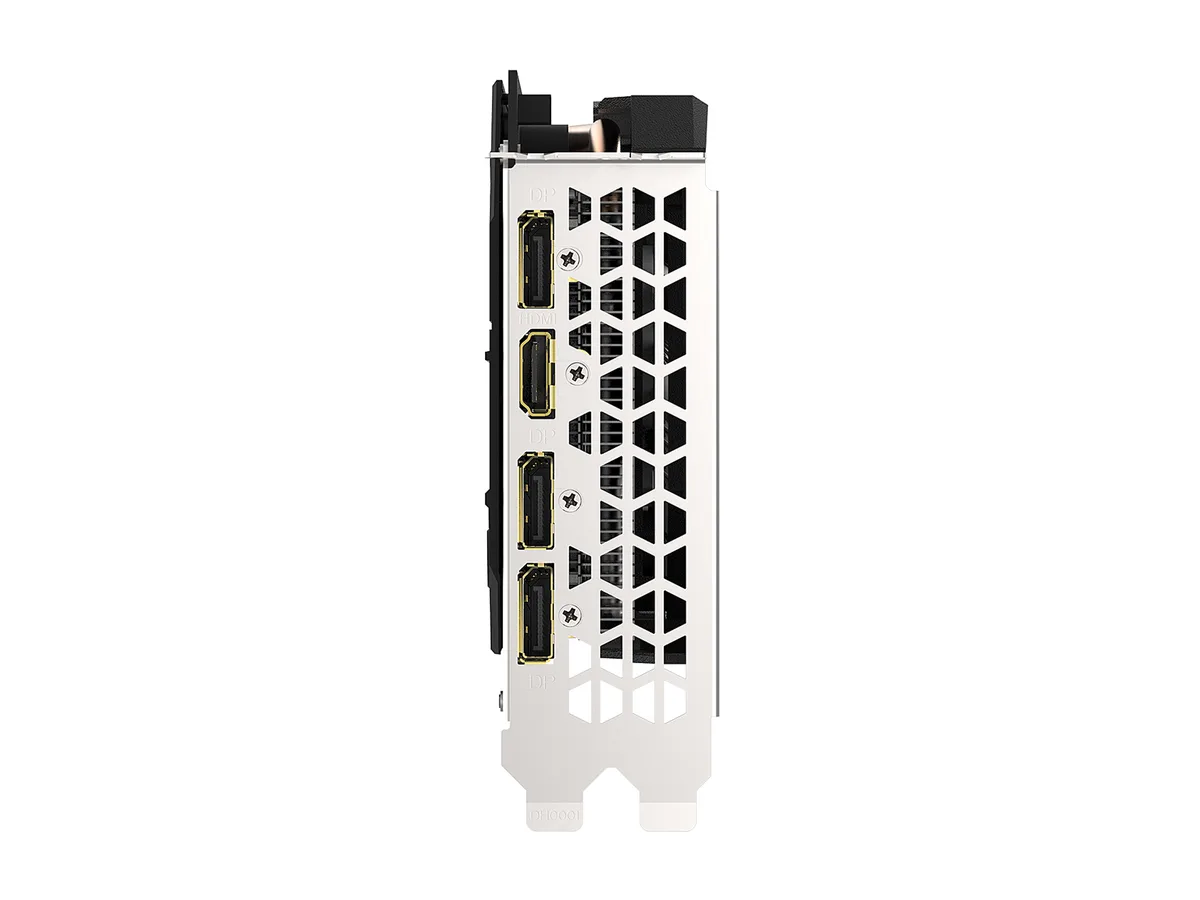

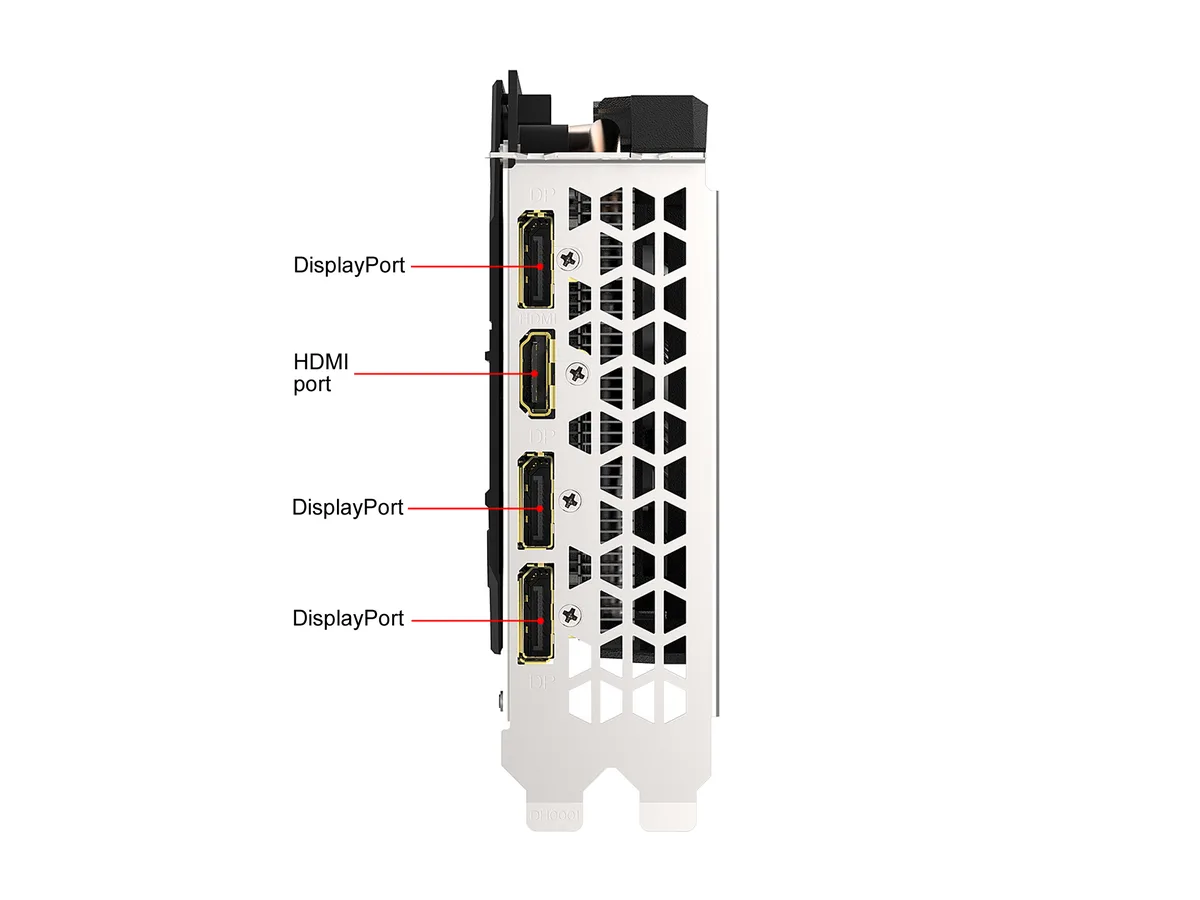

  • 1 HDMI 2.0b plus 3 DisplayPort 1.4 outputs drive four displays
  • 1536 CUDA cores accelerate modern games and creative workloads

Ready for 1080p gaming and multi-monitor setups

The GIGABYTE GV-N166TOC-6GD is a GeForce GTX 1660 Ti OC graphics card built on the NVIDIA Turing architecture with 1536 CUDA cores and 6GB GDDR6 memory on a 192-bit bus. A boost clock of 1800 MHz provides headroom above the reference 1770 MHz. It connects via PCI Express 3.0 x16 and drives up to four displays through one HDMI 2.0b and three DisplayPort 1.4 outputs at up to 7680x4320@60Hz.

WINDFORCE 2X cooling keeps clocks stable under load

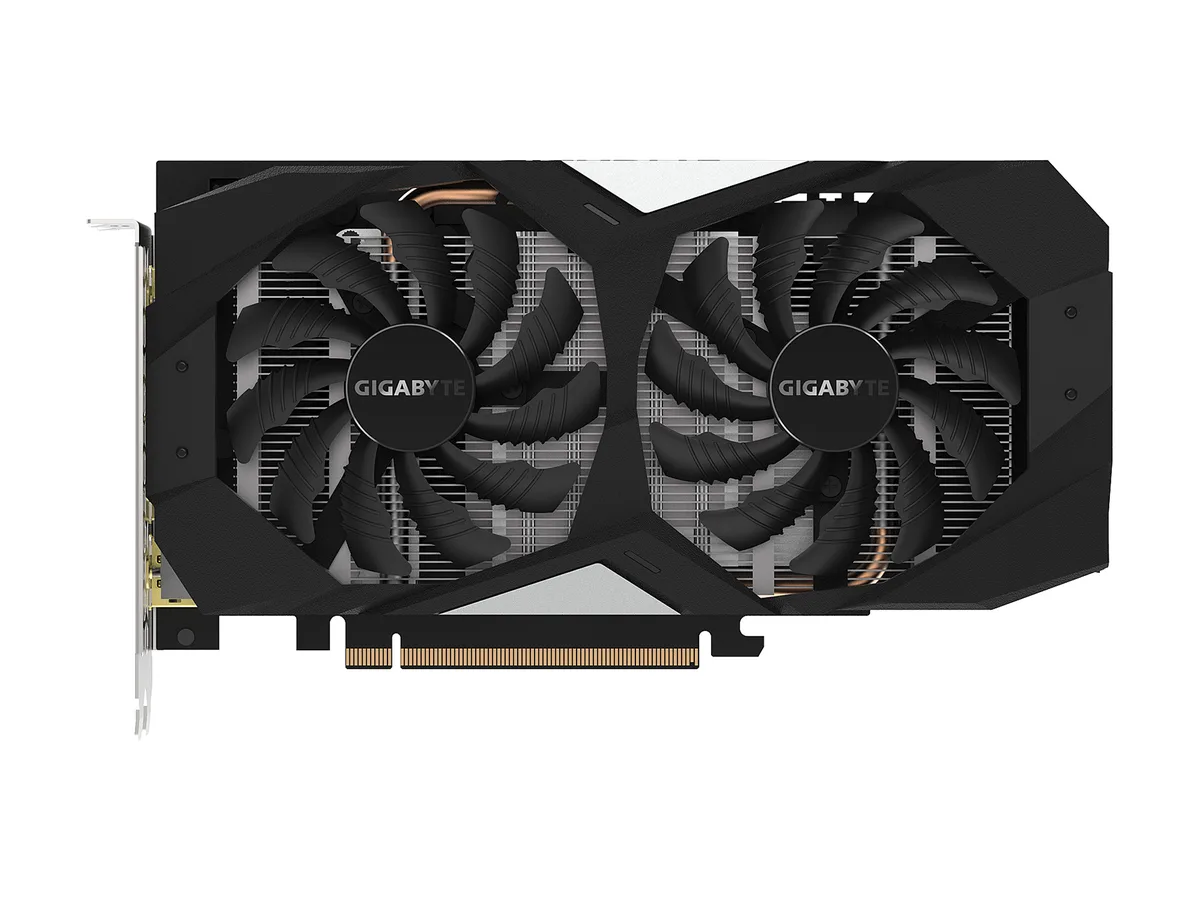

The dual-fan WINDFORCE 2X cooler uses alternate spinning 90mm blades, a composite copper heat pipe with direct GPU contact, and 3D active fan control to reduce turbulence and maintain lower temperatures during extended sessions. This layout sustains the 1800 MHz core clock and 12000 MHz effective memory clock without the throttling typical of compact single-fan designs.

Compact plug-in card with protection back plate

The card measures 1.6 by 4 units in a standard plug-in form factor and includes a metal back plate that stiffens the PCB and shields components during handling. One HDMI 2.0b and three DisplayPort 1.4 connectors support mixed monitor fleets without adapters, while the two-slot bracket fits most mid-tower cases. AORUS Engine software provides intuitive clock, fan and RGB control for day-to-day tuning.

Highlights

  • Factory-overclocked 1800 MHz core clock boosts frame rates
  • WINDFORCE 2X alternate-spinning fans reduce turbulence for cooler operation
  • 6 GB GDDR6 on 192-bit bus delivers high memory bandwidth
  • 1 HDMI 2.0b plus 3 DisplayPort 1.4 outputs drive four displays
  • 1536 CUDA cores accelerate modern games and creative workloads

Specifications

BrandGIGABYTE
ModelGV-N166TOC-6GD
InterfacePCI Express 3.0 x16
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce GTX 16 Series
GPUGeForce GTX 1660 Ti
Core Clock1800 MHz
CUDA Cores1536
Effective Memory Clock12000 MHz
Memory Size6GB
Memory Interface192-Bit
Memory TypeGDDR6
DirectXDirectX 12
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort 1.4
Max Resolution7680x4320@60Hz
SLI SupportNo
Virtual Reality ReadyYes
CoolerWINDFORCE 2X
Thermal Design Power120W
System RequirementsRecommended PSU: 450W
Recommended PSU Wattage450W
Power Connector8-Pin
FeaturesPowered by GeForce GTX 1660 Ti
NVIDIA Turing architecture and GeForce Experience
Integrated with 6GB GDDR6 192-bit memory interface
WINDFORCE 2X Cooling System with alternate spinning fans
90mm unique blade fans
Protection back plate
Form FactorATX
Max GPU Length226 mm

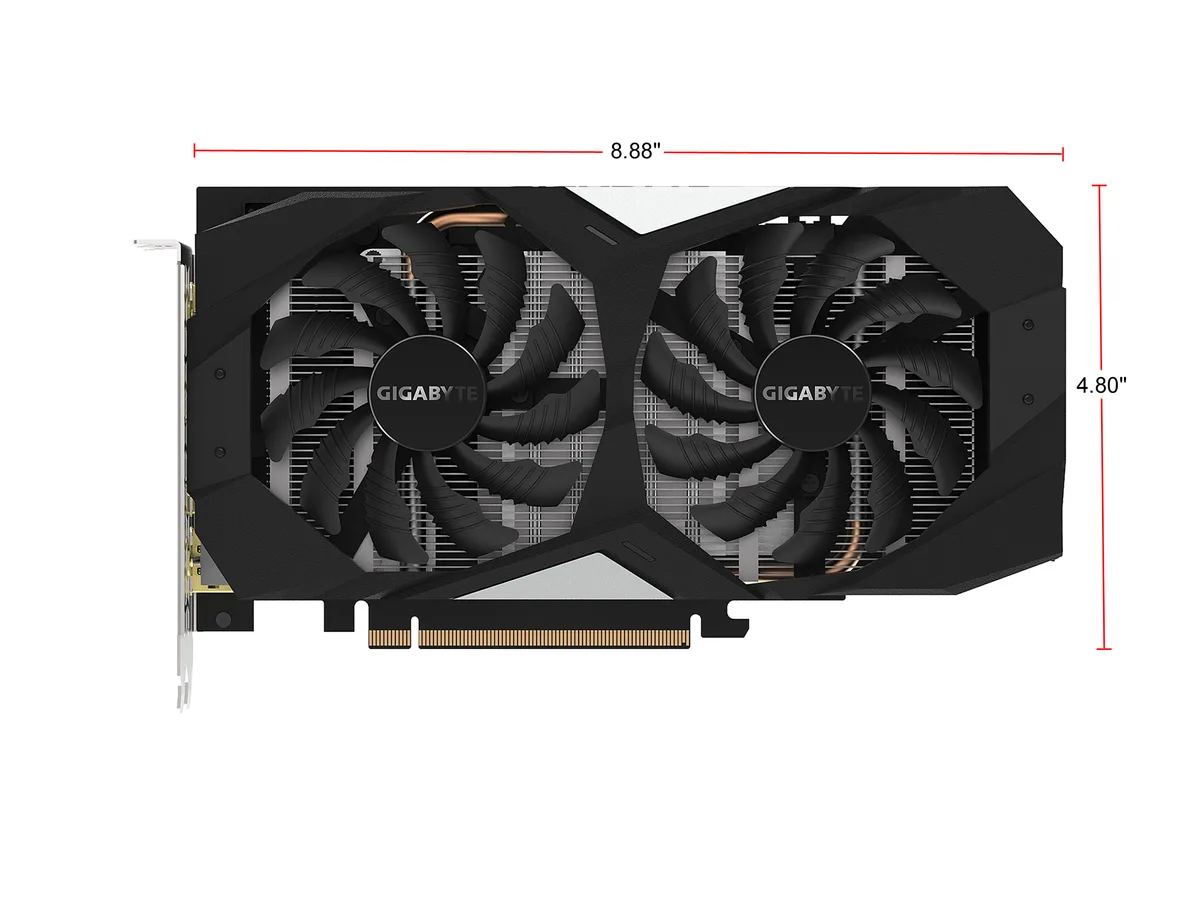

Card Dimensions (L x H)8.88" x 4.80"
Slot Width2 Slots
Shipping weight0.89 kg
Package size335 × 244 × 61 mm

Questions about this item

How loud or hot does the WINDFORCE 2X cooler with alternate spinning 90mm fans run during all-day use?

The WINDFORCE 2X cooling system uses two 90mm unique blade fans with alternate spinning and a composite copper heat pipe that directly touches the GPU, plus 3D active fan functionality to dissipate heat effectively at lower temperatures.

What power connector and PSU capacity does the GV-N166TOC-6GD need to operate?

The card draws power through the PCI Express 3.0 x16 slot and requires an external power connector; ensure your power supply has the necessary PCIe power cable and sufficient wattage for the 1800 MHz core clock and 1536 CUDA cores.

Will this GTX 1660 Ti work in an older motherboard that only has PCIe 2.0 slots?

The GV-N166TOC-6GD uses a PCI Express 3.0 x16 interface which is backward compatible with PCIe 2.0 motherboards, though it will run at the lower 2.0 bandwidth while still delivering 6GB GDDR6 memory and 12000 MHz effective memory clock.
