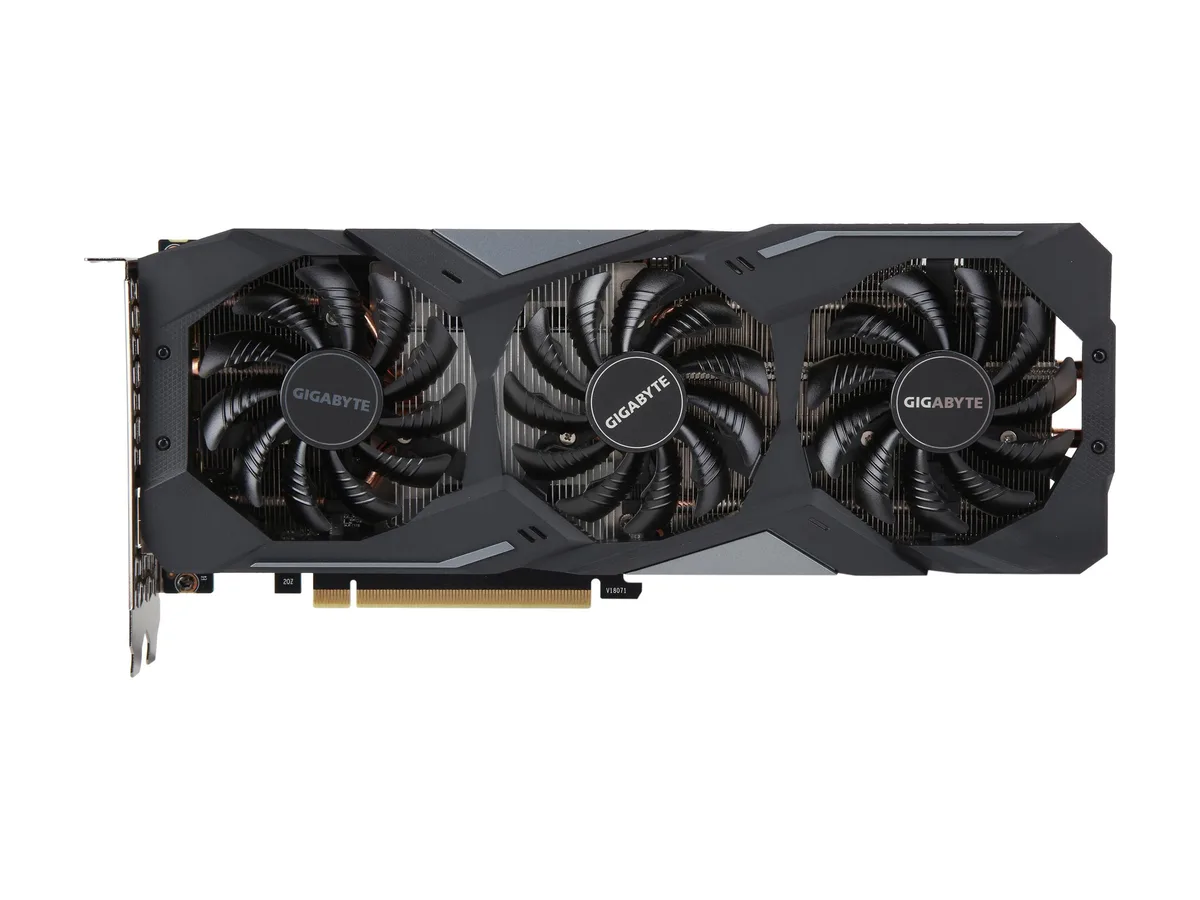

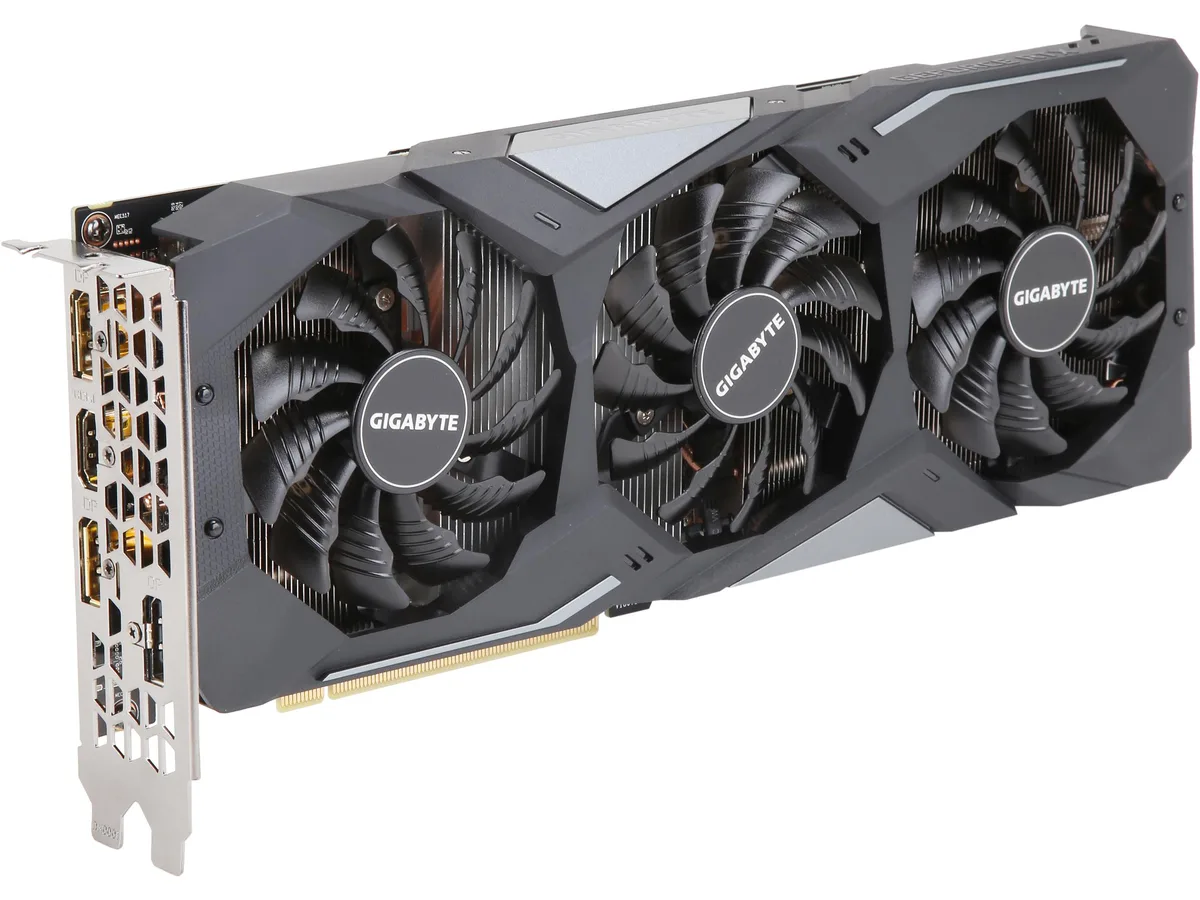

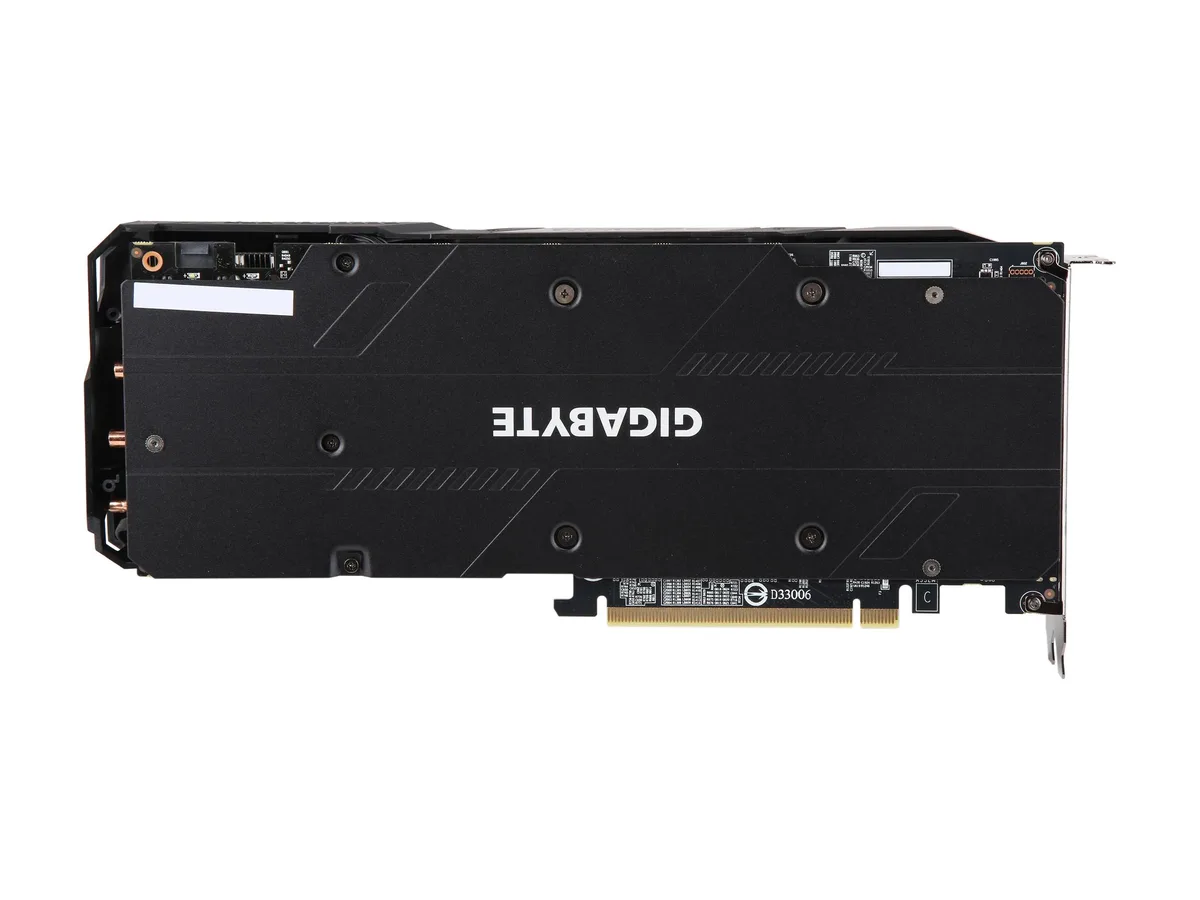

GIGABYTE GV-N2060GAMINGOC PRO-6GD GeForce RTX 2060 6GB graphics card

GIGABYTE GeForce RTX 2060 6GB GDDR6

The GIGABYTE GV-N2060GAMINGOC PRO-6GD is a GeForce RTX 2060 graphics card with 6GB of GDDR6 memory on a 192-Bit interface. It connects via PCI Express 3.0 x16 and features 1920 CUDA cores with a core clock of 1830 MHz. The card outputs to one HDMI 2.0b port and three DisplayPort 1.4 connectors, supporting up to four displays at a maximum resolution of 7680 x 4320 at 60 Hz.

Suited for 1080p and 1440p gaming without SLI

This card targets gamers running one to four monitors at 1080p or 1440p who want ray-tracing capable hardware and DirectX 12 support. The 6GB frame buffer and 192-Bit bus limit texture capacity for 4K ultra settings, so buyers planning heavy 4K workloads should consider a model with more memory and a wider bus. The dual-slot design fits standard ATX cases with adequate airflow.

Sustained load at 160W TDP with dual-slot cooling

Under continuous load the GPU operates at a 160W thermal design power, dissipating heat through a dual-slot cooler that exhausts into the case. The 1830 MHz core clock is maintained while power and temperature limits allow, with the 14000 MHz effective memory clock feeding the 192-Bit GDDR6 subsystem steadily. Case ventilation must handle the 160W heat output to prevent throttling during extended sessions.
