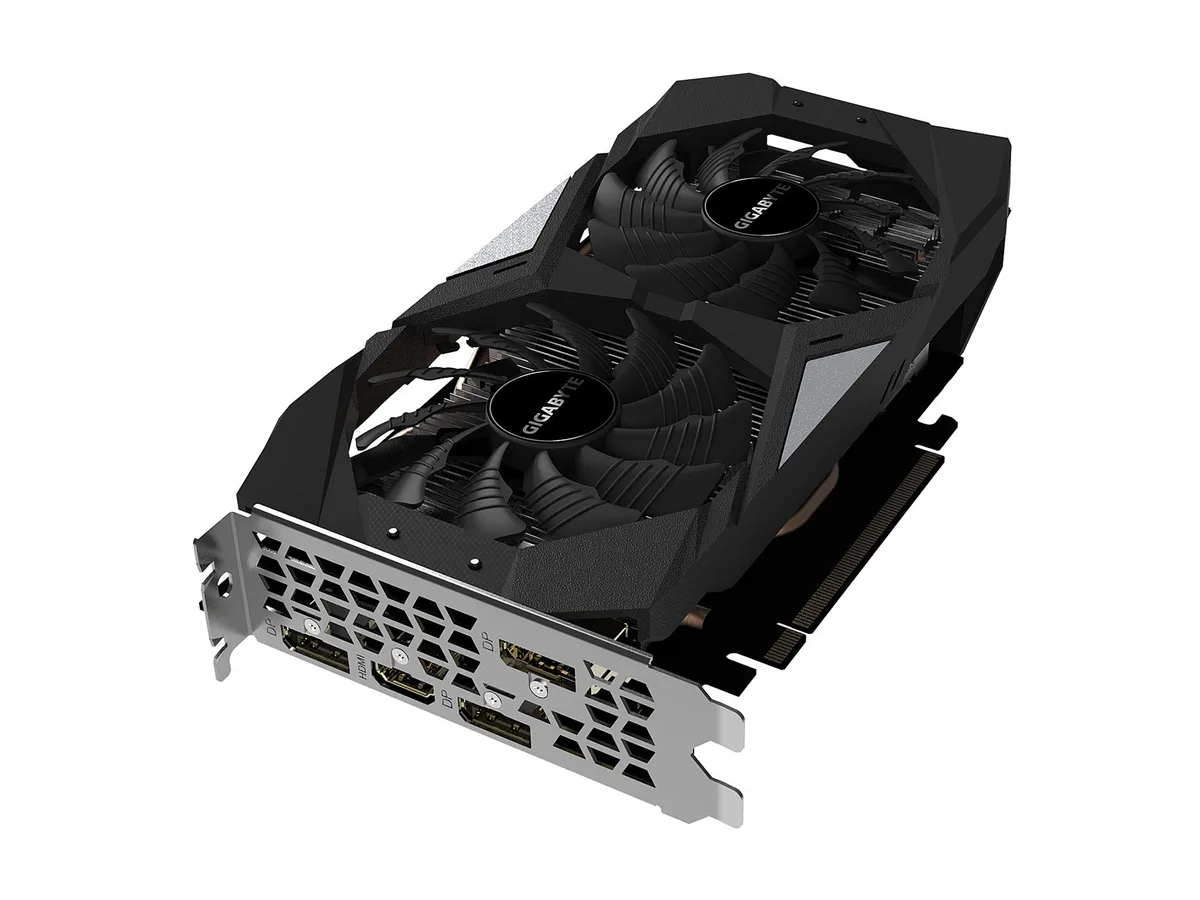

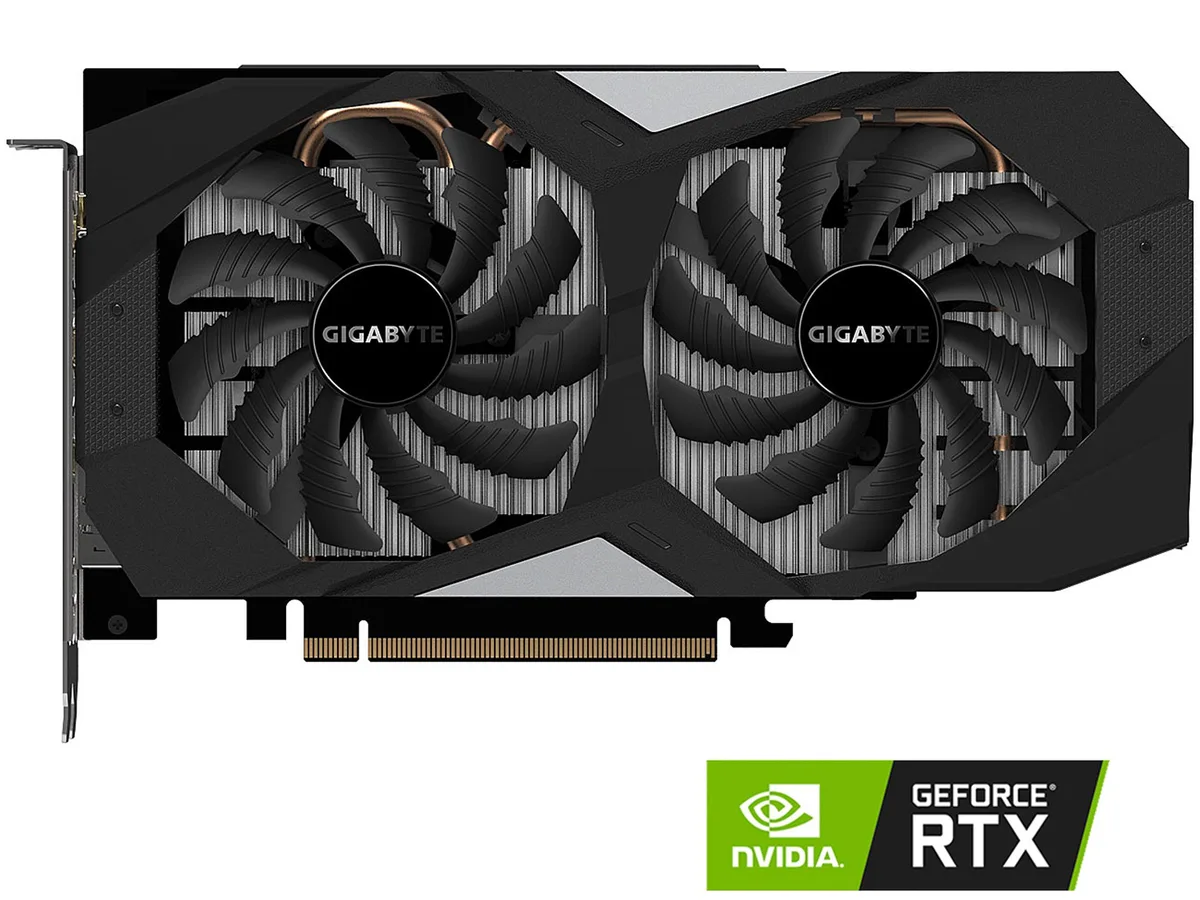

Gigabyte GeForce RTX 2060 dual-slot graphics card with dual fans and metal backplate

GIGABYTE

GIGABYTE GV-N2060OC-6GD ver 2.0 GeForce RTX 2060 graphics card

SKU CH-VMH3-QB0BQ

GeForce RTX 2060 graphics card with 6GB GDDR6, 1920 CUDA cores at 1755 MHz, dual-slot WINDFORCE 2X cooling, three DisplayPort 1.4 and one HDMI 2.0b supporting 7680 x 4320 at 60 Hz

  • InterfacePCI Express 3.0 x16
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 20 Series
  • GPUGeForce RTX 2060
  • Core Clock1755 MHz
  • CUDA Cores1920
  • Real-time ray tracing with NVIDIA Turing architecture
  • Boosted 1755 MHz core clock for higher frame rates
  • 6 GB GDDR6 on a 192-bit bus at 14000 MHz effective
  • WINDFORCE 2X cooler with alternate spinning fans
  • Four-display support via HDMI 2.0b and three DisplayPort 1.4

Graphics Card Overview

The GIGABYTE GV-N2060OC-6GD ver 2.0 is a GeForce RTX 2060 graphics card built on the NVIDIA Turing architecture. It features 1920 CUDA cores and a 1755 MHz core clock for gaming and creative workloads. The 6 GB GDDR6 frame buffer runs across a 192-bit interface at an effective 14000 MHz. It supports DirectX 12 and OpenGL 4.6 for modern API compatibility.

Connectivity and Cooling

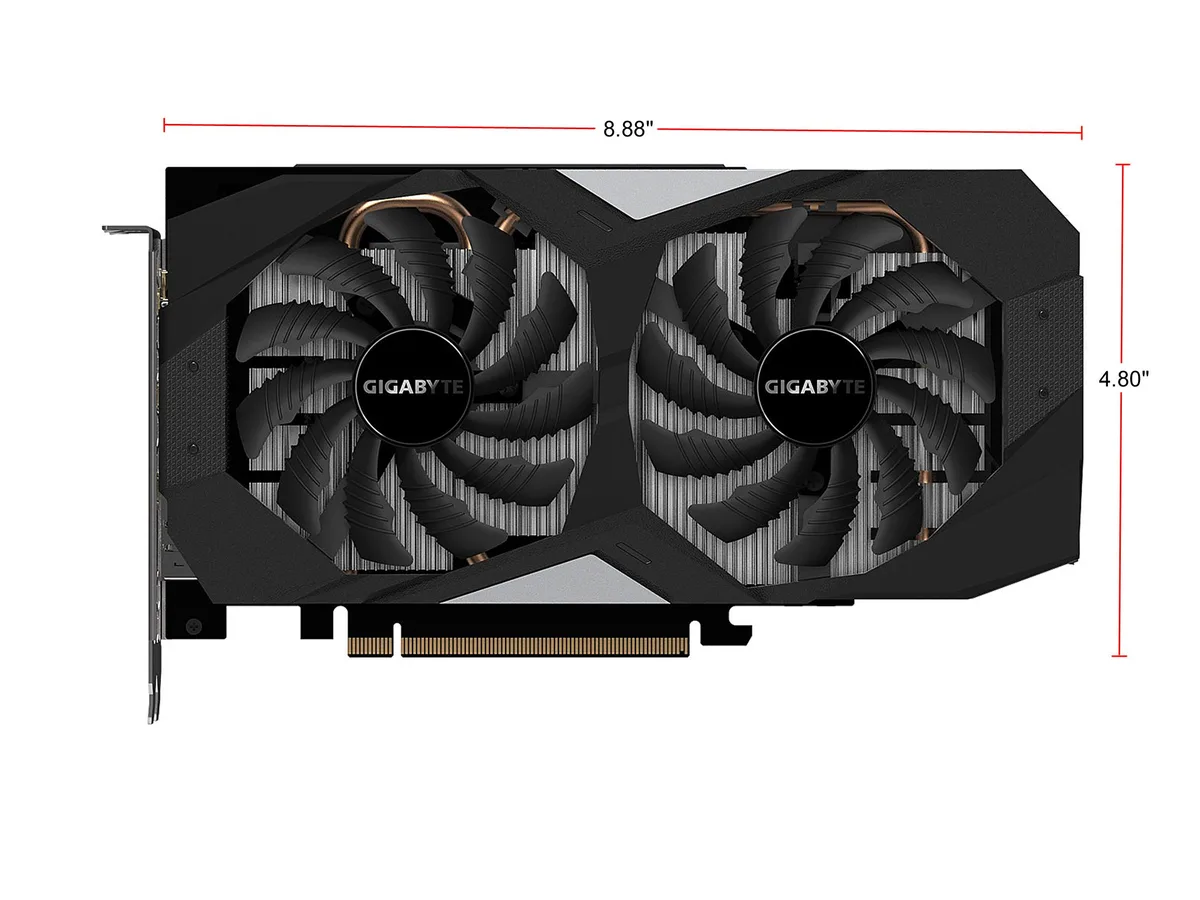

Outputs include three DisplayPort 1.4 connectors and one HDMI 2.0b port, enabling up to four simultaneous displays at a maximum resolution of 7680 x 4320 at 60 Hz. The WINDFORCE 2X cooling system uses alternate spinning fans to manage thermals within a dual-slot form factor measuring 8.88 inches by 4.80 inches. The card draws power through a standard PCI Express 3.0 x16 slot.

Compatibility Check

Verify that your chassis can accommodate a card 8.88 inches long and 4.80 inches high with a dual-slot bracket. Ensure the power supply provides the required PCIe auxiliary connectors for this model. Confirm the motherboard has a free PCI Express 3.0 x16 slot and that your display cables match the available DisplayPort 1.4 or HDMI 2.0b outputs.

Highlights

  • Real-time ray tracing with NVIDIA Turing architecture
  • Boosted 1755 MHz core clock for higher frame rates
  • 6 GB GDDR6 on a 192-bit bus at 14000 MHz effective
  • WINDFORCE 2X cooler with alternate spinning fans
  • Four-display support via HDMI 2.0b and three DisplayPort 1.4

Specifications

BrandGIGABYTE
ModelGV-N2060OC-6GD ver 2.0
InterfacePCI Express 3.0 x16
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 20 Series
GPUGeForce RTX 2060
Core Clock1755 MHz
CUDA Cores1920
Effective Memory Clock14000 MHz
Memory Size6GB
Memory Interface192-Bit
Memory TypeGDDR6
DirectXDirectX 12
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort 1.4
Max Resolution7680 x 4320 @ 60 Hz
SLI SupportNo
Virtual Reality ReadyYes
Thermal Design Power160W
System RequirementsSystem PSU Limitation (W): 500
Power Connector8-Pin
FeaturesPowered by GeForce RTX 2060//Integrated with 6GB GDDR6 192-bit memory interface//WINDFORCE 2X Cooling System with alternate spinning fans//90mm unique blade fans//Protection back plate
Form FactorATX
Max GPU Length226 mm
Card Dimensions (L x H)8.88" x 4.80"
Slot Width2 Slots
Package ContentsAccessories:/Quick guide/Driver CD

Questions about this item

What bandwidth does the PCI Express 3.0 x16 interface provide for this RTX 2060?

The PCI Express 3.0 x16 slot delivers up to 16 GT/s per lane, giving the card full bandwidth for gaming and compute workloads without a bottleneck.

Will the 8.88" length and dual-slot width fit in a standard mid-tower case?

At 8.88 inches long and 4.80 inches high, the dual-slot design fits most mid-tower cases; verify your chassis clearance and that two rear brackets are free.

How do I install the card and what step is often missed?

Power off the PC, seat the card firmly in the top PCIe 3.0 x16 slot, secure the two rear brackets, connect the required PCIe power cable, then install the NVIDIA driver before launching any game.
