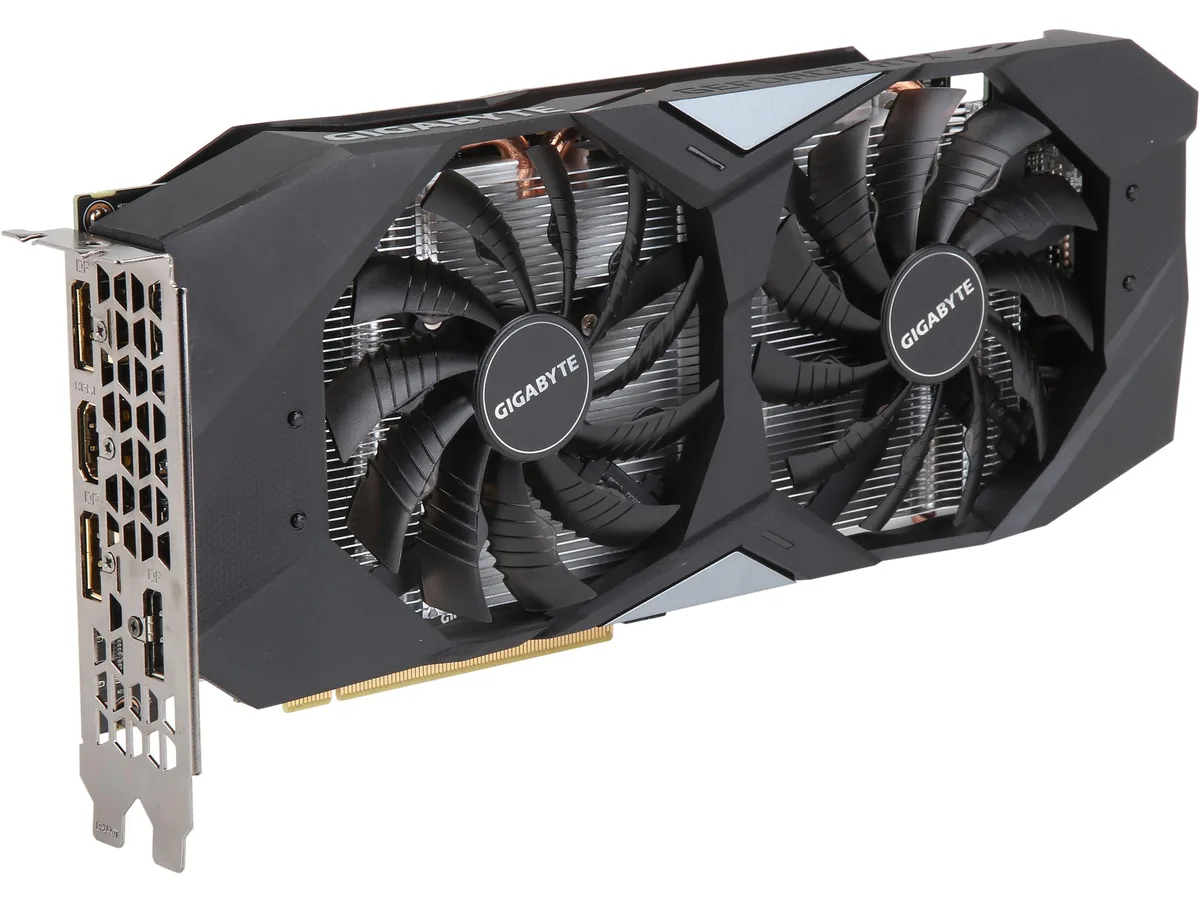

Dual-slot graphics card with two fans, black shroud, silver backplate, PCIe x16 edge connector, one HDMI and three DisplayPort outputs

GIGABYTE

GIGABYTE GV-N2060WF2OC-6GD GeForce RTX 2060 6GB graphics card

SKU CH-JBQ5-ECWKX

GeForce RTX 2060 graphics card with 6GB GDDR6 memory, 1920 CUDA cores and a 1770 MHz core clock, plus three DisplayPort 1.4 outputs and one HDMI 2.0b port

  • InterfacePCI Express 3.0 x16
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 20 Series
  • GPUGeForce RTX 2060
  • Core Clock1770 MHz
  • CUDA Cores1920
  • 1770 MHz core clock drives responsive 1080p and 1440p gaming
  • 6 GB GDDR6 on a 192-bit bus supplies high bandwidth for modern textures
  • 1920 CUDA cores accelerate ray-tracing workloads and creative applications
  • HDMI 2.0b plus three DisplayPort 1.4 connectors support up to four displays
  • PCI Express 3.0 x16 interface delivers full bandwidth to the GPU

Product identity

The GIGABYTE GV-N2060WF2OC-6GD is a GeForce RTX 2060 graphics card built for 1080p and 1440p gaming. It carries 6GB of GDDR6 memory on a 192-bit bus and 1920 CUDA cores clocked at 1770 MHz. The dual-slot design fits standard ATX builds and targets players who want ray-tracing-capable performance without moving to a larger chassis.

PCI Express 3.0 x16 limits

The card connects through a PCI Express 3.0 x16 slot, delivering up to 16 GT/s per lane. That bandwidth is sufficient for the GPU’s 14000 MHz effective memory clock and 1920 cores in current titles. Systems limited to PCI Express 2.0 x16 will see a measurable drop in throughput, especially at higher resolutions. The interface also caps multi-GPU scaling, and SLI is not supported on this model.

Dual-slot build and display outputs

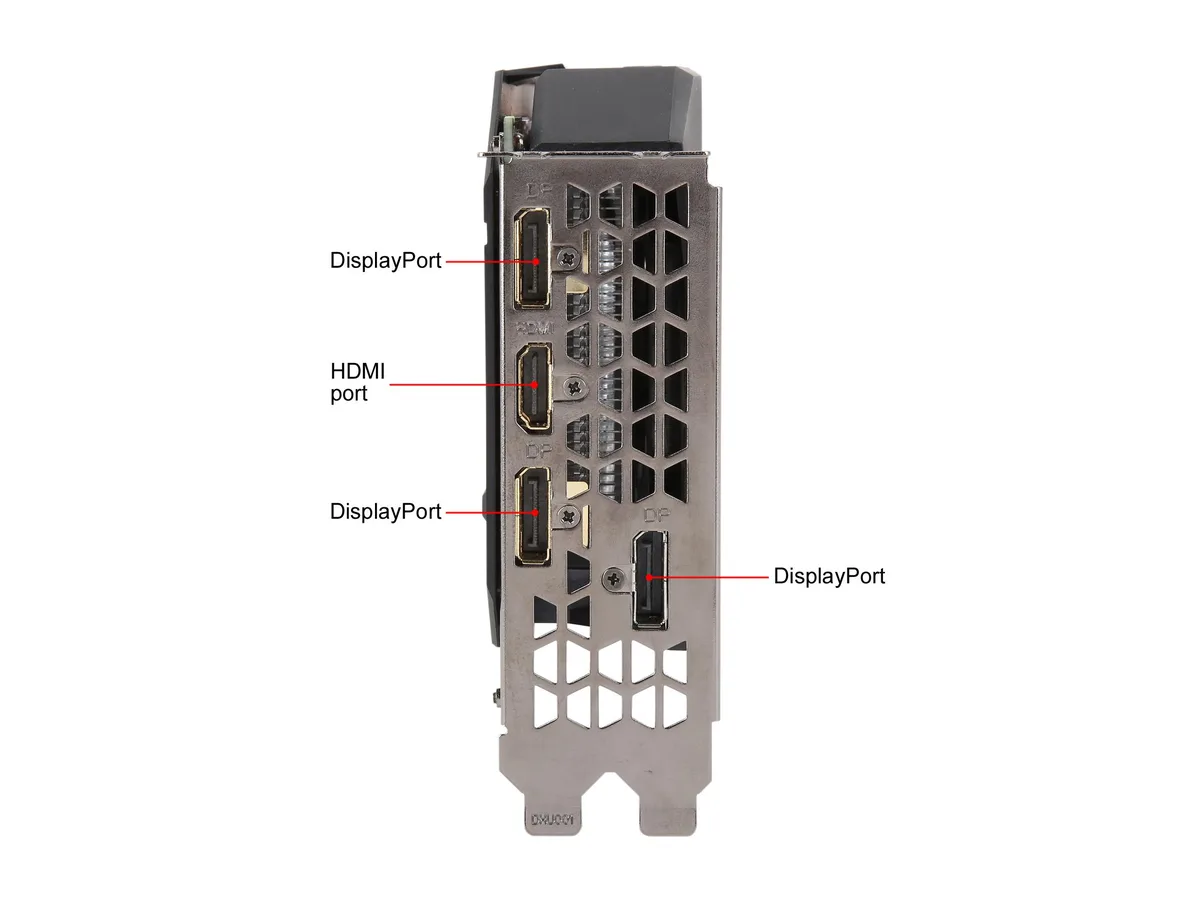

A dual-slot bracket occupies two rear expansion slots, leaving adjacent slots free for other add-in cards. The 10.43-inch length clears most mid-tower cases without interfering with drive cages. One HDMI 2.0b port and three DisplayPort 1.4 connectors drive up to four monitors at a maximum resolution of 7680 x 4320 at 60 Hz. The layout suits multi-monitor productivity setups and VR headsets that require simultaneous display outputs.

Highlights

  • 1770 MHz core clock drives responsive 1080p and 1440p gaming
  • 6 GB GDDR6 on a 192-bit bus supplies high bandwidth for modern textures
  • 1920 CUDA cores accelerate ray-tracing workloads and creative applications
  • HDMI 2.0b plus three DisplayPort 1.4 connectors support up to four displays
  • PCI Express 3.0 x16 interface delivers full bandwidth to the GPU

Specifications

BrandGIGABYTE
ModelGV-N2060WF2OC-6GD
InterfacePCI Express 3.0 x16
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 20 Series
GPUGeForce RTX 2060
Core Clock1770 MHz
CUDA Cores1920
Effective Memory Clock14000 MHz
Memory Size6GB
Memory Interface192-Bit
Memory TypeGDDR6
DirectXDirectX 12
OpenGLOpenGL 4.5
Multi-Monitor Support4
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort 1.4
Max Resolution7680 x 4320 @ 60 Hz
SLI SupportNo
Virtual Reality ReadyYes
Thermal Design Power160W
System RequirementsSystem PSU Limitation (W): 500
Power Connector8-Pin
FeaturesPowered by GeForce RTX 2060//Integrated with 6GB GDDR6 192-bit memory interface//WINDFORCE 2X Cooling System with alternate spinning fans//100mm unique blade fans//Protection back plate
Form FactorATX
Max GPU Length265 mm
Card Dimensions (L x H)10.43" x 4.75"
Slot Width2 Slots

Questions about this item

Which version of this card should I choose?

The GV-N2060WF2OC-6GD is a single 6 GB model with a 192-bit GDDR6 interface and 1920 CUDA cores.

What does the 1770 MHz core clock deliver in my system?

The 1770 MHz boost clock is the factory overclock speed the GPU targets under load.

How does the PCI Express 3.0 x16 interface affect performance?

The PCI Express 3.0 x16 slot provides the full bandwidth the RTX 2060 needs for gaming and content creation.
