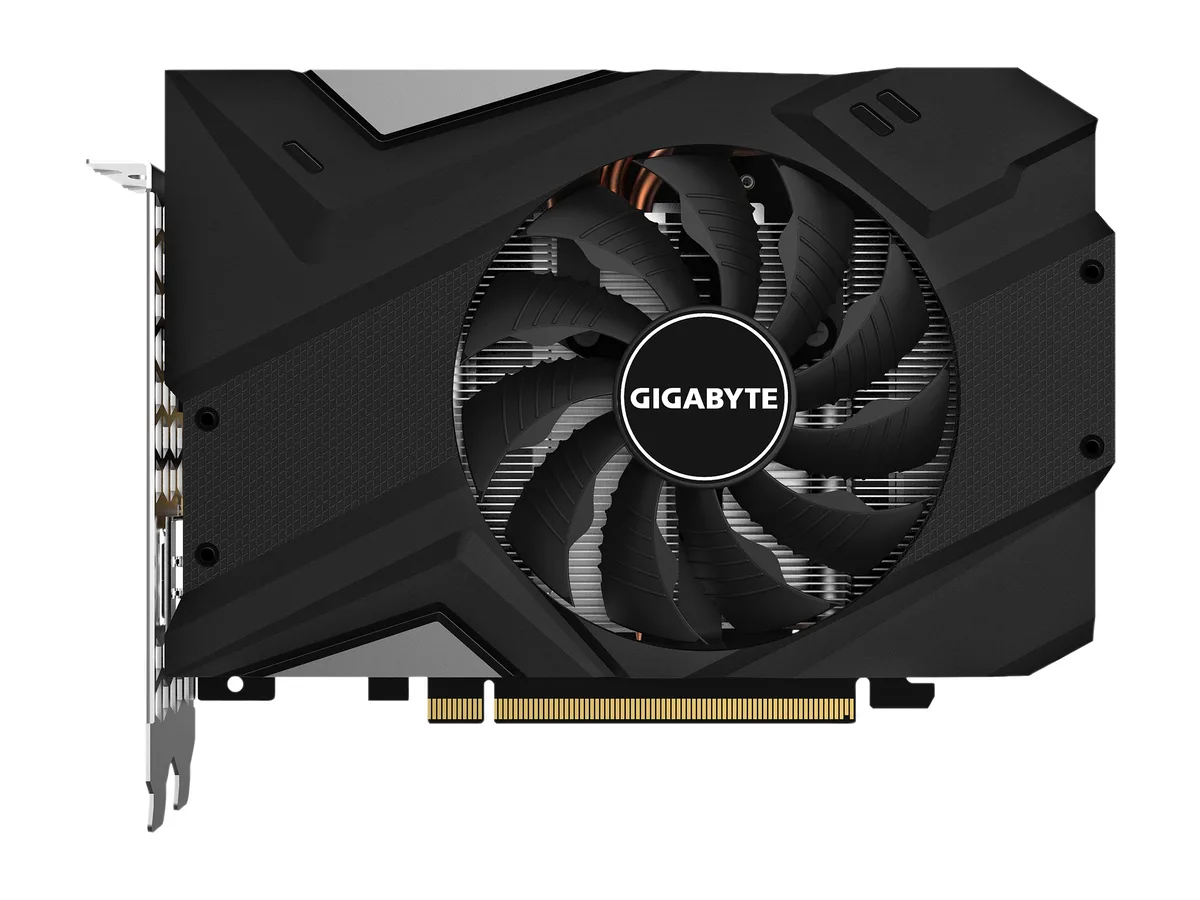

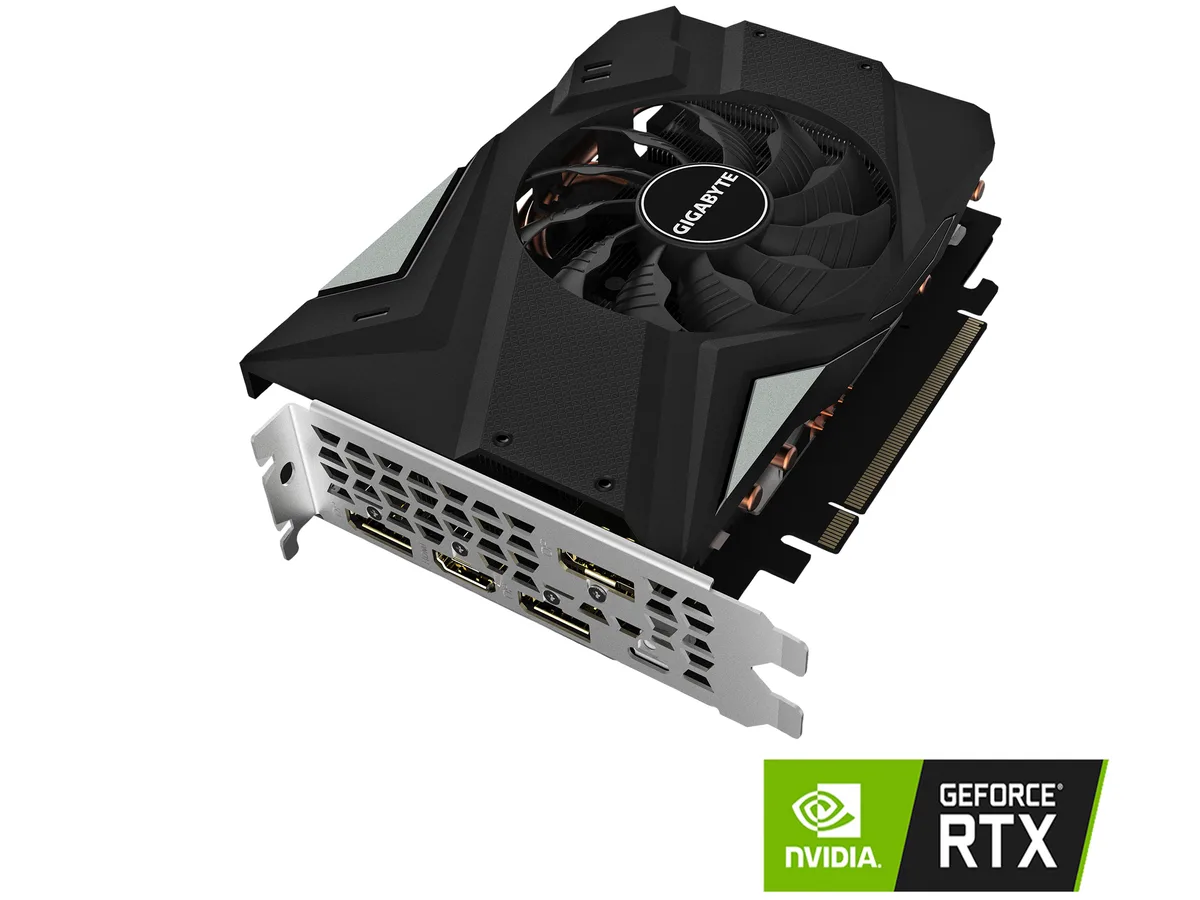

Compact black graphics card, single 90mm fan, metal backplate, short dual-slot PCB

GIGABYTE

GIGABYTE GV-N2070IX-8GC GeForce RTX 2070 8GB graphics card

SKU CH-53CZ-A9EPR MPN GV-N2070IX-8GC

Compact 170 mm card delivers RTX 2070 performance with 8 GB GDDR6 memory and a single 90 mm fan

  • InterfacePCI Express 3.0 x16
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 20 Series
  • GPUGeForce RTX 2070
  • Core Clock1620 MHz
  • CUDA Cores2304
  • Compact 170 mm length fits small-form-factor builds
  • Single 90 mm blade fan cools 185 W thermal design power
  • 8 GB GDDR6 on 256-bit bus delivers 14000 MHz effective memory clock
  • 2304 CUDA cores at 1620 MHz core clock handle 4K at 7680 x 4320
  • HDMI 2.0b, three DisplayPort 1.4 and USB Type-C VirtualLink drive four displays

Compact RTX 2070 for small builds

The GIGABYTE GV-N2070IX-8GC is a GeForce RTX 2070 with 8GB GDDR6 memory on a 256-bit bus. Its 170mm length fits Mini-ITX cases while delivering 2304 CUDA cores at 1620 MHz core clock. The card targets gamers and creators who need RTX performance in space-constrained systems.

Check PSU and slot clearance first

Your power supply must provide at least 550W with one 8-pin PCIe connector for the 185W thermal design power. The board occupies two expansion slots and requires a PCI Express 3.0 x16 lane. Verify case length clearance for 170mm and ensure the single 90mm fan has airflow space.

Metal backplate and versatile I/O

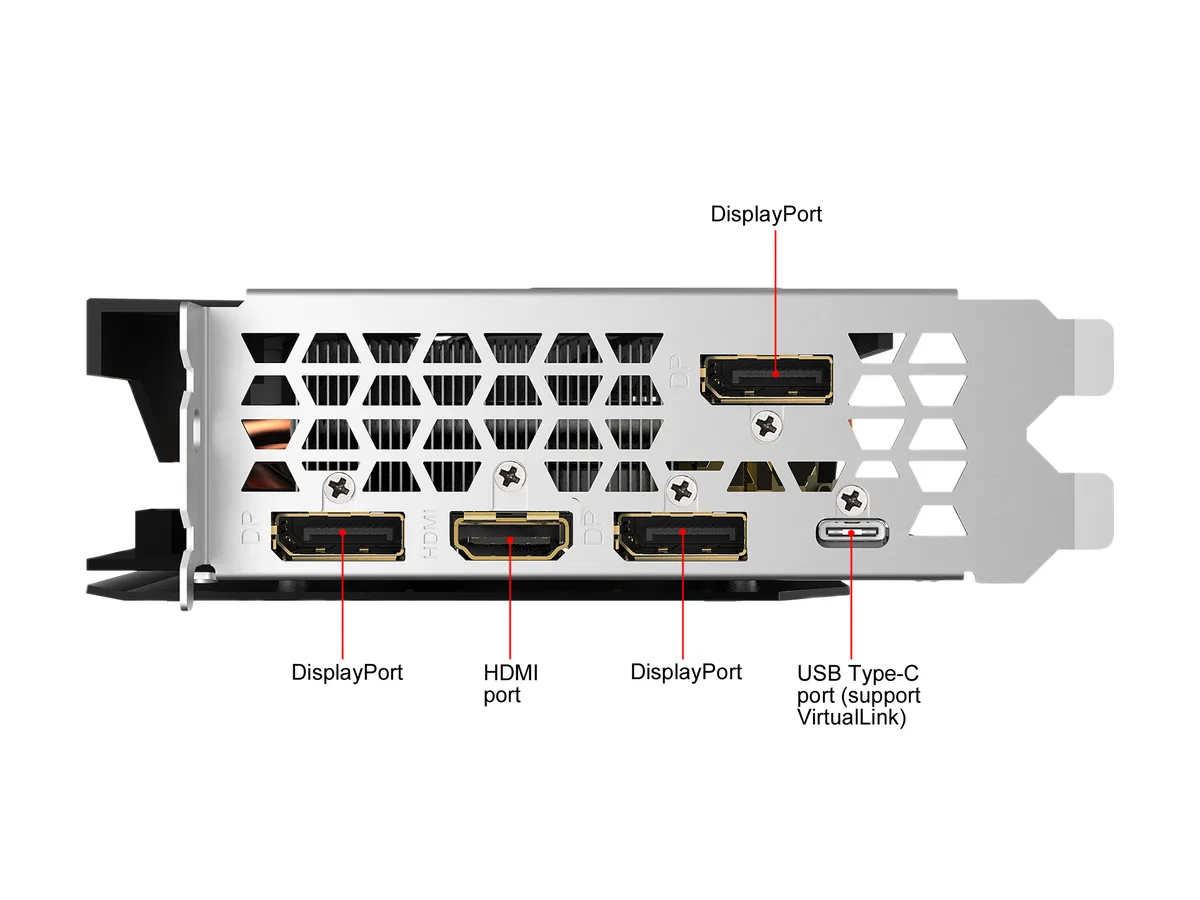

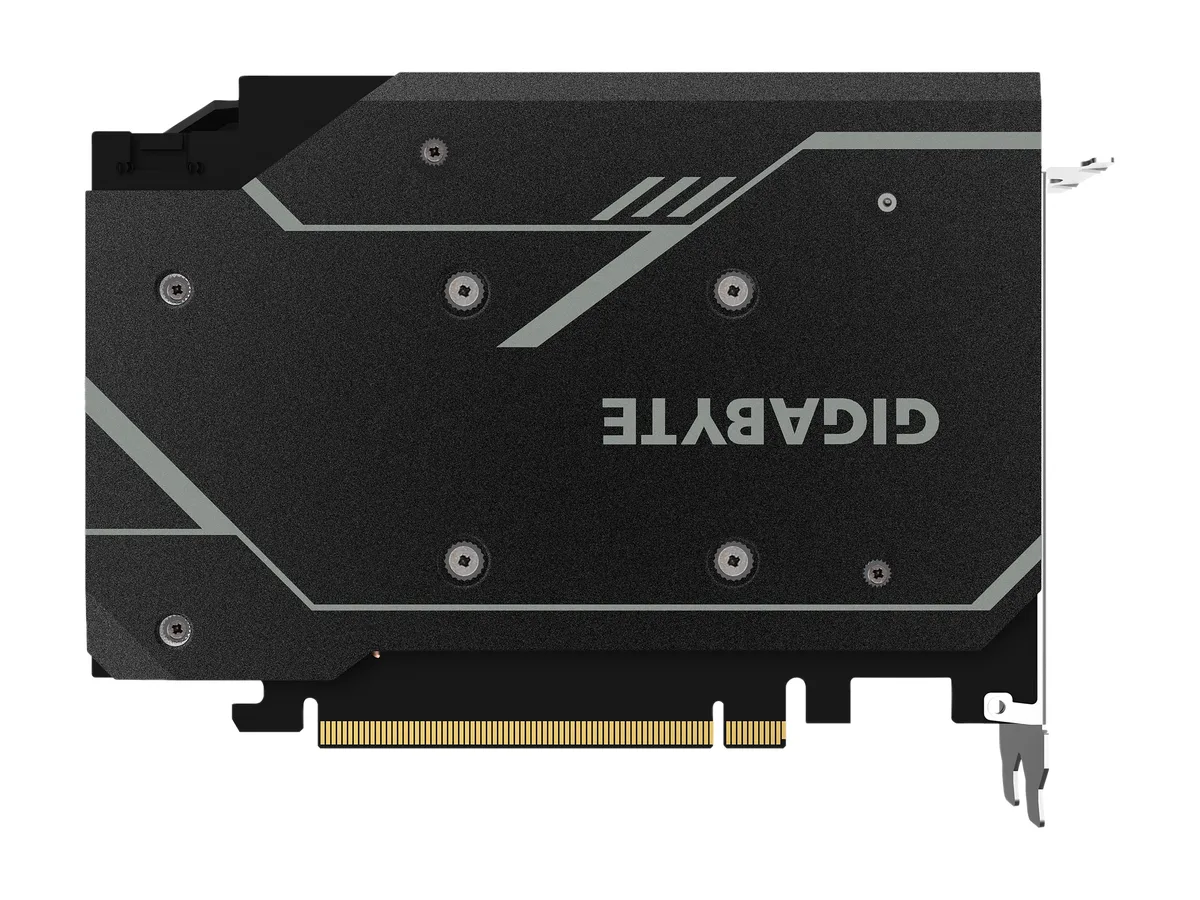

A stylish metal backplate adds rigidity and protects the PCB during handling. The output panel offers one HDMI 2.0b, three DisplayPort 1.4 and one USB Type-C with VirtualLink support for up to four simultaneous displays at 7680 x 4320 maximum resolution.

Highlights

  • Compact 170 mm length fits small-form-factor builds
  • Single 90 mm blade fan cools 185 W thermal design power
  • 8 GB GDDR6 on 256-bit bus delivers 14000 MHz effective memory clock
  • 2304 CUDA cores at 1620 MHz core clock handle 4K at 7680 x 4320
  • HDMI 2.0b, three DisplayPort 1.4 and USB Type-C VirtualLink drive four displays

Specifications

BrandGIGABYTE
ModelGV-N2070IX-8GC
InterfacePCI Express 3.0 x16
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 20 Series
GPUGeForce RTX 2070
Core Clock1620 MHz
CUDA Cores2304
Effective Memory Clock14000 MHz
Memory Size8GB
Memory Interface256-Bit
Memory TypeGDDR6
DirectXDirectX 12
OpenGLOpenGL 4.5
Multi-Monitor Support4
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort 1.4
Other Ports1 x USB Type-C (support VirtualLink)
Max Resolution7680 x 4320
SLI SupportNo
CoolerSingle Fan
Thermal Design Power185W
System RequirementsRecommended PSU: 550W
GPU-TDP: 175W (Real)
Total Graphics Power-TGP: 200.00W (Real)
Recommended PSU Wattage550W
Power Connector8-Pin
FeaturesPowered by GeForce RTX 2070
Integrated with 8GB GDDR6 256-bit memory interface
90mm unique blade fan
170mm compact card size
Stylish Metal Back Plate
Form FactorATX
Max GPU Length170 mm
Card Dimensions (L x H)6.69" x 4.78"
Slot Width2 Slots
Shipping weight0.89 kg
Package size295 × 211 × 56 mm

Questions about this item

What is included with the GV-N2070IX-8GC and what must be purchased separately?

The card ships with the GPU, a 90mm blade fan, a metal back-plate and the 8-pin power connector installed. A 550W power supply and a PCIe 3.0 x16 slot are required but not supplied.

Which version of this RTX 2070 should I choose for a compact build?

The GV-N2070IX-8GC is the 170mm Mini-ITX model with a single 90mm fan and 8GB 256-bit GDDR6; no other length or cooler variant exists for this MPN.

What does the 1620 MHz core clock mean once the card is installed?

The GPU runs at 1620 MHz boost clock with 2304 CUDA cores and 14000 MHz effective memory, delivering 175W GPU TDP and 185W total graphics power under load.
