GIGABYTE GV-N3060VISION OC-12GD REV 2.0 graphics card

Vision 12GB RTX 3060 for creators

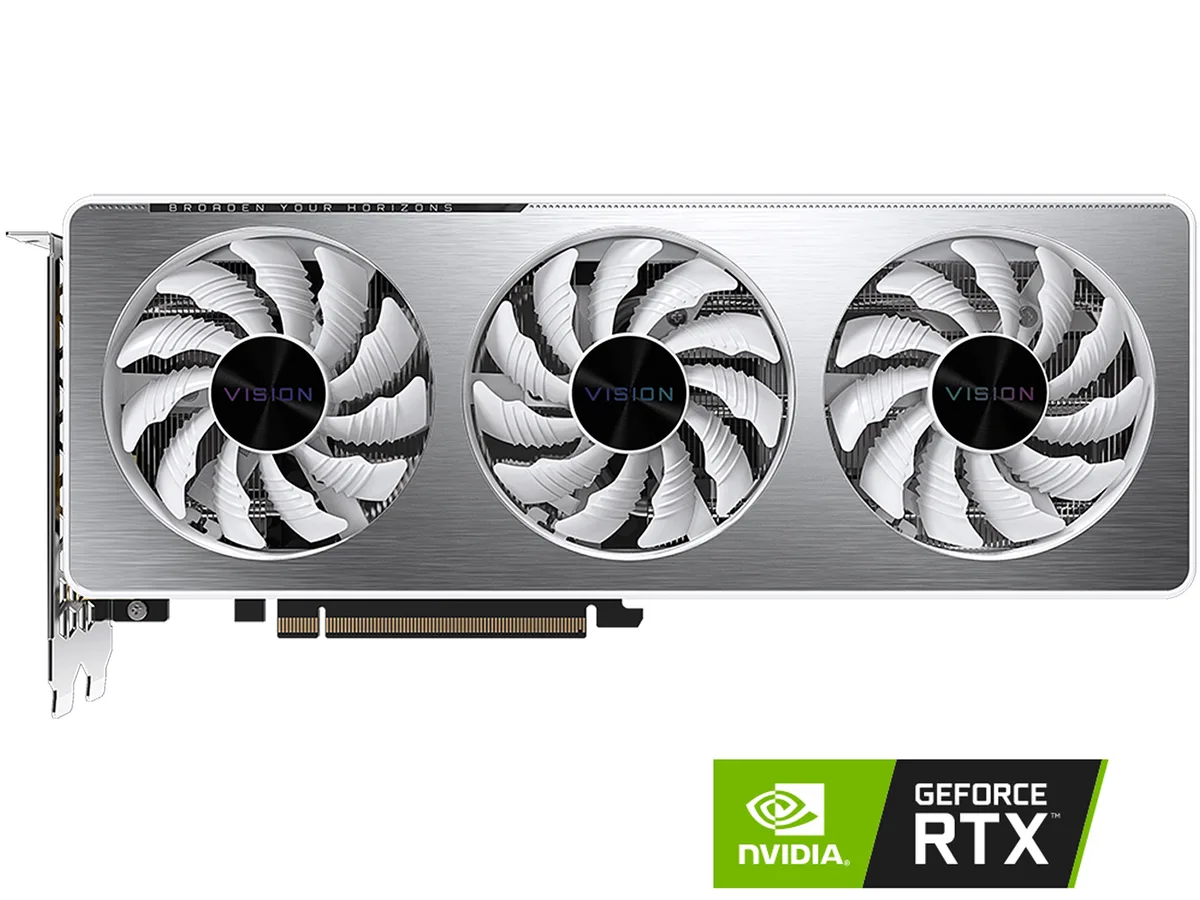

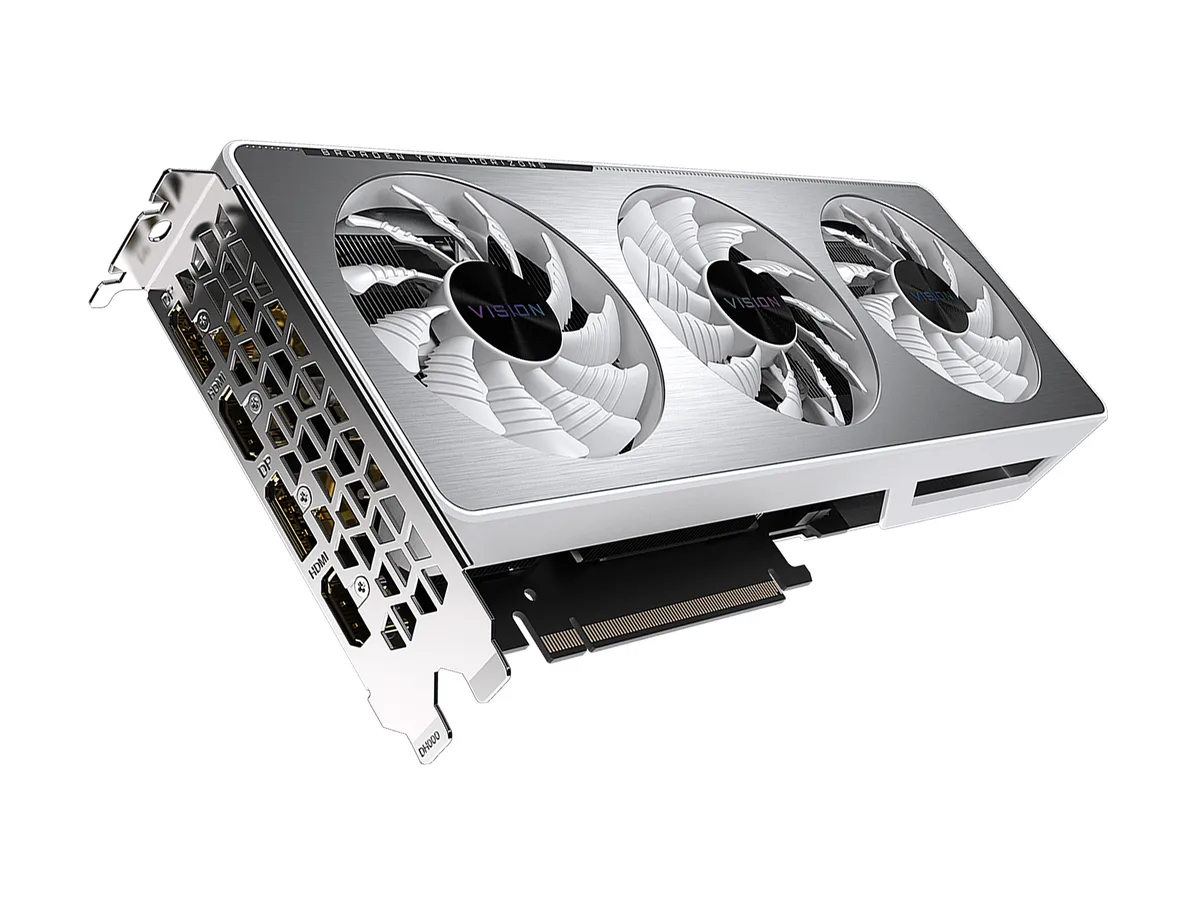

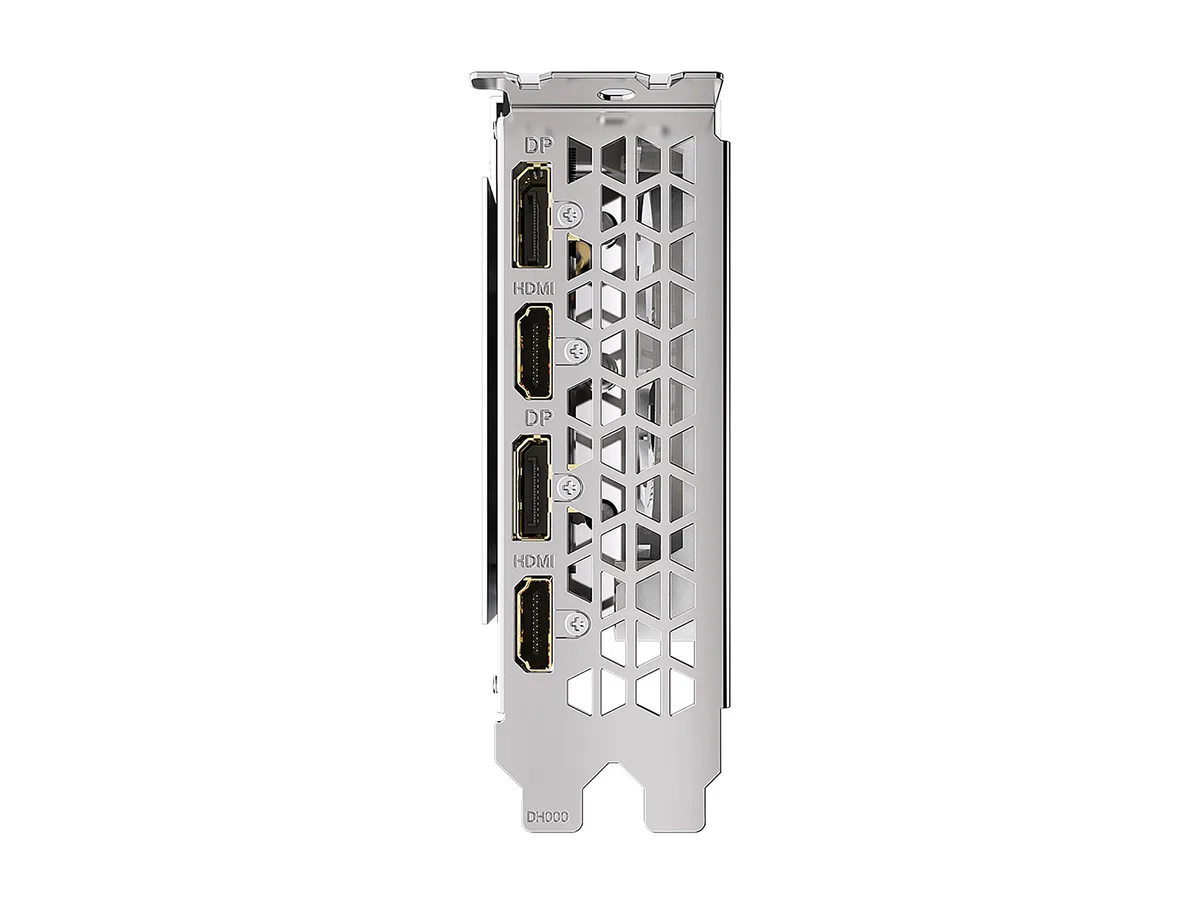

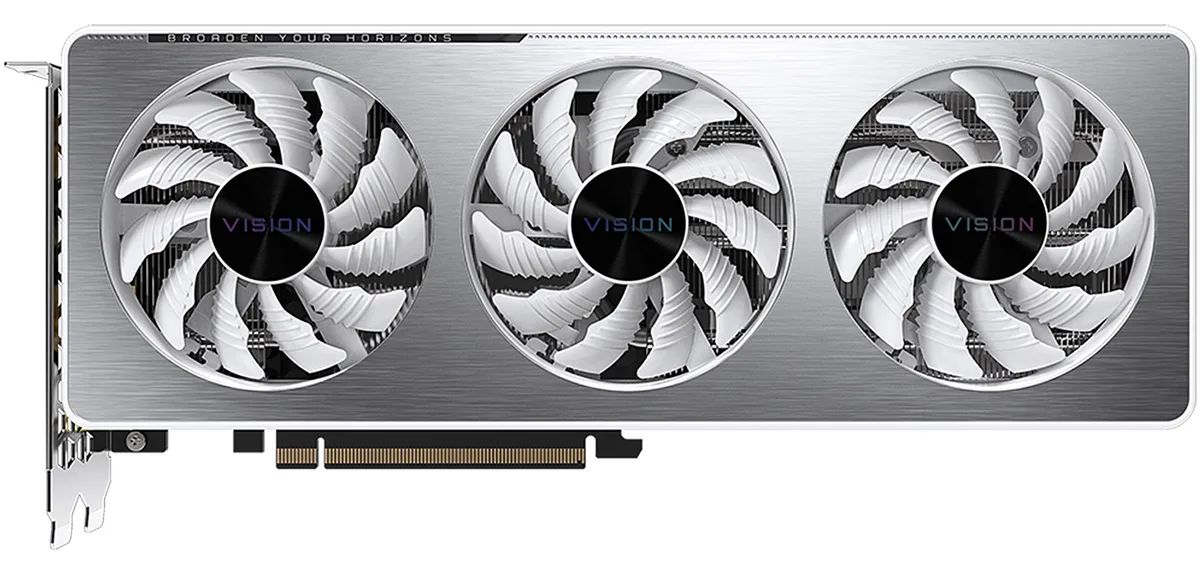

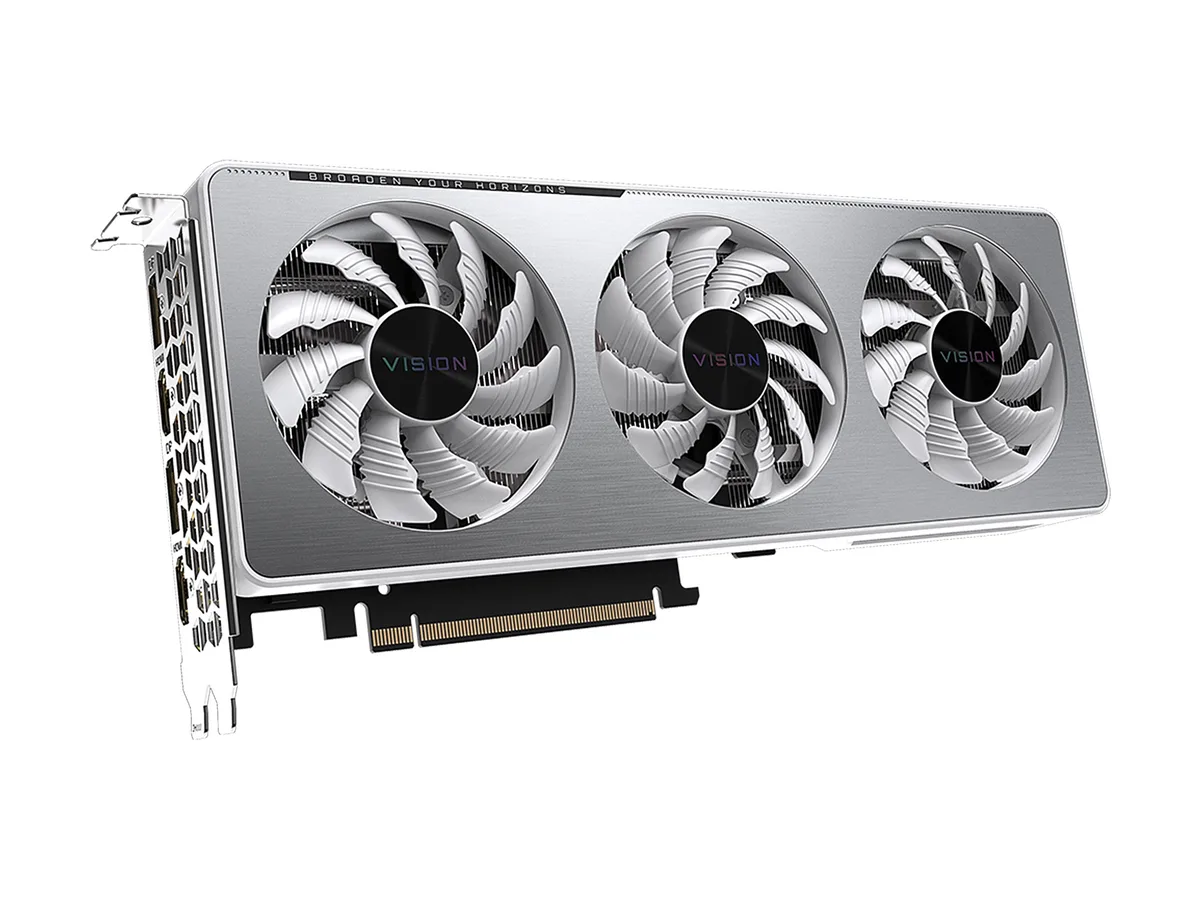

The GIGABYTE Vision OC GeForce RTX 3060 delivers 12GB GDDR6 memory on a 192-bit interface with 3584 CUDA cores. A boost clock of 1837 MHz and 15000 MHz effective memory speed handle 3D rendering, video editing and multi-monitor workflows. Two HDMI 2.1 and two DisplayPort 1.4a outputs drive up to four displays at 7680 x 4320 resolution. The silver WINDFORCE 3X cooler and metal backplate suit professional workstation builds.

Upgrade from 8GB or older 192-bit cards

Moving from an 8GB model removes the VRAM ceiling that stalls texture-heavy creative apps and modern game mods. The 12GB frame buffer lets you keep larger scenes resident without paging to system memory. PCI Express 4.0 bandwidth and 3rd generation Tensor cores accelerate AI-assisted filters in supported software. A 550W PSU with one 8-pin connector is the minimum power requirement for stable operation.

Dual-slot ATX fit with single 8-pin power

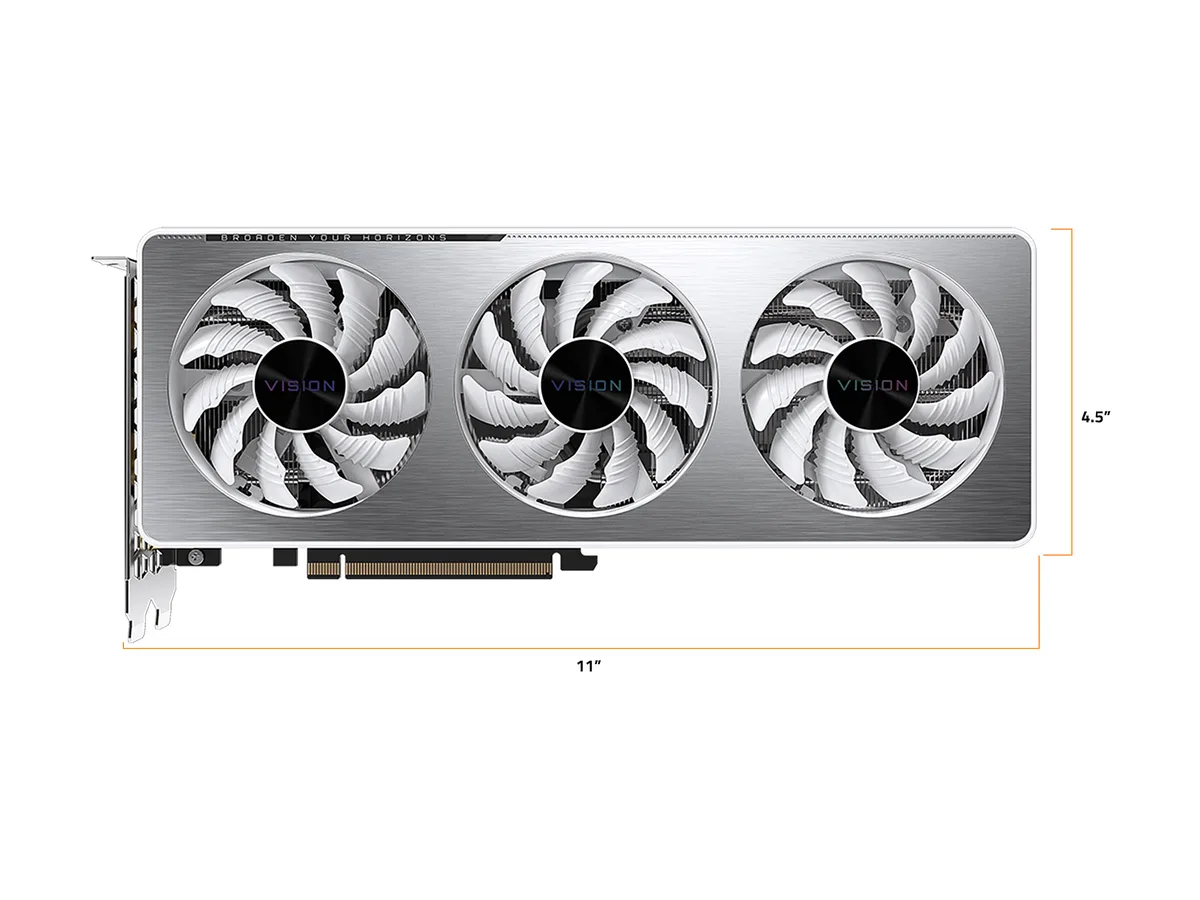

The card occupies two expansion slots and connects via a single 8-pin PCIe power cable. Ensure the case has enough length clearance for the triple-fan shroud and that the PSU cable reaches without strain. The metal backplate adds rigidity but can contact motherboard components in tight layouts; verify spacing before seating. Driver installation follows the standard NVIDIA routine; no extra utilities are required for basic operation.
