GIGABYTE

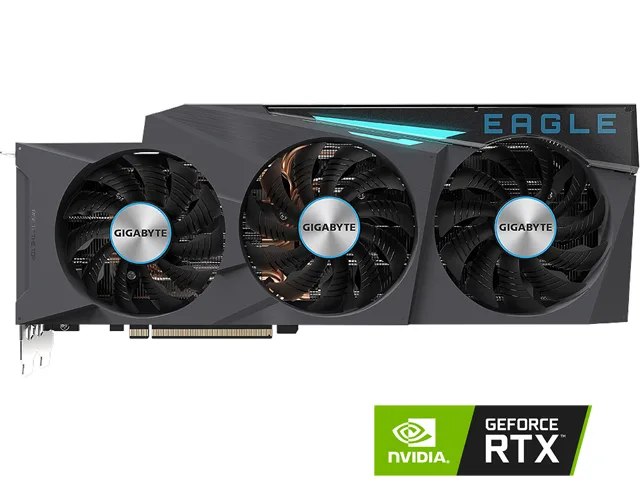

GIGABYTE GV-N3080EAGLE-10GD GeForce RTX 3080 10GB GDDR6X graphics card
Refurbished GeForce RTX 3080 with 10GB GDDR6X, 8704 CUDA cores, 1710 MHz core clock, WINDFORCE 3X cooling, two HDMI 2.1 and three DisplayPort 1.4a outputs, PCI Express 4.0 interface and LHR version
- InterfacePCI Express 4.0
- Chipset ManufacturerNVIDIA
- GPU SeriesNVIDIA GeForce RTX 30 Series
- GPUGeForce RTX 3080
- Core Clock1710 MHz
- CUDA Cores8704
- 10 GB GDDR6X memory drives 4K gaming and heavy workloads
- 8704 CUDA cores accelerate rendering and compute tasks
- WINDFORCE 3X cooler with alternate spinning fans keeps temperatures low
- PCI Express 4.0 interface maximises data throughput

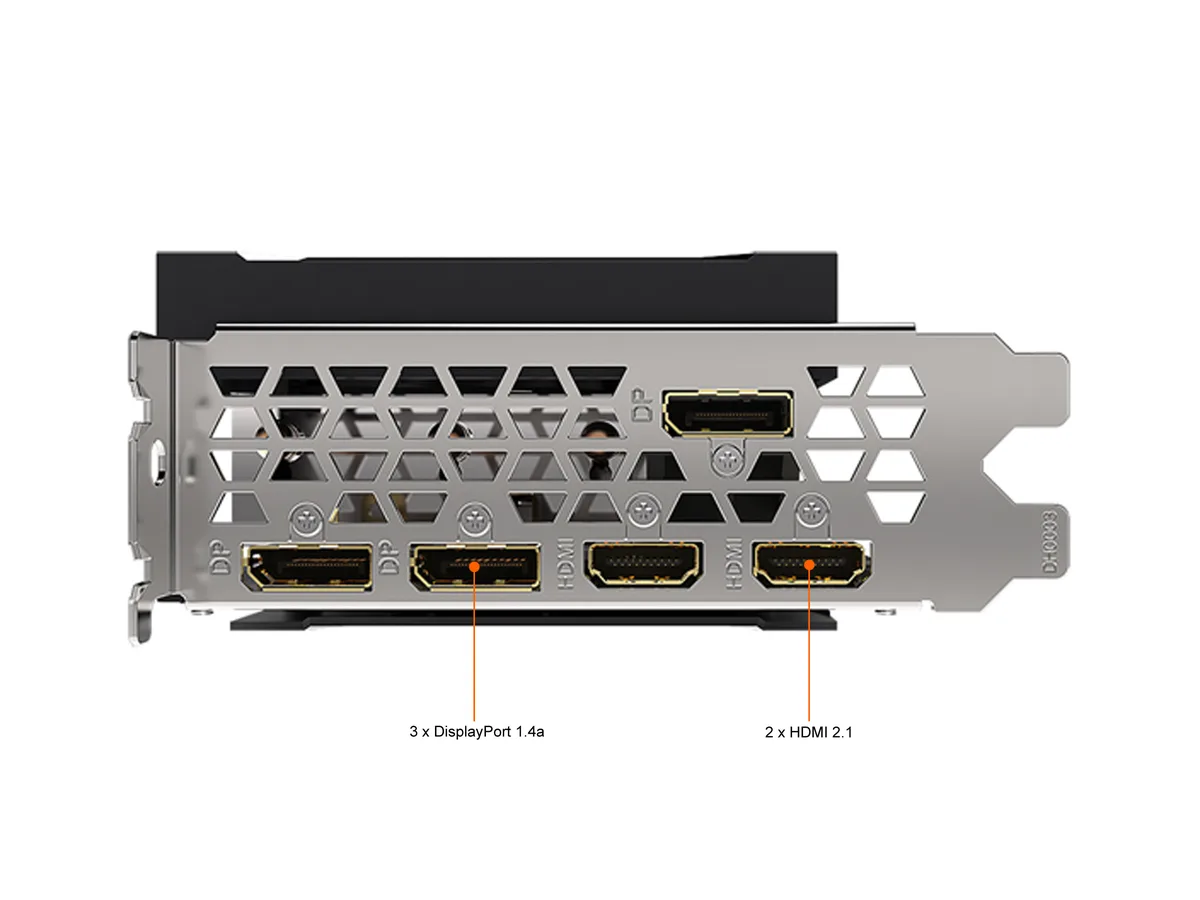

- 2 HDMI 2.1 and 3 DisplayPort 1.4a ports support four displays
Eagle 10GB 320-Bit GPU
The GIGABYTE GV-N3080EAGLE-10GD is a GeForce RTX 3080 graphics card built for 4K gaming and creative workloads. It delivers 8704 CUDA cores and 10GB of GDDR6X memory across a 320-bit interface. The PCI Express 4.0 connection supports modern platforms. This LHR model suits builders who prioritise rendering over hash rate.
Sustained 1710 MHz Core Clock
Under continuous load the GPU maintains a 1710 MHz core clock while the memory runs at an effective 19000 MHz. The 320-bit bus keeps bandwidth stable during extended ray-traced sessions or compute tasks. Driver support for DirectX 12 Ultimate and OpenGL 4.6 ensures consistent API performance. Frame pacing remains steady across multi-monitor configurations.
WINDFORCE 3X Cooling Thermals
The WINDFORCE 3X cooler uses alternate spinning fans to move heat away from the vapour chamber and heat pipes. A metal back plate reinforces the PCB and aids passive dissipation. Typical gaming power draw aligns with a 750W PSU recommendation fed by two 8-pin connectors. Acoustic output stays low during average workloads.
Highlights
- 10 GB GDDR6X memory drives 4K gaming and heavy workloads
- 8704 CUDA cores accelerate rendering and compute tasks
- WINDFORCE 3X cooler with alternate spinning fans keeps temperatures low
- PCI Express 4.0 interface maximises data throughput
- 2 HDMI 2.1 and 3 DisplayPort 1.4a ports support four displays
Specifications
| Brand | GIGABYTE |
|---|---|
| Series | Eagle |
| Model | GV-N3080EAGLE-10GD (rev. 2.0) |
| Interface | PCI Express 4.0 |
| Chipset Manufacturer | NVIDIA |
| GPU Series | NVIDIA GeForce RTX 30 Series |
| GPU | GeForce RTX 3080 |
| Core Clock | 1710 MHz |
| CUDA Cores | 8704 |
| Effective Memory Clock | 19000 MHz |
| Memory Size | 10GB |
| Memory Interface | 320-Bit |
| Memory Type | GDDR6X |
| DirectX | DirectX 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |

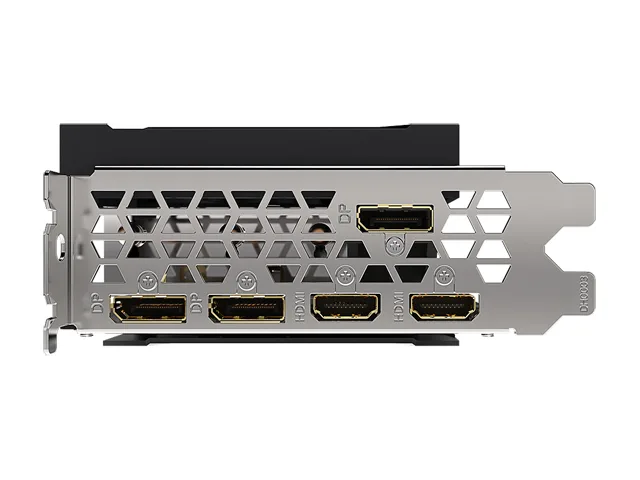

| HDMI | 2 x HDMI 2.1 |
| DisplayPort | 3 x DisplayPort 1.4a |
| Color | Black |
| Max Resolution | 7680 x 4320 |
| SLI Support | No |
| Virtual Reality Ready | Yes |
| Cooler | WINDFORCE 3X |
| Recommended PSU Wattage | 750W |
| Power Connector | 2 x 8-Pin |
| Features | NVIDIA Ampere Streaming Multiprocessors 2nd Generation RT Cores 3rd Generation Tensor Cores Powered by GeForce RTX 3080 Integrated with 10GB GDDR6X 320-bit memory interface WINDFORCE 3X Cooling System with alternate spinning fans RGB Fusion 2.0 Protection metal back plate LHR (Lite Hash Rate) version |
| Form Factor | ATX |
| Max GPU Length | 320 mm |

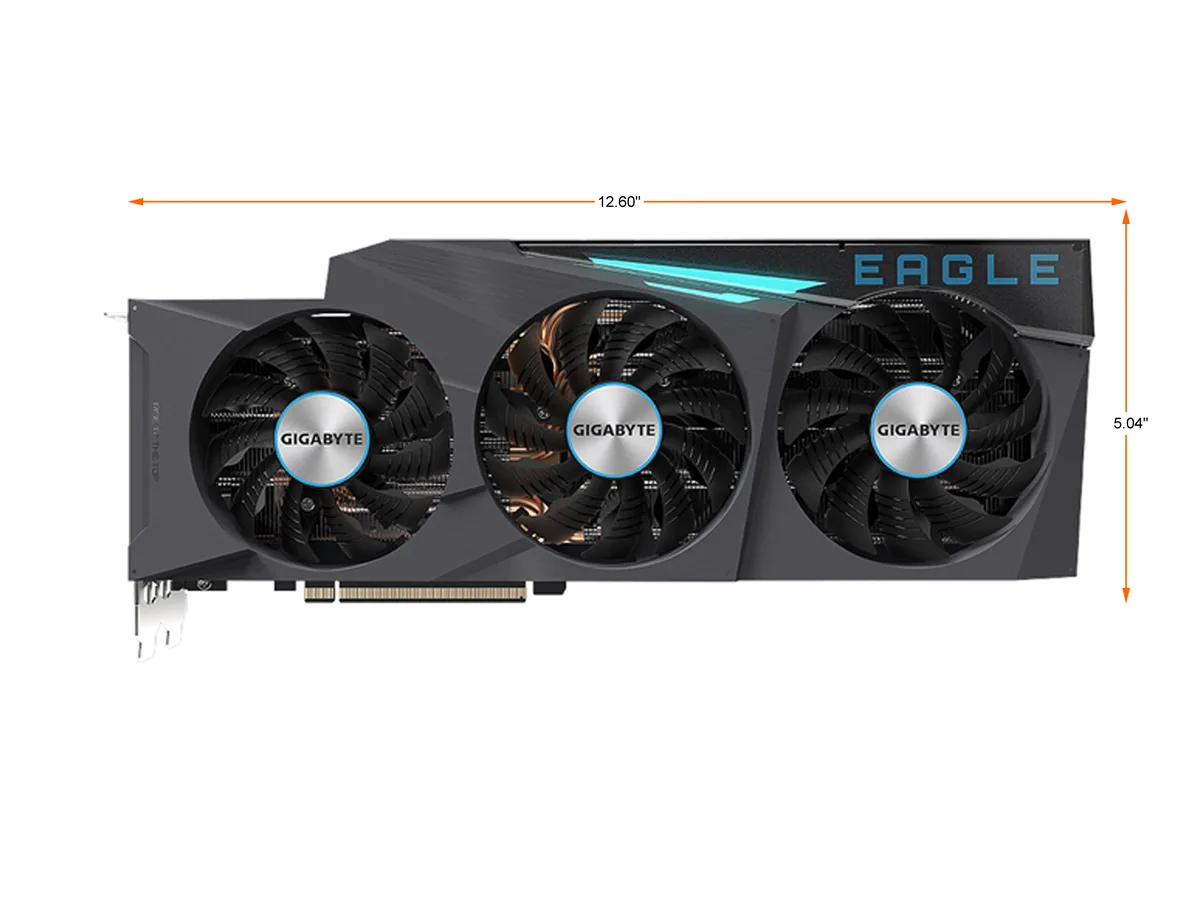

| Card Dimensions (L x H) | 12.60" x 5.04" |
| Slot Width | 2.7-slot |
| Shipping weight | 1.81 kg |
| Package size | 406 × 236 × 90 mm |
Questions about this item
How hot and loud does the WINDFORCE 3X cooler run when the RTX 3080 is pushed all day?
The WINDFORCE 3X cooler uses alternate spinning fans and a metal back plate to dissipate heat from the 1710 MHz core and 19000 MHz GDDR6X memory under sustained load.
What power supply and connectors are required for the 750 W recommended PSU and dual 8-pin sockets on this card?
A 750 W PSU with two available 8-pin PCIe power cables is needed to feed the RTX 3080 through its dual 8-pin connectors.
Will the 320 mm long ATX board fit in my older case and work with a PCIe 3.0 motherboard slot?
The card measures 320 mm long in an ATX form factor and installs in a PCI Express 4.0 slot that is backward compatible with PCIe 3.0 motherboards.
