GIGABYTE GV-N3090EAGLE-24GD GeForce RTX 3090 Eagle 24GB graphics card

GIGABYTE RTX 3090 Eagle 24GB

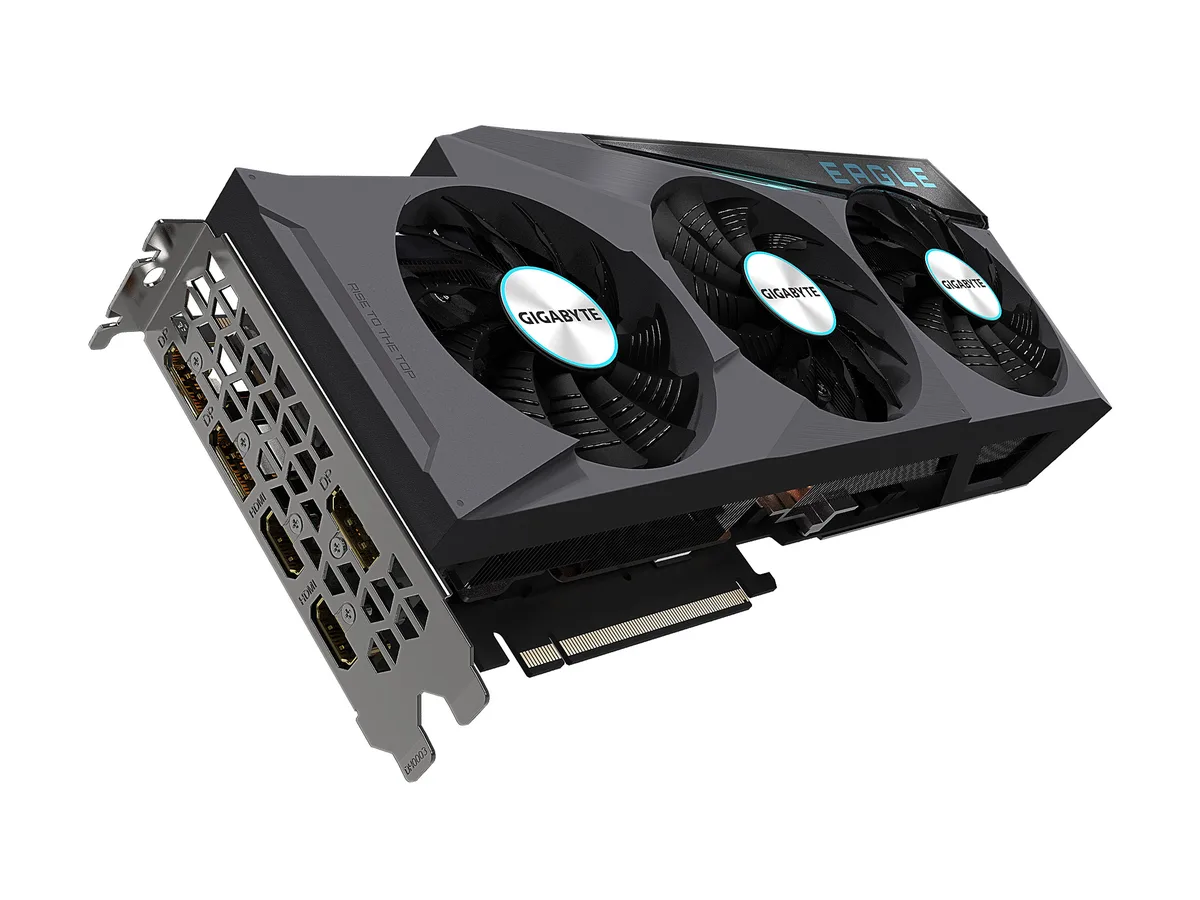

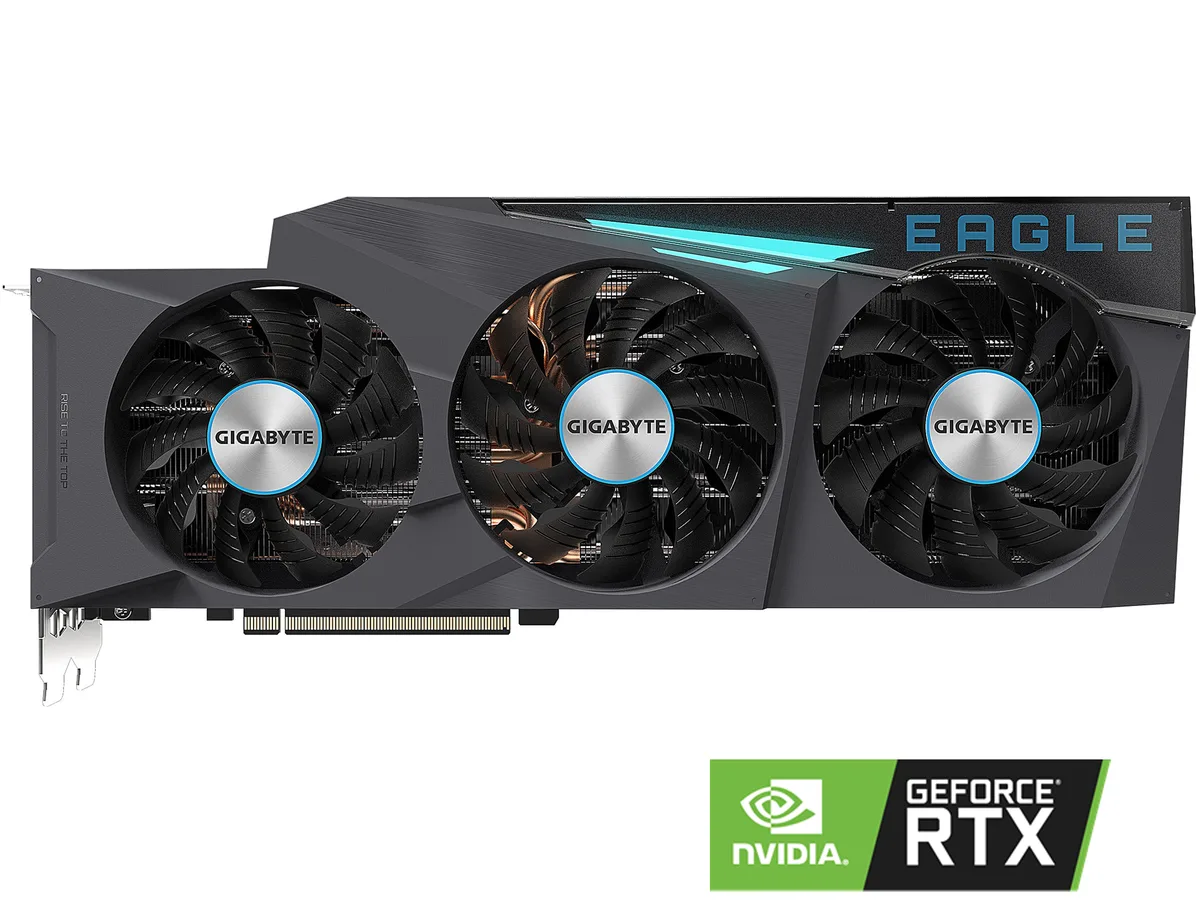

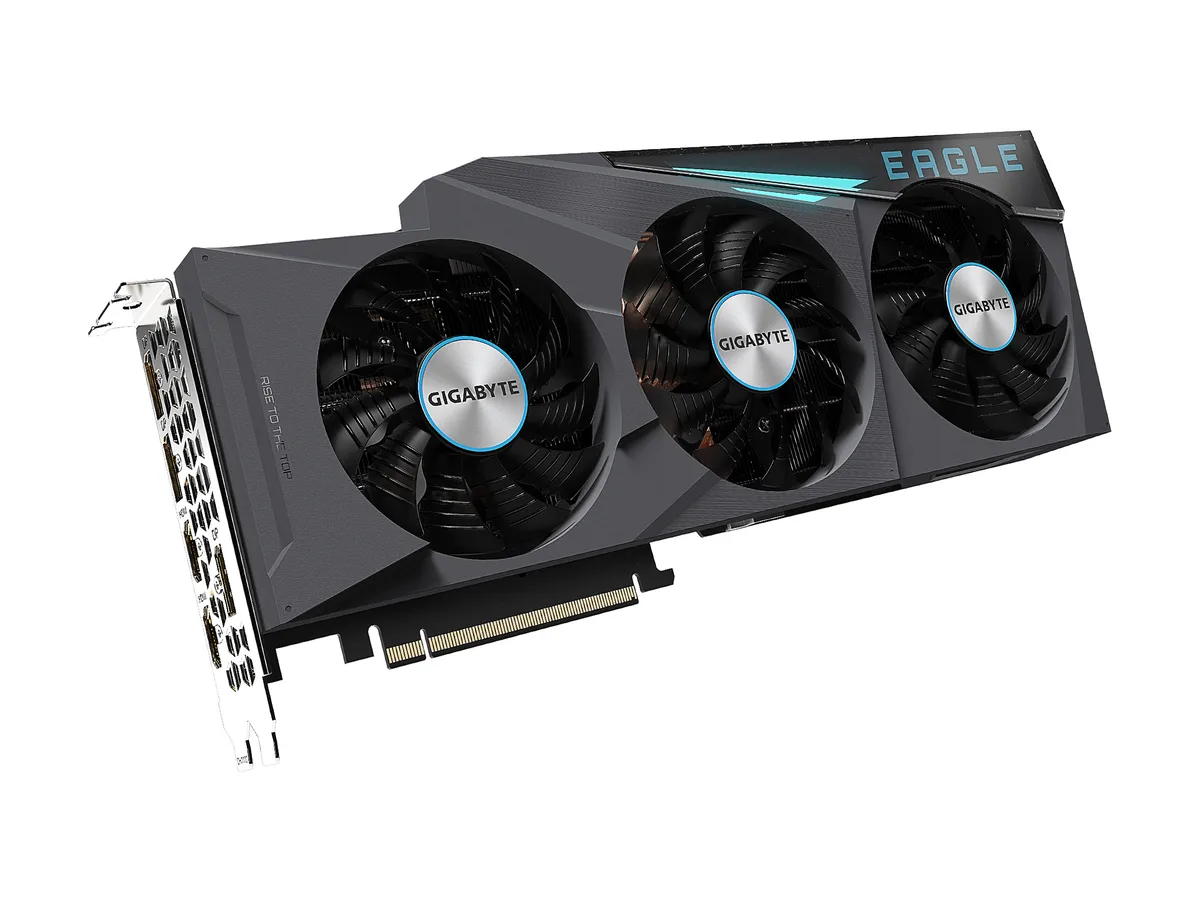

The GIGABYTE GV-N3090EAGLE-24GD is a GeForce RTX 3090 graphics card built for 4K gaming and professional rendering workloads. It carries 24GB of GDDR6X memory on a 384-bit interface with 10496 CUDA cores and a 1695 MHz core clock. The board uses a PCI Express 4.0 interface and draws power through two 8-pin connectors with a 750W PSU recommended.

Upgrading from 10GB or 12GB cards

Moving from a 10GB or 12GB GPU removes the memory ceiling that forces texture streaming compromises at 4K and in large 3D scenes. The 24GB frame buffer lets you hold full-resolution assets in VRAM, which is the practical threshold for stable 7680 x 4320 output at 60 Hz. The jump is worth it when your current card hits VRAM limits before GPU utilisation peaks.

Installation and common issues

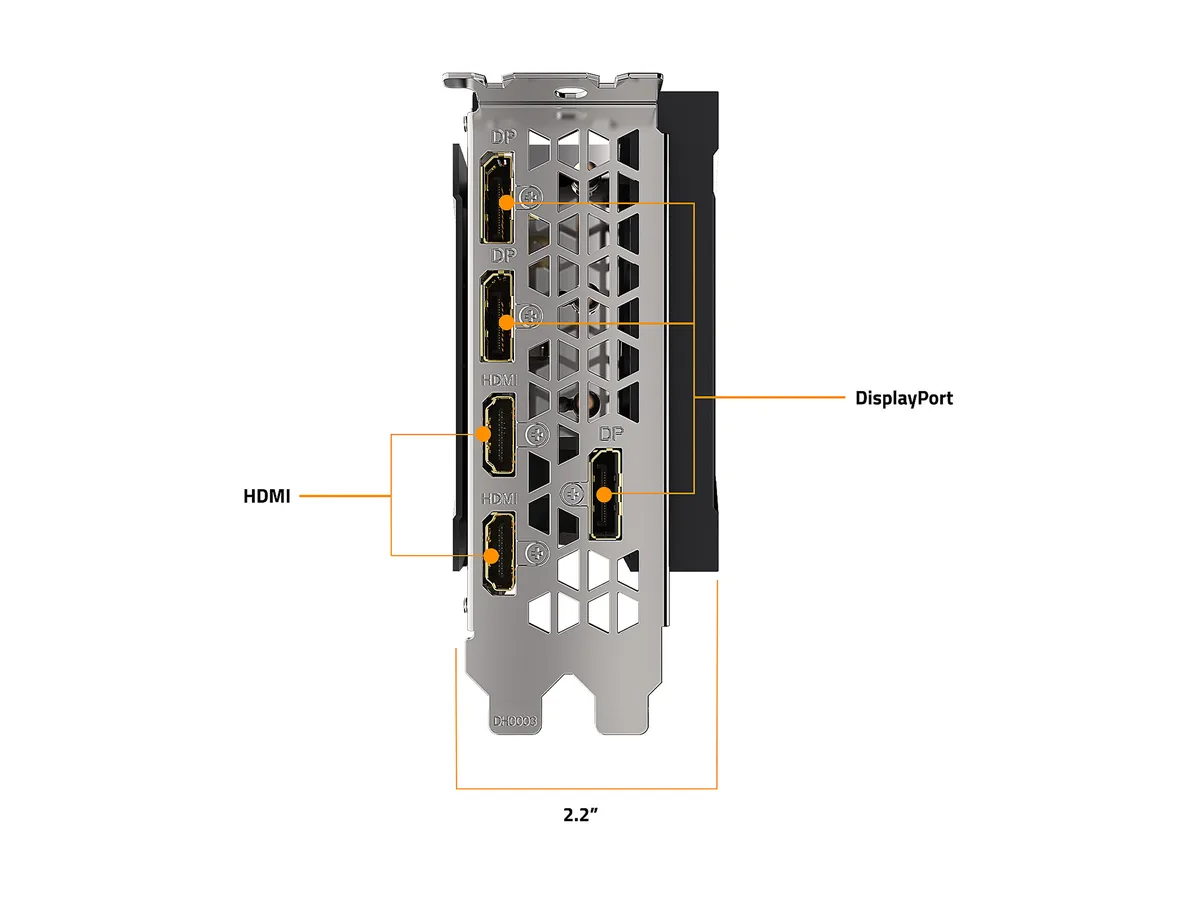

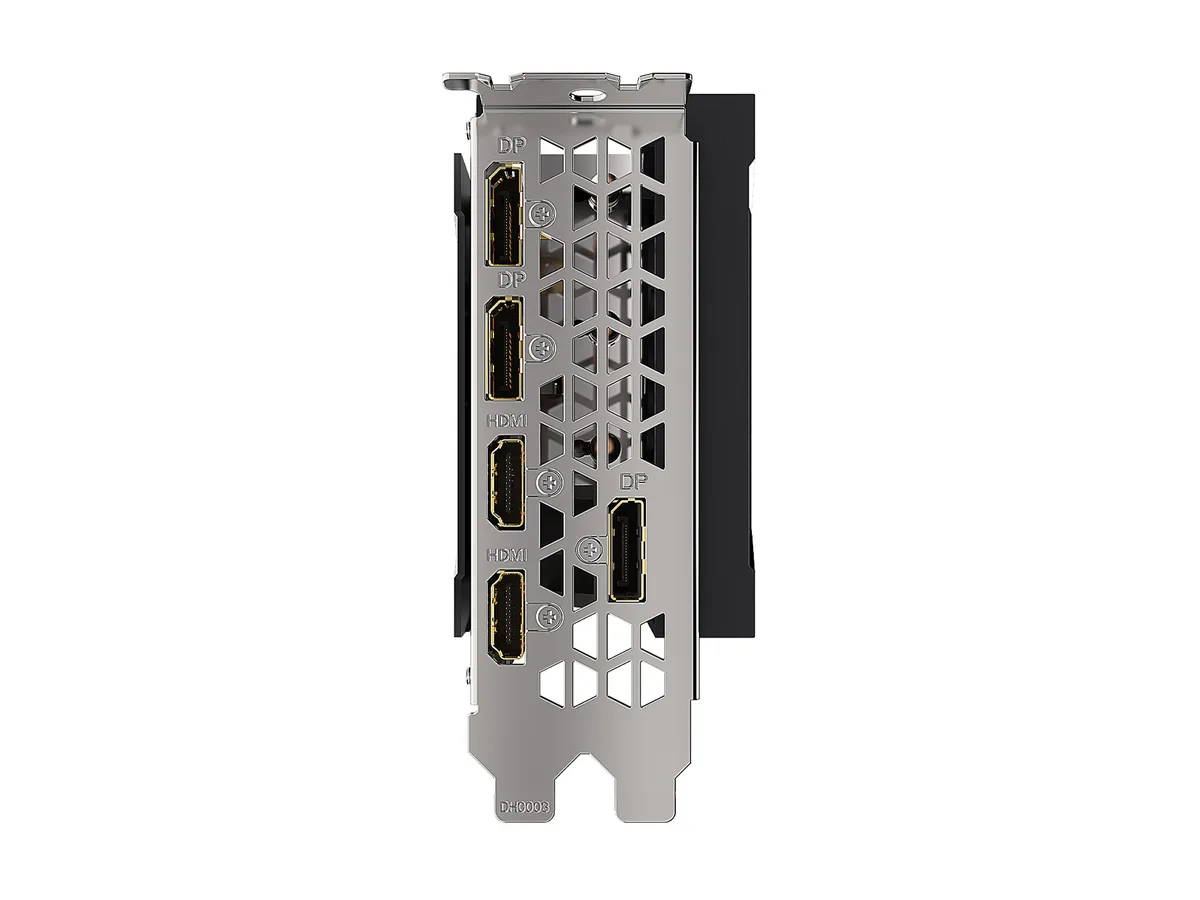

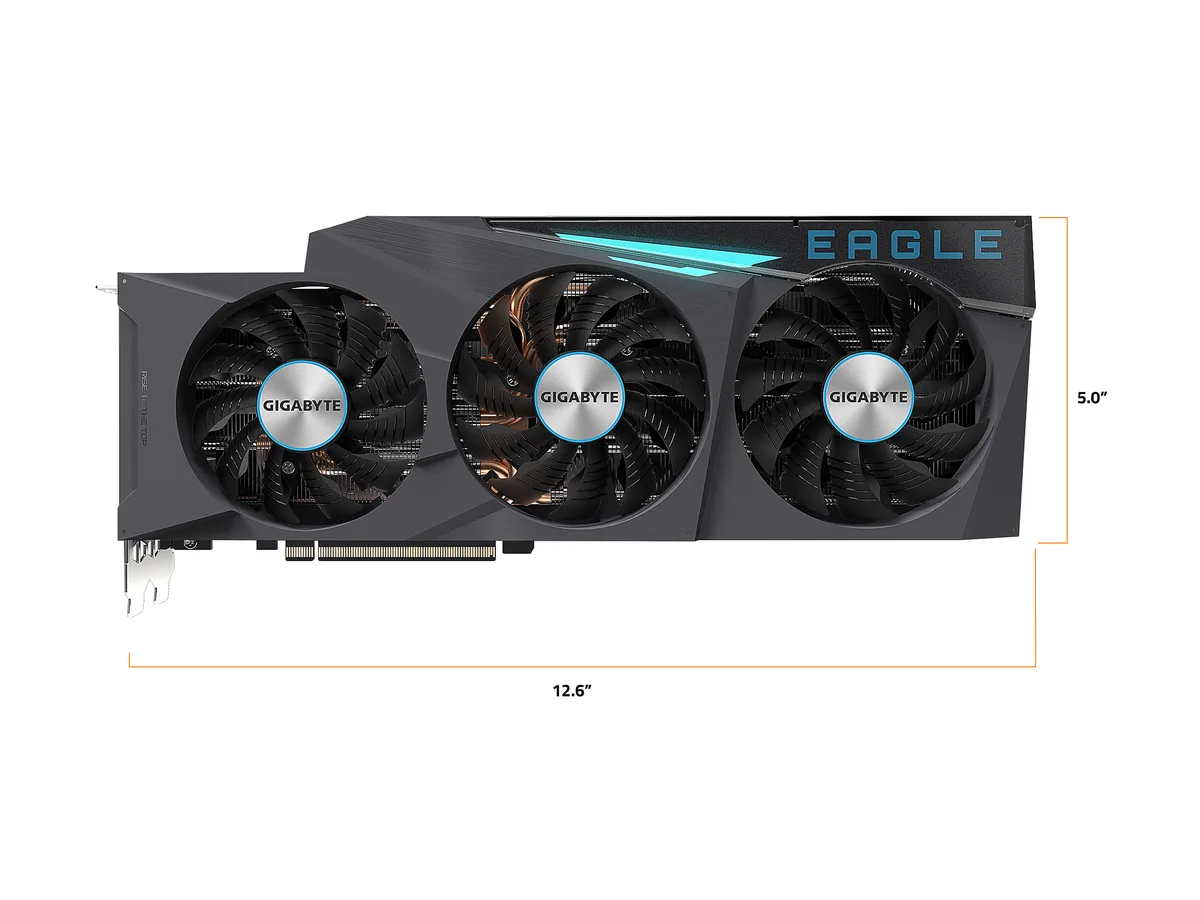

The card measures 320 mm long, occupies 2.7 slots and needs two 8-pin power cables; verify case clearance and PSU cabling before fitting. The WINDFORCE 3X cooler exhausts heat into the chassis, so front-to-rear airflow must be adequate to avoid recirculation. HDMI 2.1 and DisplayPort 1.4a ports support four monitors, but driving 7680 x 4320 requires a certified cable and a display that accepts the full bandwidth.
