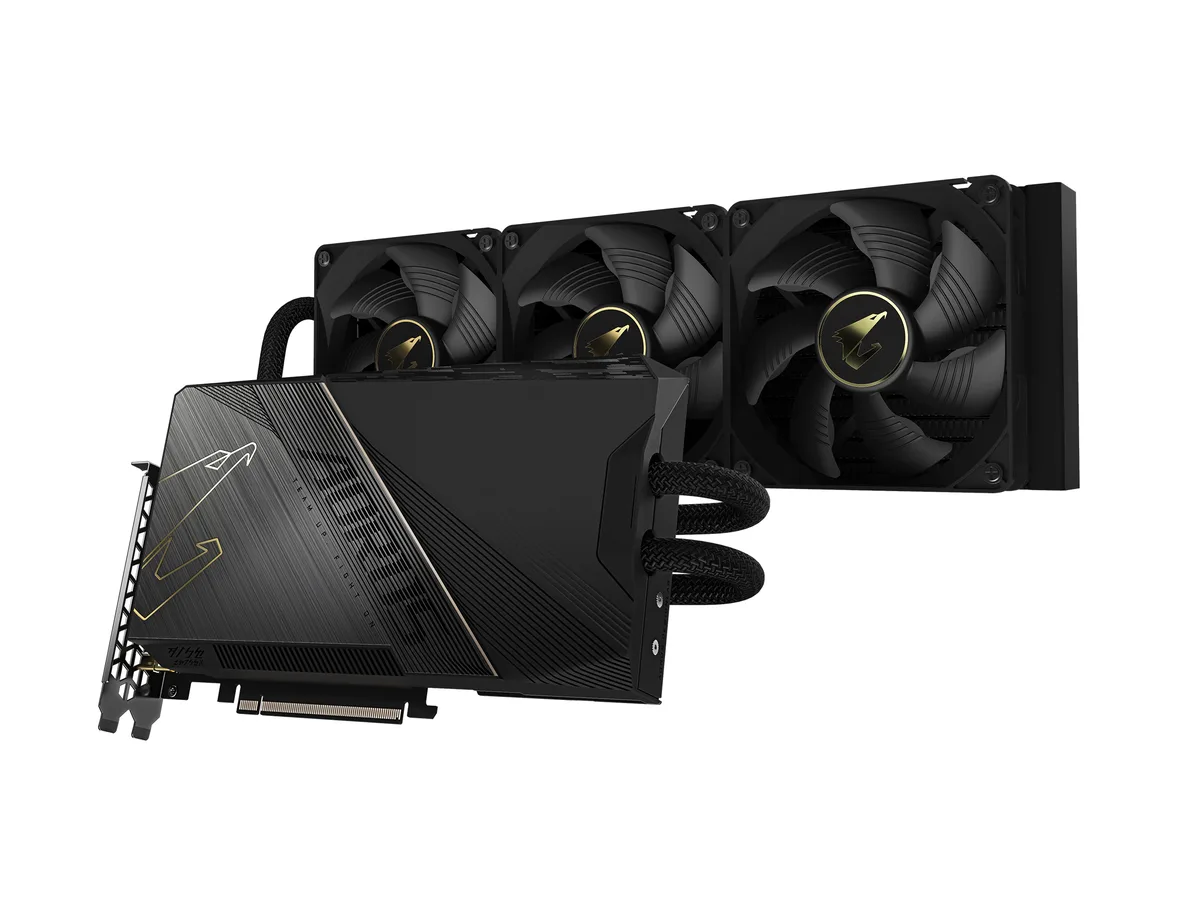

Large triple-fan graphics card with dark metal shroud and backplate, 238mm long

GIGABYTE

GIGABYTE GV-N4090AORUSX W-24GD GeForce RTX 4090 graphics card

SKU CH-FCAR-AJPQJ MPN GV-N4090AORUSX W-24GD

A GeForce RTX 4090 with 24GB GDDR6X, 16384 CUDA cores and a 2565 MHz core clock, cooled by triple fans on a 238 mm ATX board

  • InterfacePCI Express 4.0
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 40 Series
  • GPUGeForce RTX 4090
  • Core Clock2565 MHz
  • CUDA Cores16384
  • 24GB GDDR6X memory handles massive textures and datasets
  • 16384 CUDA cores accelerate rendering and compute workloads
  • 2565 MHz core clock drives high frame rates at 4K
  • Triple-fan cooler manages 450W TDP under sustained load
  • HDMI 2.1 and three DisplayPort 1.4a outputs support four 8K displays

Ready for 4K and AI workloads

This GIGABYTE AORUS GeForce RTX 4090 graphics card delivers 24GB of GDDR6X memory across a 384-bit interface with 16384 CUDA cores. A core clock of 2565 MHz drives high frame rates at 7680 x 4320 resolution. The triple-fan cooler handles a 450W thermal design power. It suits creators and enthusiasts who need maximum GPU memory and compute density.

Check power and space first

Your power supply must provide at least 850W and include a 16-pin connector for this card. The ATX form factor measures 238 mm long, 141 mm tall and 40 mm thick, so verify case clearance for length and height. A PCI Express 4.0 x16 slot is required for full bandwidth. The single HDMI 2.1 and three DisplayPort 1.4a outputs support up to four displays.

Fits high-end builds with headroom

Mount the card in a full-size ATX case with strong airflow to exhaust the 450W heat load. The 16-pin power connector frees traditional 8-pin cables for other components. DirectX 12 Ultimate and OpenGL 4.6 support ensure compatibility with modern APIs. The 24GB frame buffer removes VRAM bottlenecks in large textures, 3D rendering and AI inference workloads.

Highlights

  • 24GB GDDR6X memory handles massive textures and datasets
  • 16384 CUDA cores accelerate rendering and compute workloads
  • 2565 MHz core clock drives high frame rates at 4K
  • Triple-fan cooler manages 450W TDP under sustained load
  • HDMI 2.1 and three DisplayPort 1.4a outputs support four 8K displays

Specifications

BrandGIGABYTE
SeriesAORUS
ModelGV-N4090AORUSX W-24GD
InterfacePCI Express 4.0
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 40 Series
GPUGeForce RTX 4090
Core Clock2565 MHz
CUDA Cores16384
Memory Size24GB
Memory Interface384-Bit
Memory TypeGDDR6X
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1
DisplayPort3 x DisplayPort 1.4a
Max Resolution7680 x 4320
CoolerTriple Fans
Thermal Design Power450W
Recommended PSU Wattage850W
Power Connector1 x 16-Pin
Form FactorATX
Max GPU Length238 mm
Card Dimensions (L x H)238 x 141 x 40mm
Shipping weight3.30 kg
Package size443 × 274 × 165 mm

Questions about this item

Does the GV-N4090AORUSX W-24GD come with the 16-pin power adapter or must I buy it separately?

The card uses a single 16-pin power connector; the required adapter is included in the box.

Why choose the 24GB GDDR6X version over a lower-capacity RTX 4090?

All GeForce RTX 4090 GPUs ship with 24GB on a 384-bit bus, so there is no lower-capacity alternative to select.

Will the 2565 MHz core clock hold under load with the 450 W TDP?

The triple-fan cooler is rated for the 450 W thermal design power, and an 850 W PSU is recommended to sustain the boost clock.
