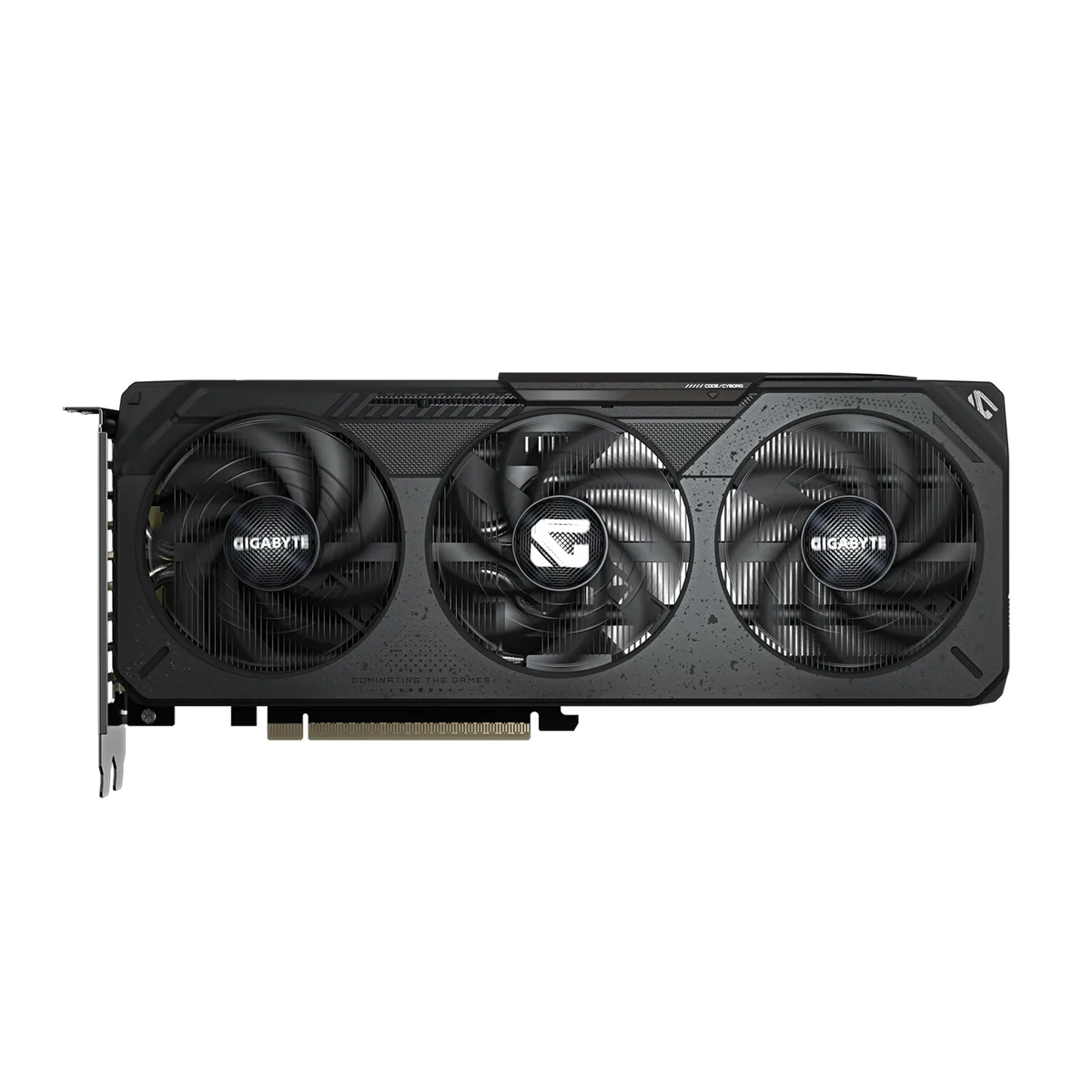

Black triple-fan graphics card with silver accents and WINDFORCE branding

GIGABYTE

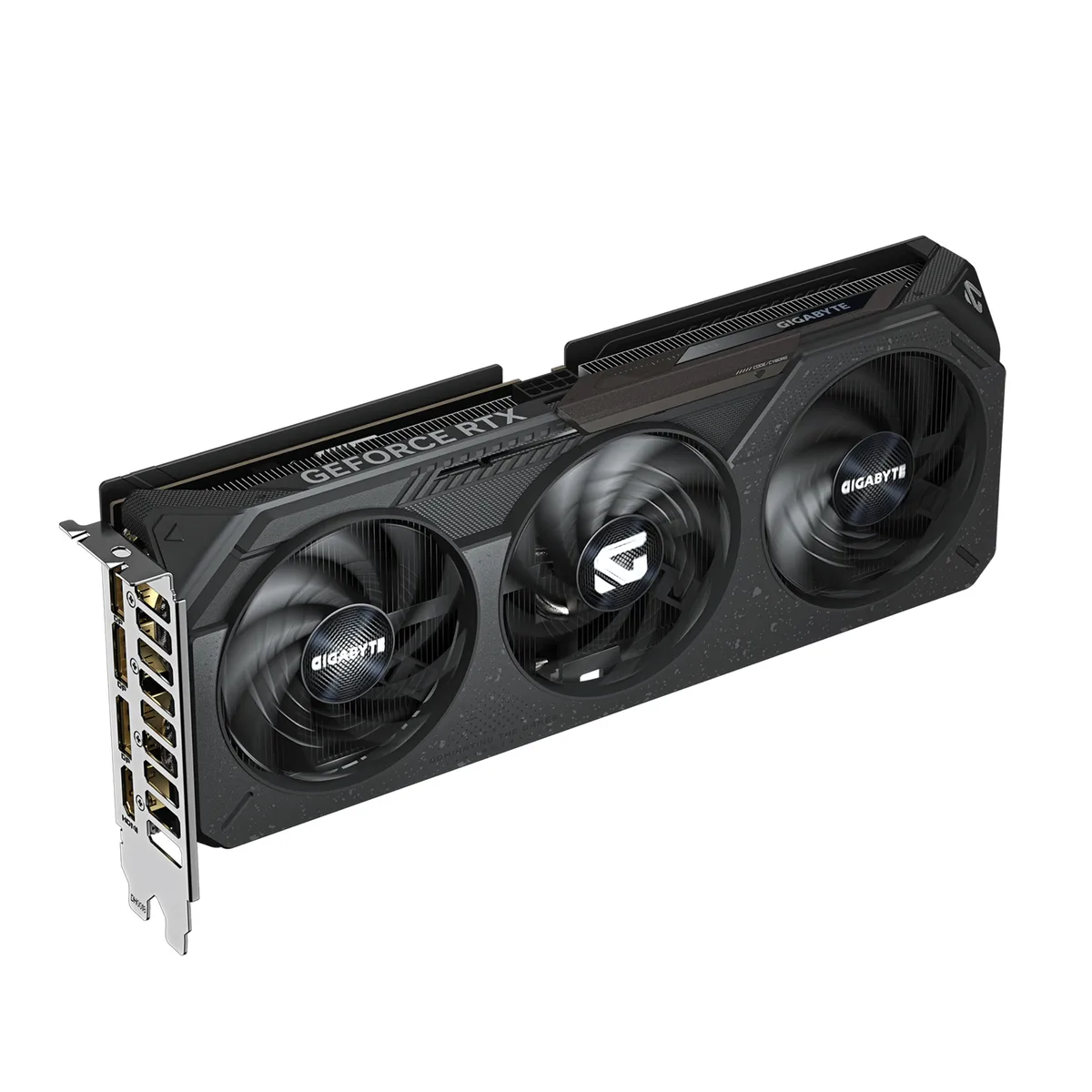

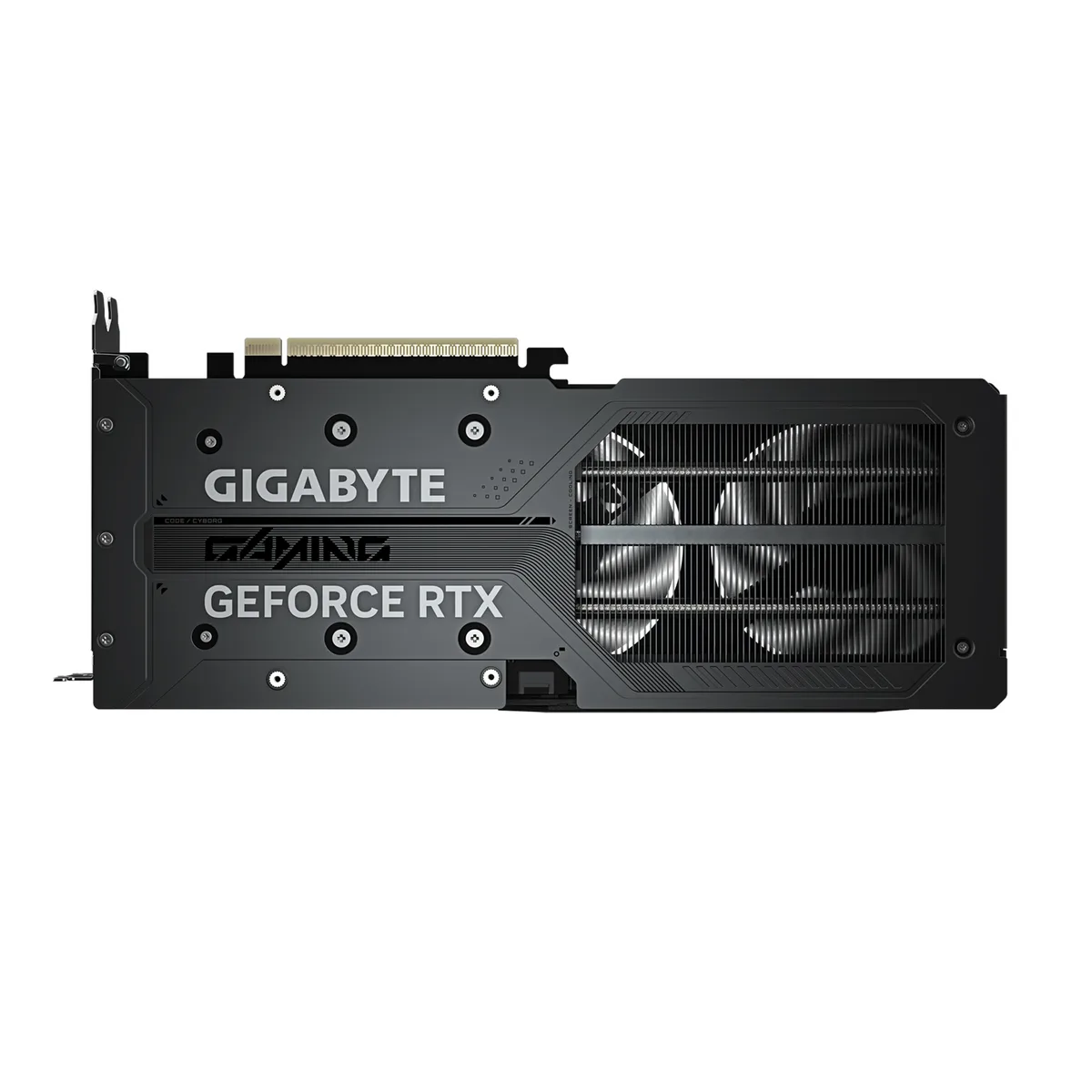

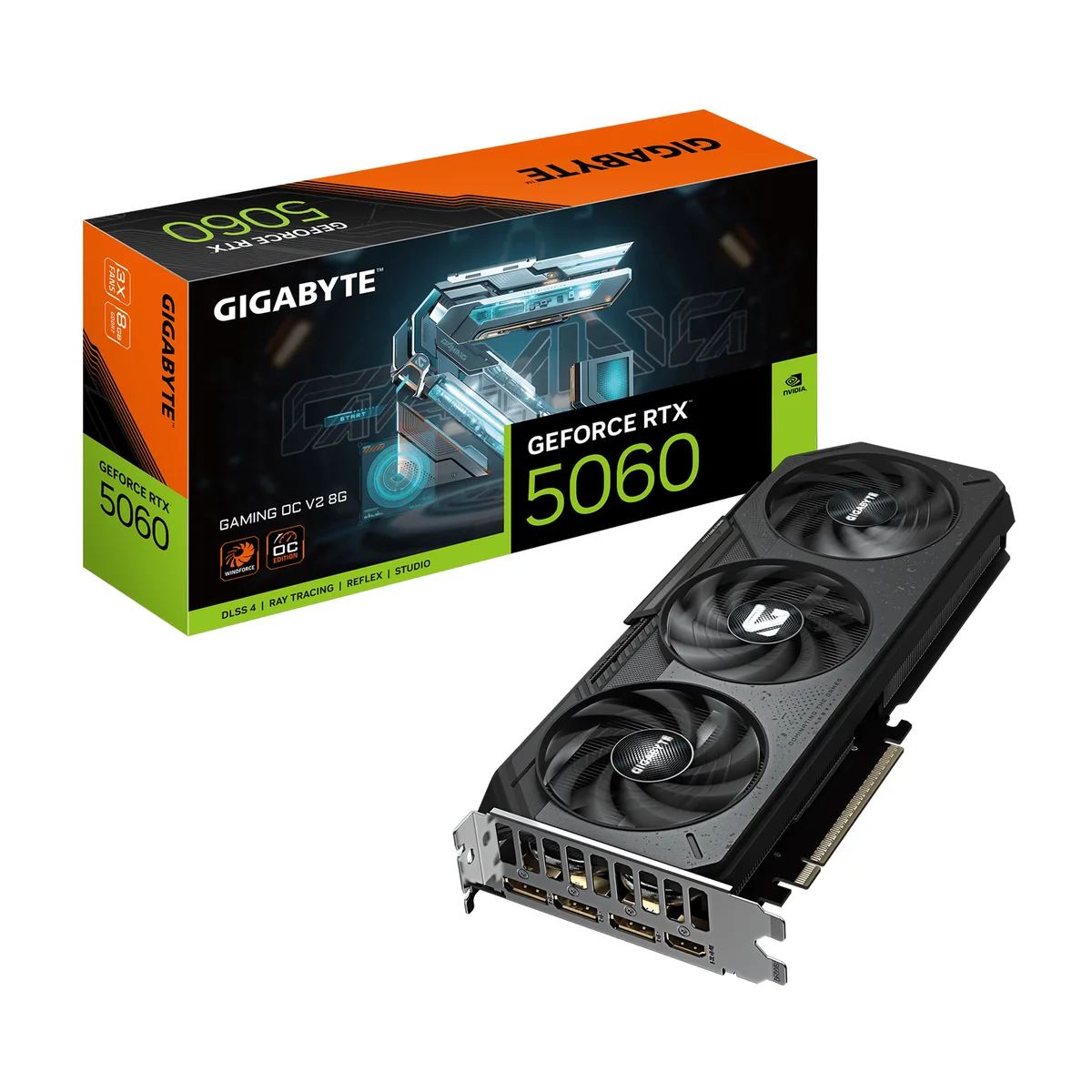

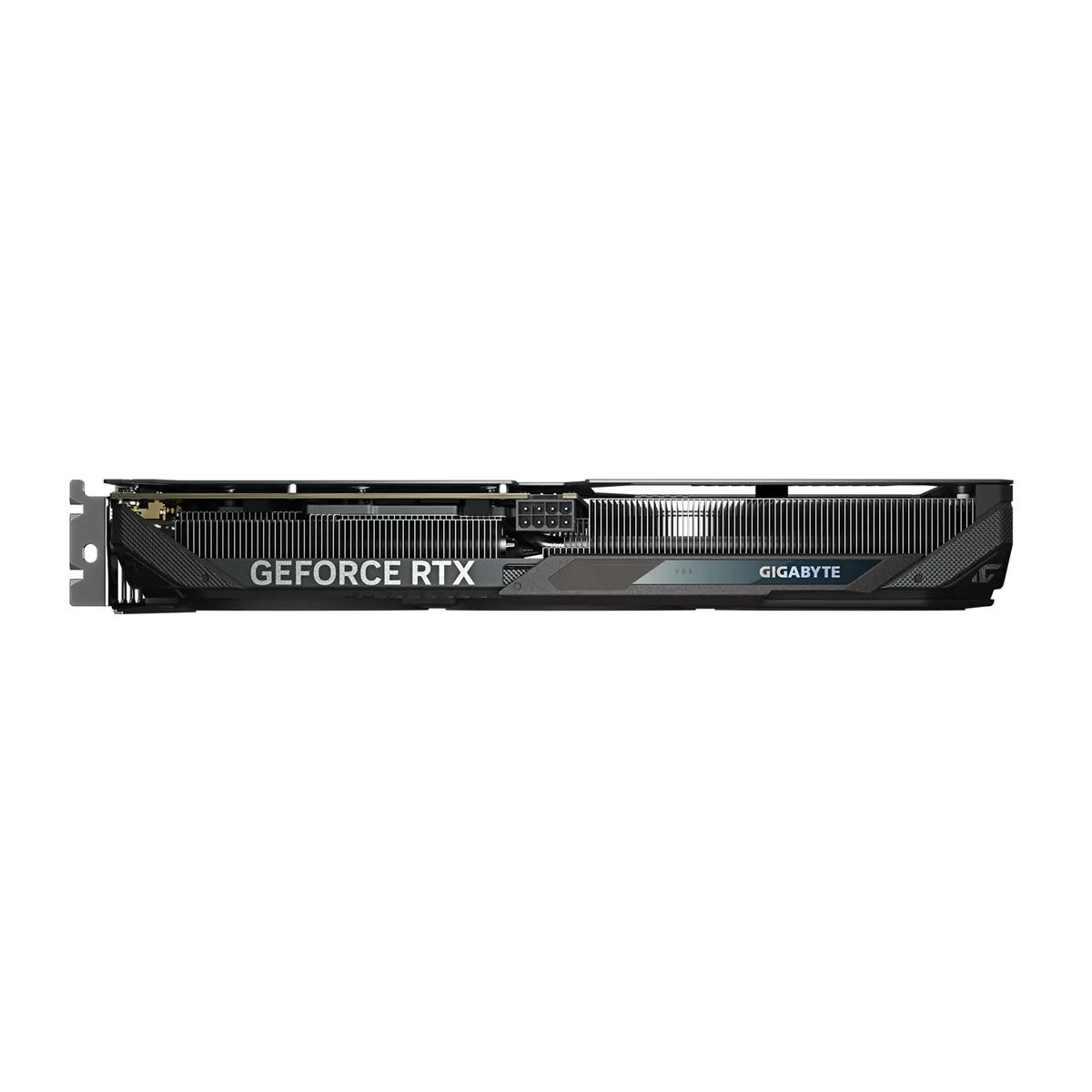

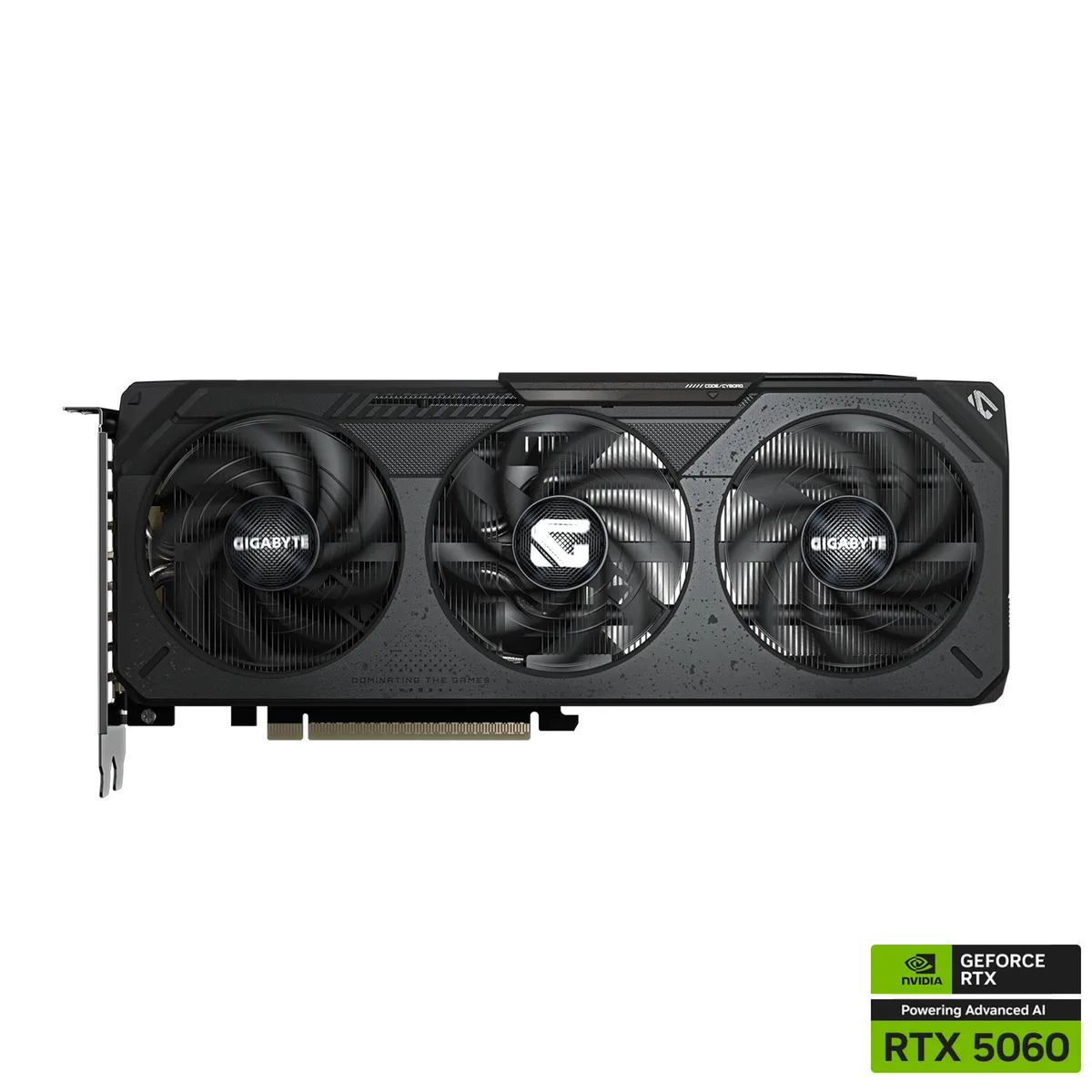

GIGABYTE GV-N5060GAMING OCV2-8GD GeForce RTX 5060 graphics card

SKU CH-EGVJ-TNHH8 MPN GV-N5060GAMING OCV2-8GD

GeForce RTX 5060 graphics card with 8GB GDDR7 on a 128-bit bus, 2602 MHz core clock and WINDFORCE cooling

  • InterfacePCI Express 5.0 x8
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5060
  • Core Clock2602 MHz (Reference card: 2497 MHz)
  • CUDA Cores3840
  • Blackwell architecture with DLSS 4.5 accelerates AI rendering
  • Factory overclock to 2602 MHz boosts core speed over 2497 MHz reference
  • 8 GB GDDR7 memory at 28 Gbps on a 128-bit bus
  • WINDFORCE cooling with Hawk fan and server-grade thermal gel
  • PCIe 5.0 x8 interface plus HDMI 2.1b and three DisplayPort 2.1b outputs

GeForce RTX 5060 Gaming OC V2

This GIGABYTE graphics card uses the NVIDIA Blackwell architecture and the GeForce RTX 5060 GPU. It targets gamers and creators who want 8GB GDDR7 memory on a 128-bit interface. The factory overclock raises the core clock to 2602 MHz against a 2497 MHz reference. It occupies a PCI Express 5.0 x8 slot and supports DirectX 12 Ultimate and OpenGL 4.6.

Check power and display connections

Your power supply must deliver enough wattage and the correct PCIe power connectors for this card. Verify the motherboard has a free PCI Express 5.0 x8 slot and that the chassis length clearance fits a dual-slot design. The rear bracket provides one HDMI 2.1b port and three DisplayPort 2.1b outputs for up to four monitors.

WINDFORCE cooling and reinforced build

The WINDFORCE system uses Hawk fans and server-grade thermal conductive gel to move heat away from the GPU. A reinforced structure adds rigidity and protects the PCB during transport and installation. The 28 Gbps effective memory clock and 3840 CUDA cores free up CPU cycles for AI workloads, ray tracing and DLSS 4.5 multi frame generation.

Highlights

  • Blackwell architecture with DLSS 4.5 accelerates AI rendering
  • Factory overclock to 2602 MHz boosts core speed over 2497 MHz reference
  • 8 GB GDDR7 memory at 28 Gbps on a 128-bit bus
  • WINDFORCE cooling with Hawk fan and server-grade thermal gel
  • PCIe 5.0 x8 interface plus HDMI 2.1b and three DisplayPort 2.1b outputs

Specifications

BrandGIGABYTE
SeriesGaming
ModelGV-N5060GAMING OCV2-8GD
Part NumberGV-N5060GAMING OCV2-8GD
InterfacePCI Express 5.0 x8
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5060
Core Clock2602 MHz (Reference card: 2497 MHz)
CUDA Cores3840
Effective Memory Clock28 Gbps
Memory Size8GB
Memory Interface128-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorBlack
Max Resolution7680 x 4320
SLI SupportNo
CoolerTriple Fans
Thermal Design Power145W
Recommended PSU Wattage550W
Power Connector8-Pin
HDCP ReadyYes
Form FactorATX
Max GPU Length281 mm
Card Dimensions (L x H)281 x 119 x 40 mm
Package ContentsQuick guide
Shipping weight1.04 kg
Package size361 × 191 × 81 mm

Questions about this item

What comes in the box with the GV-N5060GAMING OCV2-8GD and do I need to buy power cables separately?

The card includes the GPU with its WINDFORCE cooler and Hawk fan. Your power supply must provide the required PCIe connectors; no cables are bundled with the card.

Should I choose the 8 GB GDDR7 version or is there a larger memory option for this model?

This model is offered only with 8 GB of GDDR7 memory on a 128-bit interface. No higher-capacity variant exists for the GV-N5060GAMING OCV2-8GD.

What does the 2602 MHz core clock mean for actual game performance with DLSS 4.5?

The factory overclock raises the boost clock to 2602 MHz, giving higher frame rates before DLSS 4.5 applies Multi Frame Generation for further gains.
